ICON Vehicle Dynamics

ICON 2025-2026 Toyota 4Runner 4WD, 1.25-3" Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDXS

ICON 2025-2026 Toyota 4Runner 4WD, 1.25-3" Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDXS

PART #

$2,489.95
$2,489.95
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

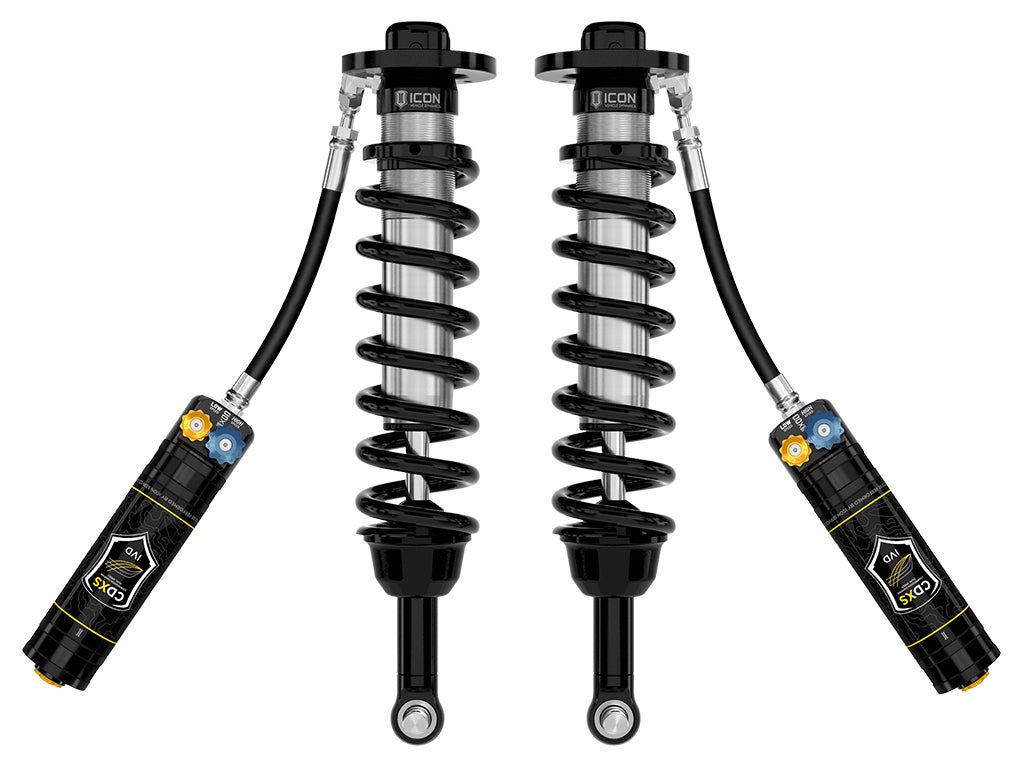

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDXS front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with 2.5 Aluminum Series CDXS rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Features

  • Fully rebuildable and re-tunable

Brand Overview

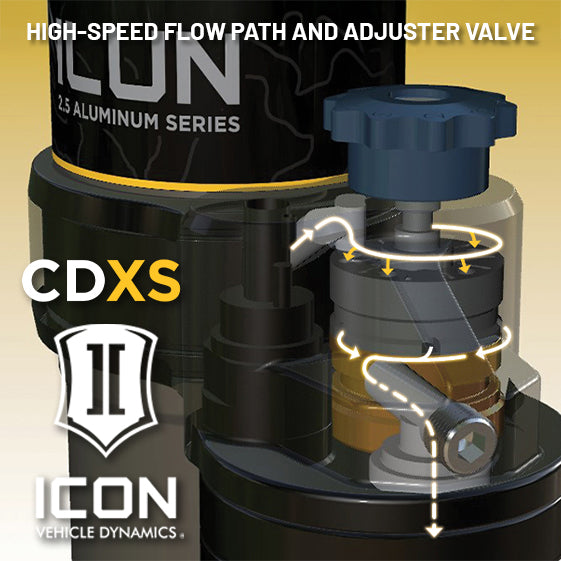

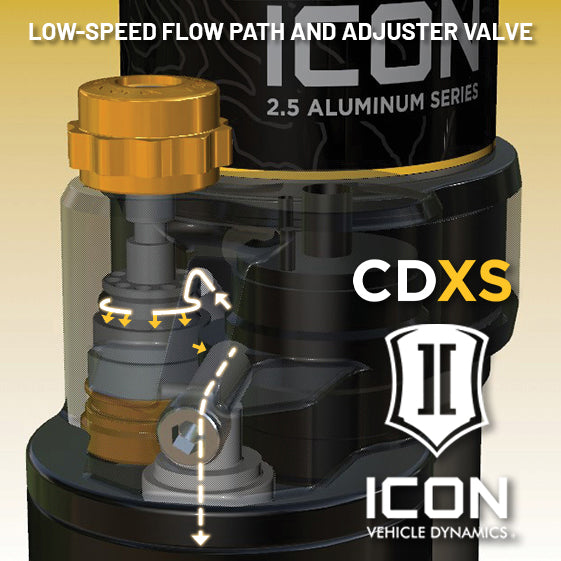

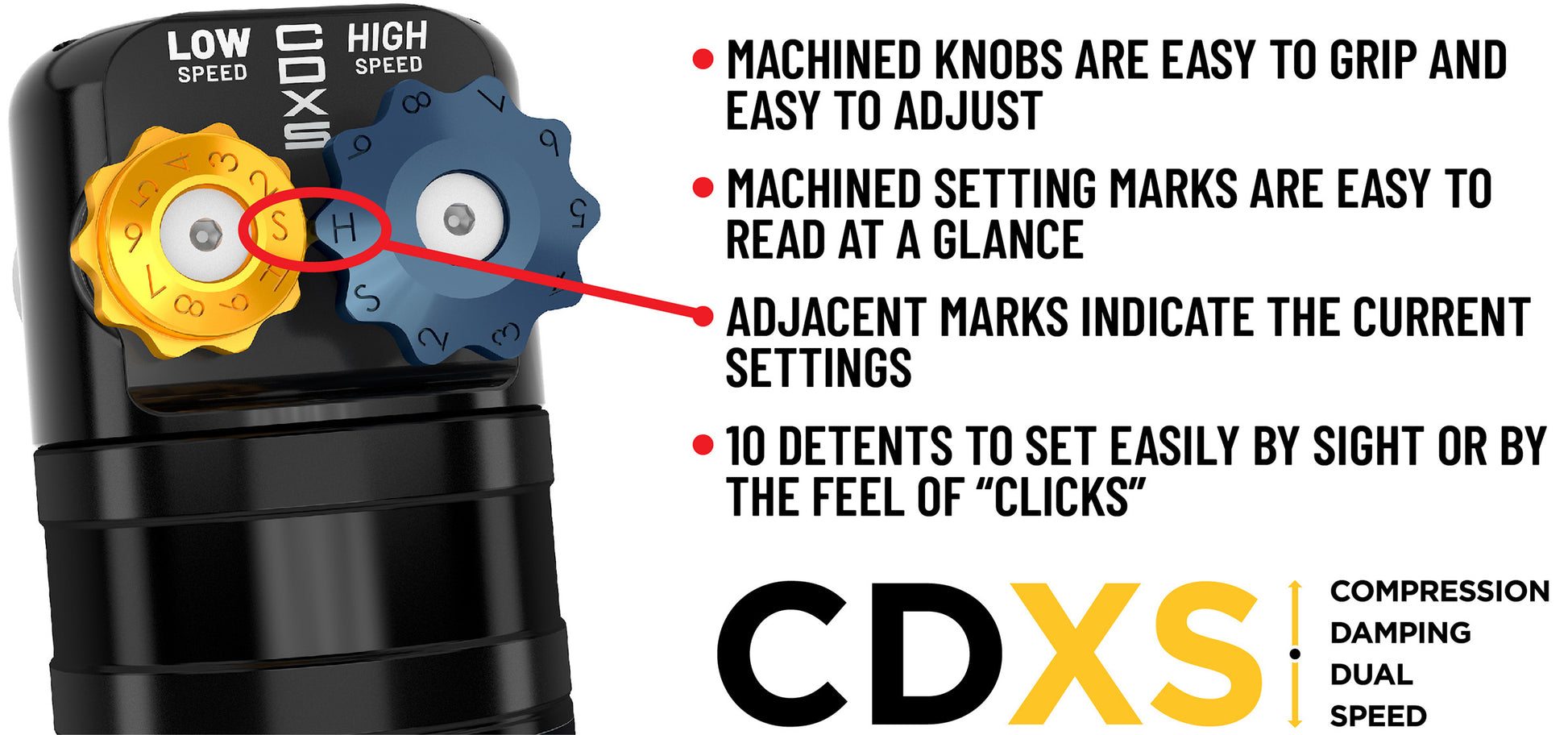

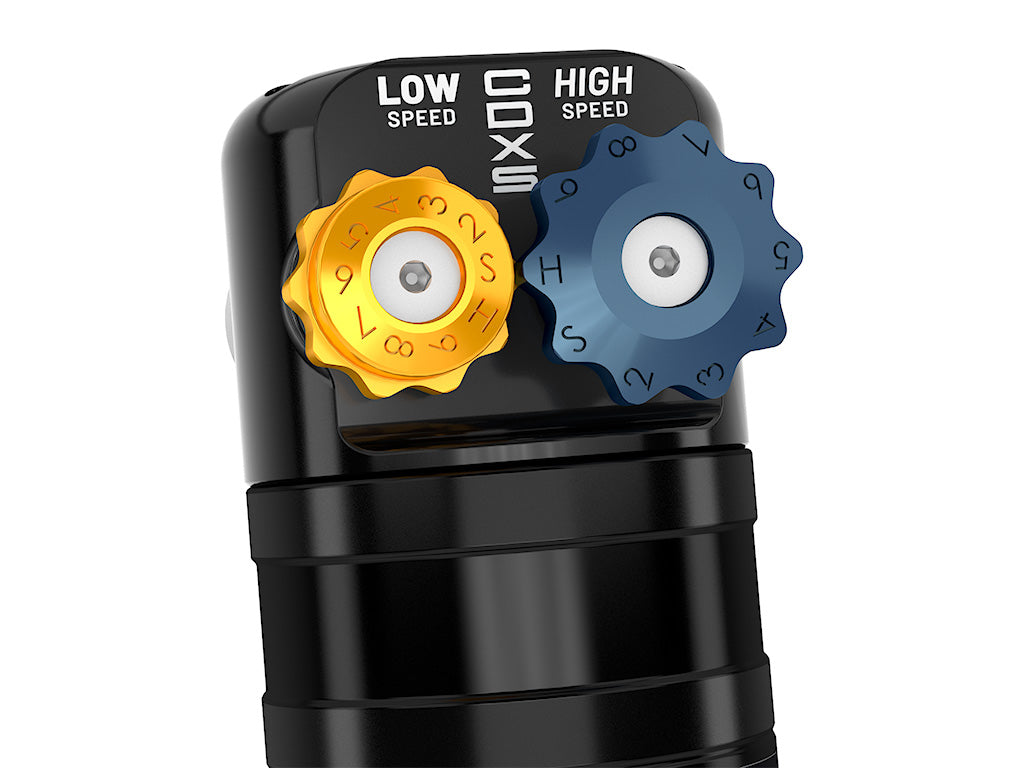

The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension, delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. High and low-speed settings are clearly marked on easy-to-grip knobs, making adjustments simple and intuitive. If the knobs are not visible in their mounted position, settings can be adjusted by counting clicks—turning the knob fully counterclockwise to the stop, then count up to the desired setting. Each knob offers 360° operating range with 10 detents and hard stops at both ends.
