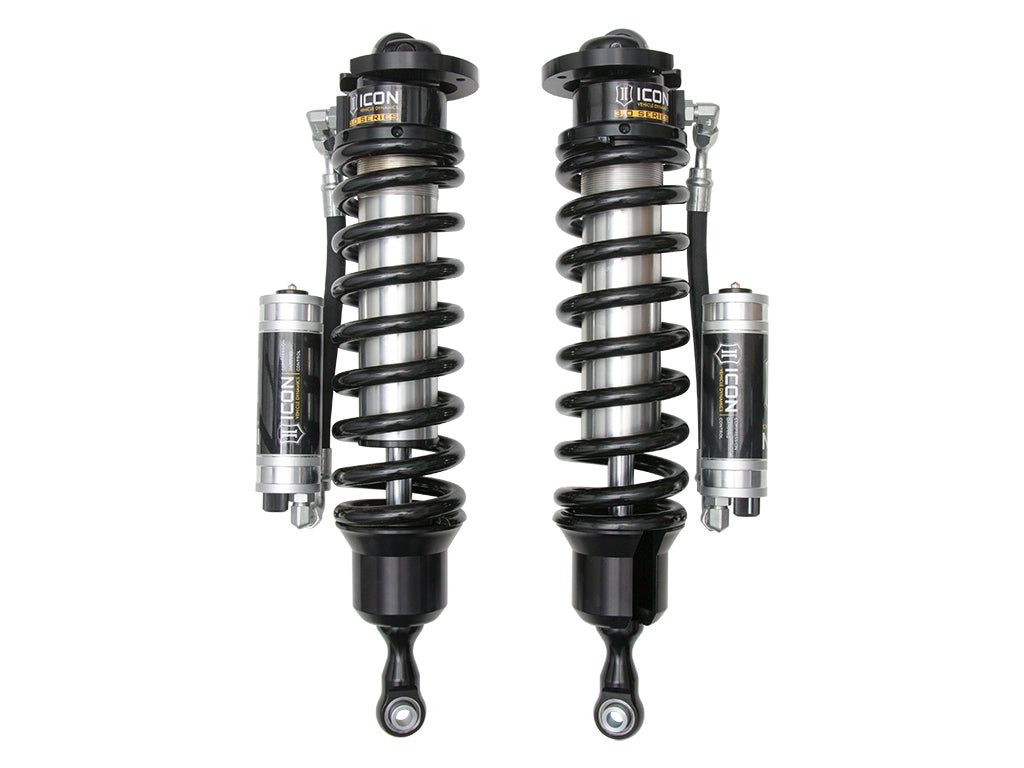

ICON 2008-Up Toyota Land Cruiser, 3.0 VS RR/CDCV Coilover Kit
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Recommended Aftermarket Tires: 34 x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 58765 |
| UPC / GTIN | 840103404585 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 3 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.63 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Ceramic Coated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 24.79 IN |
| Front Spring Rate | 600 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 2.25 IN |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 1 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 6.17 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Compression: Linear, Rebound: Digressive |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Significant increase in damping ability for excellent performance in extreme off-road conditions
- Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
- Adjustable coilovers provide 2.25-3.5” of front lift height
- Direct bolt-in to OEM shock location makes for an easy install
- ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
- High quality ICON-engineered Eibach springs offer increased travel and performance
- PTFE lined COM12 spherical bearings ensure maximum strength and durability
- Heavy duty 1” CNC machined shock shafts

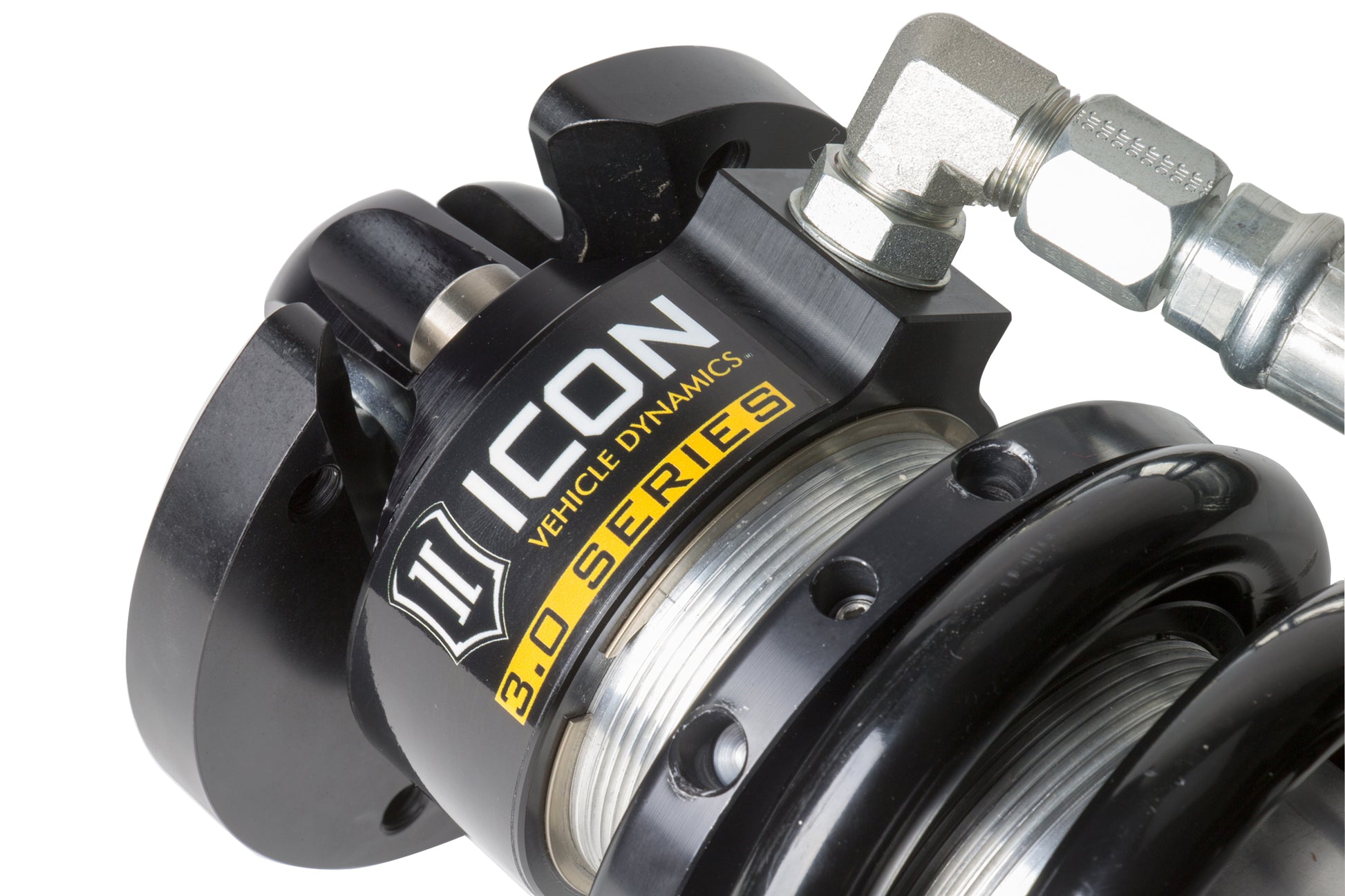

- Multi stage CAD plated shock body with hard anodized piston and top cap
- Fully serviceable
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8-8.5" Wide, 5.75" Backspace
- Recommended Aftermarket Tires: 34 x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

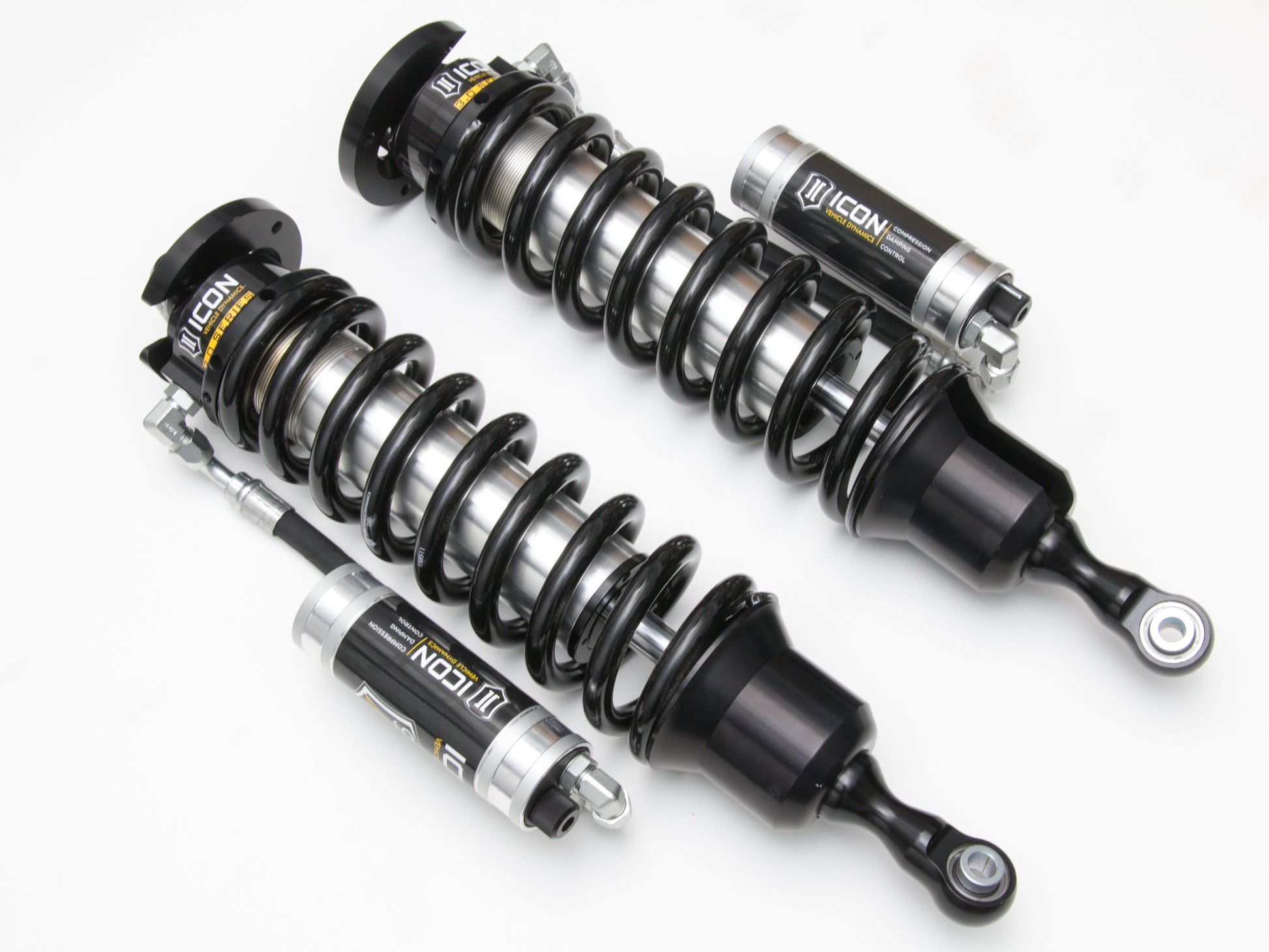

While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few Land Cruiser owners seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2008-UP Land Cruiser 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.
Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 2.25-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
