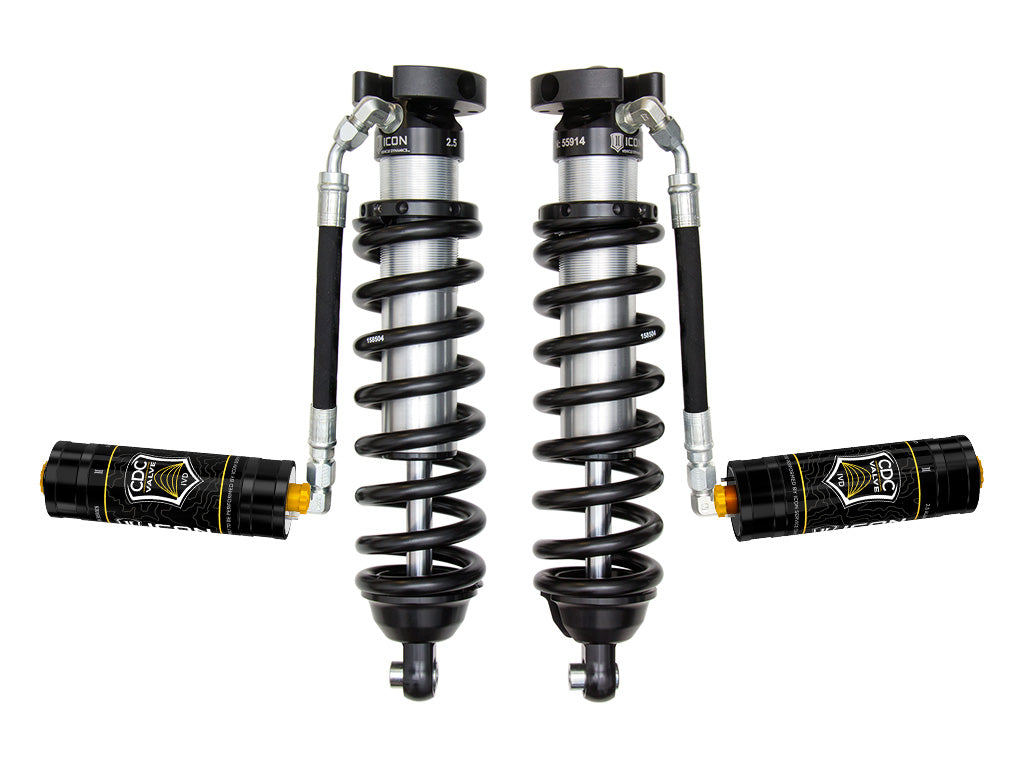

ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDCV, 700 lbs/in Spring Rate

ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDCV, 700 lbs/in Spring Rate

PART #

Regular price $2,412.75
Regular price B2B price $2,412.75
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Will this fit your truck? Select your truck to check fit, or ask a fitment specialist.Read the important notes before ordering
Stock and ship time: call or live chat for the latest.
  • Free shippingmost orders $500+
  • 30-day returnssee policy
  • Warranty helpwe work claims for you
Not sure it fits? Ask a fitment specialist. Real people, U.S.-based
View full details

Important notes before you order

  1. TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

Specifications

BrandICON Vehicle Dynamics
Part number58715C-700
Active or Passive SuspensionPassive
Add-On Part191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable CompressionYes
Adjustable DampingYes
Adjustable ReboundNo
Adjustable Ride HeightYes
AssembledYes
Body Diameter2.5 IN
Coil Over Springs IncludedYes
Compressed Length14.5 IN
Cylinder ColorSilver
Cylinder FinishCadmium Plated
Cylinder MaterialSteel
Damping Adjustment TypeManual
Damping TypeOil
Dust Shield IncludedNo
Extended Length19.85 IN
Front Spring Rate700 PPI
Gas Chargedyes
Grade TypePerformance
Includes Bump StopNo
Internal Construction TypeSingle Tube
Lower Mount TypeEyelet
MaterialAluminum
Maximum Lift3 IN
Maximum Ride Height Raising Distance3 IN
Minimum Lift0 IN
OEM Wheels & Tires FitmentYes
Recommended Aftermarket WheelsICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote ReservoirYes
Reservoir StyleRemote
Self-LevelingNo
Service Parts611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter0.875 IN
Shock Absorber Body End Measuring PointTop of Upper Mount Plate
Shock Absorber Rod End Measuring PointCENTER OF EYELET
Spring ColorBlack
Spring MaterialSteel
Spring Rate TypeLinear
Travel Length5.36 IN
Upper Mount TypeMounting Plate
Valving TypeDigressive

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • 100% Bolt-on - no cutting or welding necessary for installation

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

    ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
