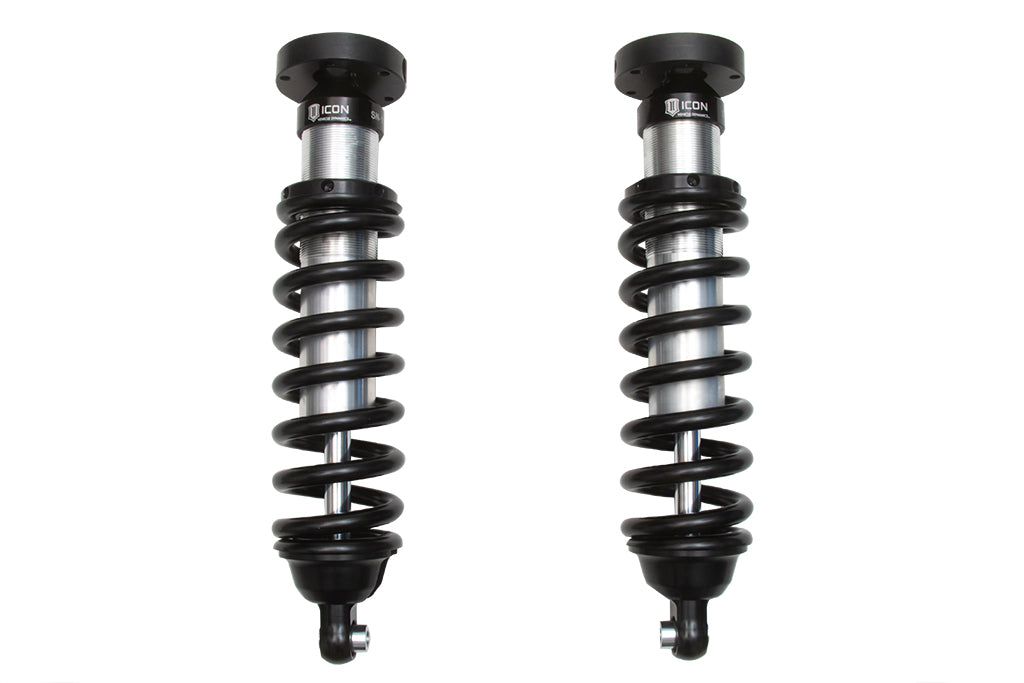

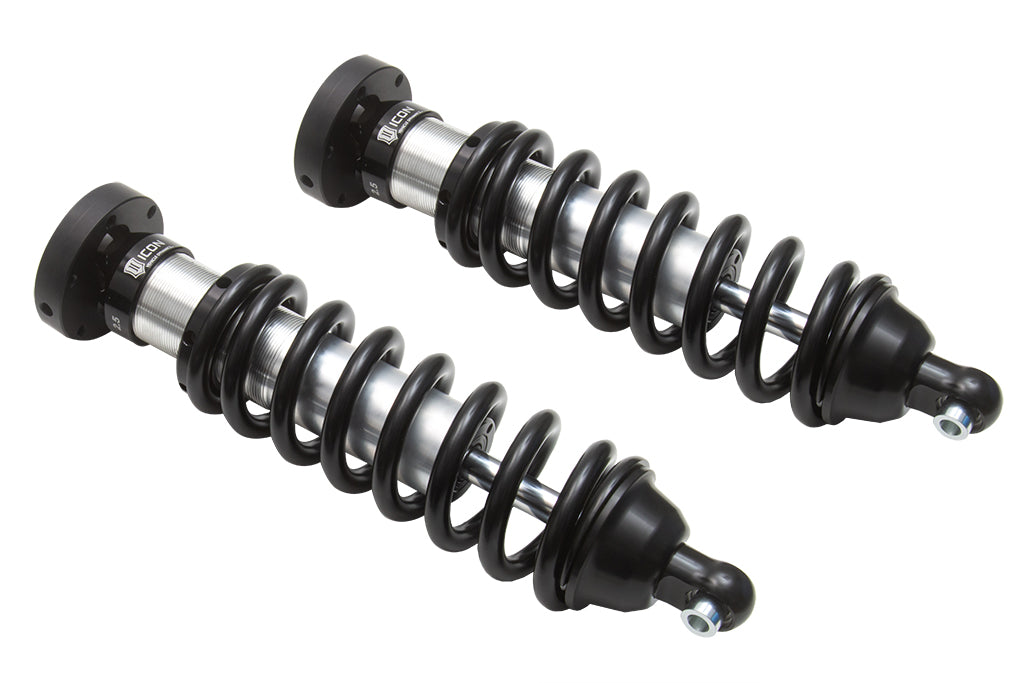

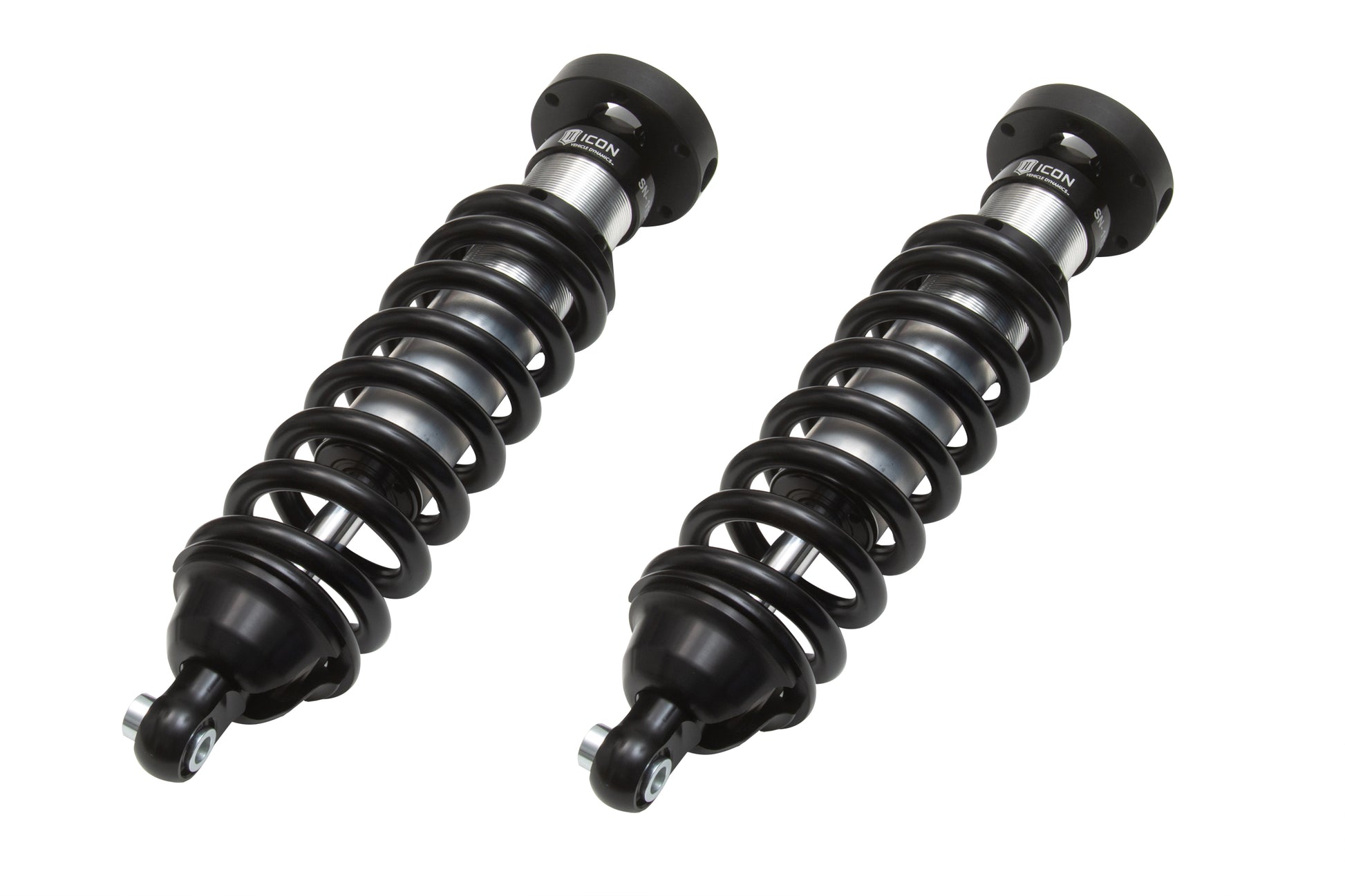

ICON 2000-2006 Toyota Tundra/2001-2007 Toyota Sequoia, V.S. 2.5 Series Coilover Kit, Internal Reservoir
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
- TECH NOTE: These "Standard Travel" length coilovers are optimized for use with stock front upper control arms. If using aftermarket front upper control arms with high angle ball joints, consider "Extended travel" versions, ICON part number 58625.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 58620 |
| UPC / GTIN | 840103403816 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.51 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 19.46 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 2.5 IN |
| Minimum Lift | 0 IN |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 4.96 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Country of Origin | US |
| Warranty | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length and pairing with stock front upper control arms yield increased wheel travel
- Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
- 2.5" diameter shock bodies with internal reservoirs for consistent performance
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
