ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear, Billet Upper Link Kit

Name: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear, Billet Upper Link Kit
Brand: ICON Vehicle Dynamics
SKU: 54102
Price: 1122.65 USD
Availability: InStock

PART #

$1,122.65

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including important notes and fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

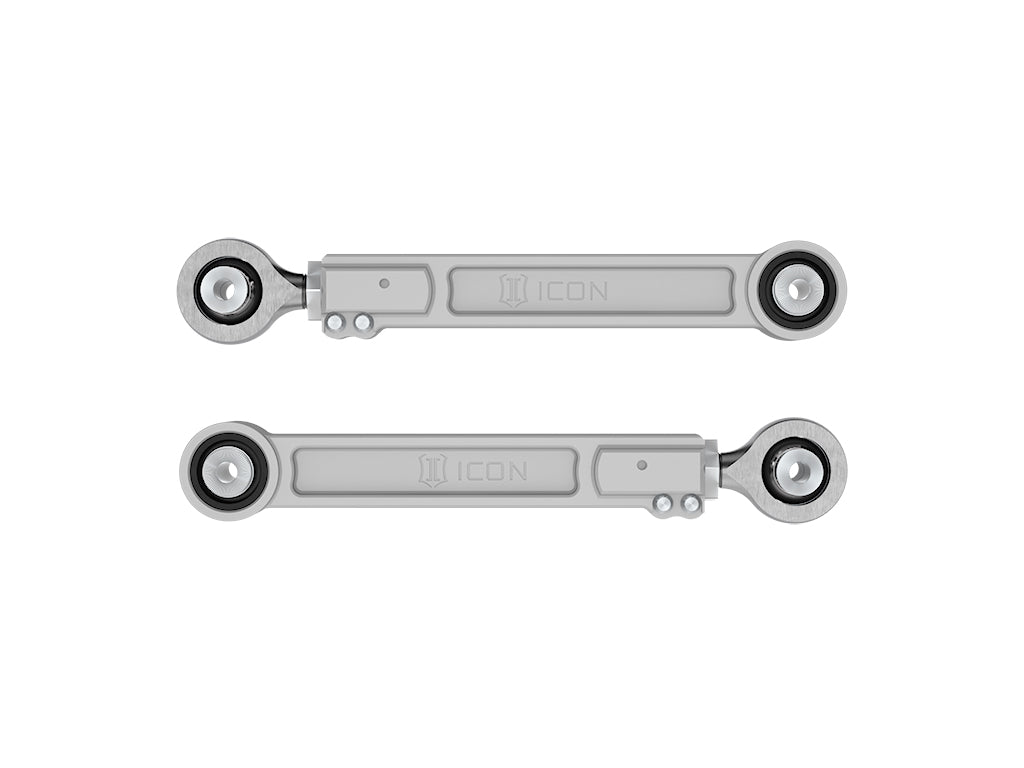

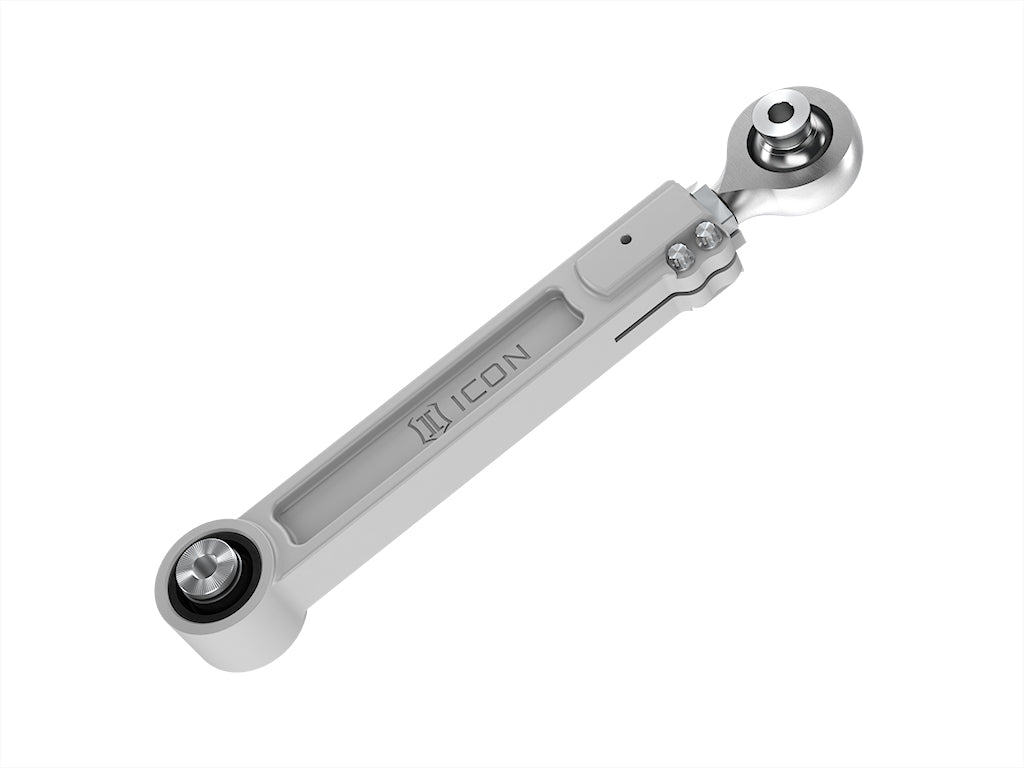

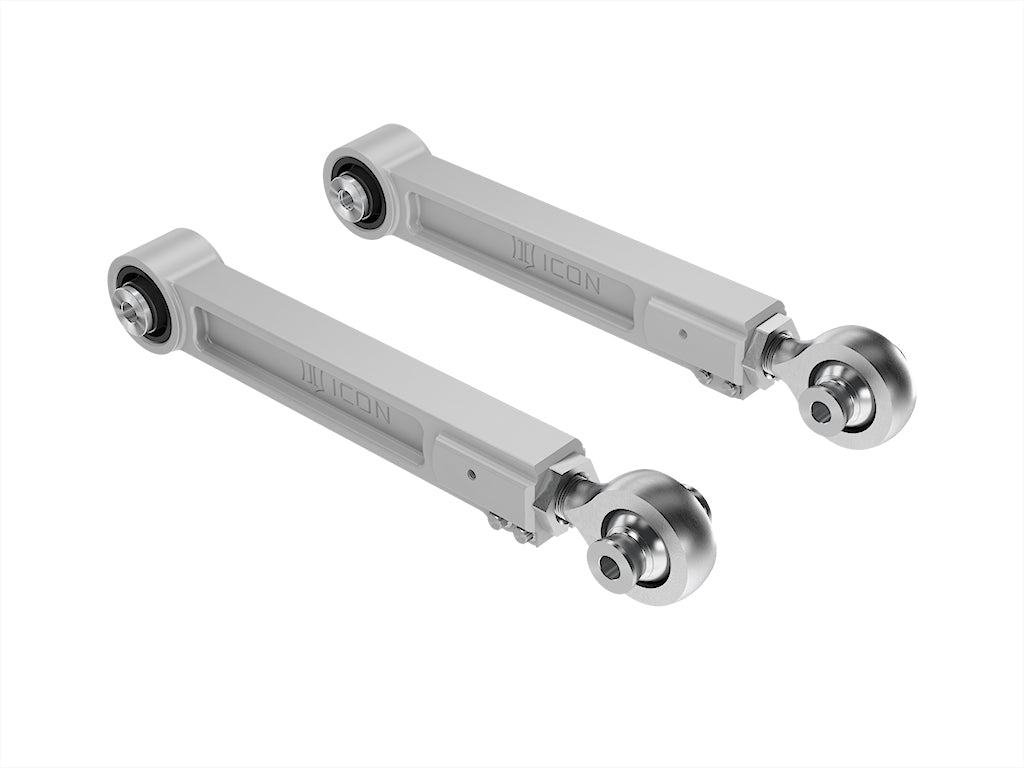

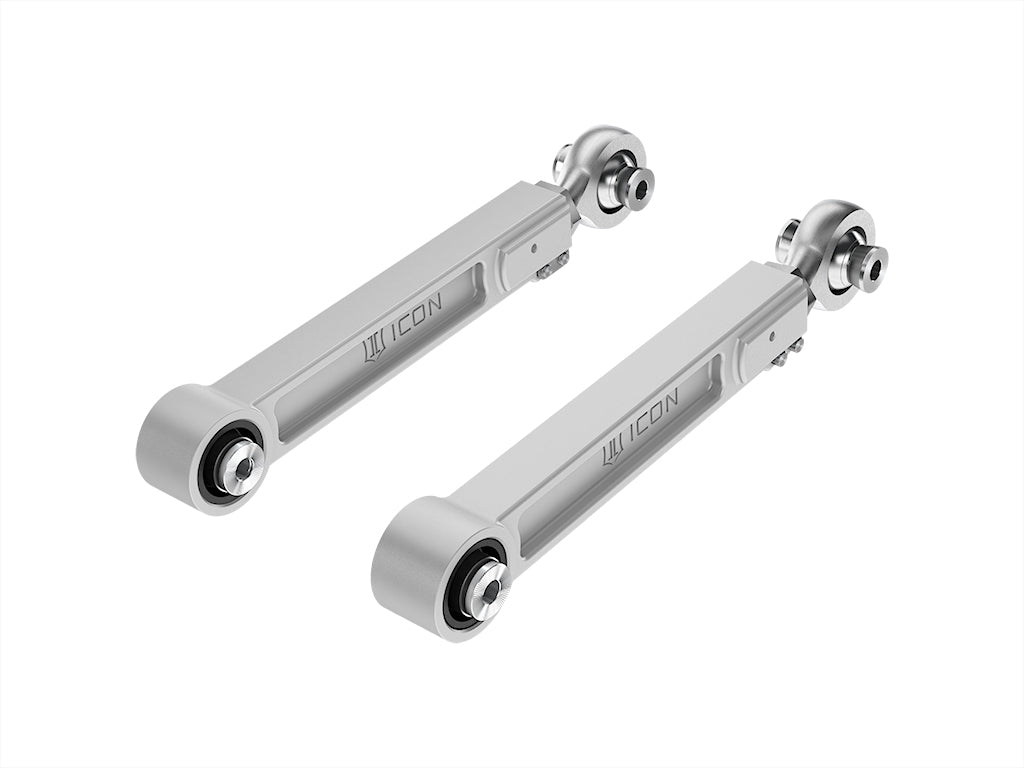

ICON’s billet aluminum rear upper link arms for the 2022-2025 Toyota Tundra 2023-2025 Toyota Sequoia 2024-2025 Toyota Tacoma 2024 Toyota Land Cruiser 250 Series and 2024 Lexus GX550 are a significant upgrade over the factory units due to increases in strength adjustability and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation reduced deflection and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

Features

Vehicle specific design
On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
CNC machined 6061 aluminum construction
Large FK Bearing JMX16T PTFE-lined rod ends
Maintenance free dual durometer bushings for maximum angularity and noise isolation
Covered by ICON’s Limited Lifetime Warranty

Application note #141: tundra/sequoia equipped with automatic leveling headlights or load-leveling rear height control air suspension part # 55153 is also required; application note #143: compatible with icon tundra 6" lift performance suspension system but may not be compatible with 6" lift kits from other manufacturers; application note #164: will not fit tacoma submodels equipped with rear leaf springs; application note #199: land cruiser 250 series and gx550 also require sensor bracket part number 55161

Quick SpecsOverview:

Material: Aluminum
Pre-Assembled: Yes
Set: Yes
Reinforced: Yes
Pre-Greased: No
Grease Fitting Included: No
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Stud Type: Threaded
Ball Joint Included: Yes
Control Arm Material: Aluminum
Attachments Included: No
Mounting Hardware Included: Yes
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Gray
Bushing Material: Rod End Bearing
Bushing Material: Polyurethane
Mounting Bracket Included: No
Suspension Type: Spring
Suspension Type: Air
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 54002 - 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
Add-On Part: 54003 - 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
Add-On Part: 55153 - 22-25 TUNDRA/23-24 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT
Add-On Part: 55161 - 24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT
Adjustable Control Arm: yes
Ball Joint Mounting Type: Thread in
Bushing Color: Black
Bushing Color: Silver
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Color: Gray
Construction: Billet
Control Arm Construction: Billet
End 1 Type: Bushing
End 2 Type: Rod End Bearing
Finish: Anodized
Quantity: Pair
Title: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550 Rear Billet Upper Link Kit

Additional Specifications:

Country of Origin: US
Warranty: Limited Lifetime; Excludes Wearable Items
Weight (lbs): 18.0
Vehicle Specific Fitment: Y

Instructions

I54102_REVA.pdf
