ICON Vehicle Dynamics
ICON 2009-2018 Ram 1500 4WD, w/ BDS 4.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
ICON 2009-2018 Ram 1500 4WD, w/ BDS 4.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- APPLICATION NOTE #652: Will not fit 2009-2018 Ram 1500 RWD models
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 211001-CB |
| Active or Passive Suspension | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 19.59 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.32 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | Clevis |
| Material | Steel |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.73 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Bolt-in design makes for an easy install into OEM shock location
Overview

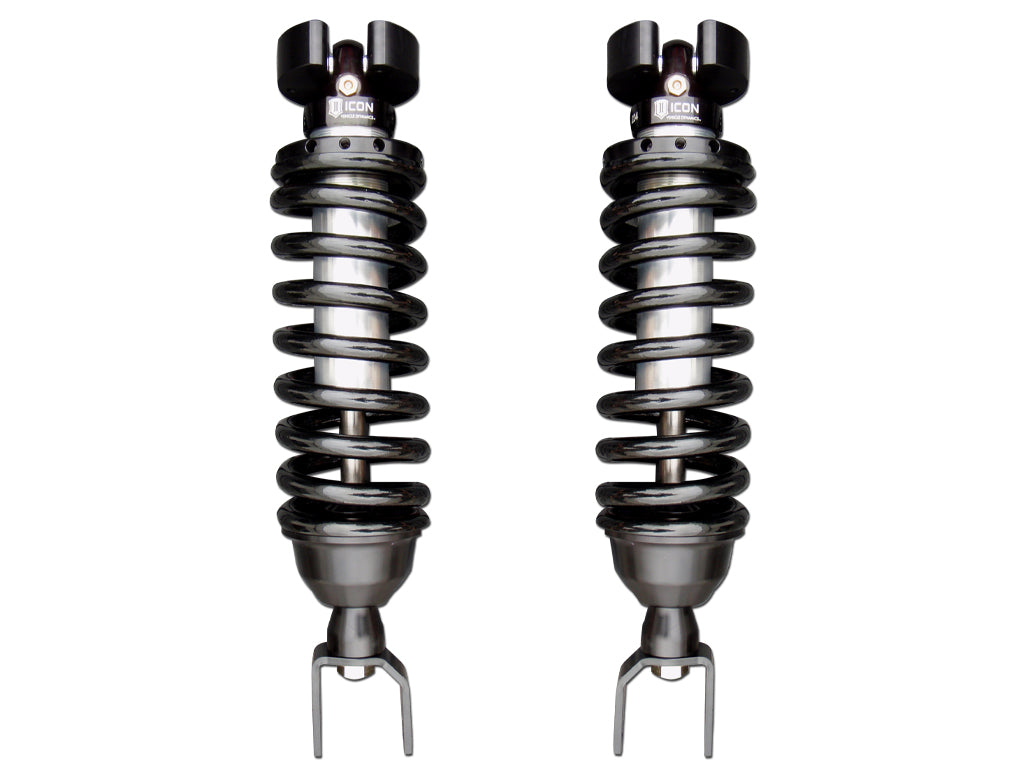

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2009-2018 Ram 1500 trucks equipped with a 4.5" lift suspension system. These full length coilovers are specifically designed for use with the BDS 4.5" lift suspension system, but may also be compatible with kits from other manufacturers, and eliminates the top mount spacer commonly paired with the OE coilovers with these types of suspension systems. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while lift height adjustability allows the fine tunings of vehicle stance. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
