ICON Vehicle Dynamics

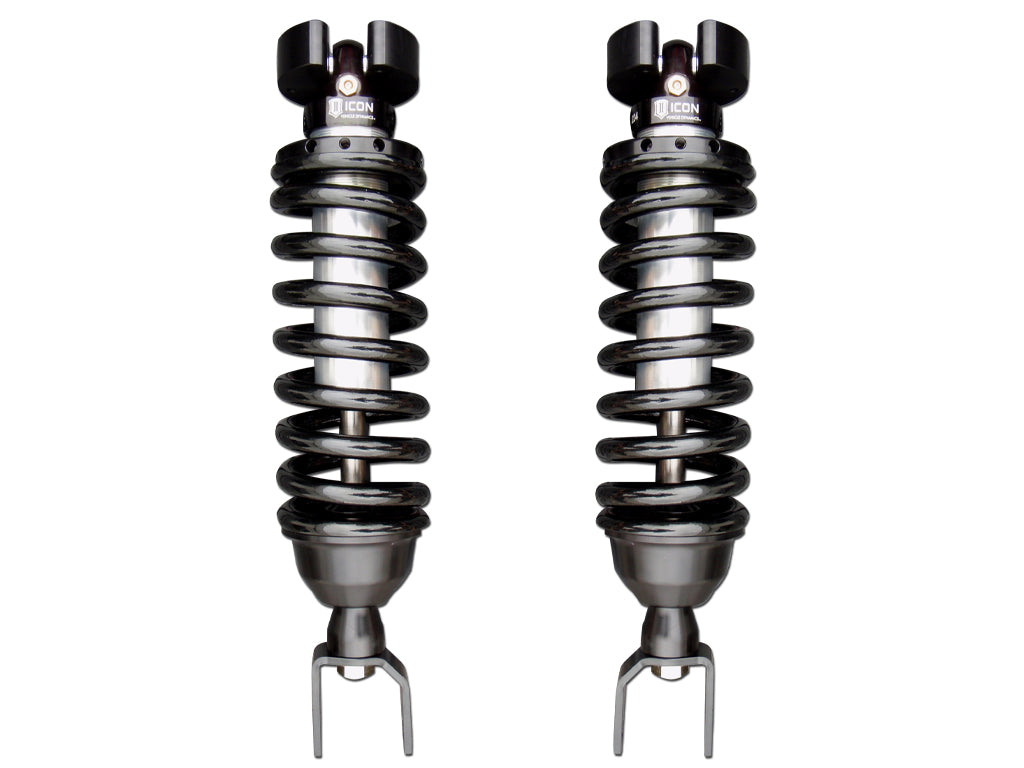

ICON 2019-2026 Ram 1500/2009-2018 Dodge/Ram 1500 4WD, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
ICON 2019-2026 Ram 1500/2009-2018 Dodge/Ram 1500 4WD, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- APPLICATION NOTE #652: Will not fit 2009-2018 Ram 1500 RWD models
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 211000 |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.17 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.51 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Clevis |
| Material | Steel |
| Maximum Ride Height Raising Distance | 2.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | (2009-UP Models) ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.34 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Bolt-in design makes for an easy install into OEM shock location
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
