BDS Suspension 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Call 866-235-4715 Live chat

Important notes before you order

For DRW models, use the w/ overload rear lift option
Requires frame bracket modification.
Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH48809.
Models with two-piece rear driveshafts will require a carrier bearing drop kit.
Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more that tested 6.5" lift height.
Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required.
Will NOT work with AT4X or ZR2 models, lower control arm profile is different
When combining the Recoil traction bars (BDS2300) with a 6.5” suspension lift kit and your truck does NOT have a top mounted overload (BDS753 kit variants), 15.5” long U-bolts are provided. Longer U-bolts will be needed to install the traction bars. Please purchase UBT4200 (X4) to mount the traction bars to your vehicle.

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

Plan for a professional wheel alignment after installing any lift or leveling kit.
Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

Brand	BDS Suspension
Part number	BDS753FS
UPC / GTIN	840416420890
Front Lift Height	6.5"
Front Lift Method	Cross-Member
Lift Height	6-7.5"
Max Tire Size	37 x 12.5
Rear Lift Height	5"
Rear Lift Method	Block
Shocks Included	Yes
Install time	8 hrs
Difficulty	Difficult

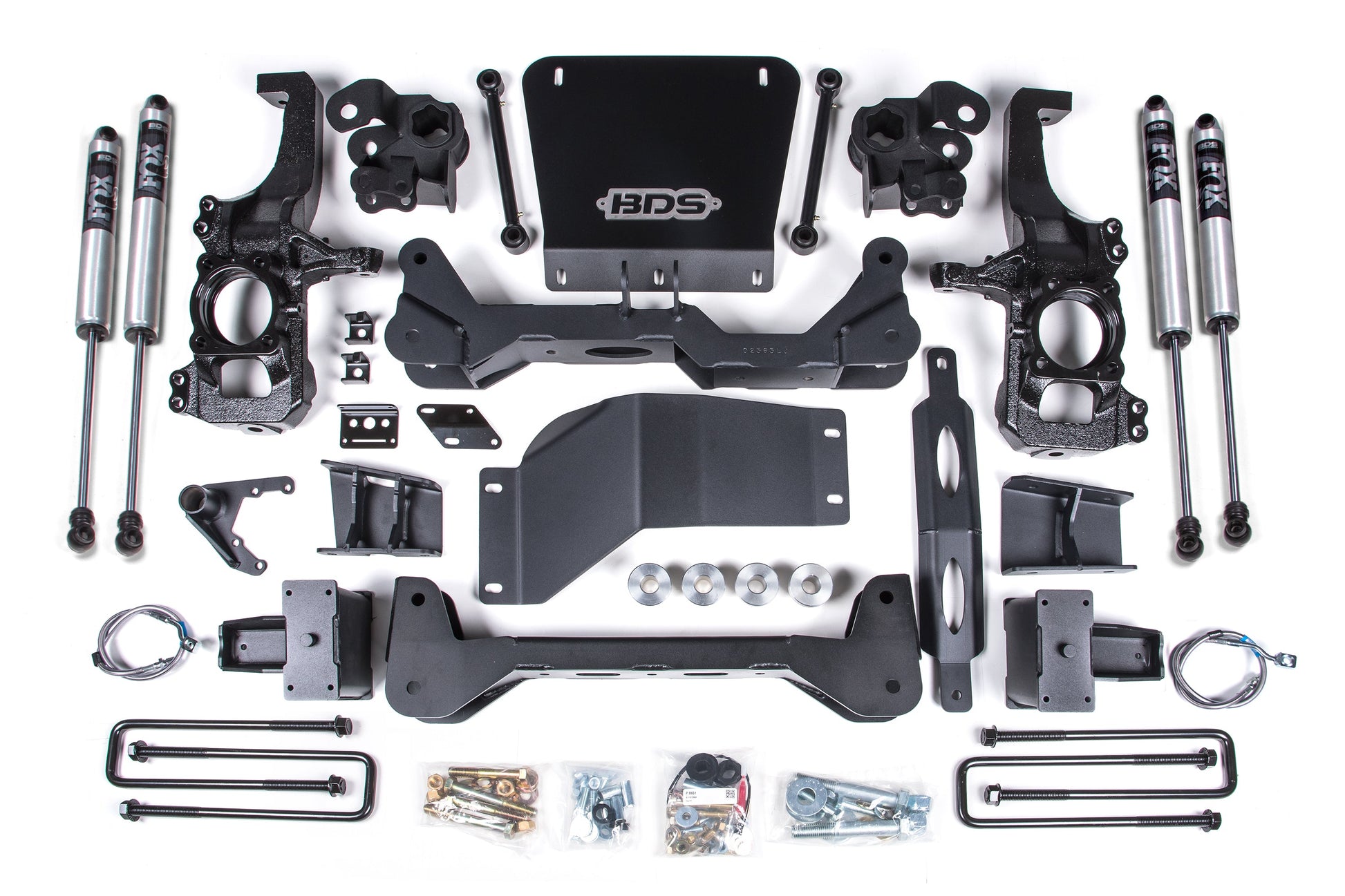

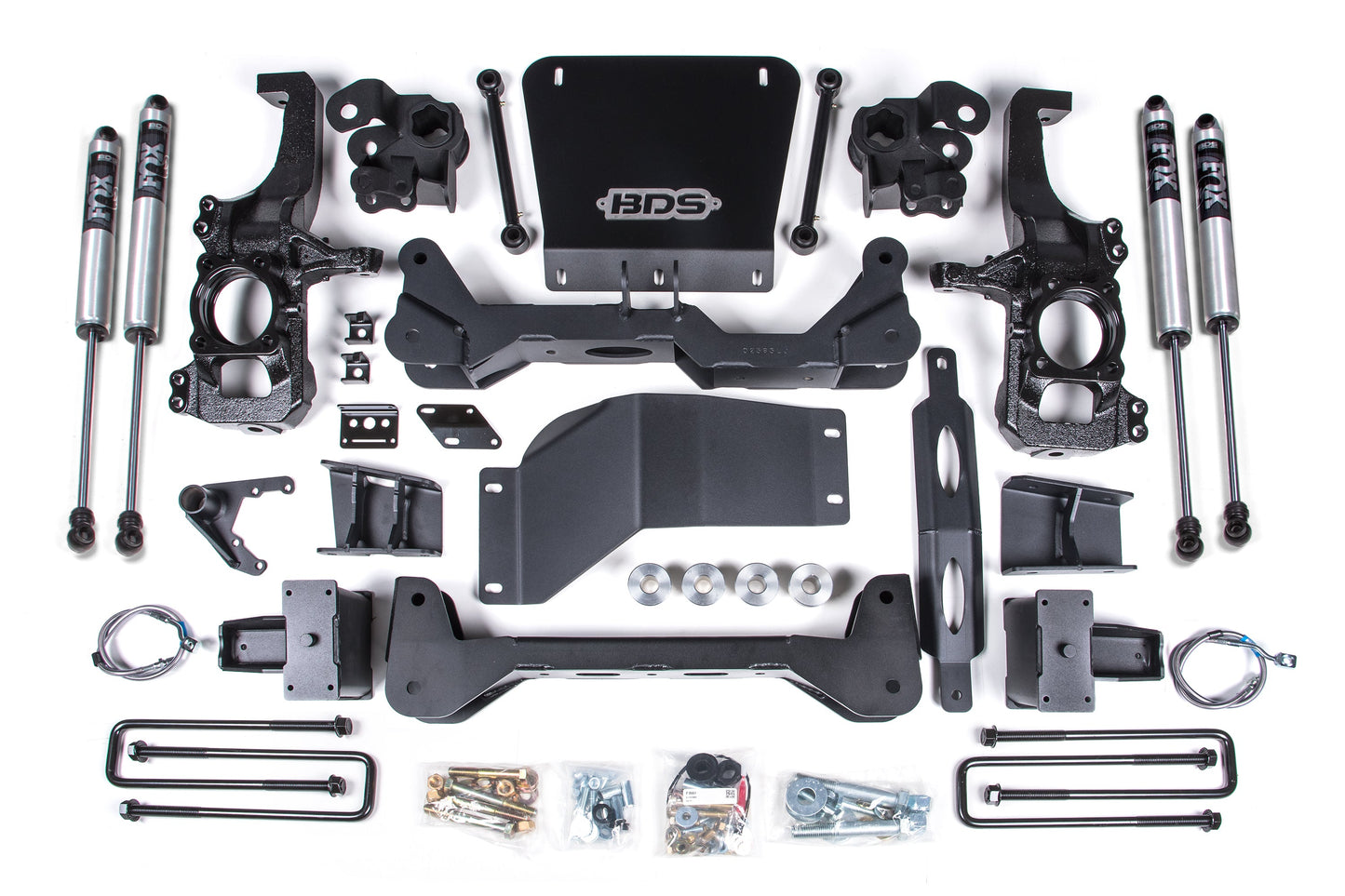

What's in the box

For: 5 Inch Block Kit Without Overload / FOX 2.0 Performance Series

Qty	Part	Description
2	FOX98224621	FOX 2.0 IFP Front Shock \| 5-6.5 Inch Lift \| Performance Series \| Chevy Silverado and GMC Sierra 2500HD / 3500HD (20-26)
2	FOX98224767	FOX 2.0 IFP Rear Shock \| 5-6.5 Inch Lift \| Performance Series \| Chevy Silverado and GMC Sierra 2500HD / 3500HD (20-26)

For: 5 Inch Block Kit Without Overload / NX2 Nitro Series

Qty	Part	Description
2	BDS85621	NX2 Nitro Shock Absorber \| Front \| 3-5 Inch Lift \| Chevy Silverado and GMC Sierra 2500HD/3500HD (11-26) 4WD
2	BDS85769	NX2 Nitro Shock \| Multiple Fitments \| 30.95 x 18.15 x 2-3/8 - EB1/EB1

For: 5 Inch Block Kit With Overload / FOX 2.0 Performance Series

Qty	Part	Description
2	FOX98224621	FOX 2.0 IFP Front Shock \| 5-6.5 Inch Lift \| Performance Series \| Chevy Silverado and GMC Sierra 2500HD / 3500HD (20-26)
2	FOX98224767	FOX 2.0 IFP Rear Shock \| 5-6.5 Inch Lift \| Performance Series \| Chevy Silverado and GMC Sierra 2500HD / 3500HD (20-26)

For: 5 Inch Block Kit With Overload / NX2 Nitro Series

Qty	Part	Description
2	BDS85621	NX2 Nitro Shock Absorber \| Front \| 3-5 Inch Lift \| Chevy Silverado and GMC Sierra 2500HD/3500HD (11-26) 4WD
2	BDS85769	NX2 Nitro Shock \| Multiple Fitments \| 30.95 x 18.15 x 2-3/8 - EB1/EB1

Features

High Clearance design w/ no torsion bar drop maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved off-road protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Factory Protection Plus drivetrain warranty included
Choice of NX2, FOX 2.0 or FOX 2.5 gas shocks for improved performance

Recommended wheels & tires

37 x 12.5 with 17 x 9 and 4.625 in. Backspace
37 x 12.5 with 18 x 9 and 4.625 in. Backspace
38 x 13.5 with 20 x 9 and 6.18 in. Backspace

Installation

Estimated install time8 hrs
DifficultyDifficult

Instructions 1 (PDF)

Free install support from the Trucks R Us tech team, for you or your shop.

Overview

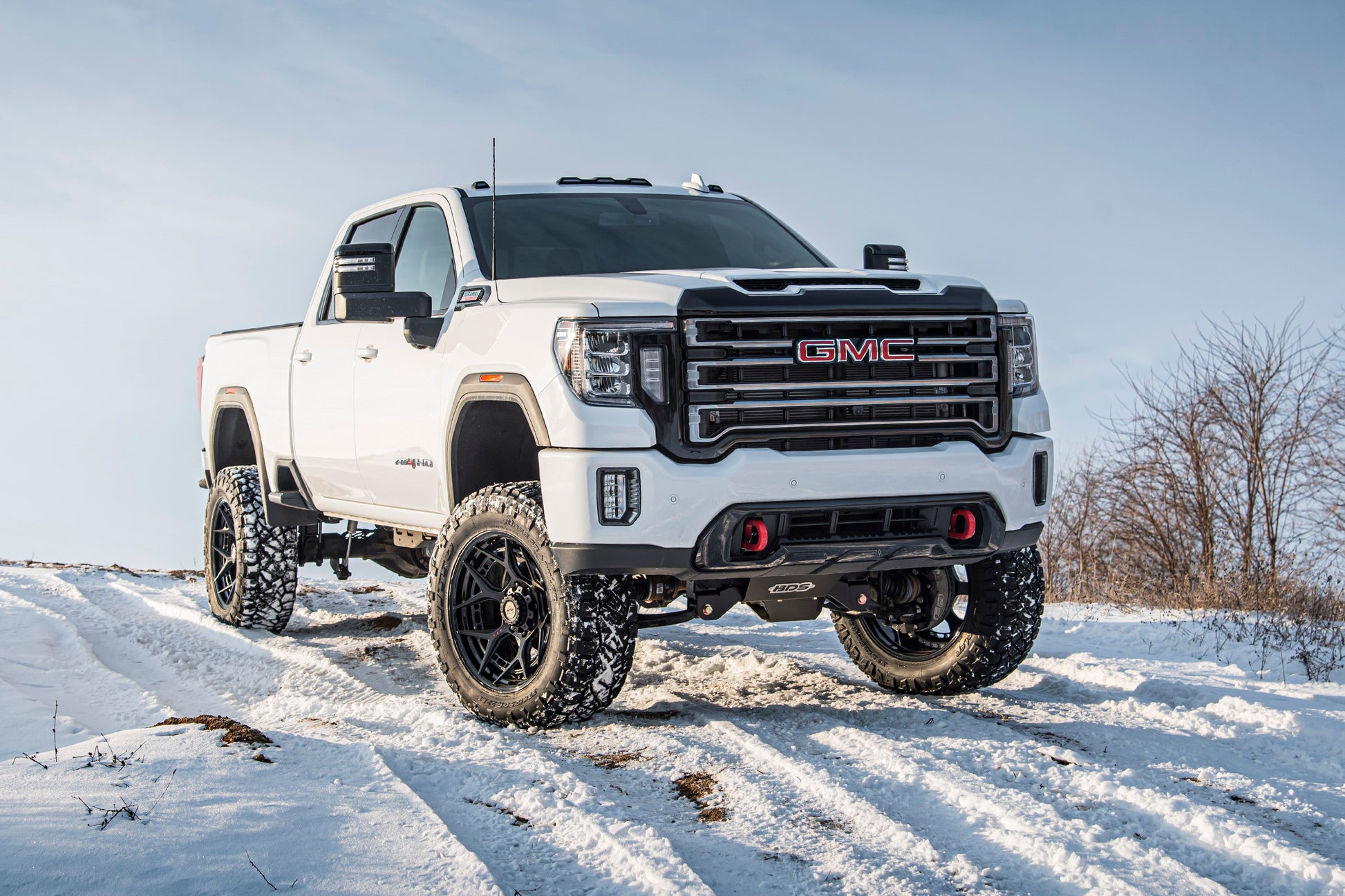

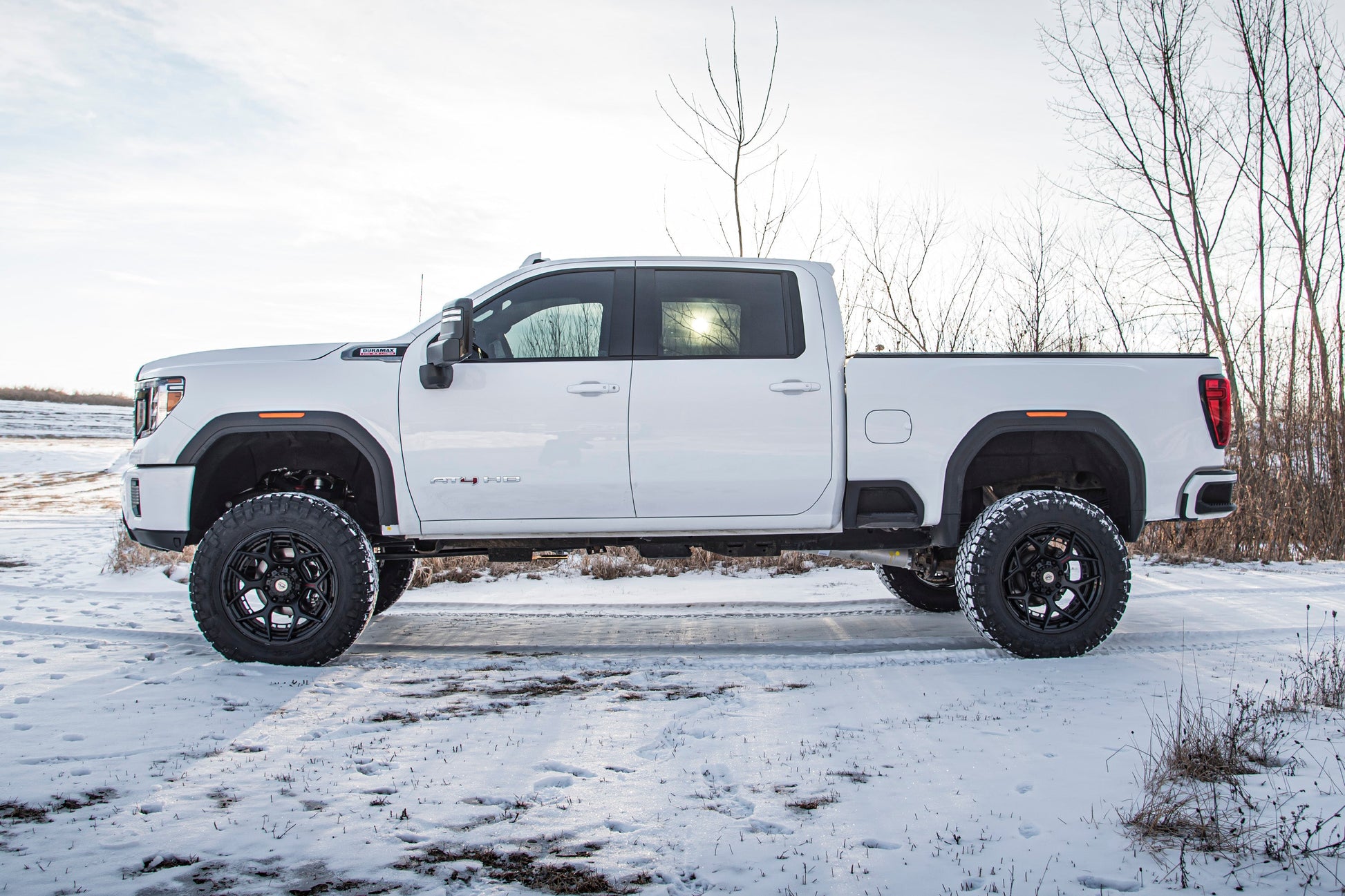

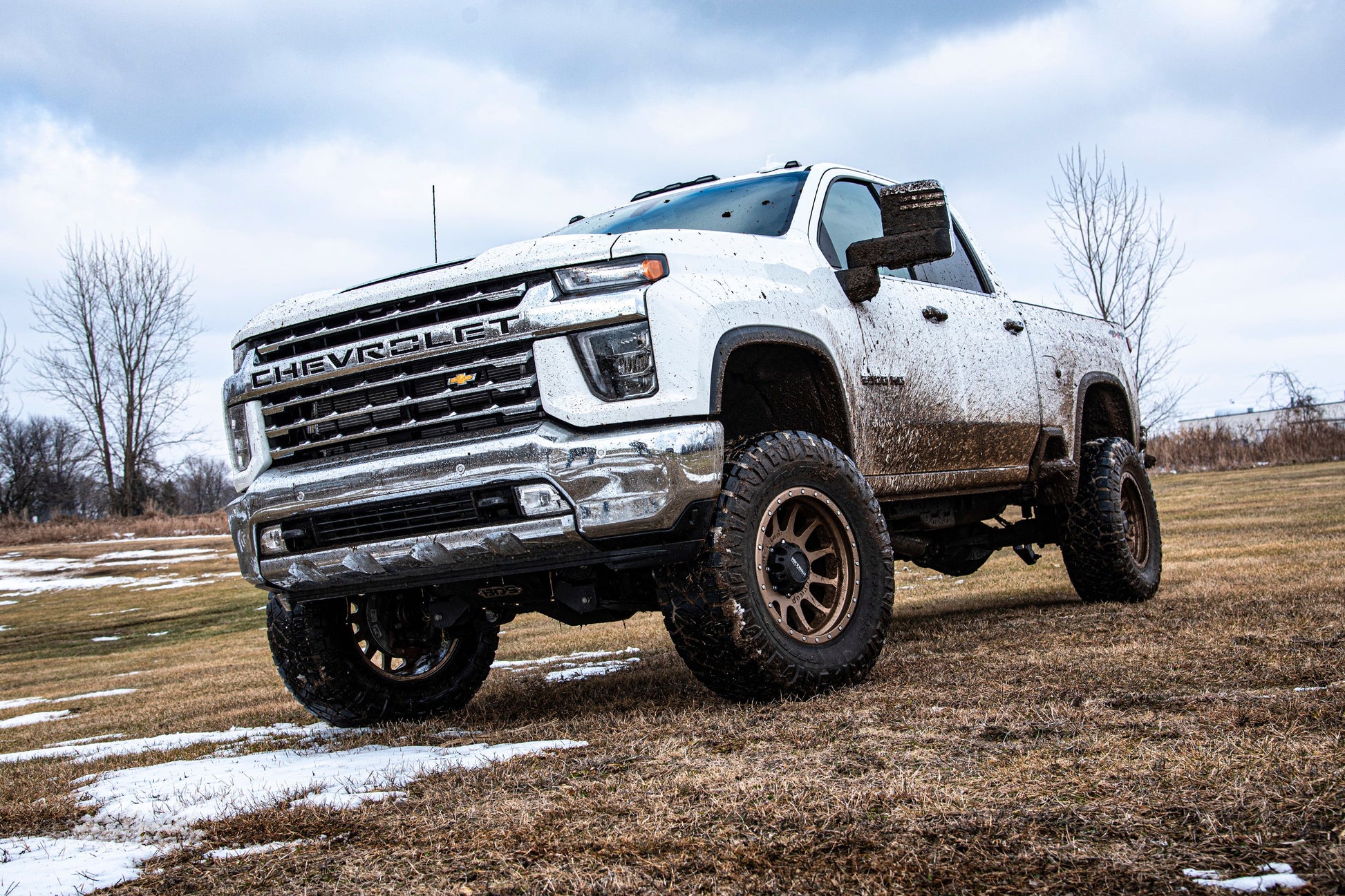

Take your 2020-2026 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 6.5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No-Torsion Bar Drop System, where the torsion bars are mounted directly to the top of the lower a-arm, eliminating the need to drop the torsion bar cross-member. Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers, along with a multipiece differential relocation bracket and heavy-duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar drops, stainless steel brake lines, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, BDS offers replacement lift blocks and U-bolts to lift and level the stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included are BDS supplies, which provide brake line and ABS line relocation brackets, allowing the use of factory brake lines. Lastly, there is a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

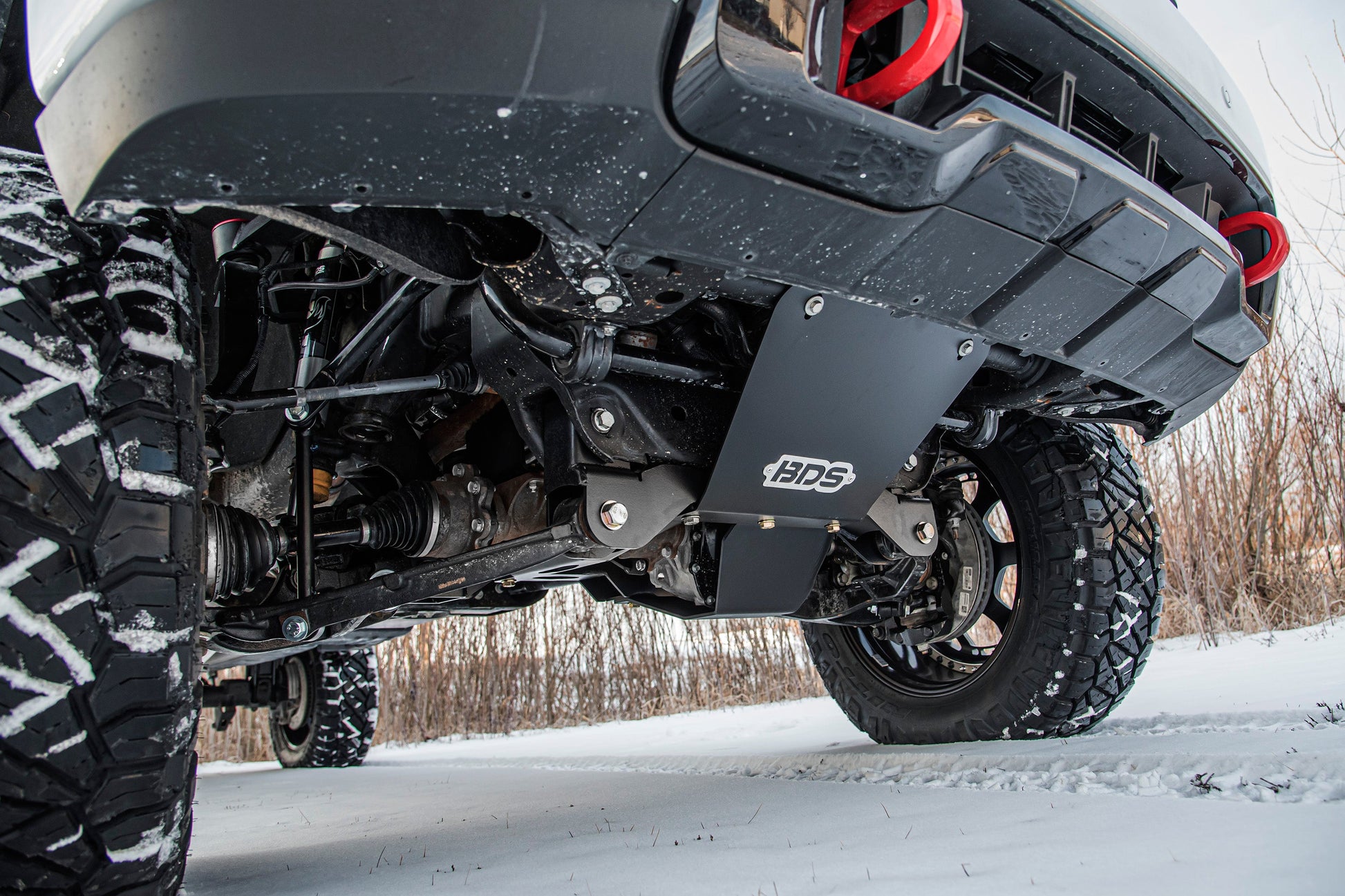

BDS maximizes ground clearance with their heavy-duty, 1/4-inch-thick, laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast iron steering knuckle designs to work with factory tie rod ends, maintaining steering angles for proper function.

Upgrade your 2020–2026 Silverado or Sierra 2500/3500HD 4WD with a 6.5" BDS lift kit, high-clearance crossmembers, CNC steering knuckles, and performance shocks.

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.

Do I need an alignment after installing?

Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
