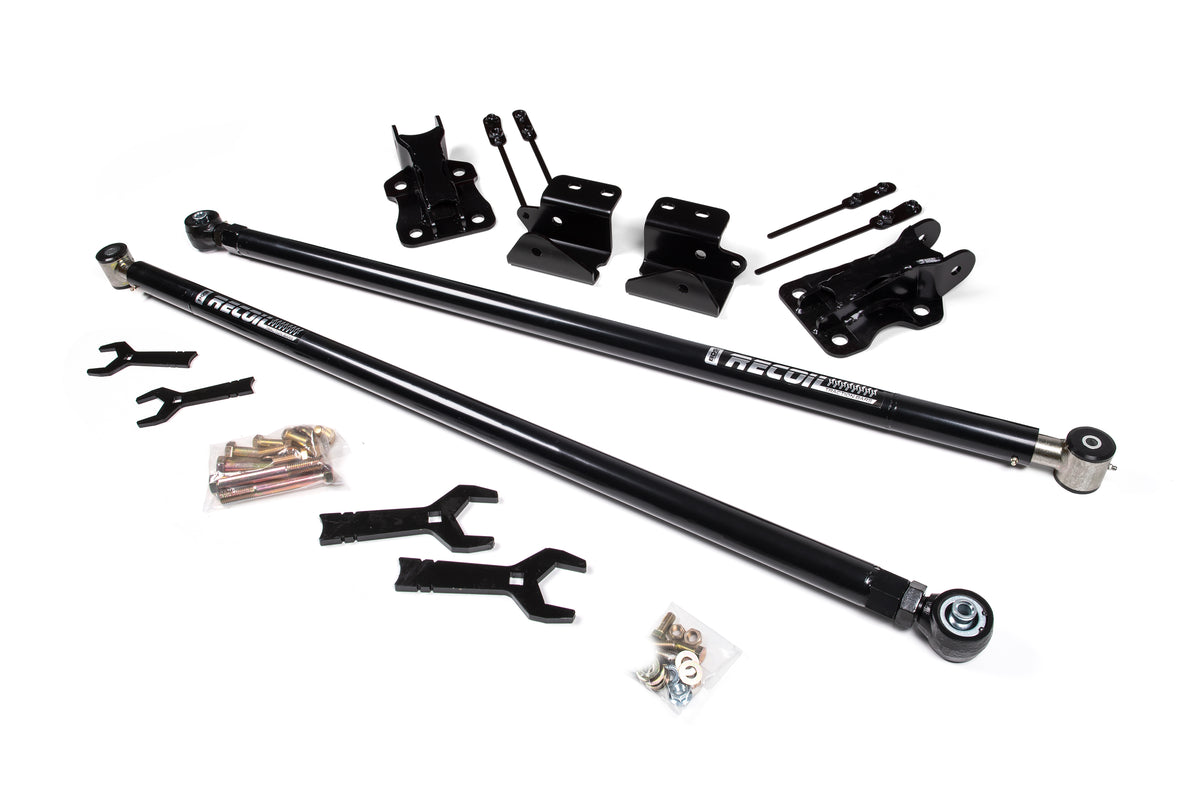

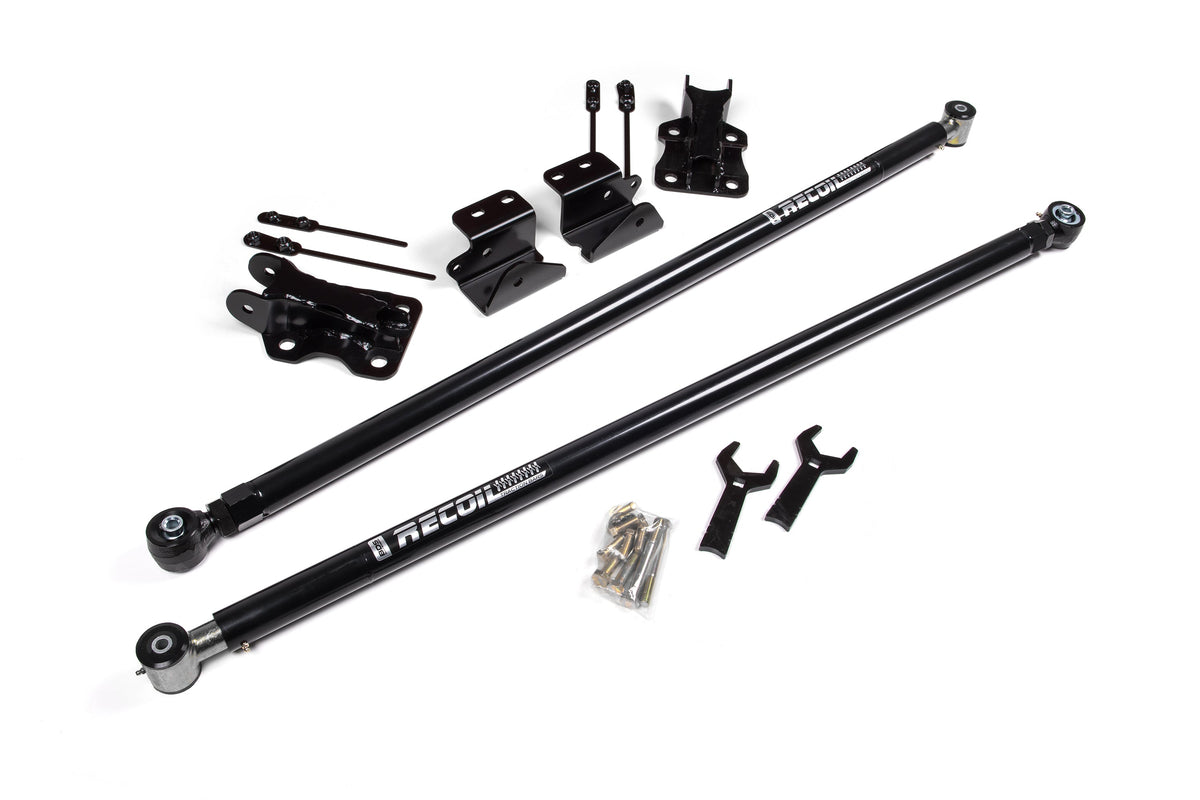

BDS Suspension Recoil Traction Bar Kit Chevy Silverado and GMC Sierra 2500 / 3500 HD (20-24)
- Install 3-4 hrs
- Difficulty Moderately Easy
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will fit SRW
- Will ONLY fit crew cab short bed (6.5ft), will NOT fit standard cab, extended cab, or models with 8ft beds
- Fits 0-6" of rear lift
- Fits 4" Rear Axle Models Only
- When combining these traction bars with a 6.5” suspension lift kit and your truck does NOT have a top mounted overload (BDS753 kit variants), 15.5” long U-bolts are provided. Longer U-bolts will be needed to install the traction bars. Please purchase UBT4200 (X4) to mount the traction bars to your vehicle.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS2300 |
| UPC / GTIN | 840416414097 |
| Install time | 3-4 hrs |
| Difficulty | Moderately Easy |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS121416 | 2020-2024 Chevrolet/GMC 2500/3500 HD Recoil Traction Bar Mounting Kit |
| 1 | BDS123409 | Recoil Traction Bar Box Kit |
Features
- Adjustable axle wrap control using dual-stage resistance springs
- Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Traction bar ends are greaseable and rebuildable
- Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation
Fitment
| Years | Vehicle |
|---|---|
| 2020–2024 | Chevrolet Silverado 2500 HD |
| 2020–2023 | Chevrolet Silverado 3500 HD |
| 2020–2024 | GMC Sierra 2500 HD |
| 2020–2023 | GMC Sierra 3500 HD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
- Estimated install time3-4 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Improve traction on your 2020-2026 Chevy Silverado or GMC Sierra 2500 HD/3500 HD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. Full float design for bind-free performance and can be installed with a range of lift heights.
Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
