BDS Suspension 5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD

Name: BDS Suspension 5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD
Brand: BDS Suspension
SKU: BDS766FS
Price: 3122.45 USD
Availability: InStock

BDS Suspension 5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26) 4WD

PART #

$3,122.45

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Features

High Clearance design w/ no torsion bar drop maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Factory Protection Plus drivetrain warranty included

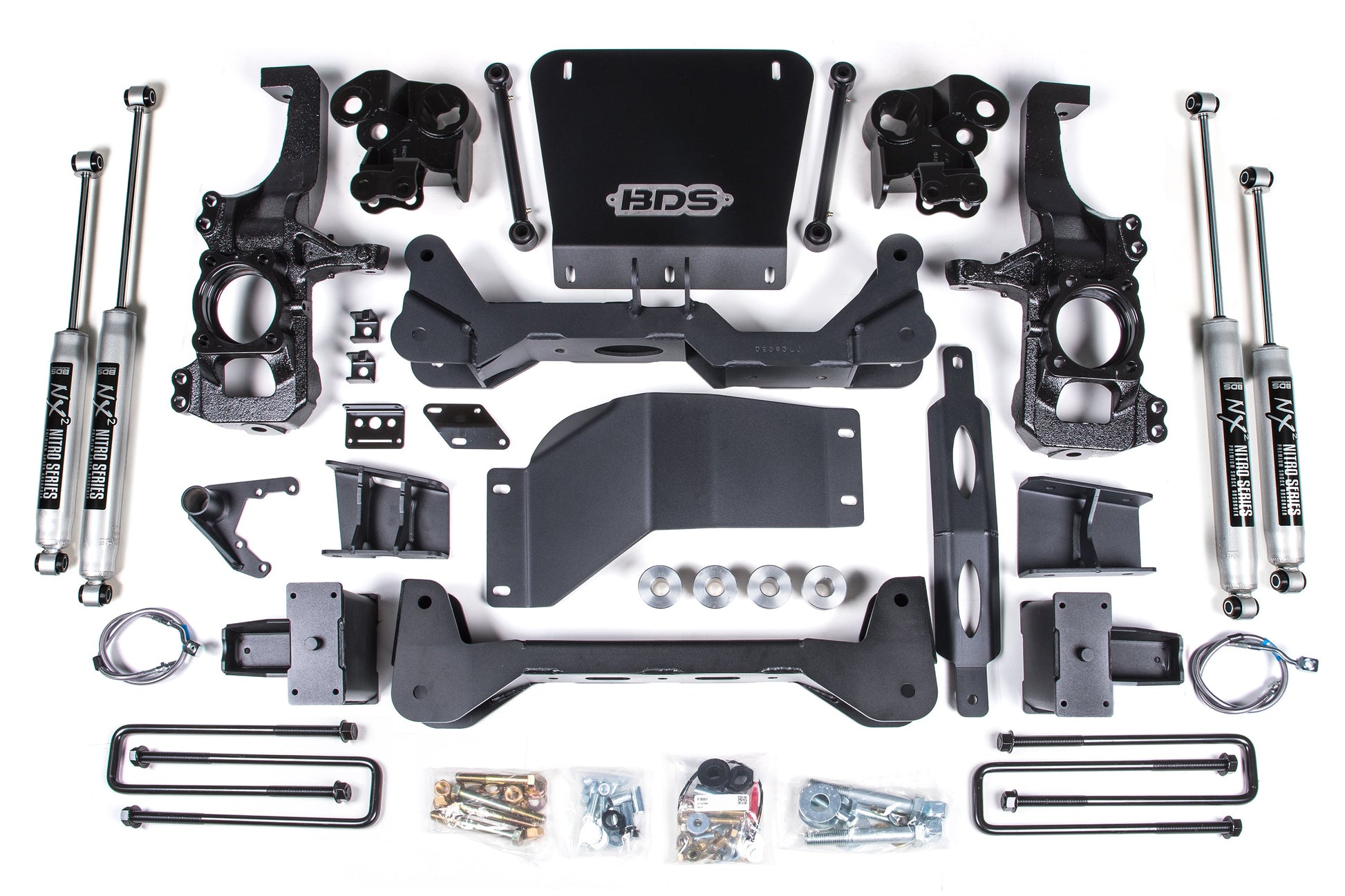

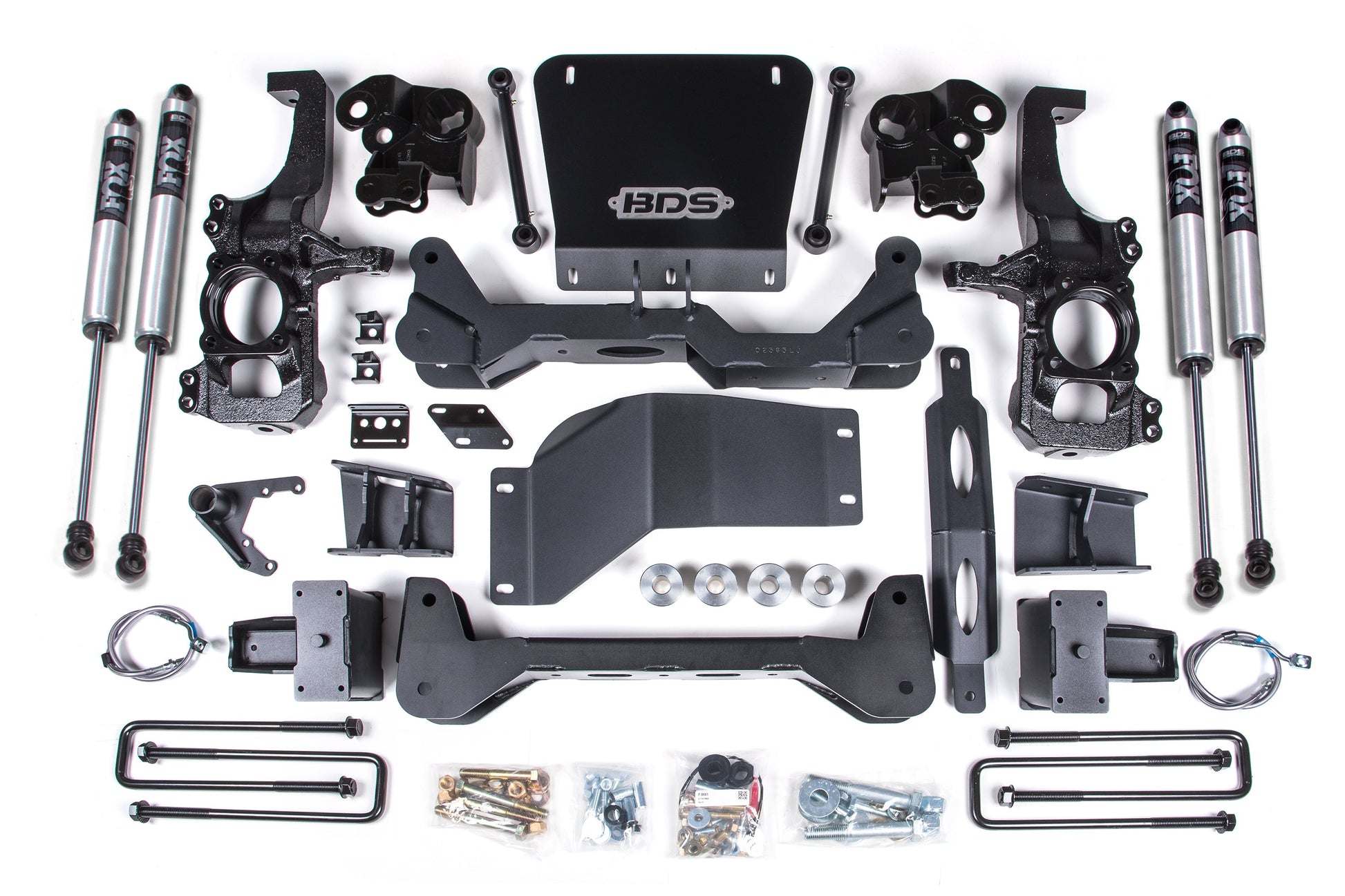

Choice of NX2, FOX 2.0 or FOX 2.5 gas shocks for improved performance

Requires frame bracket modification.
Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH48809.
Models with two-piece rear driveshafts will require a carrier bearing drop kit.
Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
Some minor trimming will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
Will NOT work with AT4X or ZR2 models, lower control arm profile is different

Quick Specs

Recommended Wheels and Tires

Note: trimming may be required.
35 x 12.5 with 17 x 9 and 4.625 in. Backspace
35 x 12.5 with 20 x 10 and 5.5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Instructions

Estimated Install Time: 8-10 hrs
Difficulty: Difficult
Required Tools: Cut Off Wheel or Equiv., Reciprocating Saw, Torsion Bar Unloading Tool
