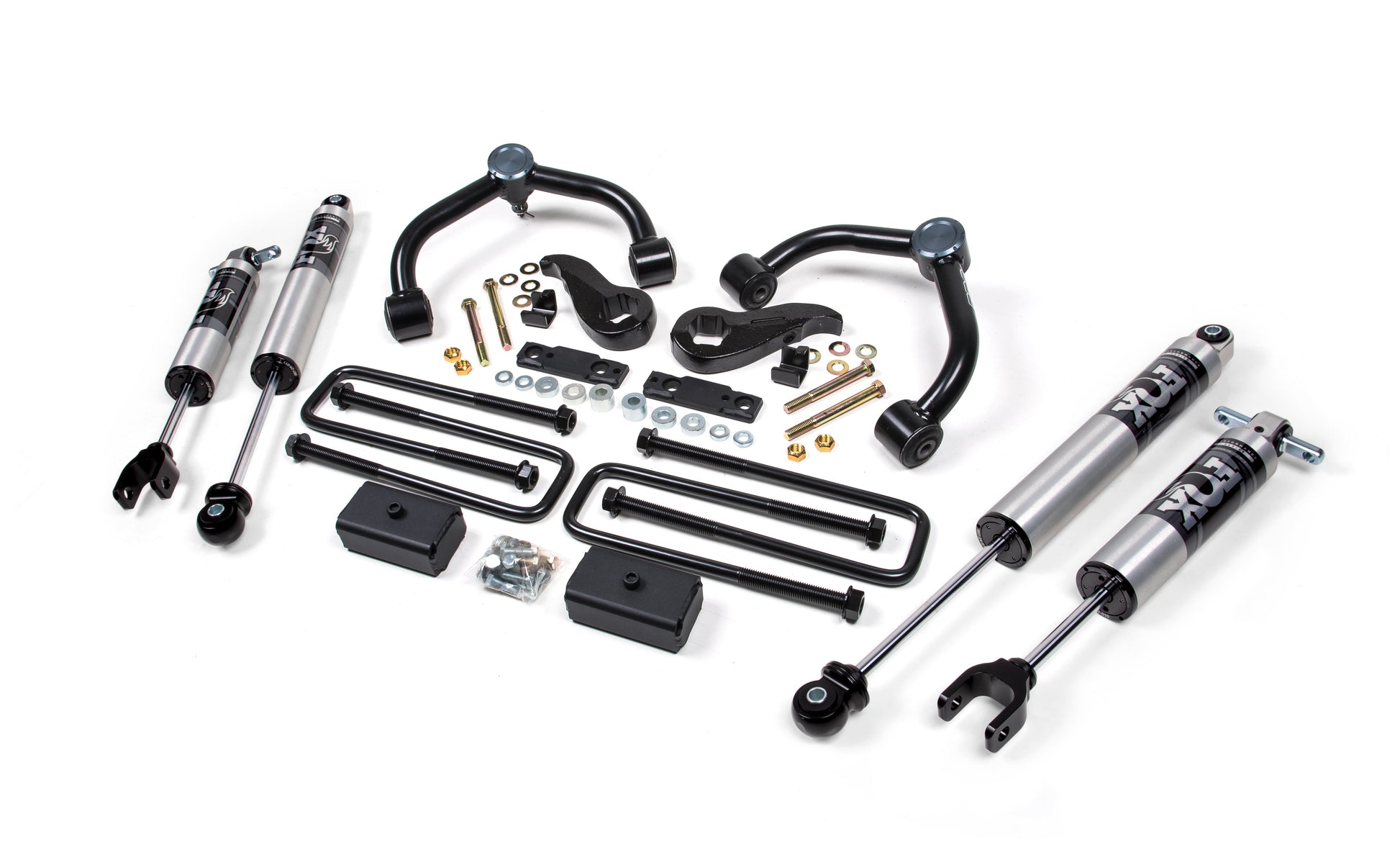

BDS Suspension 3 Inch Lift Kit · FOX 2.5 Performance Series w/ HTO Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26)
- Front lift 3"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 2"
- Shocks included
- Install 3-4 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809
- Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
- Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. Wheel spacers may be required to use stock wheels and stock tires.
- Will NOT work with AT4X or ZR2 models, lower control arm profile is different
- Dually models must select the "2 Inch Block Kit With Overload" option.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS760FPS |
| UPC / GTIN | 840416435627 |
| Front Lift Height | 3" |
| Front Lift Method | Torsion Key |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 3-4 hrs |
| Difficulty | Moderate |
| Required Tools | Grinder/Sanding Disc, Torsion Bar Unloading Tool |

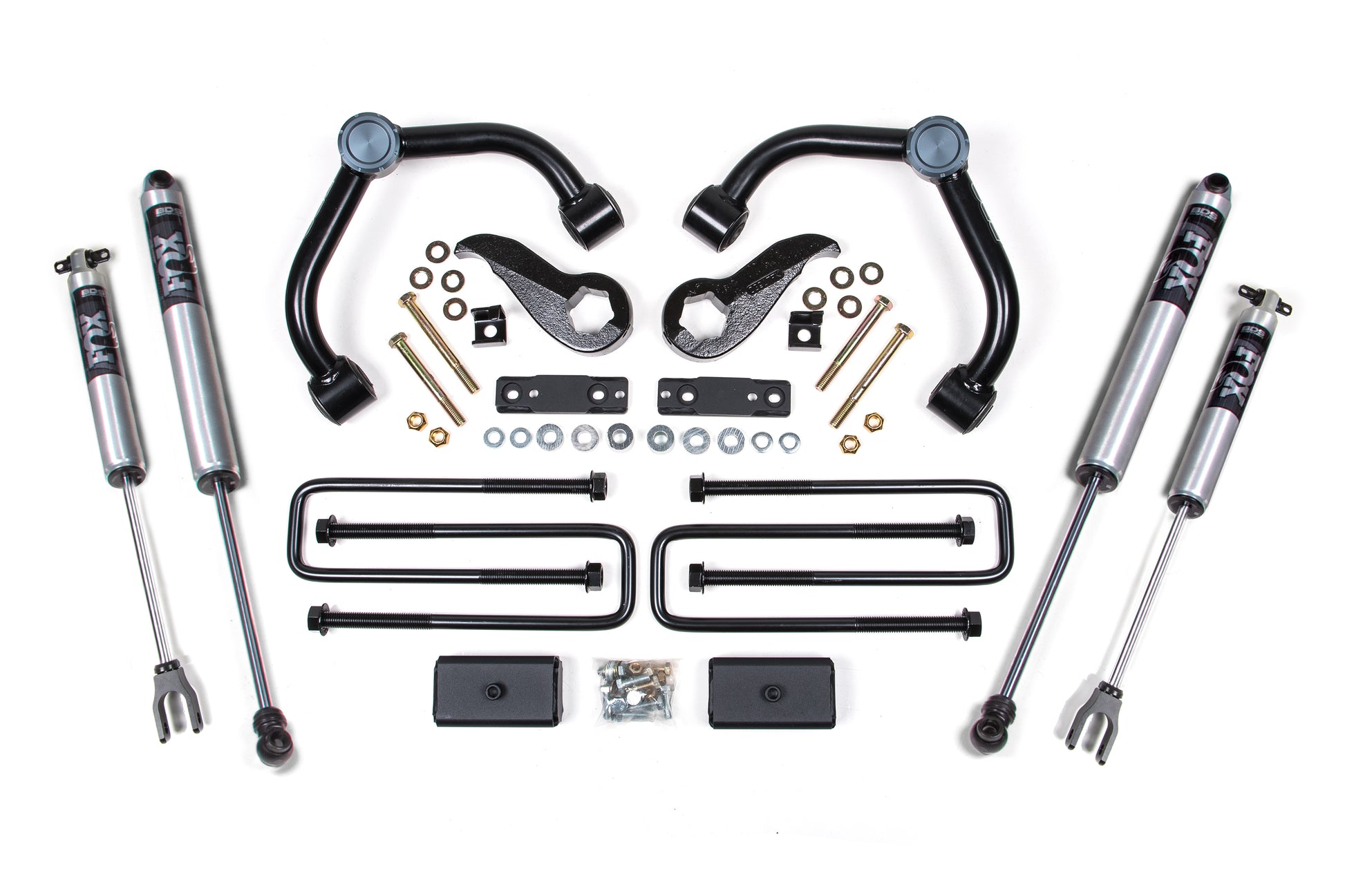

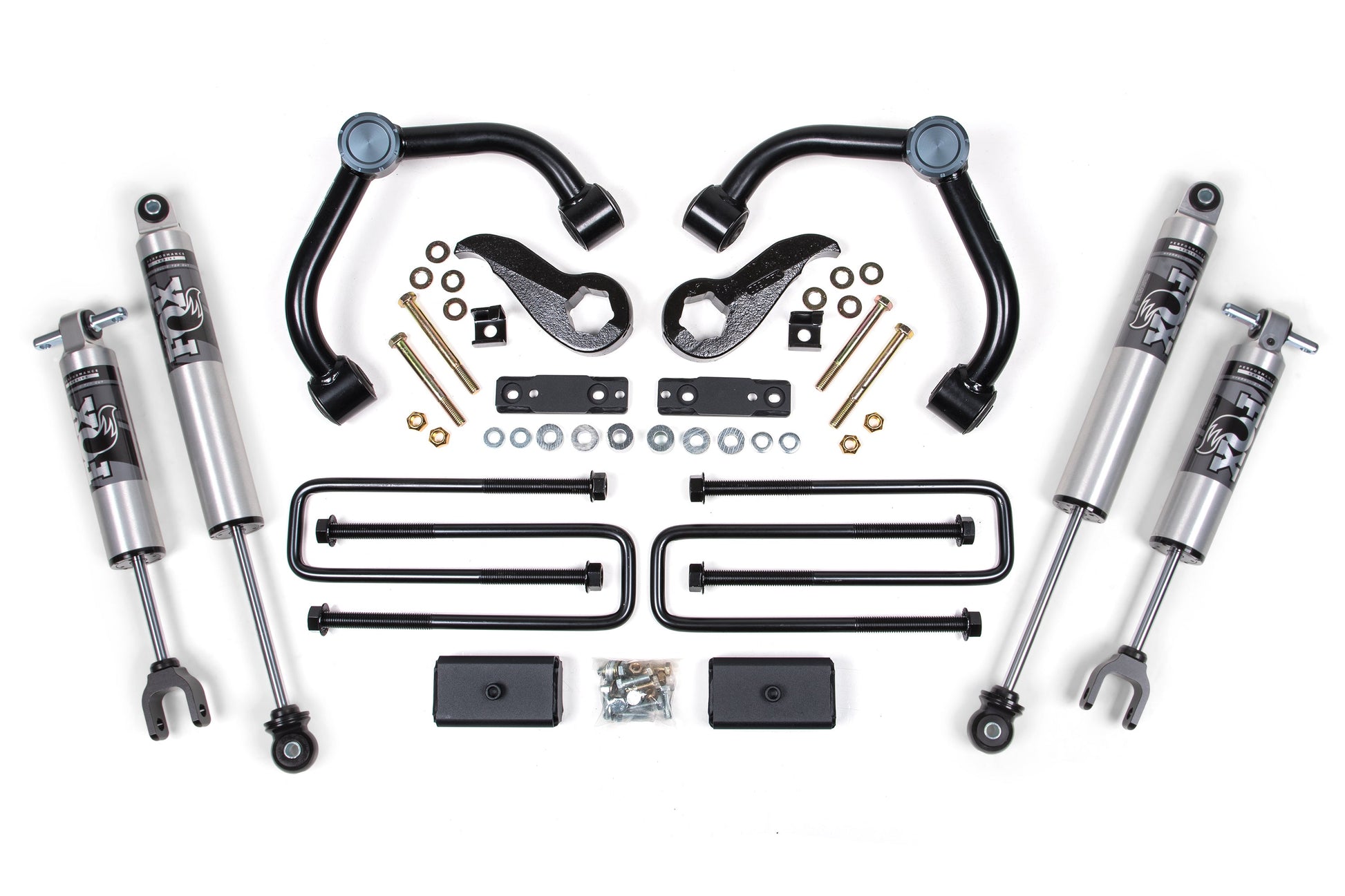

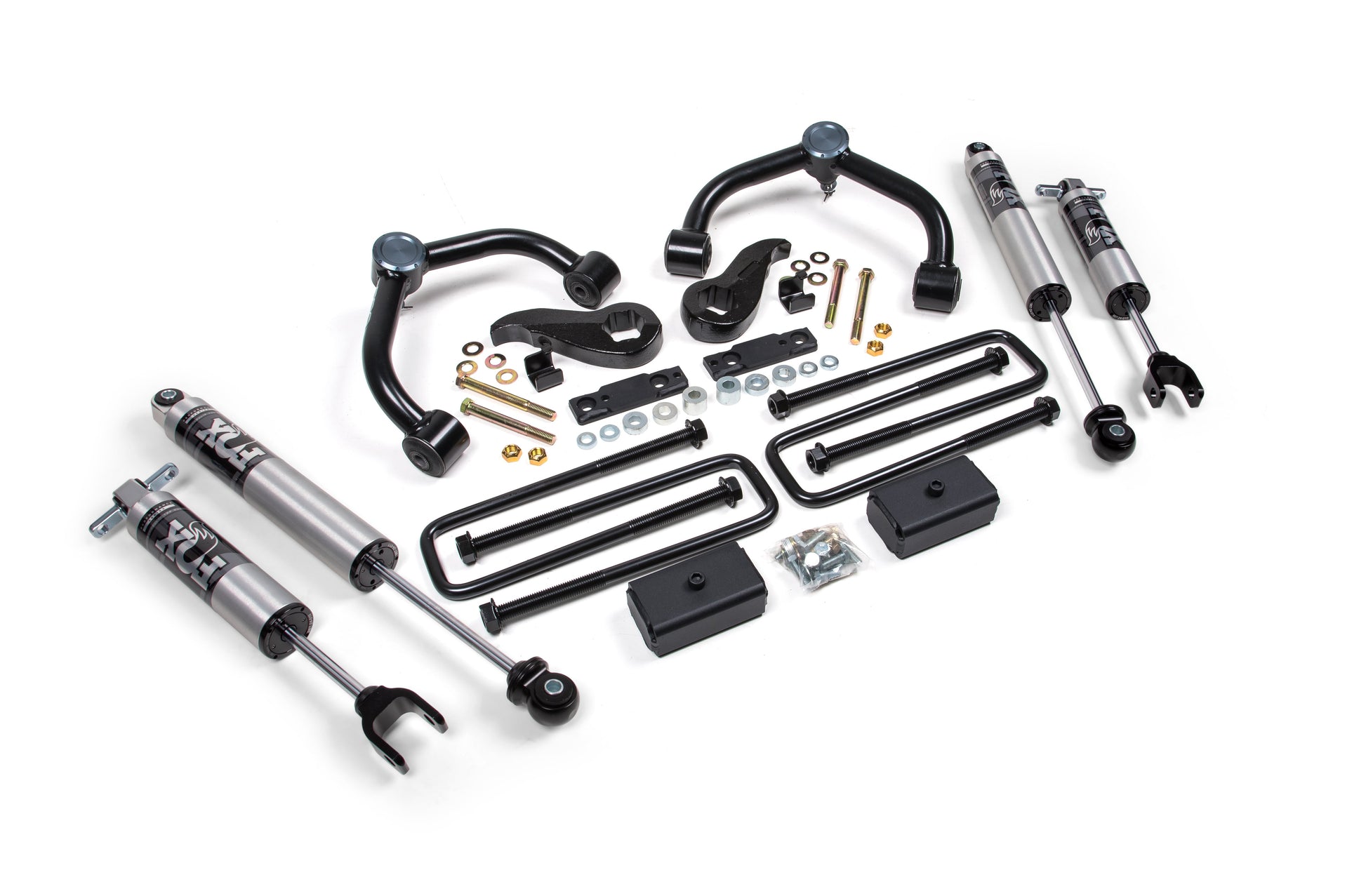

What's in the box
| Qty | Part | Description |
|---|---|---|

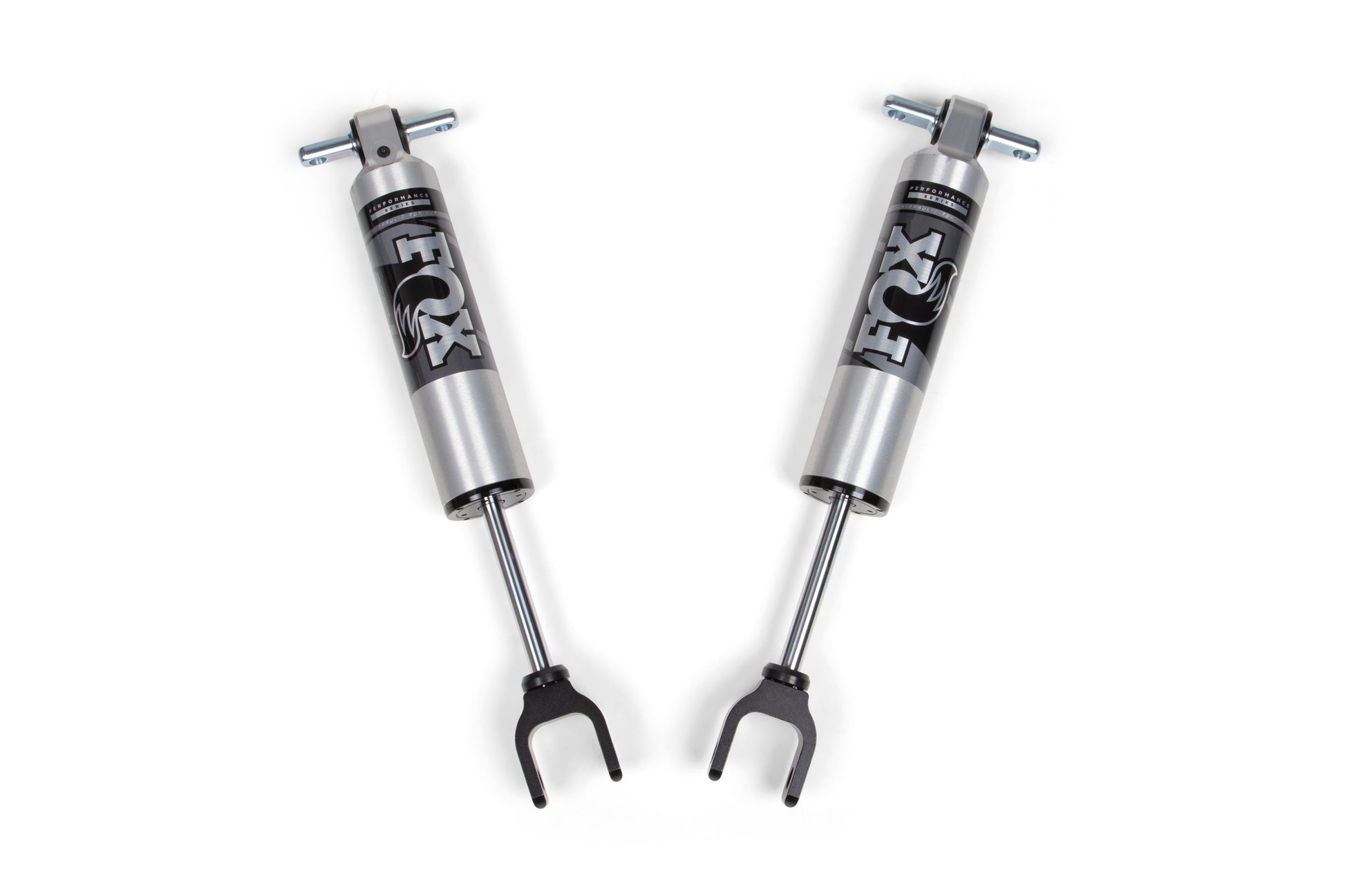

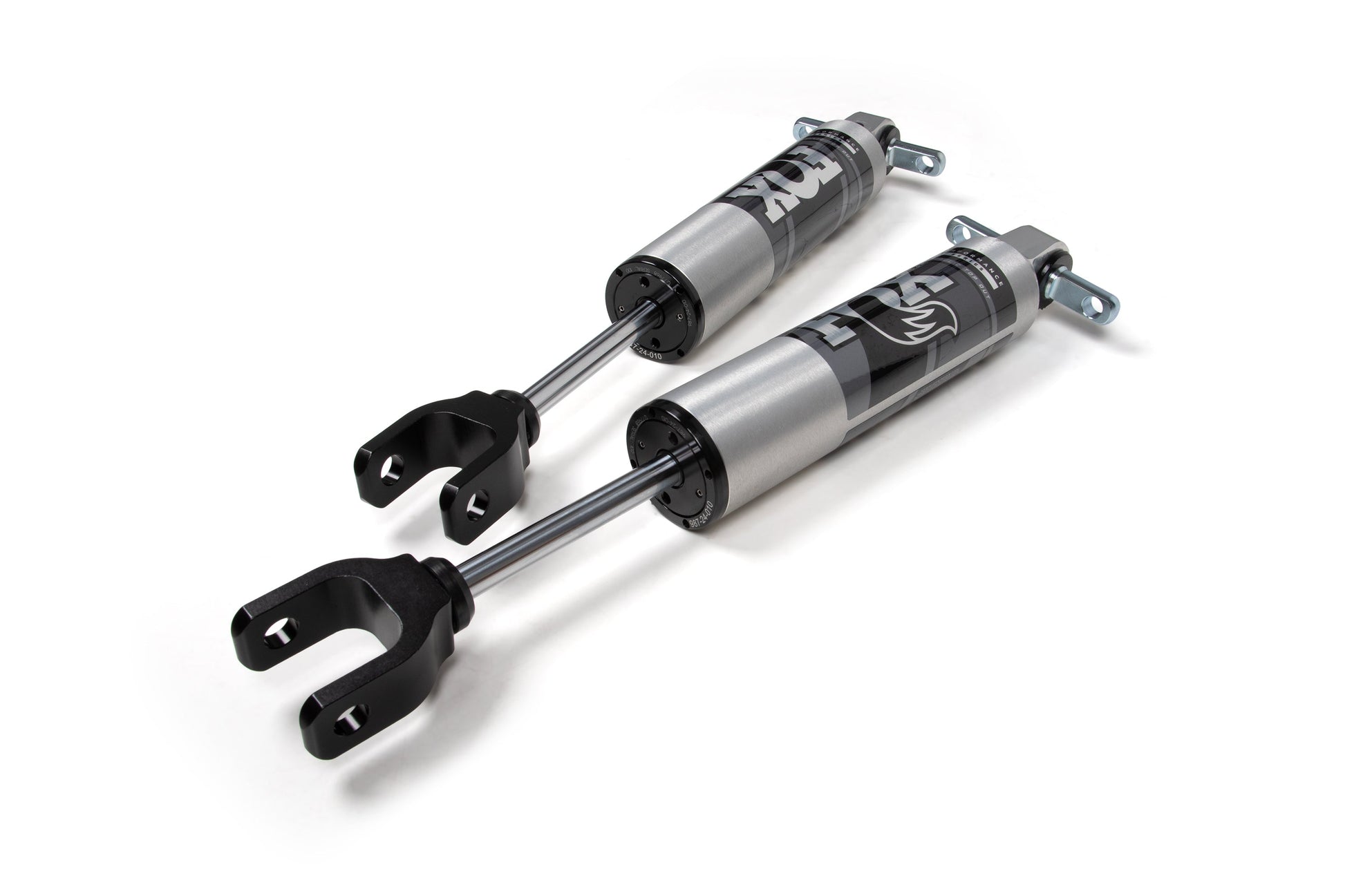

| 2 | FOX98724010 | FOX 2.5 IFP Front Shock w/HTO | 1.5-2.5 Inch Lift | Performance Series | Chevrolet Silverado 2500/3500 (20-24) |

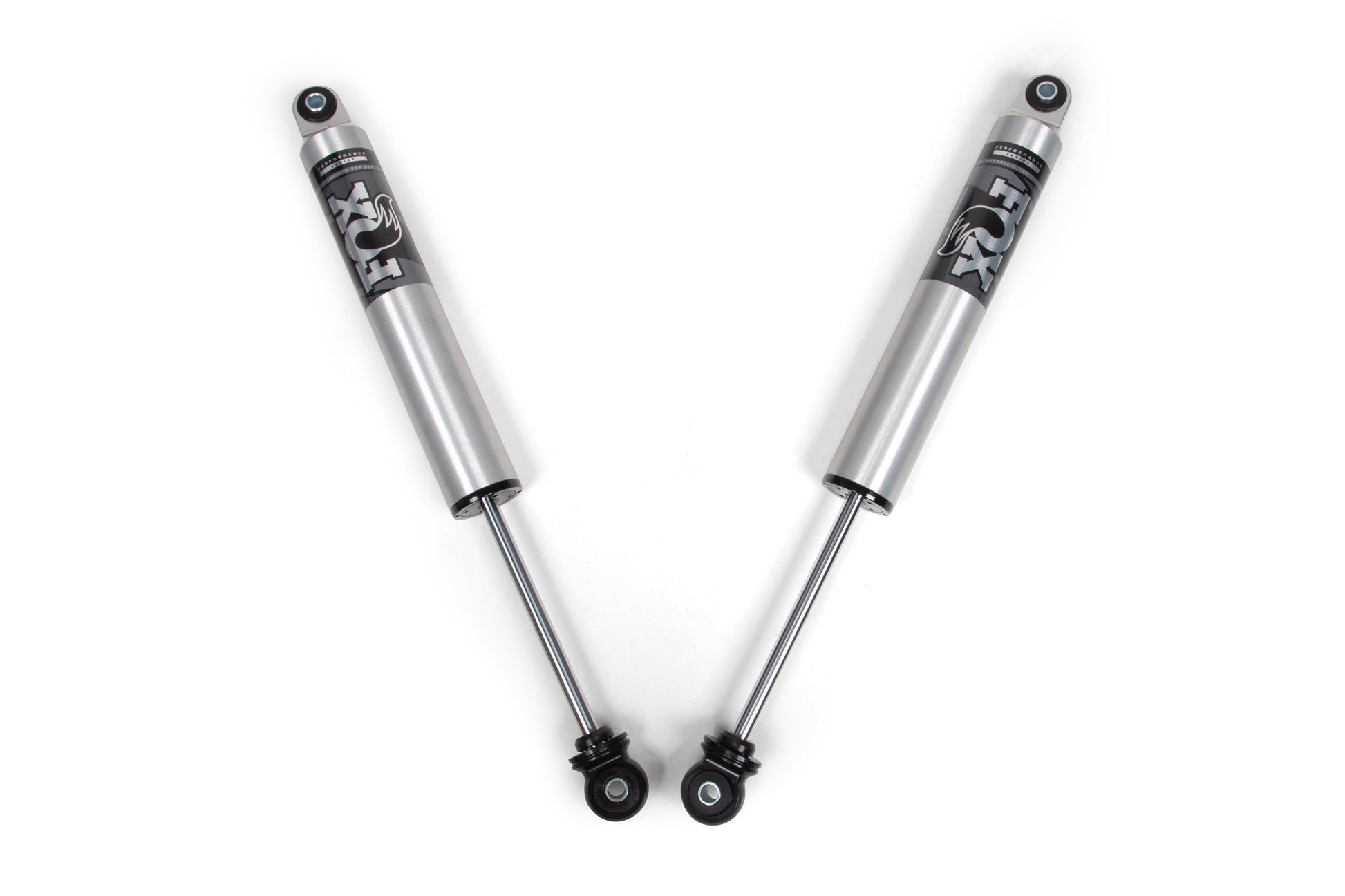

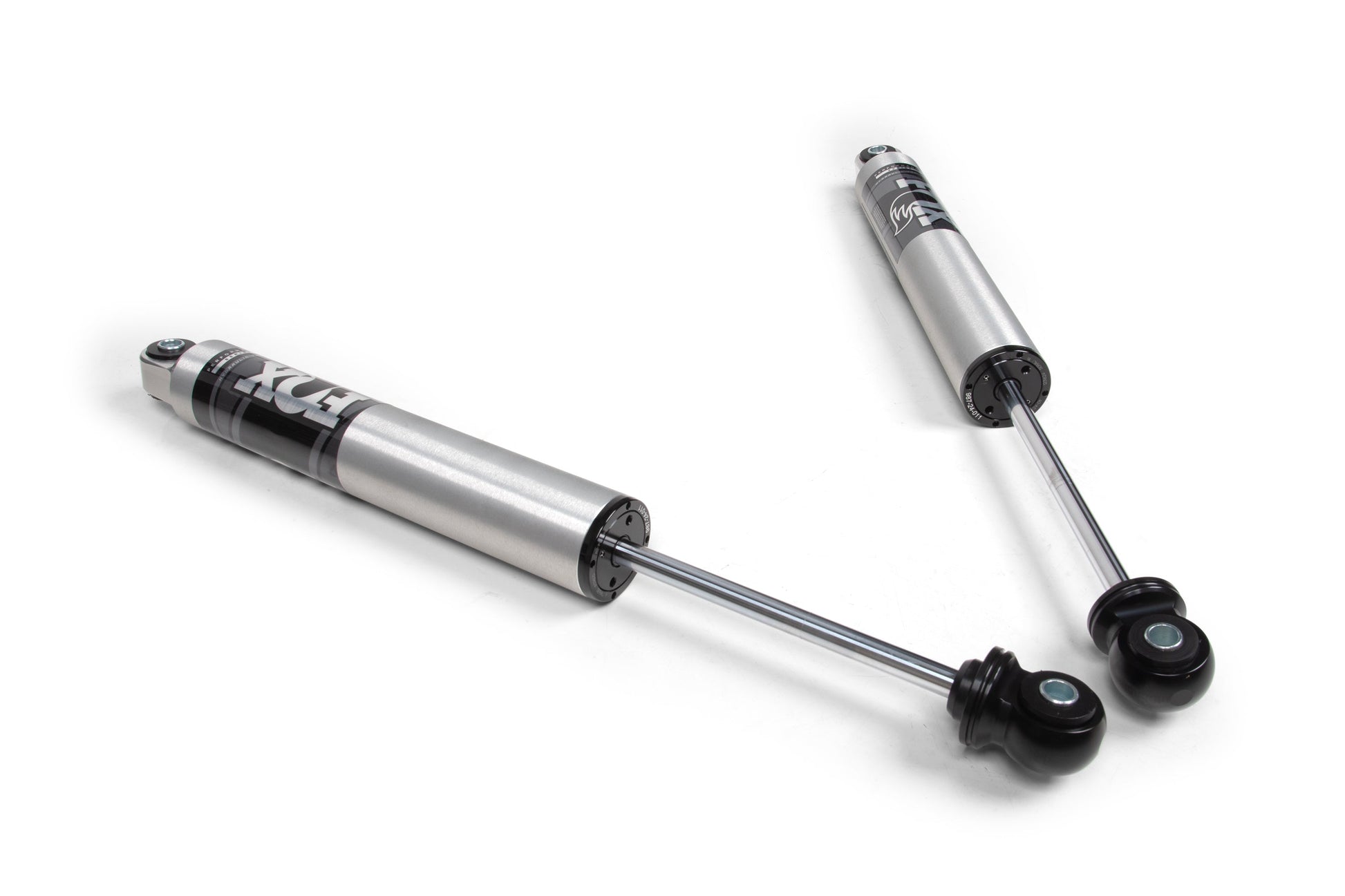

| 2 | FOX98724011 | FOX 2.5 IFP Rear Shock w/HTO | 1.5-2.5 Inch Lift | Performance Series | Chevrolet Silverado 2500/3500 (20-24) |
Features
- FOX 2.0 Performance Series shocks offer improved performance and damper capacity. Or FOX 2.5 PS IFP Performance Series shocks offer improved performance and damper capacity. Or FOX 2.5 performance elite series shocks offer next level performance and damper capacity. Aluminum body for faster heat dispersion and DSC adjustabe reservoir.
- Performance UCAs increase strength and allow for more suspension travel
- High strength cast torsion bar keys use an indexed design to provide additional ride height.
- Sway bar relocation for proper clearance
- Differential relocation to improve CV operating angle.
- Rear block and u-bolt kit provides lift while maintaining spring function and load capacity
Recommended wheels & tires
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
- 295 / 60 with 20 x 9 and 5.75 in. Backspace
- 285 / 65 with 20 x 9 and 6.18 in. Backspace
Installation
- Estimated install time3-4 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

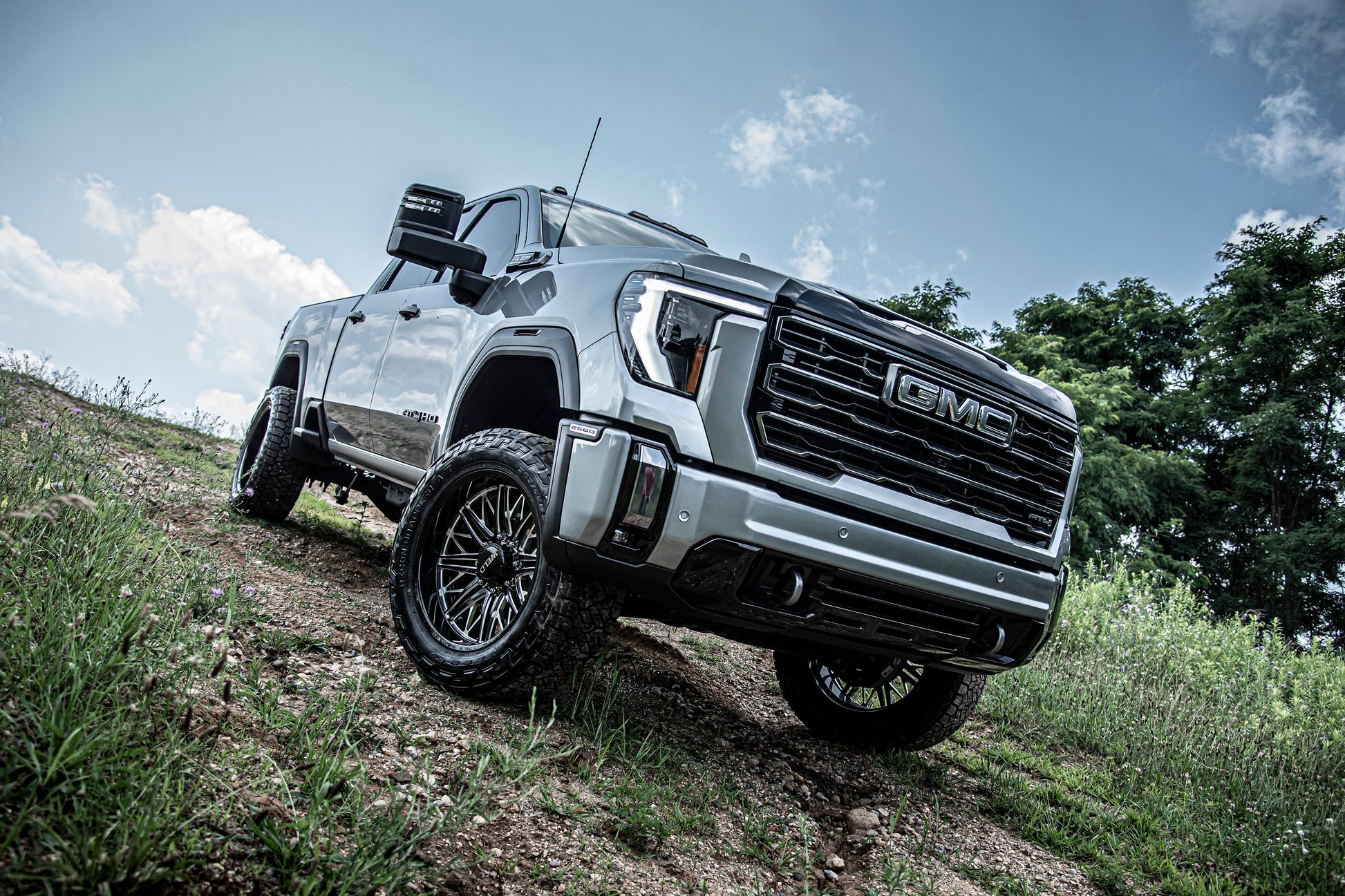

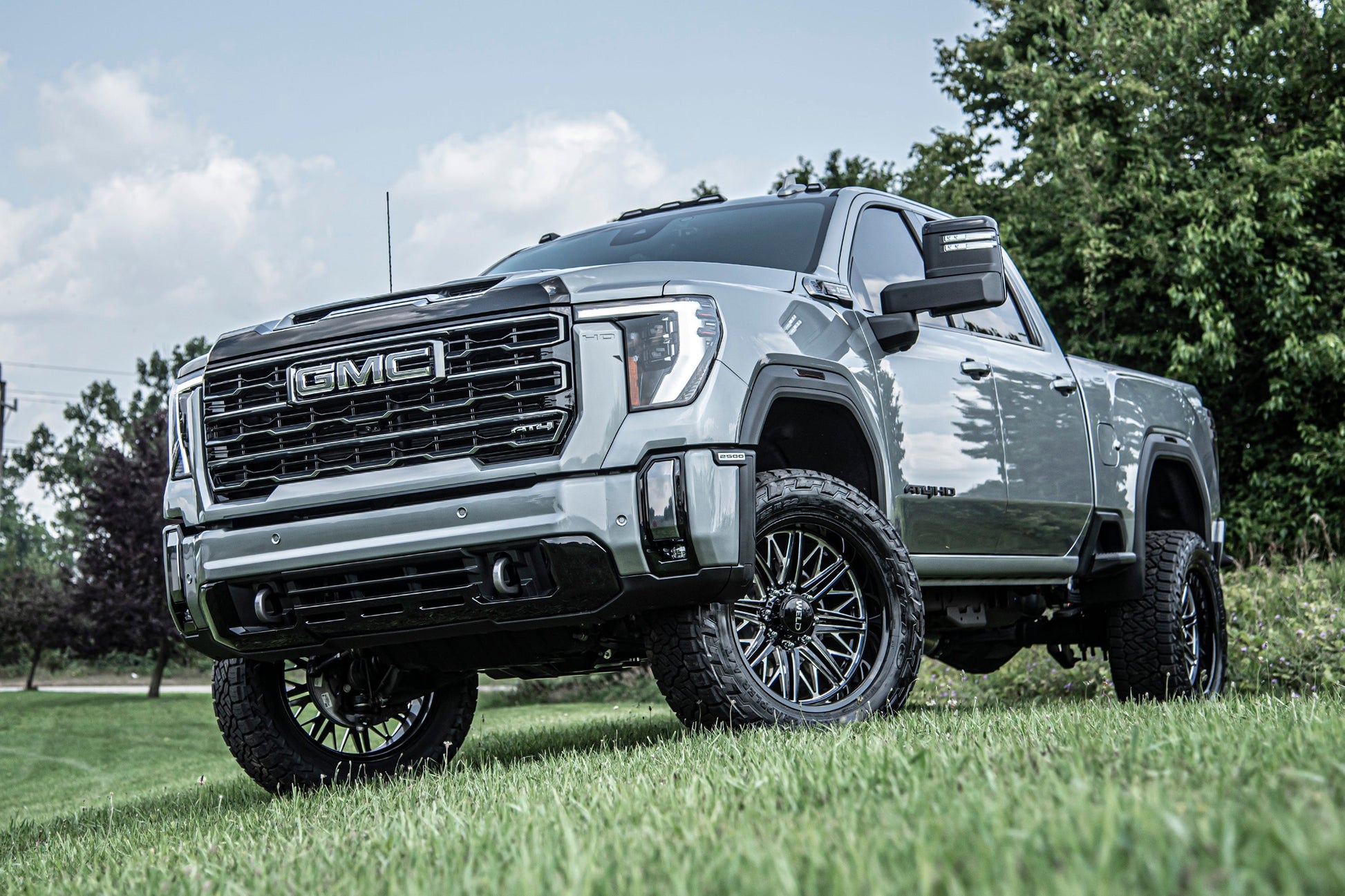

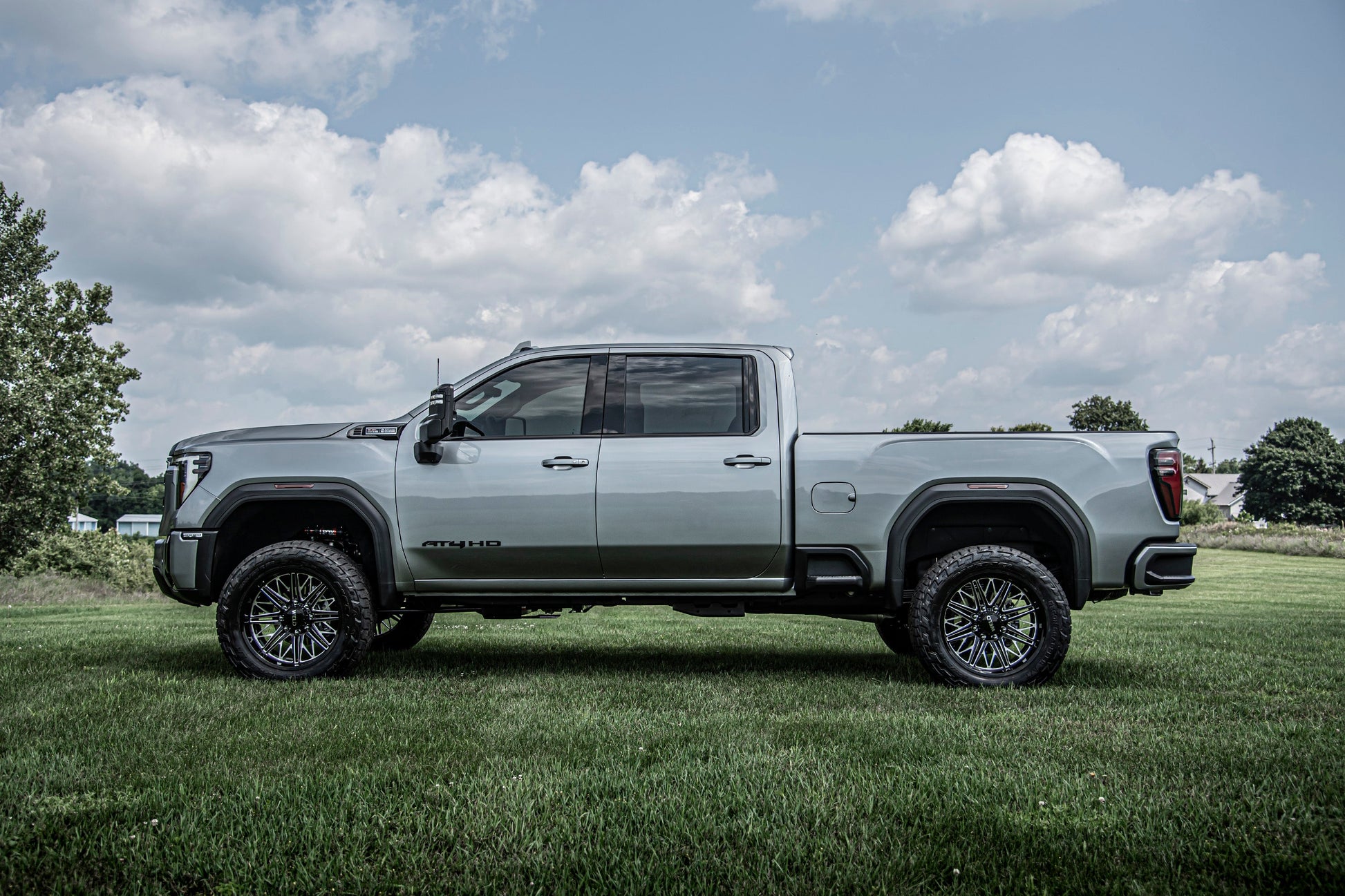

Level out your 2020-2026 Chevy Silverado and GMC Sierra 2500 HD 4WD truck and improve the ride with this 3-inch leveling lift kit featuring FOX 2.0 IFP Performance Series shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes FOX 2.0 Performance Series IFP shocks and heavy duty tubular upper control arms for increased strength. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied upfront to lift the vehicle and a small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle.
In the rear, a 2" block and u-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.0 performance series IFP shocks ready to soak up the terrain.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
