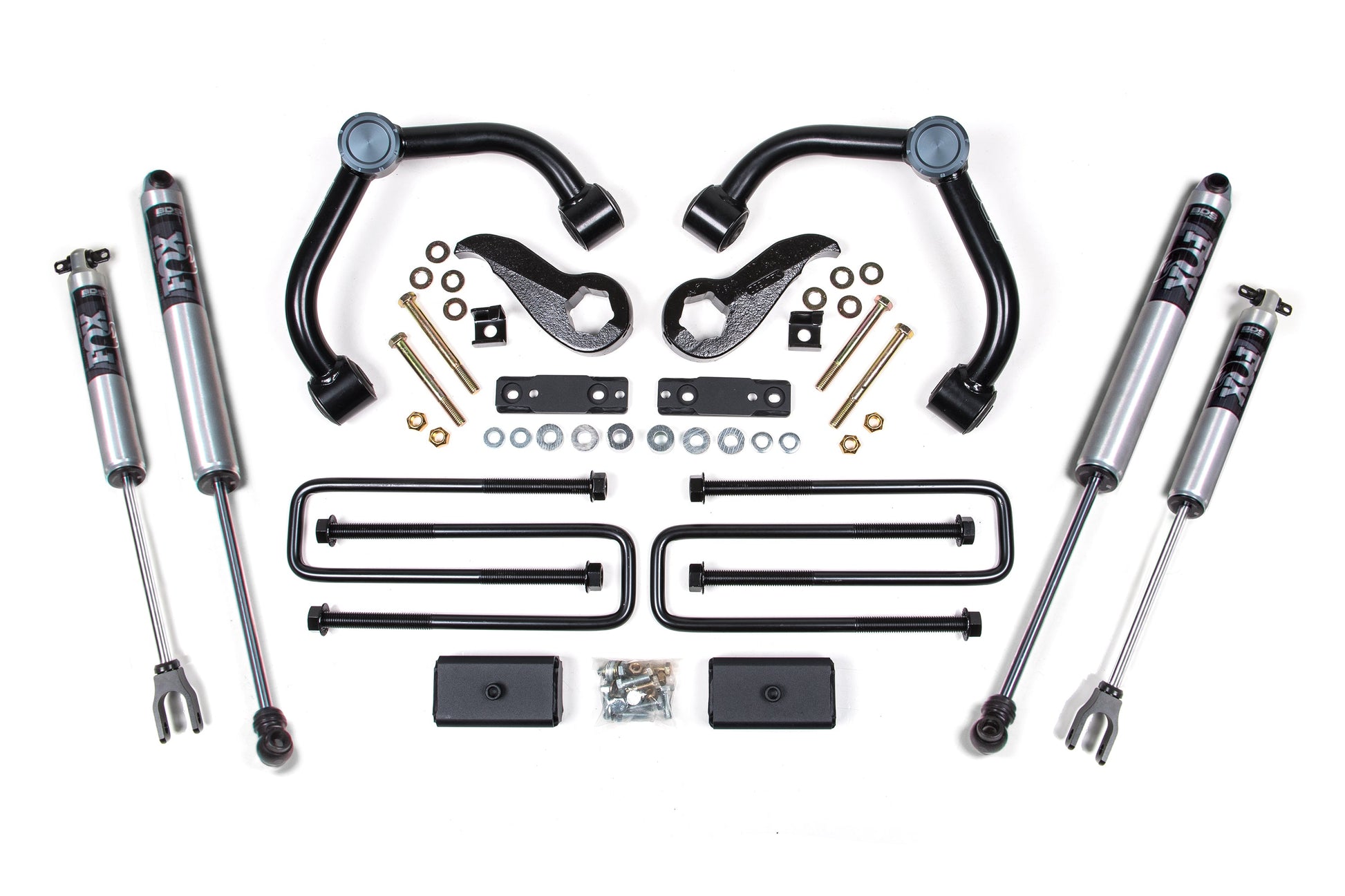

BDS Suspension 3 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26)

Name: BDS Suspension 3 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26)
Brand: BDS Suspension
SKU: BDS760FS
Price: 1889.7 USD
Availability: InStock

BDS Suspension 3 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500HD (20-26)

PART #

$1,889.70

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Features

FOX 2.0 Performance Series shocks offer improved performance and damper capacity.
Performance UCAs increase strength and allow for more suspension travel
High strength cast torsion bar keys use an indexed design to provide additional ride height.
Sway bar relocation for proper clearance
Differential relocation to improve CV operating angle.
Rear block and u-bolt kit provides lift while maintaining spring function and load capacity

Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809
Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. Wheel spacers may be required to use stock wheels and stock tires.
Will NOT work with AT4X or ZR2 models, lower control arm profile is different
Dually models must select the "2 Inch Block Kit With Overload" option.

Quick Specs

Recommended Wheels and Tires

Note: trimming may be required.
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
295 / 60 with 20 x 9 and 5.75 in. Backspace
285 / 65 with 20 x 9 and 6.18 in. Backspace

Instructions

Estimated Install Time: 3-4 hrs
Difficulty: Moderate
Required Tools: Grinder/Sanding Disc, Torsion Bar Unloading Tool
Instructions 1
