Zone Offroad 8 Inch Lift Kit Ford F250/F350 Super Duty (11-16) 4WD · Gas
- Front lift 8"
- Max tire 38 x 12.5
- Rear lift 6"
- Shocks included
- Install 8 hrs
- Difficulty Moderate
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Exhaust modification may be required to clear front driveshaft (gas only)
- Although extremely rare, front driveshaft vibration may occur
- If equipped with 2-piece rear driveshaft, carrier bearing drop will be required (ZONF5401)
- Front driveshaft u-joints may max out at full droop. If so, a new front driveshaft will be required.
- If equipped with rear sway bar, extended sway bar links will be required. (ZONF5009)
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONF56F |
| UPC / GTIN | 810156366086 |
| Front Lift Height | 8" |
| Front Lift Method | Coil Spring & Drop Bracket |
| Max Tire Size | 38 x 12.5 |
| Rear Lift Height | 6" |
| Rear Lift Method | Block & Add-A-Leaf |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderate |

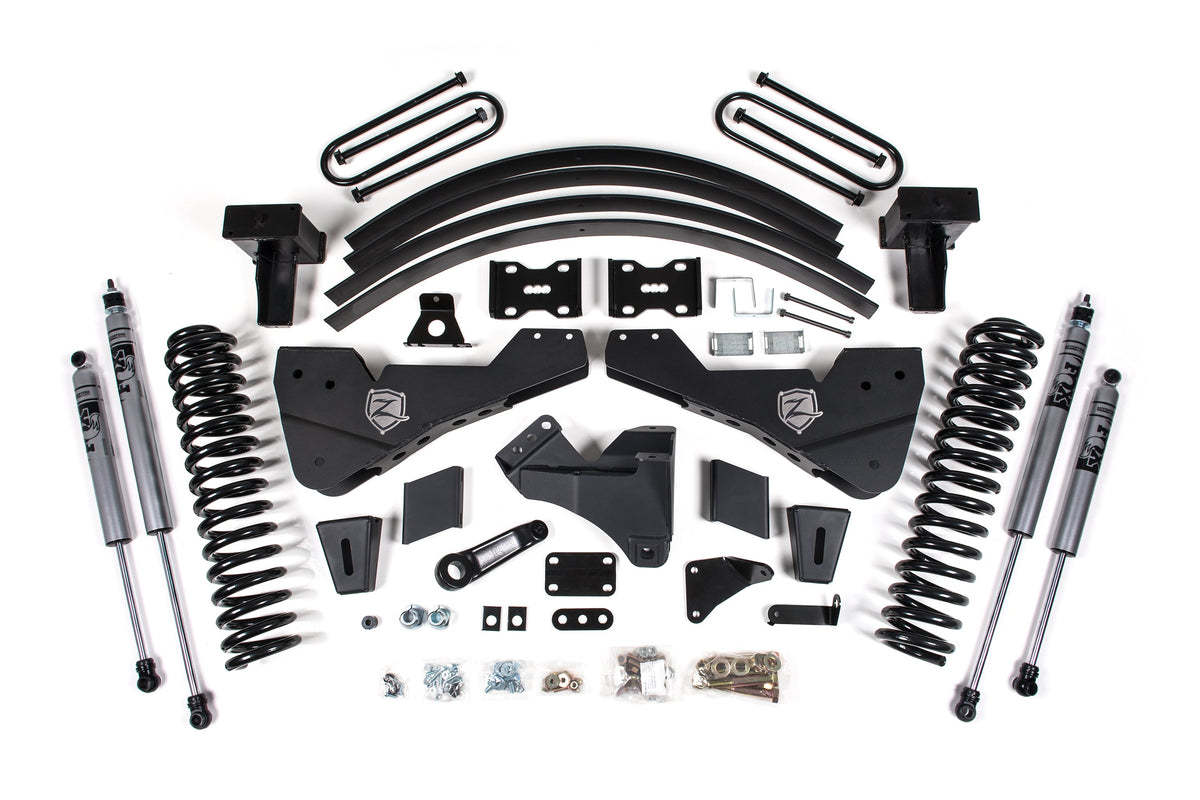

What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZONF56F – Block Kit Without Factory Overload / FOX 2.0 Adventure Series(2) FOX98450751 Fox Adv Shock 29.84 x 18.25 x 2-S50/EB1 |
| 2 | FOX98450765 | Fox Adv Shock 35.95 x 21.85 x 2-EB1/EB1 |
| 1 | ZONF1619 | 2011-2016 Ford F250/ F350 Super Duty 6in Rear Block Kit w/o ovld |
| 1 | ZONF1801 | 2011-2016 Ford F250/ F350 Super Duty 8" Front Box Kit 1of2 |
| 1 | ZONF1802 | 2011-2016 Ford F250/ F350 Super Duty 8" Front Box Kit 2 of 2 |
| 2 | ZONF3802 | Coil Spring Box Kit: 2011-2016 Ford F250/F350 Super Duty -Gas - 8" Front Coil Spring - Single Coil |
| 1 | ZONF6209 | 2008-2012 Super Duty Dual Add-a-leaf |
| — | — | ZONF57F – Block Kit With Factory Overload / FOX 2.0 Adventure Series(2) FOX98450751 Fox Adv Shock 29.84 x 18.25 x 2-S50/EB1 |
| 2 | FOX98450765 | Fox Adv Shock 35.95 x 21.85 x 2-EB1/EB1 |
| 1 | ZONF1618 | 2011-2016 Ford F250/ F350 Super Duty 6in Rear Block Kit w/ ovld |
| 1 | ZONF1801 | 2011-2016 Ford F250/ F350 Super Duty 8" Front Box Kit 1of2 |
| 1 | ZONF1802 | 2011-2016 Ford F250/ F350 Super Duty 8" Front Box Kit 2 of 2 |
| 2 | ZONF3802 | Coil Spring Box Kit: 2011-2016 Ford F250/F350 Super Duty -Gas - 8" Front Coil Spring - Single Coil |
| 1 | ZONF6209 | 2008-2012 Super Duty Dual Add-a-leaf |
Features
- Full length 8" lift coil springs
- Forged pitman arms and HD track bar bracket to correct steering angles
- High strength radius arm drop brackets to corect suspension geometry
- Sway bar and brake line relocation brackets to correct operating angles
- Rear lift block + dual add-a-leaf kit to lift and level the rear stance
- Allows clearance for up to 38" tires
Recommended wheels & tires
- Note: trimming may be required.
- 38 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 38 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 38 x 12.5 with 22 x 9.5 and 4.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Lift Option
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.- Factory Overload – 3 Leaf
- NO Overload – 2 Leaf
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
