The Zone Offroad 6-inch Lift Kit for 2013–2018 Ram 1500 4x4 trucks delivers aggressive stance, larger tire clearance, and OE-quality engineering for both on- and off-road performance. Designed by our team of engineers in Coldwater, Michigan to OE standards, this system features heavy-duty steering knuckles that are cast in the USA, while all fabricated steel components are locally manufactured and powder coated for long-lasting durability and corrosion resistance. The 6-inch lift allows clearance for up to 37 x 12.50 tires on wheels with 4.5 inches of backspacing, giving your Ram a commanding presence and enhanced capability. This kit also offers multiple configuration options to fit your build. Up front, you can choose OE strut spacers that retain the factory front struts and pair them with either Zone Nitro twin-tube rear shocks or upgrade to FOX 2.0 Adventure Series rear shocks for improved performance. For a complete bolt-in solution, Zone Nitro loaded struts are also available and come preassembled for easy installation, matched with Zone Nitro rear shocks. In the rear, you can select a 3-inch block to level the truck from front to rear or a 5-inch block to retain most of the factory rake, allowing you to tailor the stance and functionality of your lifted Ram.
Zone Offroad 6 Inch Lift Kit Ram 1500 (13-18) 4WD
Regular price
$1,744.28
Regular price
B2B price
$1,744.28
Unit price
per
Shipping calculated at checkout.
- Front lift 6"
- Lift 6-7.5"
- Max tire 37 x 12.5
- Rear lift 3"
- Shocks included
- Install 9 hrs
Read the important notes before ordering
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Does NOT work with all wheel drive (AWD) models.
- This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.
- Will NOT fit adjustable air suspension (air-ride) equipped models.
- Fitment: Does not fit eco-diesel models. Front drive shaft WILL fail prematurely.
- These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
- Stock 17" wheels CAN NOT be re-installed.
- Stock 20" can be re-installed with factory tire.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZOND40F |
| Front Lift Height | 6" |
| Front Lift Method | Cross Member & Strut Spacer |
| Lift Height | 6-7.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |
| Install time | 9 hrs |
| Difficulty | Moderate |

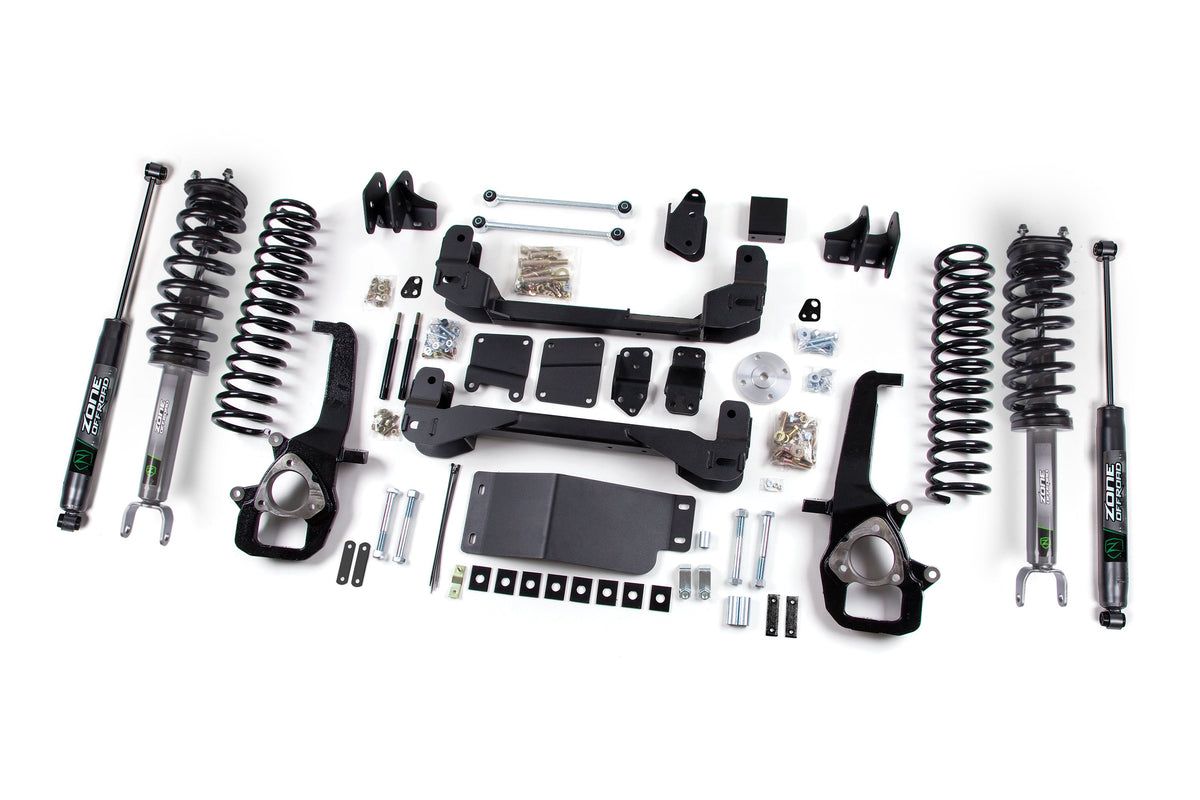

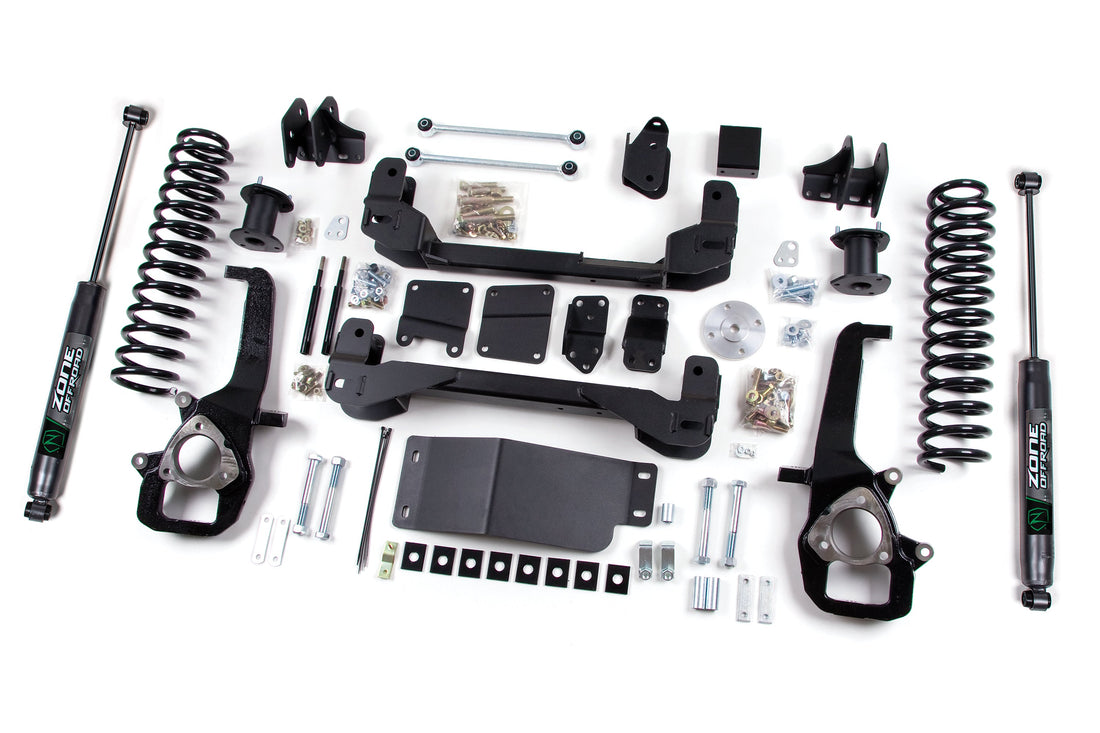

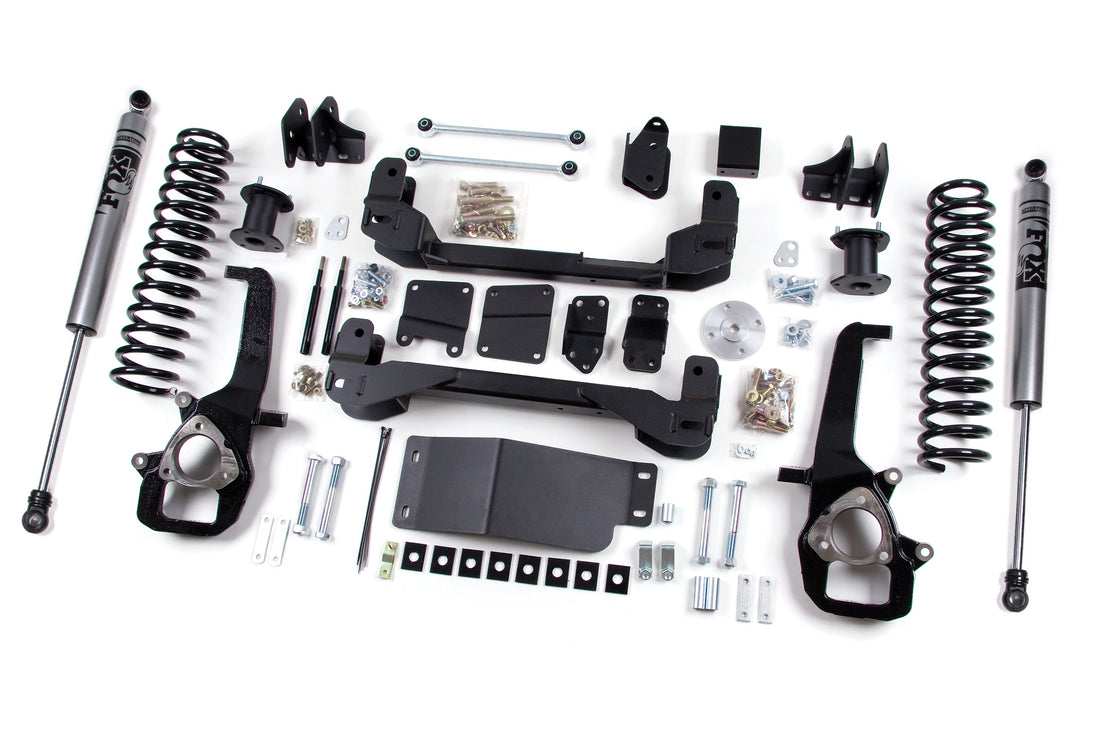

What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZOND40F – Strut Spacer / FOX Adventure Series / 3 Inch Coil Springs(2) FOX98450757 Fox Adv Shock 27.95 x 17.36 x 2-EB1/EB1 |
| 1 | ZOND2408 | 2009-2012 Dodge Rear Box Kit |
| 1 | ZOND2612 | 2012 Dodge 1500 Box 3 of 5 |
| 1 | ZOND2614 | 2012 Dodge 1500 6" Box Kit 4 of 5 |
| 1 | ZOND2620 | 2013 Dodge 1500 Box Kit (1of5) |
| 1 | ZOND2621 | 2013 Dodge 1500 Box Kit (2of5) |
| — | — | ZOND40LN – Loaded Strut / Nitro Series / 3 Inch Coil Springs(2) ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
| 1 | ZOND2408 | 2009-2012 Dodge Rear Box Kit |
| 1 | ZOND2612 | 2012 Dodge 1500 Box 3 of 5 |
| 1 | ZOND2615 | 2012-2018 Ram 1500 4wd, 4" and 6" Front Box Kit |
| 1 | ZOND2620 | 2013 Dodge 1500 Box Kit (1of5) |
| 1 | ZOND2621 | 2013 Dodge 1500 Box Kit (2of5) |
| 2 | ZOND4601 | 2012-2018 Ram 1500 6" Loaded Strut - Single Strut (78200261J) |
| — | — | ZOND40N – Strut Spacer / Nitro Series / 3 Inch Coil Springs(2) ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
| 1 | ZOND2408 | 2009-2012 Dodge Rear Box Kit |
| 1 | ZOND2612 | 2012 Dodge 1500 Box 3 of 5 |
| 1 | ZOND2614 | 2012 Dodge 1500 6" Box Kit 4 of 5 |
| 1 | ZOND2620 | 2013 Dodge 1500 Box Kit (1of5) |
| 1 | ZOND2621 | 2013 Dodge 1500 Box Kit (2of5) |
| — | — | ZOND41F – Strut Spacer / FOX Adventure Series / 5 Inch Coil Springs(2) FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 |
| 1 | ZOND2608 | 2009-2012 Dodge Rear Box Kit |
| 1 | ZOND2612 | 2012 Dodge 1500 Box 3 of 5 |
| 1 | ZOND2614 | 2012 Dodge 1500 6" Box Kit 4 of 5 |
| 1 | ZOND2620 | 2013 Dodge 1500 Box Kit (1of5) |
| 1 | ZOND2621 | 2013 Dodge 1500 Box Kit (2of5) |
| — | — | ZOND41LN – Loaded Strut / Nitro Series / 5 Inch Coil Springs(2) ZON7759 Nitro - 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 1 | ZOND2608 | 2009-2012 Dodge Rear Box Kit |
| 1 | ZOND2612 | 2012 Dodge 1500 Box 3 of 5 |
| 1 | ZOND2615 | 2012-2018 Ram 1500 4wd, 4" and 6" Front Box Kit |
| 1 | ZOND2620 | 2013 Dodge 1500 Box Kit (1of5) |
| 1 | ZOND2621 | 2013 Dodge 1500 Box Kit (2of5) |
| 2 | ZOND4601 | 2012-2018 Ram 1500 6" Loaded Strut - Single Strut (78200261J) |
| — | — | ZOND41N – Strut Spacer / Nitro Series / 5 Inch Coil Springs(2) ZON7759 Nitro - 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 1 | ZOND2608 | 2009-2012 Dodge Rear Box Kit |
| 1 | ZOND2612 | 2012 Dodge 1500 Box 3 of 5 |
| 1 | ZOND2614 | 2012 Dodge 1500 6" Box Kit 4 of 5 |
| 1 | ZOND2620 | 2013 Dodge 1500 Box Kit (1of5) |
| 1 | ZOND2621 | 2013 Dodge 1500 Box Kit (2of5) |
Features
- This kit includes a 3" rear lift spring for a level rear end; a 5" rear lift spring is available in a "Tail High Rear End" version of this kit.
- Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves off-road protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Top mount strut and preload spacers set ride height and maintain ride quality.
Recommended wheels & tires
- Note: trimming may be required.
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time9 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Lift Option
These vehicles vary from 1" to 3" tail high from the factory. BDS offers both 3" and 5" rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.
-
3 Inch Coil Springs - Use if your vehicle is 3" tail high from the factory.
- 5 Inch Coil Springs - Use if your vehicle is level to 1" of tail high from the factory.
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
