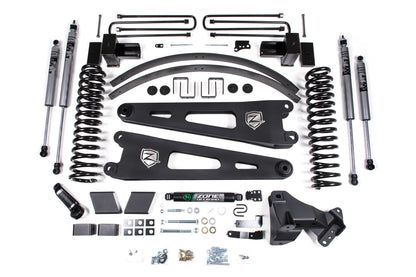

Zone Offroad 6" Lift Kit Ford F250/F350 Super Duty (17-19) 4WD · Diesel
- Front lift 6"
- Lift 6-7.5"
- Max tire 38 x 13.5
- Rear lift 5"
- Shocks included
- Install 7 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Diesel Model Only.
- Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring; see "Learn More" image for help.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Fits SRW models only
- Wheel and Tire:
- 38x13.50 Tires may require minor trimming
- Factory wheels fit when paired with factory / original equipment tire size
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONF51F |
| UPC / GTIN | 810156365966 |
| Front Lift Height | 6" |
| Front Lift Method | Coil Spring & Radius Arm |
| Lift Height | 6-7.5" |
| Max Tire Size | 38 x 13.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Block & Add-A-Leaf |
| Shocks Included | Yes |
| Install time | 7 hrs |
| Difficulty | Moderate |

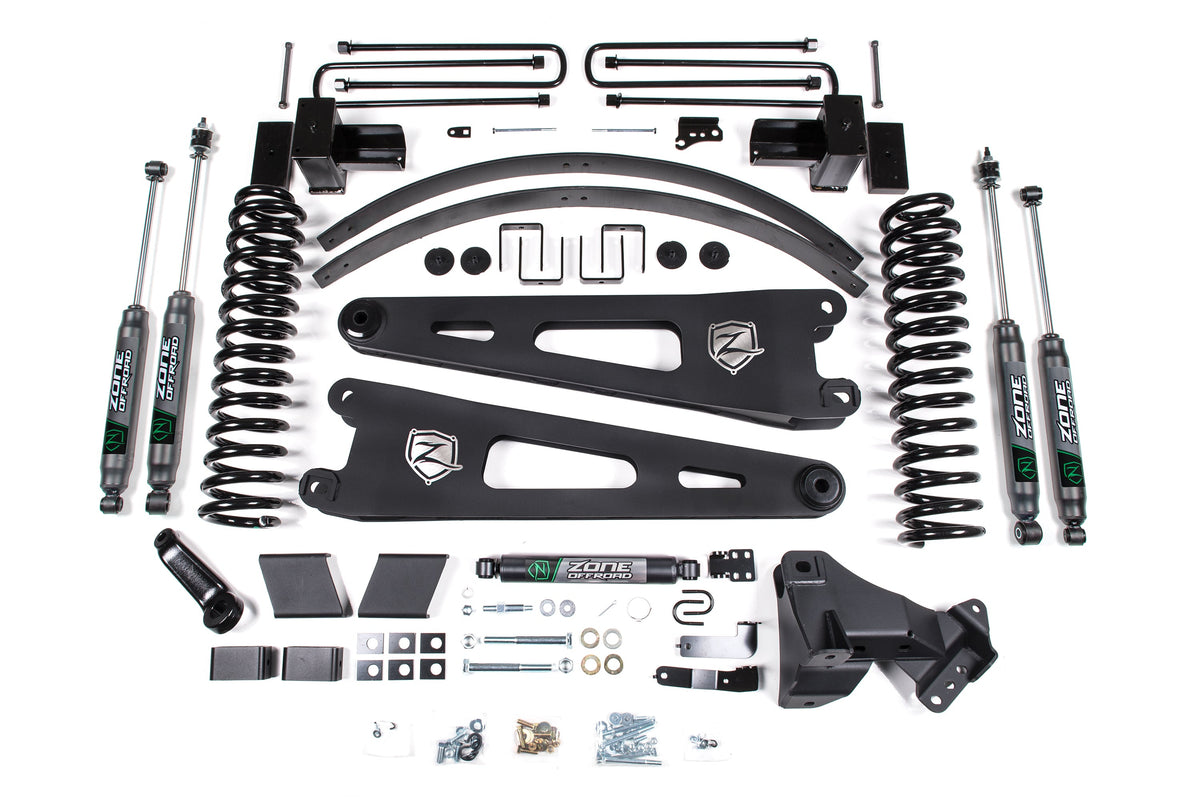

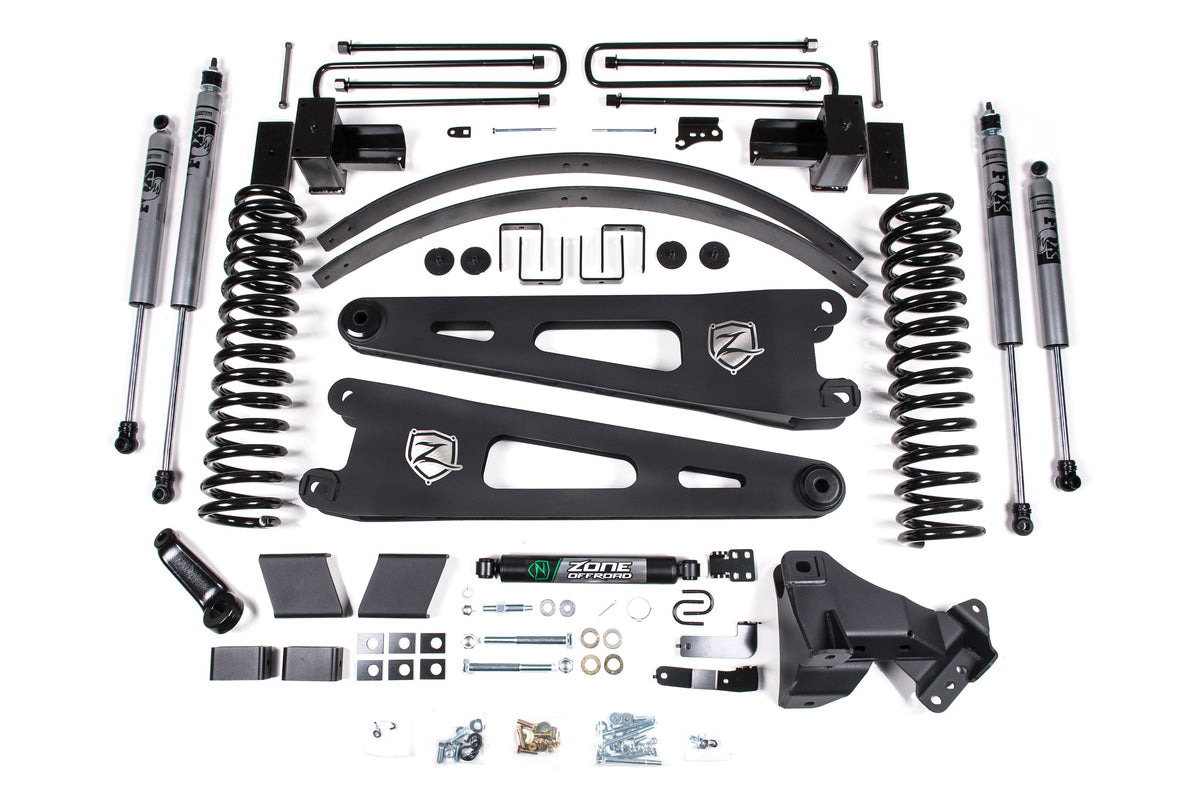

What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZONF51F – Block Kit Without Factory Overload / FOX 2.0 Adventure Series(2) FOX98450718 Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 2 | FOX98450745 | Fox Adv Shock 26.73 x 16.65 x 2-S50/EB1 |
| 1 | ZON7302 | 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZONF1601 | 2005-2022 Ford Super Duty Radius Arm (One) |
| 1 | ZONF1609 | 2017-2019 Ford F250/ F350 Super Duty Rear 6" Block Kit |
| 2 | ZONF1613 | Coil Spring Box Kit: 2005-2019 6” / 2020+ 7” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
| 1 | ZONF1614 | 2017-2026 Ford F250/F350 4-6" Radius Arm Front Box Kit |
| 1 | ZONF6208 | 2017-2026 Ford F250/ F350 Super Duty Rear Add-A-Leaf Box Kit |
| — | — | ZONF51N – Block Kit Without Factory Overload / Nitro Series(1) ZON7302 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZON7718 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 2 | ZON7752 | Nitro- 26.20 x 15.60 x 2-3/8 - S1/EB1 |
| 2 | ZONF1601 | 2005-2022 Ford Super Duty Radius Arm (One) |
| 1 | ZONF1609 | 2017-2019 Ford F250/ F350 Super Duty Rear 6" Block Kit |
| 2 | ZONF1613 | Coil Spring Box Kit: 2005-2019 6” / 2020+ 7” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
| 1 | ZONF1614 | 2017-2026 Ford F250/F350 4-6" Radius Arm Front Box Kit |
| 1 | ZONF6208 | 2017-2026 Ford F250/ F350 Super Duty Rear Add-A-Leaf Box Kit |
| — | — | ZONF52F – Block Kit With Factory Overload / FOX 2.0 Adventure Series(2) FOX98450718 Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 2 | FOX98450745 | Fox Adv Shock 26.73 x 16.65 x 2-S50/EB1 |
| 1 | ZON7302 | 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZONF1601 | 2005-2022 Ford Super Duty Radius Arm (One) |
| 1 | ZONF1609 | 2017-2019 Ford F250/ F350 Super Duty Rear 6" Block Kit |
| 2 | ZONF1613 | Coil Spring Box Kit: 2005-2019 6” / 2020+ 7” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
| 1 | ZONF1614 | 2017-2026 Ford F250/F350 4-6" Radius Arm Front Box Kit |
| — | — | ZONF52N – Block Kit With Factory Overload / Nitro Series(1) ZON7302 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZON7718 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 2 | ZON7752 | Nitro- 26.20 x 15.60 x 2-3/8 - S1/EB1 |
| 2 | ZONF1601 | 2005-2022 Ford Super Duty Radius Arm (One) |
| 1 | ZONF1609 | 2017-2019 Ford F250/ F350 Super Duty Rear 6" Block Kit |
| 2 | ZONF1613 | Coil Spring Box Kit: 2005-2019 6” / 2020+ 7” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
| 1 | ZONF1614 | 2017-2026 Ford F250/F350 4-6" Radius Arm Front Box Kit |
Features
- High strength front coil springs improve ride quality
- HD radius arm to correct caster while maximizing ground clearance.
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles.
- Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance
Recommended wheels & tires
- Note: trimming may be required.
- 38 x 13.5 with 17 x 10 and 5 in. Backspace
- 38 x 13.5 with 18 x 10 and 5 in. Backspace
- 38 x 13.5 with 20 x 10 and 5 in. Backspace
Installation
- Estimated install time7 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Lift Option
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
- Factory Overload – 3 Leaf
- NO Overload – 2 Leaf
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
