Zone Offroad 6 Inch Lift Kit Ford F150 (2014) 4WD
- Front lift 6"
- Lift 6-7.5"
- Max tire 35 x 12.5
- Rear lift 4"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- This kit is offered with either 4" or 5" rear lift block kit and in either case it will replace the factory rear blocks. The 5" block will net a level to slightly tail high stance, the 4" block will net a level to slightly tail low stance.
- Choose rear lift height based on your ride height preference.
- Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket. Add in configuration / checkout.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
- Wheel and Tire:
- May require bumper or fender trimming depending on wheel and tire choice. See installation instructions for more information.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONF40F |
| Front Lift Height | 6" |
| Front Lift Method | Cross Member & Strut Spacer |
| Lift Height | 6-7.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 4" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderate |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZONF40F – Strut Spacer / FOX Adventure Series / 5 Inch Block Kit(2) FOX98450763 Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZONF2615 | 2009-2014 Ford F150 6" Front Box Kit (1of4) |
| 1 | ZONF2616 | 2009-2014 Ford F150 6" Front Box Kit (2of4) |
| 1 | ZONF2619 | 2009-2020 Ford F150 5" Rear Block Kit |
| 1 | ZONF2632 | 2014 Ford F150 6" Front Box Kit (3of4) |
| 1 | ZONF2633 | 2014 Ford F150 6" Front Box Kit (4of4) |

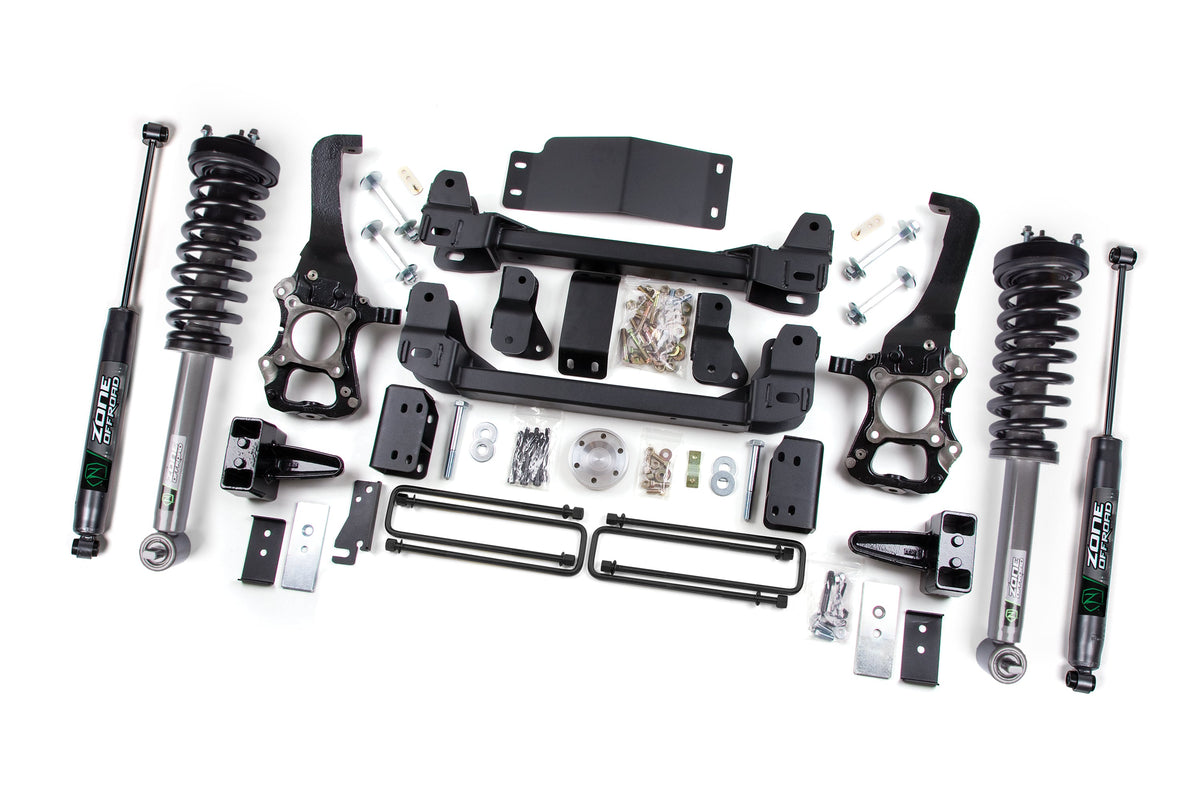

| — | — | ZONF40LN – Loaded Strut / Nitro Series / 5 Inch Block Kit(2) ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZONF2615 | 2009-2014 Ford F150 6" Front Box Kit (1of4) |
| 1 | ZONF2616 | 2009-2014 Ford F150 6" Front Box Kit (2of4) |
| 1 | ZONF2619 | 2009-2020 Ford F150 5" Rear Block Kit |
| 1 | ZONF2632 | 2014 Ford F150 6" Front Box Kit (3of4) |
| 1 | ZONF2633 | 2014 Ford F150 6" Front Box Kit (4of4) |
| 2 | ZONF4601 | 2014-2026 Ford F150 6" Loaded Strut - Single Strut (7232461J) |

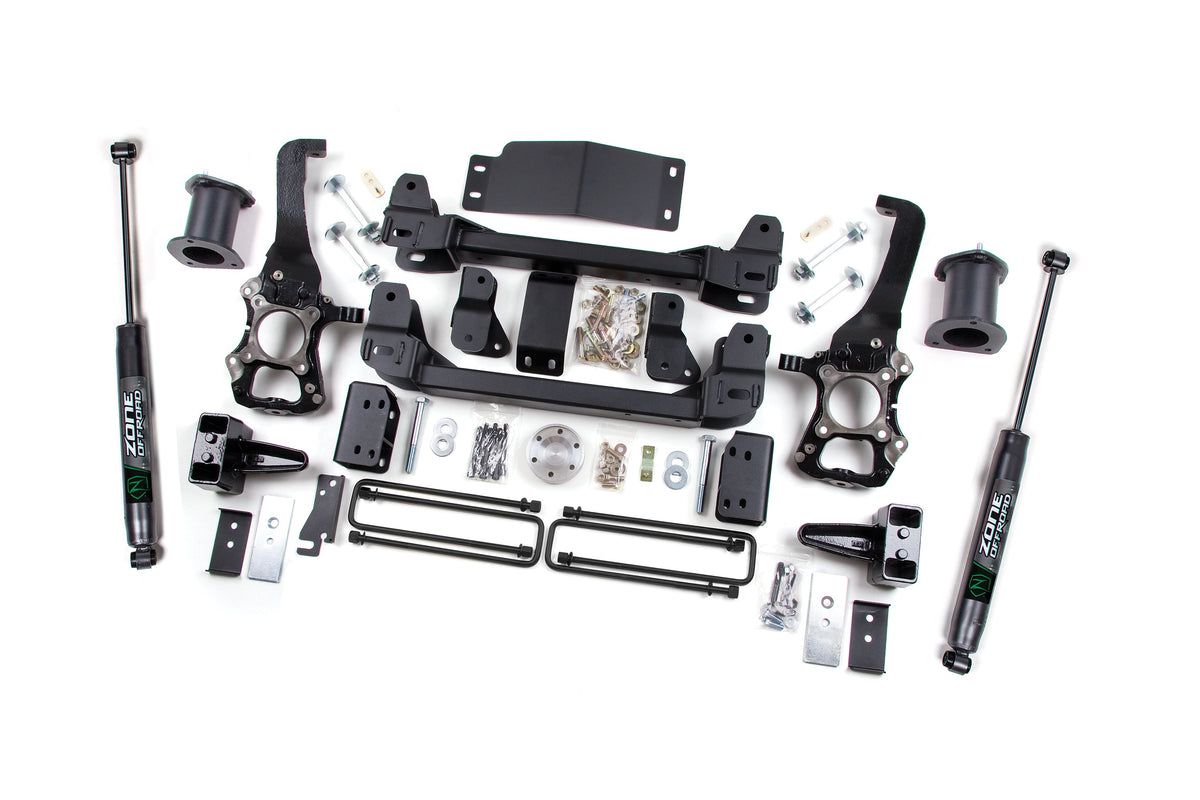

| — | — | ZONF40N – Strut Spacer / Nitro Series / 5 Inch Block Kit(2) ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZONF2615 | 2009-2014 Ford F150 6" Front Box Kit (1of4) |
| 1 | ZONF2616 | 2009-2014 Ford F150 6" Front Box Kit (2of4) |
| 1 | ZONF2619 | 2009-2020 Ford F150 5" Rear Block Kit |
| 1 | ZONF2632 | 2014 Ford F150 6" Front Box Kit (3of4) |
| 1 | ZONF2633 | 2014 Ford F150 6" Front Box Kit (4of4) |

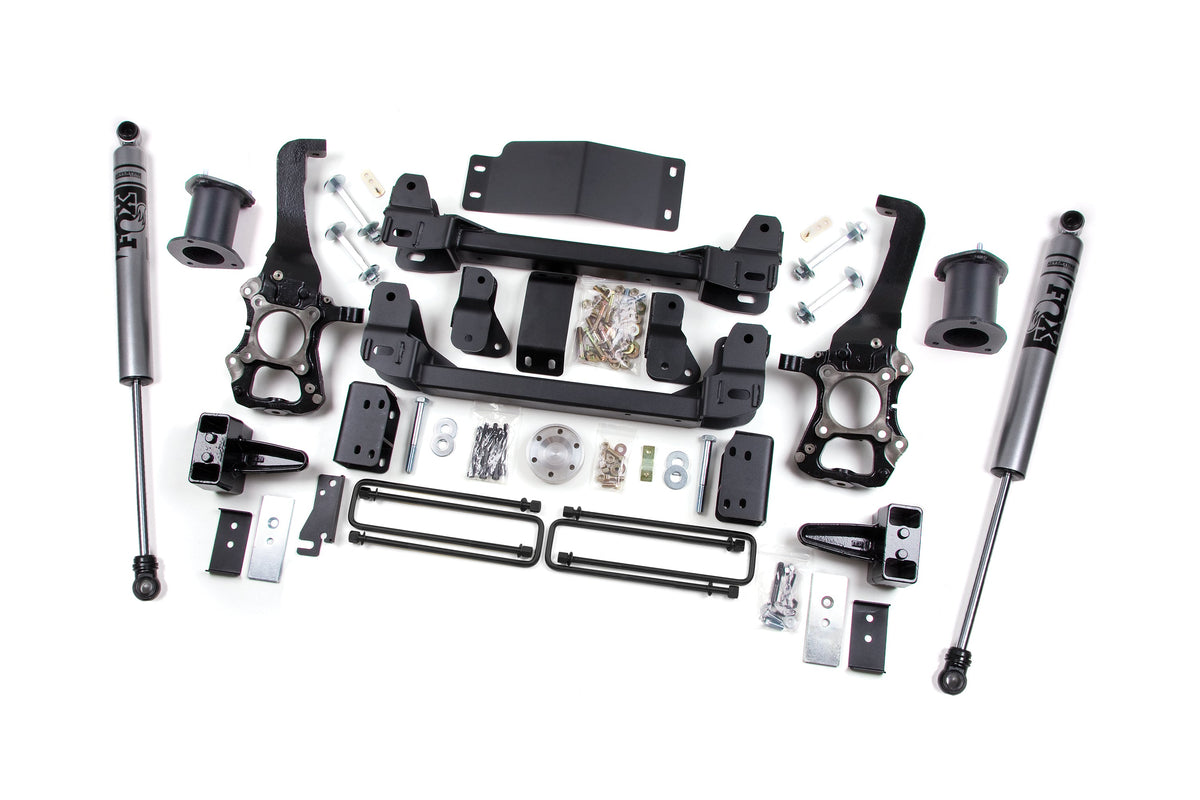

| — | — | ZONF81F – Strut Spacer / FOX Adventure Series / 4 Inch Block Kit(2) FOX98450763 Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZONF2419 | 2009-2014 F150 Rear 4" Block Kit |
| 1 | ZONF2615 | 2009-2014 Ford F150 6" Front Box Kit (1of4) |
| 1 | ZONF2616 | 2009-2014 Ford F150 6" Front Box Kit (2of4) |
| 1 | ZONF2632 | 2014 Ford F150 6" Front Box Kit (3of4) |
| 1 | ZONF2633 | 2014 Ford F150 6" Front Box Kit (4of4) |
| — | — | ZONF81N – Strut Spacer / Nitro Series / 4 Inch Block Kit(2) ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZONF2419 | 2009-2014 F150 Rear 4" Block Kit |
| 1 | ZONF2615 | 2009-2014 Ford F150 6" Front Box Kit (1of4) |
| 1 | ZONF2616 | 2009-2014 Ford F150 6" Front Box Kit (2of4) |
| 1 | ZONF2632 | 2014 Ford F150 6" Front Box Kit (3of4) |
| 1 | ZONF2633 | 2014 Ford F150 6" Front Box Kit (4of4) |
Features
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Lift system does not change the front track width of the vehicle.
Recommended wheels & tires
- Note: trimming may be required.
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
- 37 x 12.5 with 22 x 9 and 5.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Give your 2014 Ford F-150 the height, clearance, and aggressive stance it deserves with the Zone Off Road 6-inch Lift Kit. Designed to improve capability on and off the trail, this system provides the clearance needed to run up to 37-inch tires while maintaining solid on-road handling. The lift is built around precision-engineered steering knuckles which properly correct suspension geometry at the taller ride height. To complete the system, the kit includes heavy-duty crossmembers, a differential drop, sway bar drop brackets, skid plate, rear lift blocks, and new U-bolts for a complete, properly engineered suspension upgrade which is proudly Made in the USA.
Up front, you can choose the setup that best fits your build. One option uses OE strut spacers, allowing you to retain the factory front struts while achieving the full lift height. This configuration can be paired with either Zone Nitro rear shocks or upgraded FOX 2.0 Adventure Series rear shocks for improved ride control. For a more complete front suspension upgrade, the kit is also available with Zone Nitro loaded struts, which arrive fully assembled and ready to bolt in, paired with matching Zone Nitro rear shocks for balanced performance and easy installation.
In the rear, Zone gives you the ability to fine-tune the stance of your truck. A 4-inch rear block levels the truck for a clean, aggressive look, while a 5-inch rear block retains some of the factory rake for those who prefer a slightly higher rear stance for hauling or towing.
Built with durability in mind and engineered for an easy installation, the Zone Off Road 6-inch Lift Kit is a straightforward way to transform the look and capability of your F-150 without sacrificing everyday drivability.
Rear Lift Option
5 Inch Block Kit
- Level to tail high appearance
4 Inch Block Kit
- Tail low to level stance
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
