Zone Offroad 6 Inch Lift Kit Chevy Silverado & GMC Sierra 1500 (19-24) 4WD
- Front lift 6"
- Lift 6-7.5"
- Max tire See Notes
- Rear lift 5"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Fits Gas and Diesel Models.
- Optional front skid plate will not work with 2.7L Turbo or Diesel Engines.
- Requires frame bracket modification.
- Will NOT work with Adaptive Ride Control (ARC) equipped models. (Use ZONC70 or ZONC72).
- Will NOT work with Trail Boss or AT4 models.
- Will NOT work with 2019-2020 1500 Classic Models.
- Will NOT work with Silverado ZR2 or Sierra AT4X models (Use ZONC73).
- If equipped with a mono-leaf rear spring, please use u-bolt part #UBT4064 (Qty 4 required)
- This system has not been tested on models equipped with Super Cruise.
- Wheel and Tire:
- Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels CAN be reinstalled.
- 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
- Chevy:
- 37 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS**
- 35 x 12.50 on 17x8, 17x9 w/ 4.5" BS*
- 35 x 12.50 on 20x9, 22x9 w/ 4.5-6.25" BS*
- *Trimming may be required
- ** Trimming is required
- GMC:
- 295/70 on 17x8, 17x9 w/ 4.5" BS*
- 295/65 on 20x9 w/ 4.5-6.25" BS*
- 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS*
- *Trimming may be required
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONC68F |
| UPC / GTIN | 810156361388 |
| Front Lift Height | 6" |
| Front Lift Method | Cross Member & Strut Spacer |
| Lift Height | 6-7.5" |
| Max Tire Size | See Notes |
| Rear Lift Height | 5" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Difficult |
What's in the box
| Qty | Part | Description |
|---|---|---|

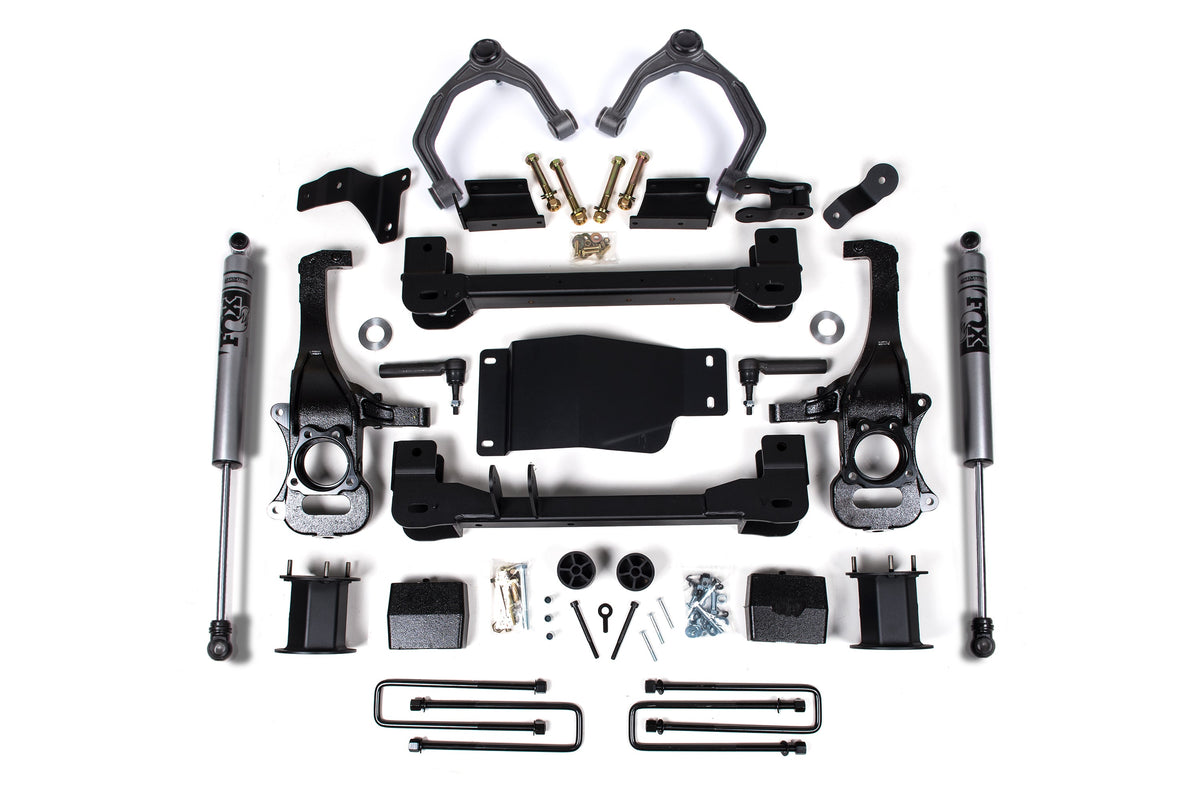

| — | — | ZONC68F – Strut Spacer / FOX Adventure Series(2) FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 |
| 1 | ZONC2662 | 2019-2026 Chevy/GMC 1500 Front Box Kit |
| 1 | ZONC2663 | 2019-2024 Chevy/GMC 1500 6" Box Kit |
| 1 | ZONC2672 | 2019-2026 Chevy/GMC 1500 Knuckle Box Kit 1 w/UCA (4" and 6" Compatible) |
| 1 | ZONC2673 | 2019-2026 Chevy/GMC 1500 Knuckle Box Kit 2 w/UCA (4" and 6" Compatible) |

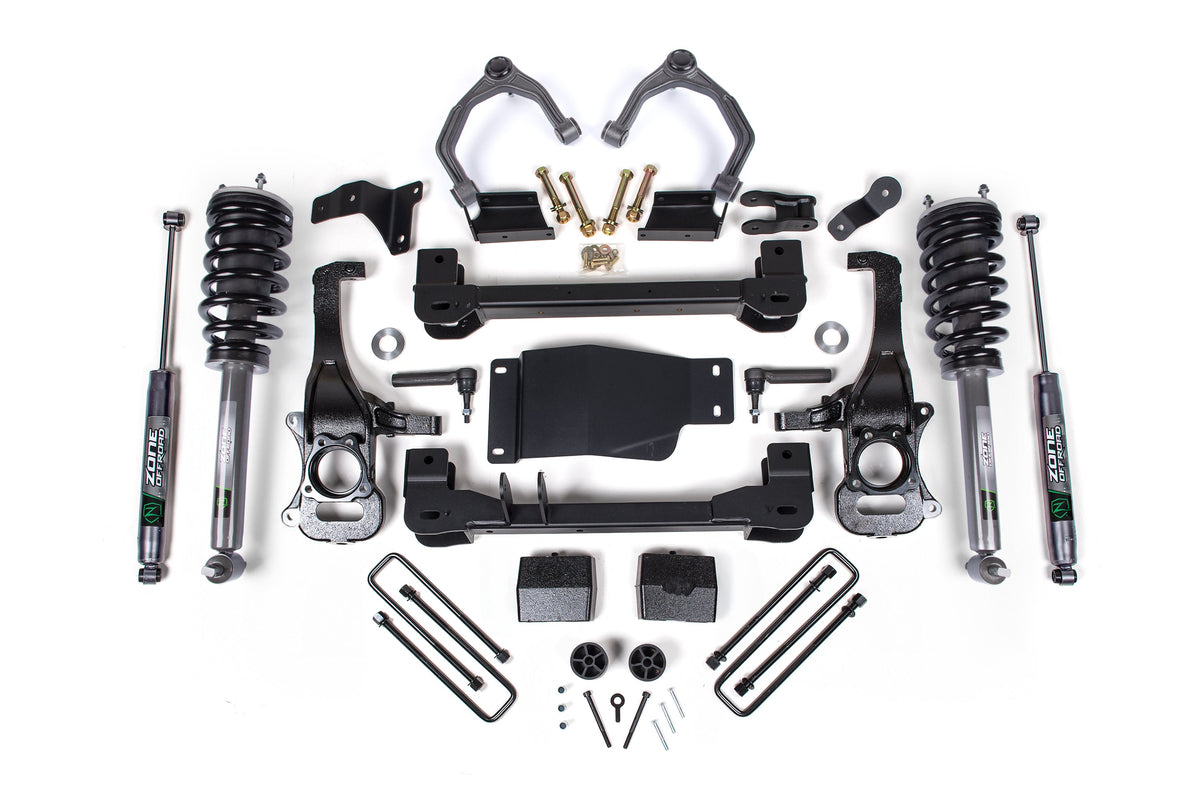

| — | — | ZONC68LN – Loaded Strut / Nitro Series(2) ZON7759 Nitro - 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 1 | ZONC2662 | 2019-2026 Chevy/GMC 1500 Front Box Kit |
| 1 | ZONC2665 | 2019-2024 Chevrolet Silverado 1500 - GMC Sierra 1500 4wd, 6" Front Box Kit |
| 1 | ZONC2672 | 2019-2026 Chevy/GMC 1500 Knuckle Box Kit 1 w/UCA (4" and 6" Compatible) |
| 1 | ZONC2673 | 2019-2026 Chevy/GMC 1500 Knuckle Box Kit 2 w/UCA (4" and 6" Compatible) |
| 2 | ZONC4602 | 2019-2026 GM 1500 6" Loaded Struts - Single Strut (7228861J) |

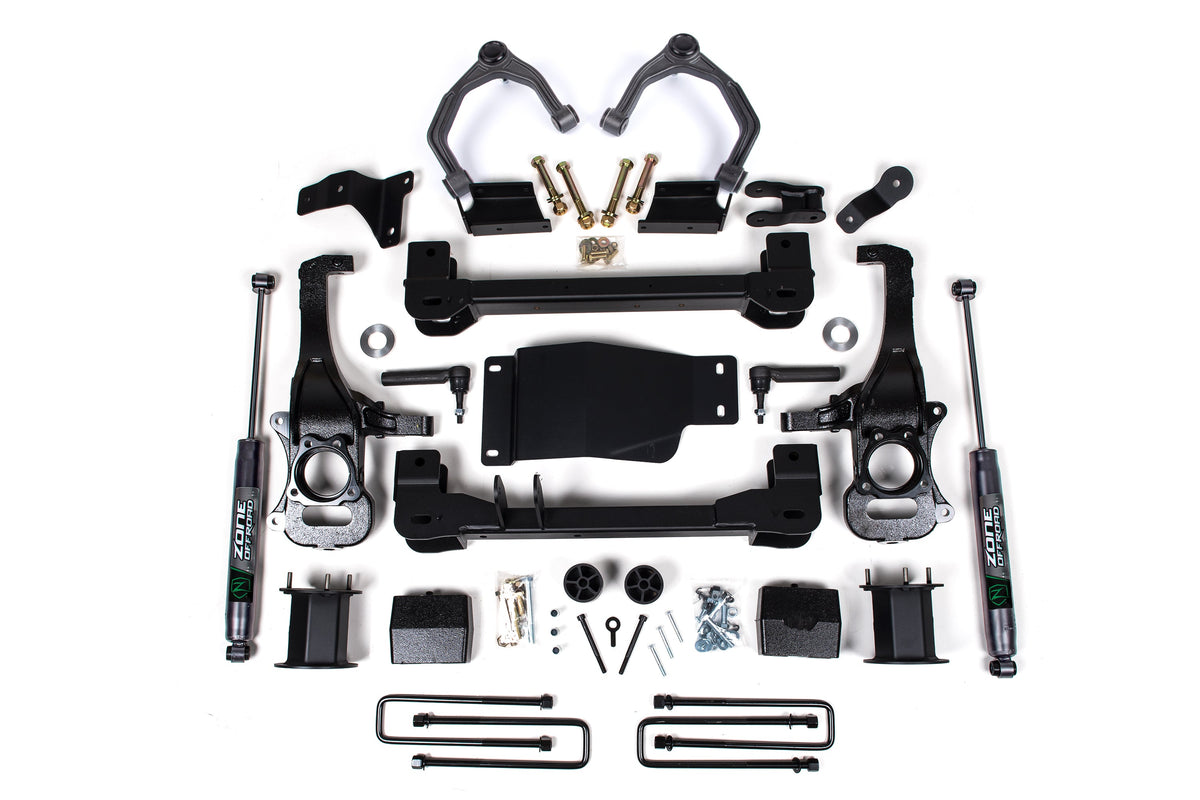

| — | — | ZONC68N – Strut Spacer / Nitro Series(2) ZON7759 Nitro - 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 1 | ZONC2662 | 2019-2026 Chevy/GMC 1500 Front Box Kit |
| 1 | ZONC2663 | 2019-2024 Chevy/GMC 1500 6" Box Kit |
| 1 | ZONC2672 | 2019-2026 Chevy/GMC 1500 Knuckle Box Kit 1 w/UCA (4" and 6" Compatible) |
| 1 | ZONC2673 | 2019-2026 Chevy/GMC 1500 Knuckle Box Kit 2 w/UCA (4" and 6" Compatible) |
Features
- High strength crossmembers to correct lower control arm positioning.
- Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility.
- Top mounted strut spacers to provide lift and install easily.
- Differential skid plate for additional off-road protection.
- Adventure Series upper control arms for improved strength and durability.
- Rear lift blocks and u-bolts to lift and level the stance.
- Sway bar, brake line and bump stop relocation brackets to correct operating angles
Recommended wheels & tires
- Note: trimming may be required.
- See Notes with See Notes and See Notes in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
If you're looking to give your Chevrolet Silverado 1500 or GMC Sierra 1500 a more aggressive stance and improved off-road capability, this 6" lift kit from Zone Offroad is a great place to start. This system includes everything needed for a complete installation, from high-strength crossmembers and steering knuckles to differential relocation brackets designed to maintain proper driveline angles. To suit different build preferences, the kit offers multiple front suspension options. The first option utilizes OE strut spacers that retain the factory front struts and can be paired with either FOX 2.0 Adventure Series rear shocks for enhanced performance or Zone Nitro twin-tube rear shocks for a dependable ride at a great value. The second option features bolt-in ready Zone Nitro loaded struts that come preassembled for quick installation and are paired with Zone Nitro rear shocks for a matched suspension setup. Engineered for strength, performance, and reliability, this lift kit delivers the aggressive stance and off-road capability you’re after while providing clearance for tires up to 35 inches.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
