5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-25) 4WD | Gas

Name: 5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-25) 4WD | Gas
Brand: Zone Offroad
SKU: ZONF125F
Price: 1609.99 USD
Availability: InStock

5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-25) 4WD | Gas

PART #

$1,609.99

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Live-Chat or Call

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

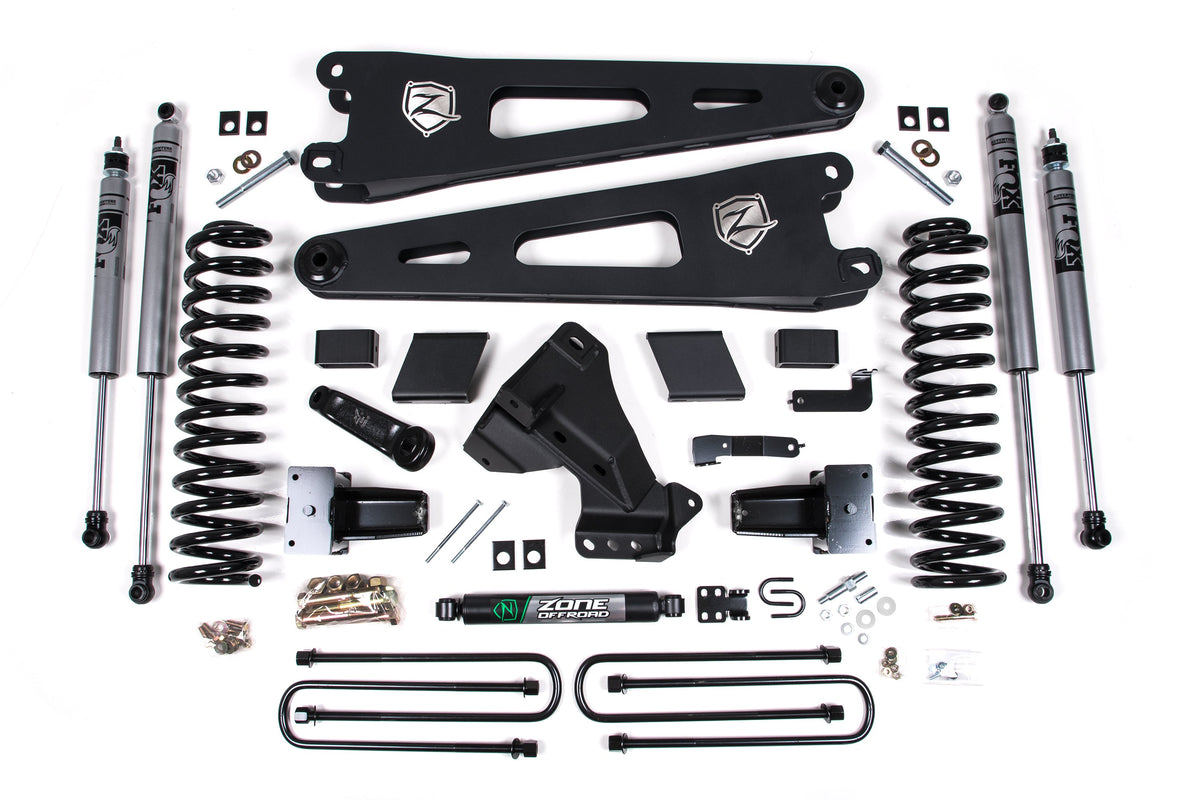

Zone Offroad now offers 5" radius arm lift kits for the 2023-2025 Ford F250/F350 Super Duty gas 4WD trucks. These new 5" lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Features

Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance.
Forged pitman arm to correct steering angles.
Heavy duty fabricated track bar relocation bracket to recenter the front axle.
Full length specific coil springs which are gas or diesel specific.

Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
When adding the Dual Stabilizer option, you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends having this performed prior to installing the lift.
Does not fit vehicles with radius arm mounted ride height sensors.
Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Wheel and Tire:

37x12.50 tires may require minor trimming.
Factory wheels fit when paired with factory / original equipment tire size.

Quick Specs
