5 Inch Lift Kit | Ford F-150 Tremor (21-25) 4WD

Name: 5 Inch Lift Kit | Ford F-150 Tremor (21-25) 4WD
Brand: Zone Offroad
SKU: ZONF107F
Price: 1545.82 USD
Availability: InStock

5 Inch Lift Kit | Ford F-150 Tremor (21-25) 4WD

PART #

$1,545.82

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Live-Chat or Call

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

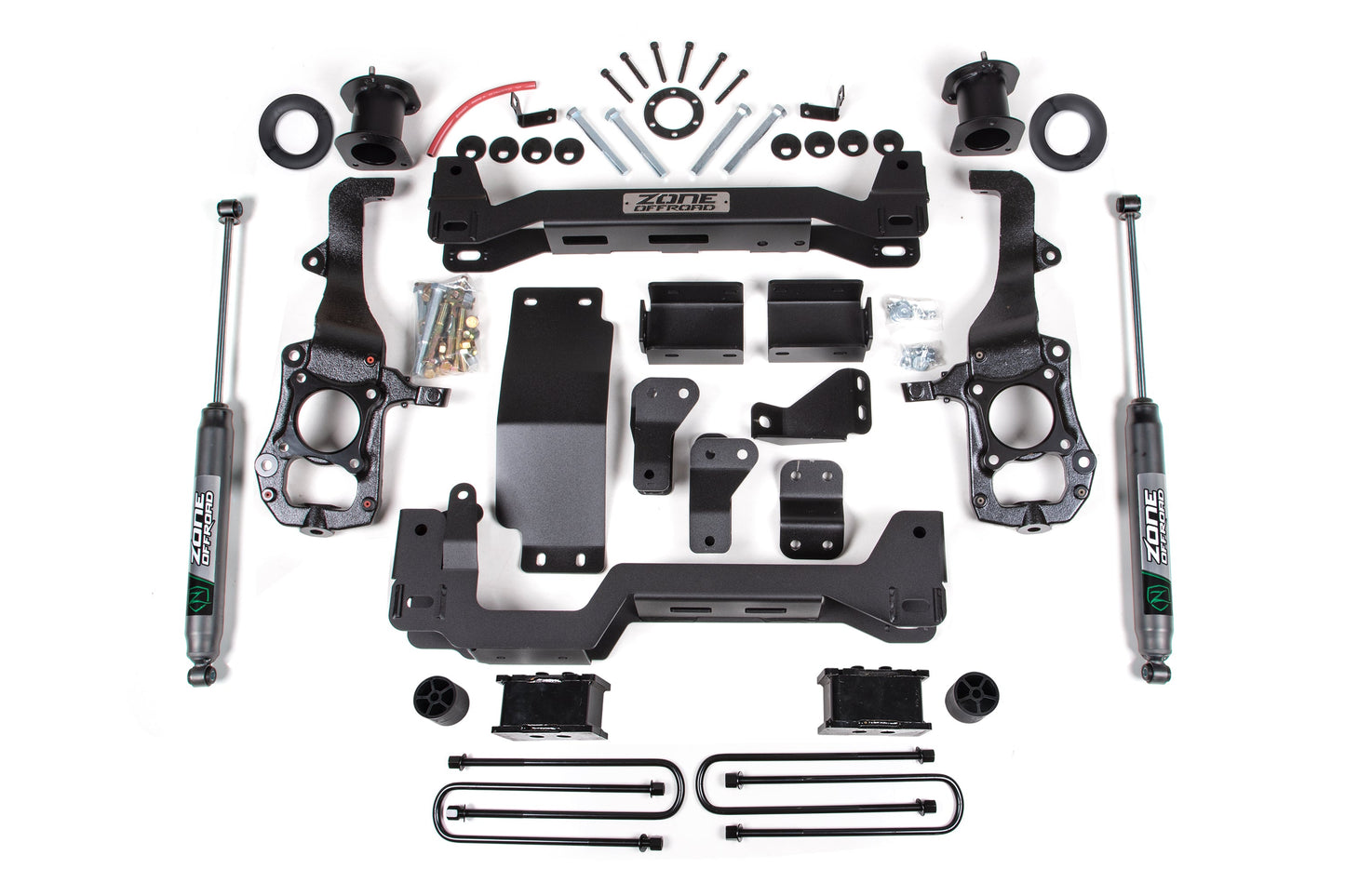

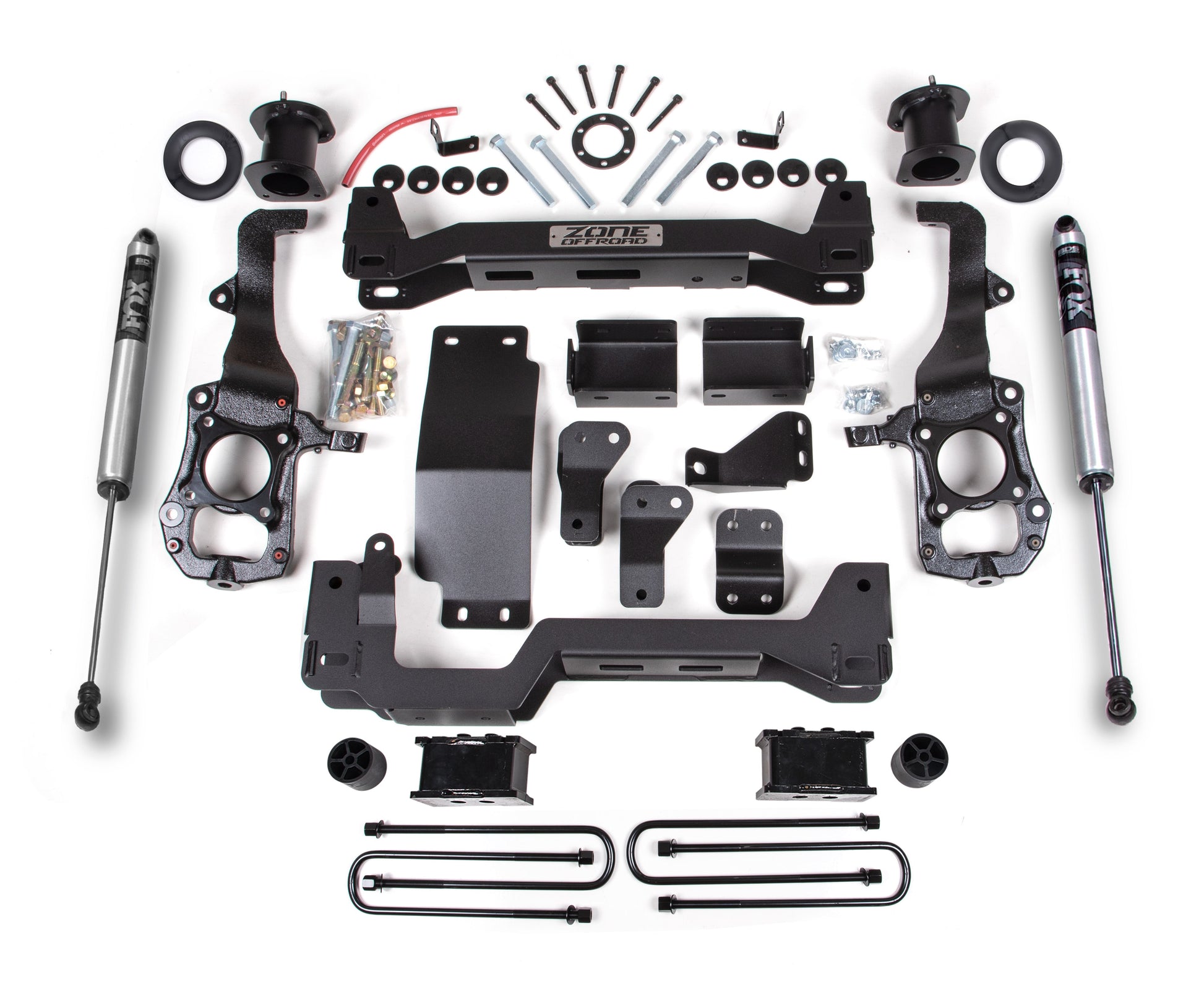

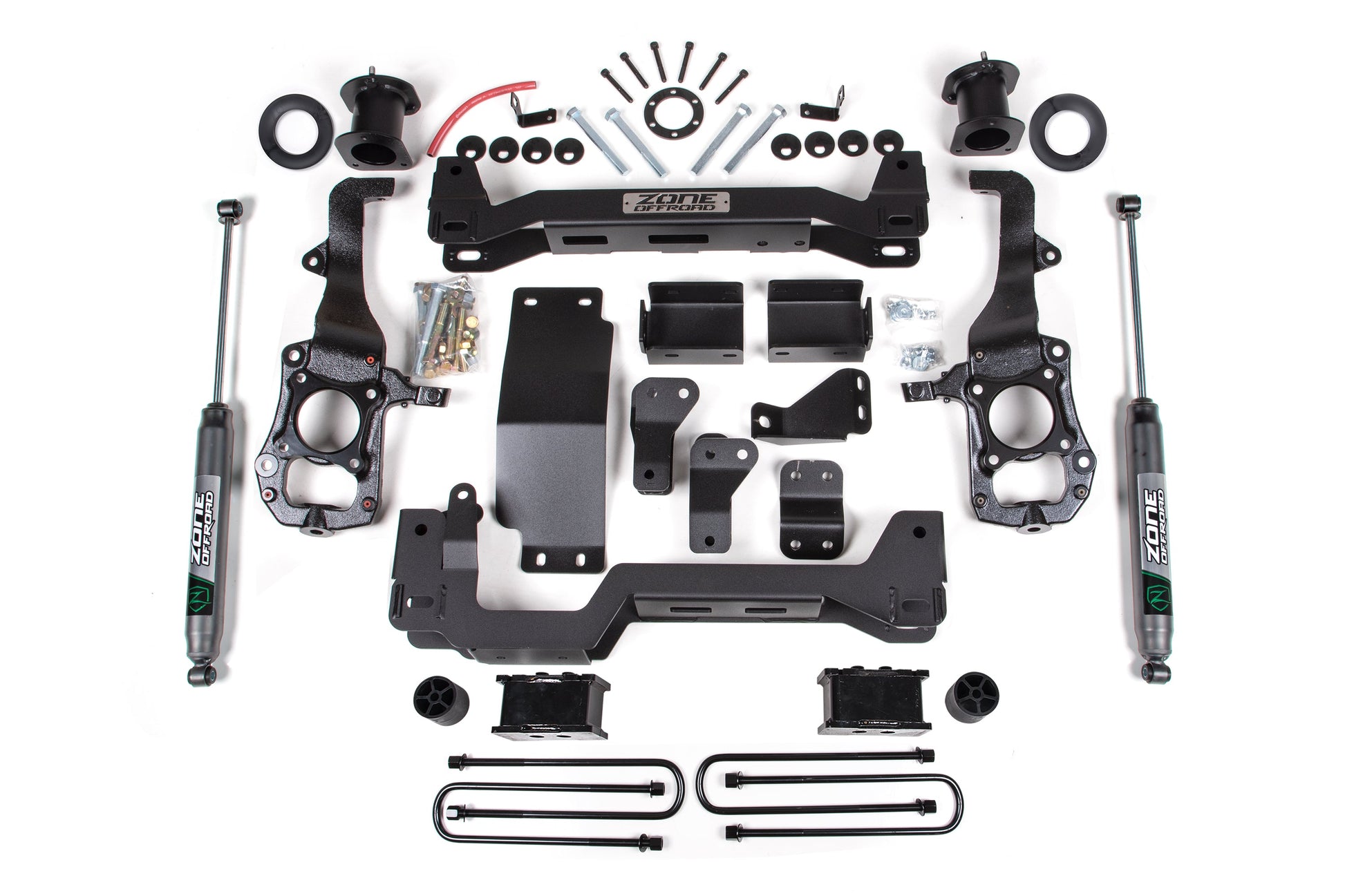

Take your Tremor to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line and bump stop relocation brackets to correct operating angles

Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.
18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire.
18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance. 37" tires will require crash bar modification
Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
Does not fit diesel models.
Requires frame bracket modification
Will fit models with 4 Auto that do not have the 4WD actuator hub assembly.
