Zone Offroad 5 Inch Lift Kit Dodge Ram 2500/3500 (94-99) 4WD
- Front lift 5"
- Max tire 35 x 12.5
- Rear lift 5"
- Shocks included
- Install 5.5 hrs
- Difficulty Moderately Easy
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- If truck is equipped with rear brake proportioning valve, proportioning valve relocation bracket kit (D5509) is required.
- Dodge Rams were manufactured with two different front sway bar link setups. Some were mounted ABOVE the axle bracket and some BELOW. If your model's sway bar links are above the axle bracket, a sway bar link kit is required. Add in configuration / checkout.
- Check Your Rear Springs: If your vehicle is equipped with a top mounted overload/helper spring, 4 longer U-bolts may be required.
- Factory block is replaced with 5" block and add-a-leaf combo to obtain a level stance.
- Will NOT fit models built before February 9, 1994 due to track bar stud size.
- If equipped with rear top mounted overload springs 4 of U-bolt part # UBT4050 may be required.
- Steering Stabilizer Required! Due to the factory drag link flip when installing this kit the factory steering stabilizer cannot be reinstalled.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZOND46F |
| UPC / GTIN | 810156363535 |
| Front Lift Height | 5" |
| Front Lift Method | Coil Spring |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 5" |
| Rear Lift Method | Block & Add-A-Leaf |
| Shocks Included | Yes |
| Install time | 5.5 hrs |
| Difficulty | Moderately Easy |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZOND46F – FOX 2.0 Adventure Series(2) FOX98450750 Fox Adv Shock 28.24 x 17.15 x 2-S50/EB1 |
| 2 | FOX98450761 | Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZOND1513 | 1994-99 Dodge 2500 5in Box Kit |
| 1 | ZOND1518 | 1994-02 Dodge 2500 Rear 5" Block/Add-a-Leaf |
| 1 | ZOND3504 | Coil Spring Box Kit: 1994-2002 Dodge Ram 2500 - 5" Front Coil Springs |
| — | — | ZOND46N – Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 2 | ZON7761 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZOND1513 | 1994-99 Dodge 2500 5in Box Kit |
| 1 | ZOND1518 | 1994-02 Dodge 2500 Rear 5" Block/Add-a-Leaf |
| 1 | ZOND3504 | Coil Spring Box Kit: 1994-2002 Dodge Ram 2500 - 5" Front Coil Springs |
Features
- 100% bolt-on design for easy installation.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
- Heavy-duty front track bar bracket correctly positions front axle under vehicle.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
Recommended wheels & tires
- Note: trimming may be required.
- 35 x 12.5 with 16 x 8 and 4 in. Backspace
- 35 x 12.5 with 17 x 9 and 4 in. Backspace
- 35 x 12.5 with 18 x 9 and 4 in. Backspace
Installation
- Estimated install time5.5 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Shock Option

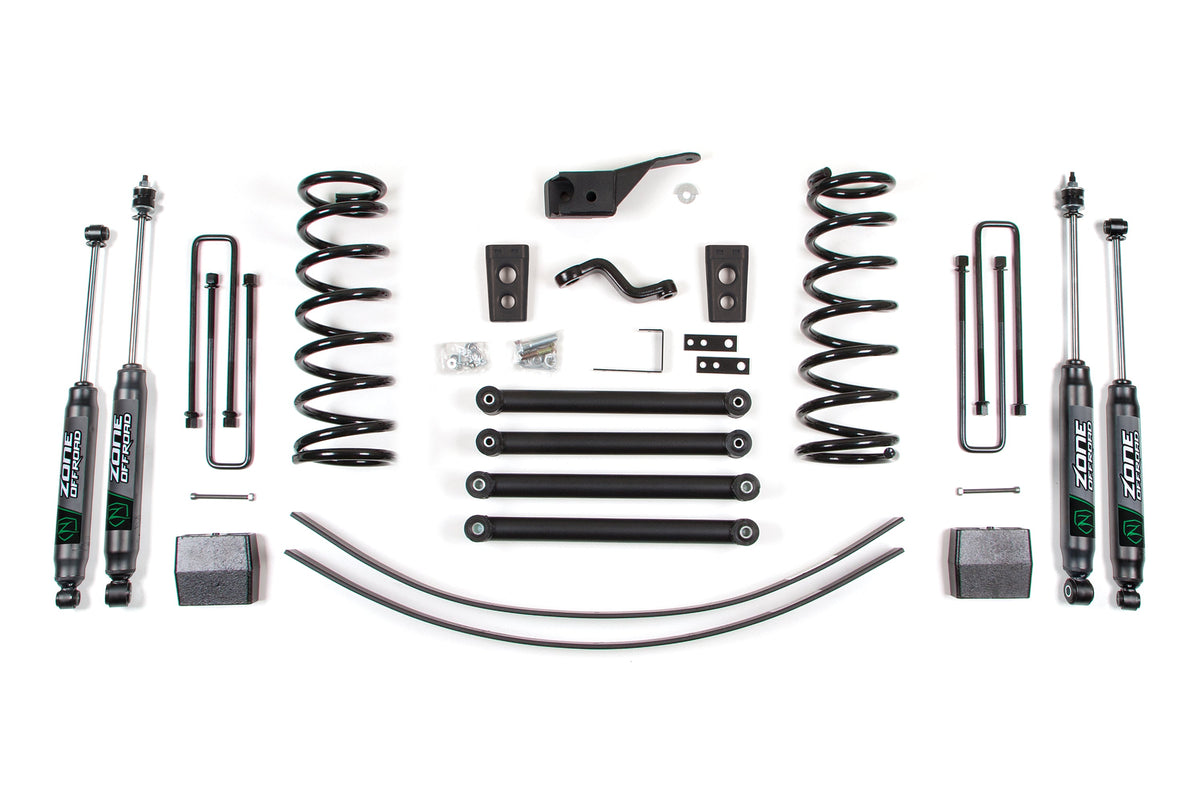

Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

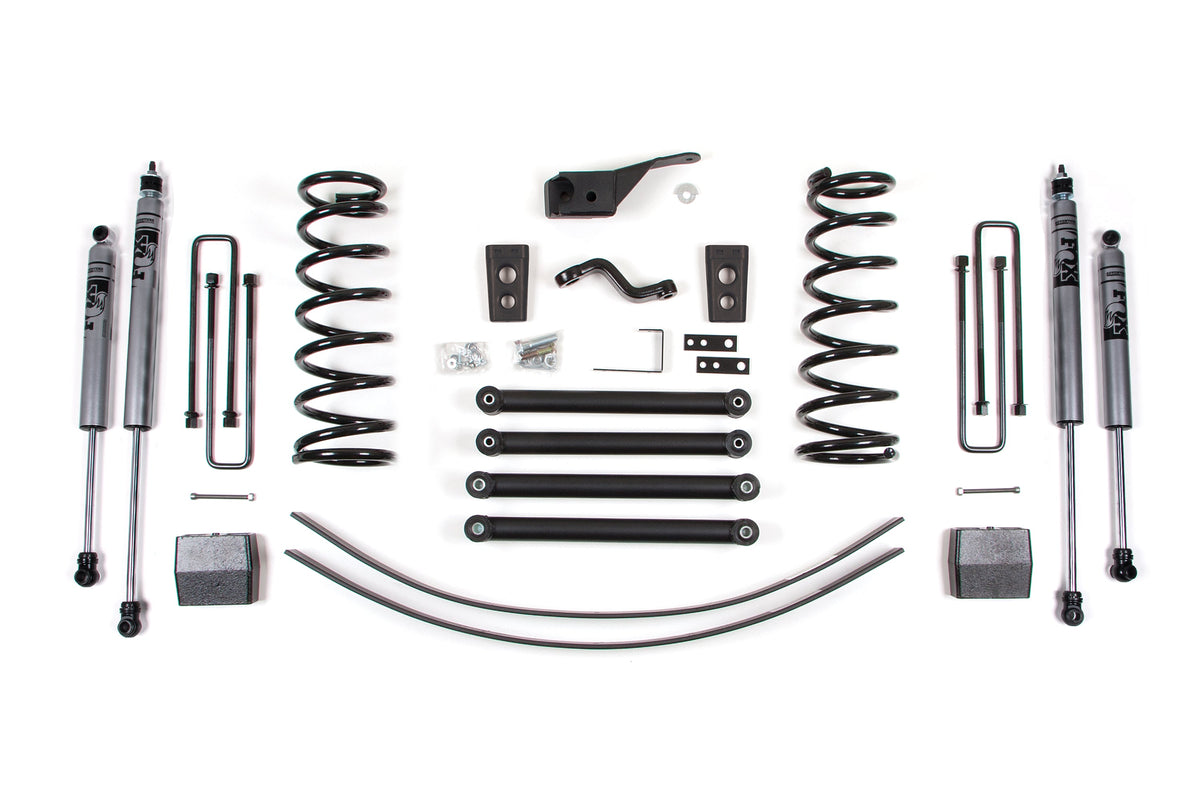

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
