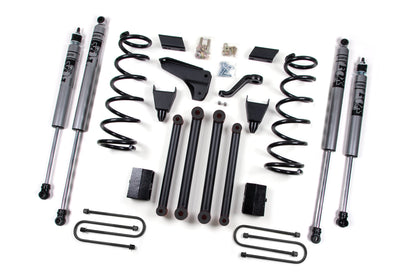

Zone Offroad 5 Inch Lift Kit Dodge Ram 2500/3500 (10-13) 4WD
- Front lift 5"
- Max tire 35 x 12.5
- Rear lift 3"
- Shocks included
- Install 6 hrs
- Difficulty Moderately Easy
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will work with Power Wagon models with the addition of sway bar link kit D5301.
- Power Wagon models came factory with a 2" taller ride height, so net lift gain will be 3" over stock.
- This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
- Factory wheels fit when paired with factory / original equipment tire size.
- This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Gas Engine? Gas models may sit slightly taller than the advertised lift height due to lighter weight of engine.
- These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
- This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZOND16F |
| Front Lift Height | 5" |
| Front Lift Method | Coil Spring |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 6 hrs |
| Difficulty | Moderately Easy |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZOND16F – 3-1/2 Inch Axle / FOX 2.0 Adventure Series(2) FOX98450750 Fox Adv Shock 28.24 x 17.15 x 2-S50/EB1 |
| 2 | FOX98450761 | Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZOND1409 | Rear Box Kit |
| 1 | ZOND1504 | 2010 Dodge Ram 2500/3500 5" Box Kit |
| 1 | ZOND3501 | Coil Spring Box Kit: 2003-2013 Dodge 2500/3500- 5" Front Coil Springs |

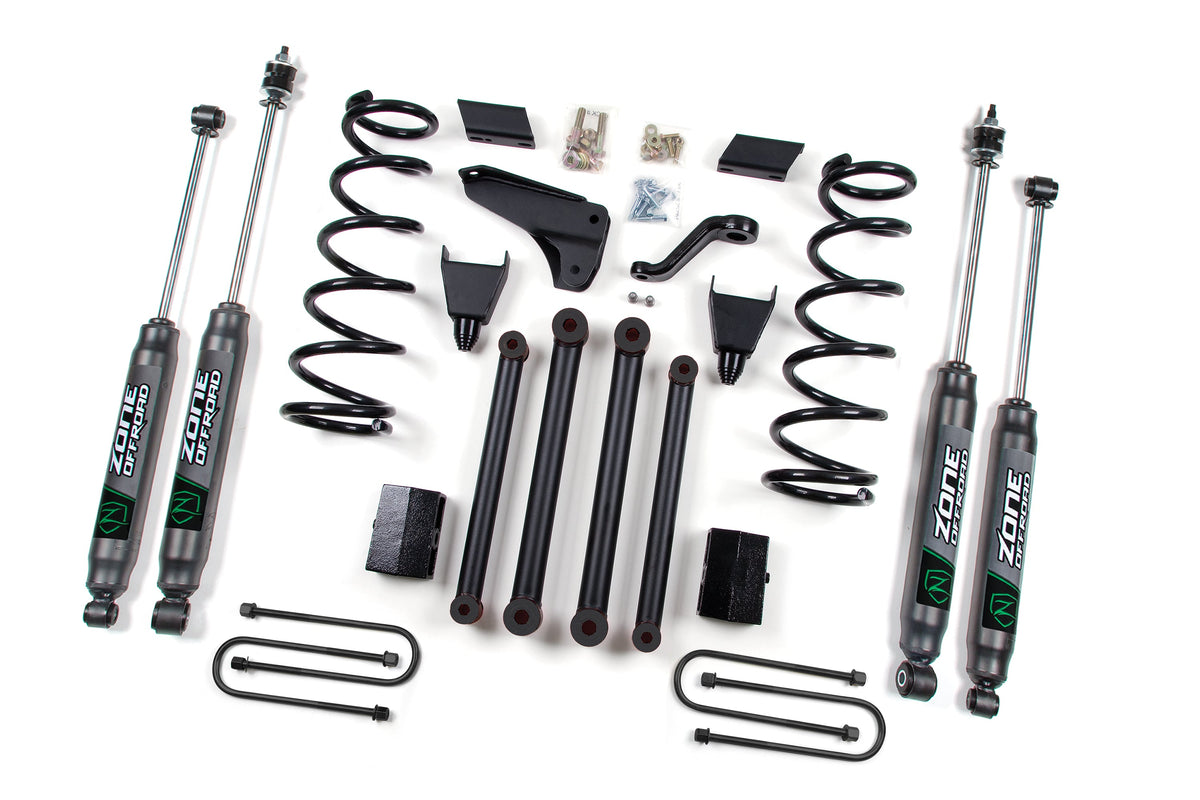

| — | — | ZOND16N – 3-1/2 Inch Axle / Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 2 | ZON7761 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZOND1409 | Rear Box Kit |
| 1 | ZOND1504 | 2010 Dodge Ram 2500/3500 5" Box Kit |
| 1 | ZOND3501 | Coil Spring Box Kit: 2003-2013 Dodge 2500/3500- 5" Front Coil Springs |

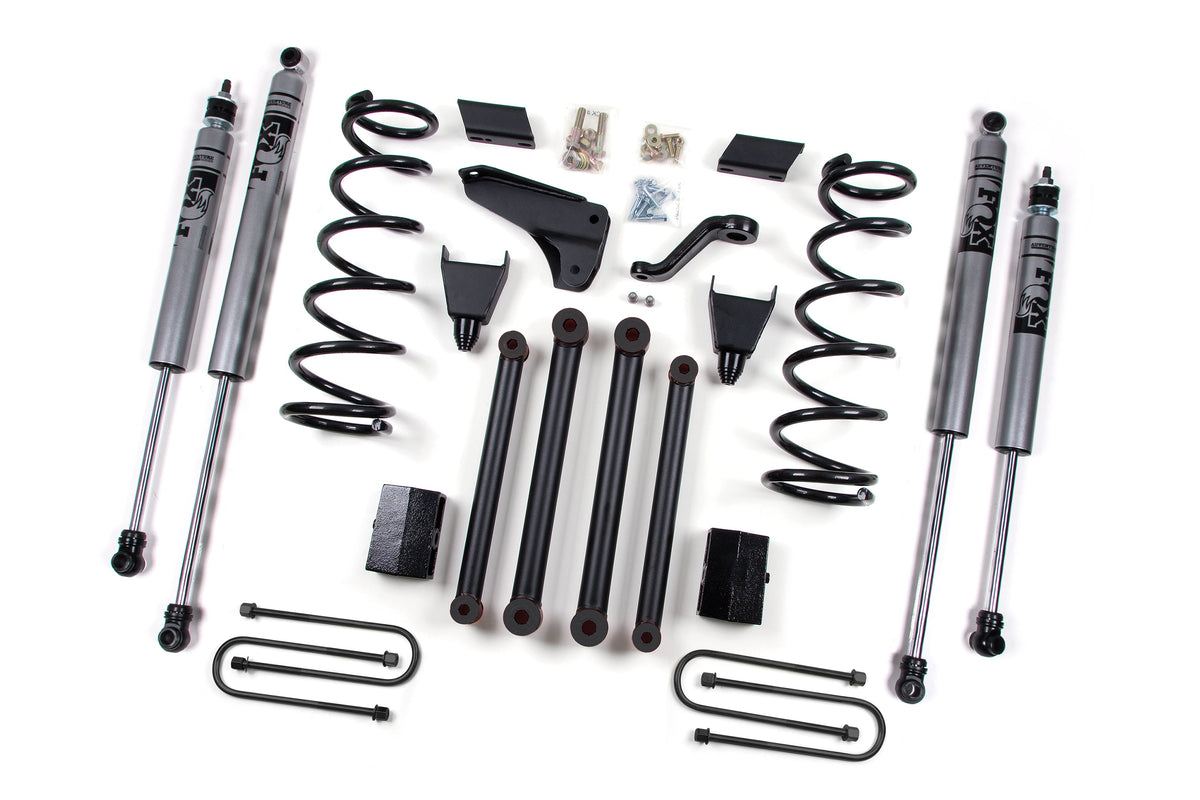

| — | — | ZOND18F – 4 Inch Axle / FOX 2.0 Adventure Series(2) FOX98450750 Fox Adv Shock 28.24 x 17.15 x 2-S50/EB1 |
| 2 | FOX98450761 | Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZOND1407 | Dodge 2500 4.125" Rear Block Kit |
| 1 | ZOND1504 | 2010 Dodge Ram 2500/3500 5" Box Kit |
| 1 | ZOND3501 | Coil Spring Box Kit: 2003-2013 Dodge 2500/3500- 5" Front Coil Springs |
| — | — | ZOND18N – 4 Inch Axle / Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 2 | ZON7761 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZOND1407 | Dodge 2500 4.125" Rear Block Kit |
| 1 | ZOND1504 | 2010 Dodge Ram 2500/3500 5" Box Kit |
| 1 | ZOND3501 | Coil Spring Box Kit: 2003-2013 Dodge 2500/3500- 5" Front Coil Springs |
Features
- 100% bolt-on design for easy installation.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
- Heavy-duty front track bar bracket correctly positions front axle under vehicle.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
Recommended wheels & tires
- Note: trimming may be required.
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time6 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Axle Option
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
