5 Inch Lift Kit | Chevy Silverado & GMC Sierra 2500HD (11-19) 4WD

Name: 5 Inch Lift Kit | Chevy Silverado & GMC Sierra 2500HD (11-19) 4WD
Brand: Zone Offroad
SKU: ZONC12F
Price: 1721.5 USD
Availability: InStock

5 Inch Lift Kit | Chevy Silverado & GMC Sierra 2500HD (11-19) 4WD

PART #

$1,721.50

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Live-Chat or Call

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

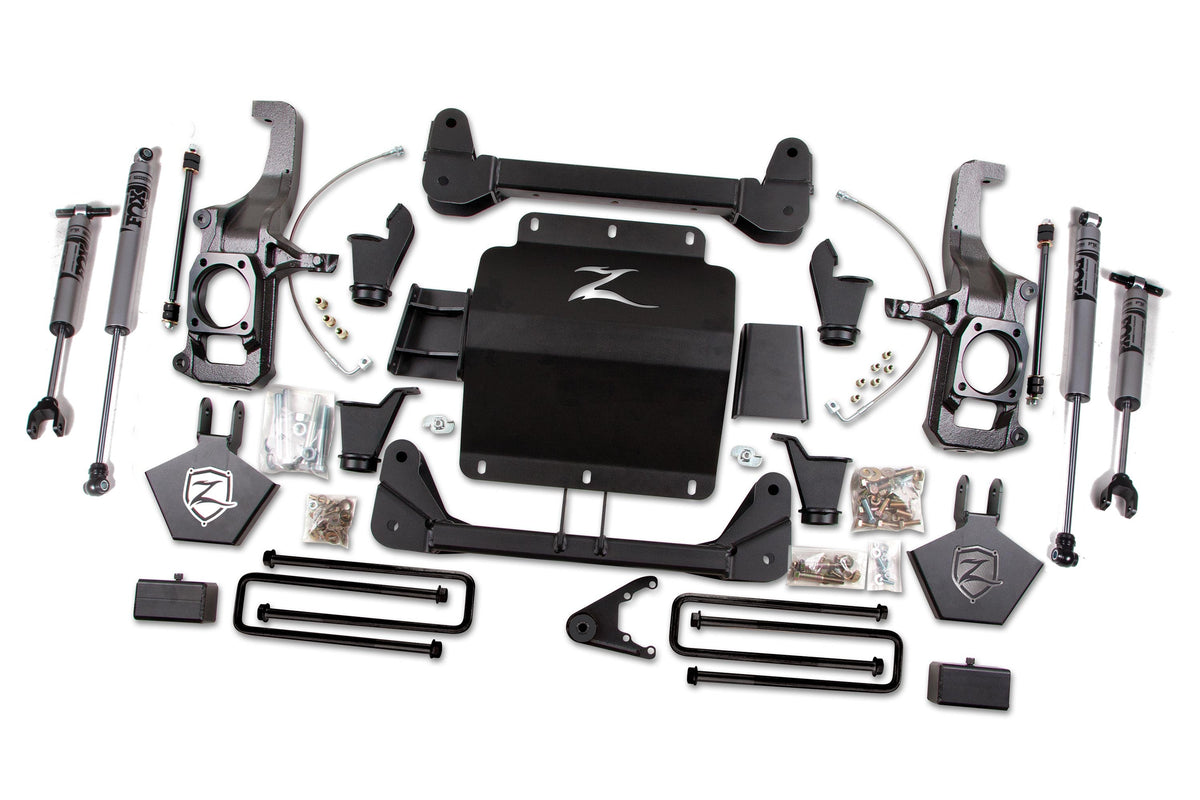

Turn heads and drop jaws with this 5" lift kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 2011 - 2019 Chevy/GM 2500HD /3500HD truck. If you're going to do it, do it right.

Features

Heavy-duty differential skid slate improves off-road protection.
High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
No differential trimming required.
Rear lift block and longer U-bolts for easy installation and level stance.

2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
WILL fit RWD models, however the front differential related parts in kit will not be used.
Frame bracket modifications required for installation.
Modifications required for installation. See installation instructions for more information.
Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
Stock 17" or 18" Wheels cannot be re-installed. Stock 20" wheels cannot be reinstalled on 2015-2018 models.
Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
With a 20" Wheel, 5"-6" backspacing is recommended.
In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front drive-line vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.

Quick Specs
