Zone Offroad 4 Inch Lift Kit Toyota Tacoma (05-15) 4WD
- Front lift 4"
- Lift 4-5.5"
- Max tire 33 x 12.5
- Rear lift 3"
- Shocks included
- Install 7 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Control Arms
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- System will also work on RWD PreRunner models.
- Will NOT work on TRD Pro Models.
- Wheels / Tires:
- 33x12.50 tires require trimming. See installation instructions for more information.
- Factory wheels cannot be reinstalled with this lift kit, 18" or larger aftermarket wheels required. Follow recommended wheel/tire specifications to ensure proper fitment and minimize the need for trimming.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONT4F |
| Front Lift Height | 4" |
| Front Lift Method | Cross Member & Strut Spacer |
| Lift Height | 4-5.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 7 hrs |
| Difficulty | Difficult |
What's in the box
| Qty | Part | Description |
|---|---|---|

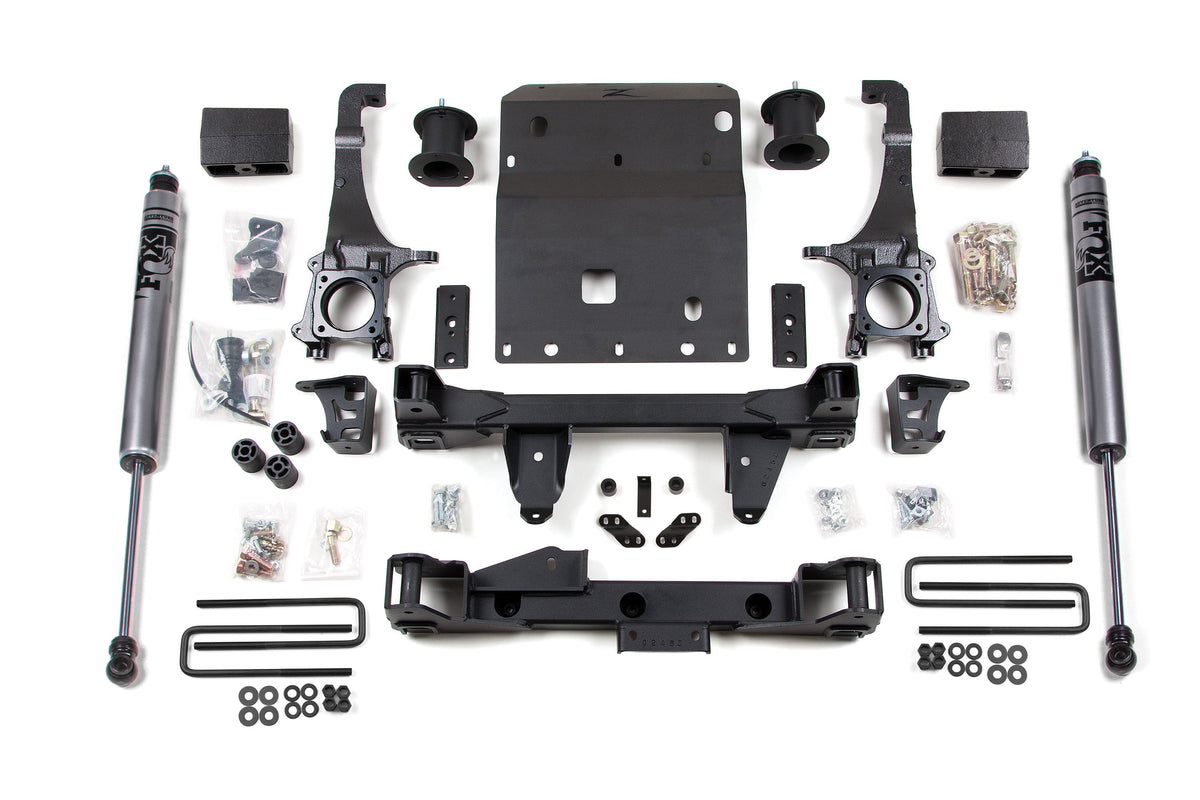

| — | — | ZONT4F – FOX Adventure Series / Strut Spacer(2) FOX98450954 Fox Adv Shock 26.14 x 16.05 x 2-S50/EB1 |
| 1 | ZONT2309 | 2005-2023 Toyota Tacoma 3" Rear Block Kit |
| 1 | ZONT2401 | 2005-2015 Toyota Tacoma Box Kit (2of3) |
| 1 | ZONT2602 | 2005-2015 Toyota Tacoma 4-6" Front Box Kit |
| 1 | ZONT2614 | 2005-2023 Toyota Tacoma Knuckle Box Kit - DS |
| 1 | ZONT2615 | 2005-2023 Toyota Tacoma Knuckle Box Kit - PS |

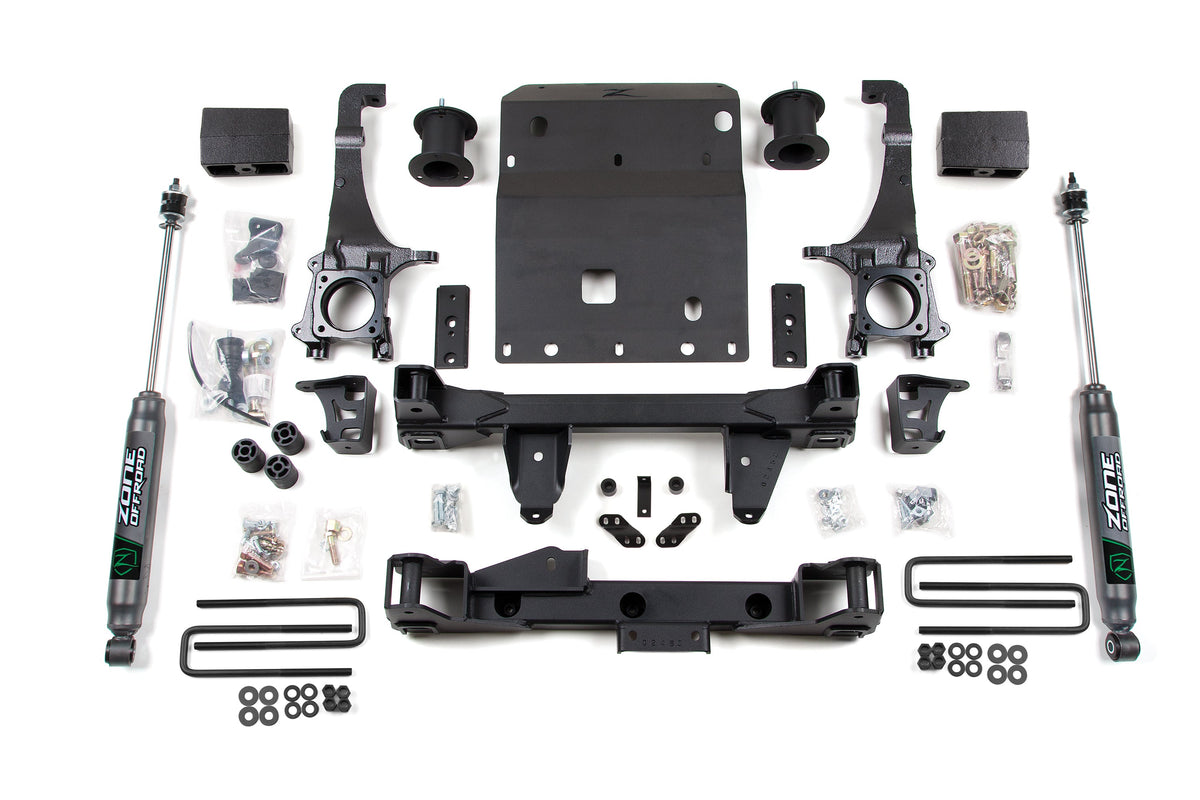

| — | — | ZONT4N – Nitro Series / Strut Spacer(2) ZON7954 Nitro- 26.50 x 15.60 x 2-3/8 - S1/EB1 |
| 1 | ZONT2309 | 2005-2023 Toyota Tacoma 3" Rear Block Kit |
| 1 | ZONT2401 | 2005-2015 Toyota Tacoma Box Kit (2of3) |
| 1 | ZONT2602 | 2005-2015 Toyota Tacoma 4-6" Front Box Kit |
| 1 | ZONT2614 | 2005-2023 Toyota Tacoma Knuckle Box Kit - DS |
| 1 | ZONT2615 | 2005-2023 Toyota Tacoma Knuckle Box Kit - PS |
Features
- High strength crossmembers to correct lower control arm positioning.
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility.
- Top mounted strut spacers to provide lift and install easily.
- Full width belly skid plate offers improved offroad protection.
- Rear lift blocks and u-bolts to lift and level the stance.
- Bump stop, sway bar and brake line relocation brackets to correct operating angles
Recommended wheels & tires
- Note: trimming may be required.
- 33 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 22 x 9 and 4.5 in. Backspace
Installation
- Estimated install time7 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
