Zone Offroad 4 Inch Lift Kit Ram 1500 (19-24) 4WD
Regular price
$1,724.55
Regular price
B2B price
$1,724.55
Unit price
per
Shipping calculated at checkout.
- Front lift 4"
- Lift 4-5.5"
- Max tire 35 x 12.5
- Rear lift 3"
- Shocks included
- Install 8 hrs
Read the important notes before ordering
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
- Will NOT fit models equipped with the Thermal Axle option (Reference build code DSK-P).
- Will NOT fit Ram 1500 Rebel or Ram 1500 with Off-Road Group option.
- Vehicles equipped with the Off-Road Group option require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
- RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Stock 20s can be reinstalled with factory tire size.
- This kit will NOT work on Diesel models.
- Does NOT work for models with factory rear airbag suspension.
- IF USING 18IN WHEELS
- WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE
- MOUNTING TIRES TO ENSURE CLEARANCE.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZOND100F |
| UPC / GTIN | 810156361593 |
| Front Lift Height | 4" |
| Front Lift Method | Strut Replacement |
| Lift Height | 4-5.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderate |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZOND100F – Large Bore / Strut Spacer / FOX Adventure Series(2) FOX98450750 Fox Adv Shock 28.24 x 17.15 x 2-S50/EB1 |
| 1 | ZOND2402 | 2019-2026 Ram 1500 4WD 4" Strut Spacer Box Kit |
| 1 | ZOND2639 | 2019-2026 Ram 1500 4WD 3-5" Rear Box Kit |
| 1 | ZOND2640 | 2019-2023 RAM 1500 4wd Knuckle Box Kit 22in Wheel - Drv |
| 1 | ZOND2641 | 2019-2023 RAM 1500 4wd Knuckle Box Kit 22in Wheel - Pass |
| 1 | ZOND2642 | 2019-2025 RAM 1500 4wd 4-6" Front Box Kit 1 of 2 |
| 1 | ZOND2643 | 2019-2023 RAM 1500 4wd 4-6" Front Box Kit 2 of 2 |
| 1 | ZOND3309 | Coil Spring Box Kit: 2019-2026 Ram 1500 - 4WD - 3" Rear Coil Springs |

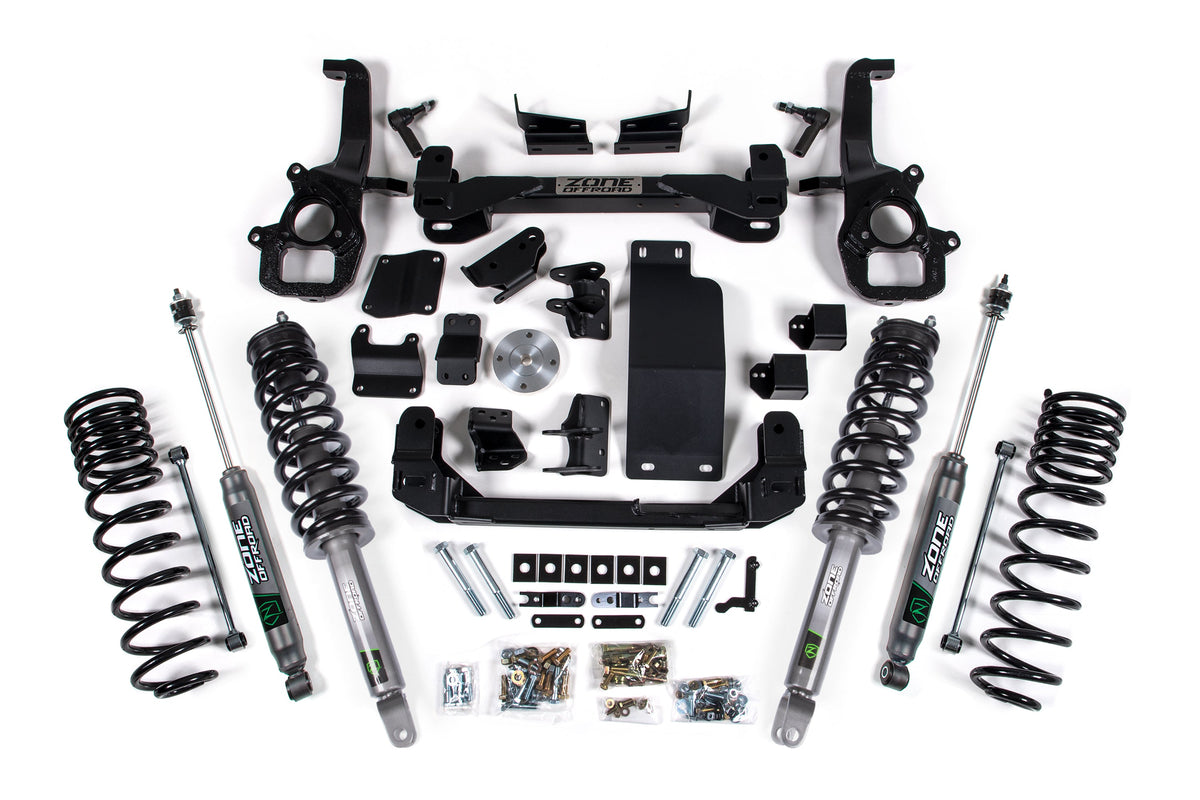

| — | — | ZOND100LN – Large Bore / Loaded Strut / Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 1 | ZOND2639 | 2019-2026 Ram 1500 4WD 3-5" Rear Box Kit |
| 1 | ZOND2640 | 2019-2023 RAM 1500 4wd Knuckle Box Kit 22in Wheel - Drv |
| 1 | ZOND2641 | 2019-2023 RAM 1500 4wd Knuckle Box Kit 22in Wheel - Pass |
| 1 | ZOND2642 | 2019-2025 RAM 1500 4wd 4-6" Front Box Kit 1 of 2 |
| 1 | ZOND2643 | 2019-2023 RAM 1500 4wd 4-6" Front Box Kit 2 of 2 |
| 1 | ZOND3309 | Coil Spring Box Kit: 2019-2026 Ram 1500 - 4WD - 3" Rear Coil Springs |
| 2 | ZOND4402 | 2019-2026 Ram 1500 4" Loaded Strut - Single Strut (78200461J) |
| — | — | ZOND100N – Large Bore / Strut Spacer / Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 1 | ZOND2402 | 2019-2026 Ram 1500 4WD 4" Strut Spacer Box Kit |
| 1 | ZOND2639 | 2019-2026 Ram 1500 4WD 3-5" Rear Box Kit |
| 1 | ZOND2640 | 2019-2023 RAM 1500 4wd Knuckle Box Kit 22in Wheel - Drv |
| 1 | ZOND2641 | 2019-2023 RAM 1500 4wd Knuckle Box Kit 22in Wheel - Pass |
| 1 | ZOND2642 | 2019-2025 RAM 1500 4wd 4-6" Front Box Kit 1 of 2 |
| 1 | ZOND2643 | 2019-2023 RAM 1500 4wd 4-6" Front Box Kit 2 of 2 |
| 1 | ZOND3309 | Coil Spring Box Kit: 2019-2026 Ram 1500 - 4WD - 3" Rear Coil Springs |

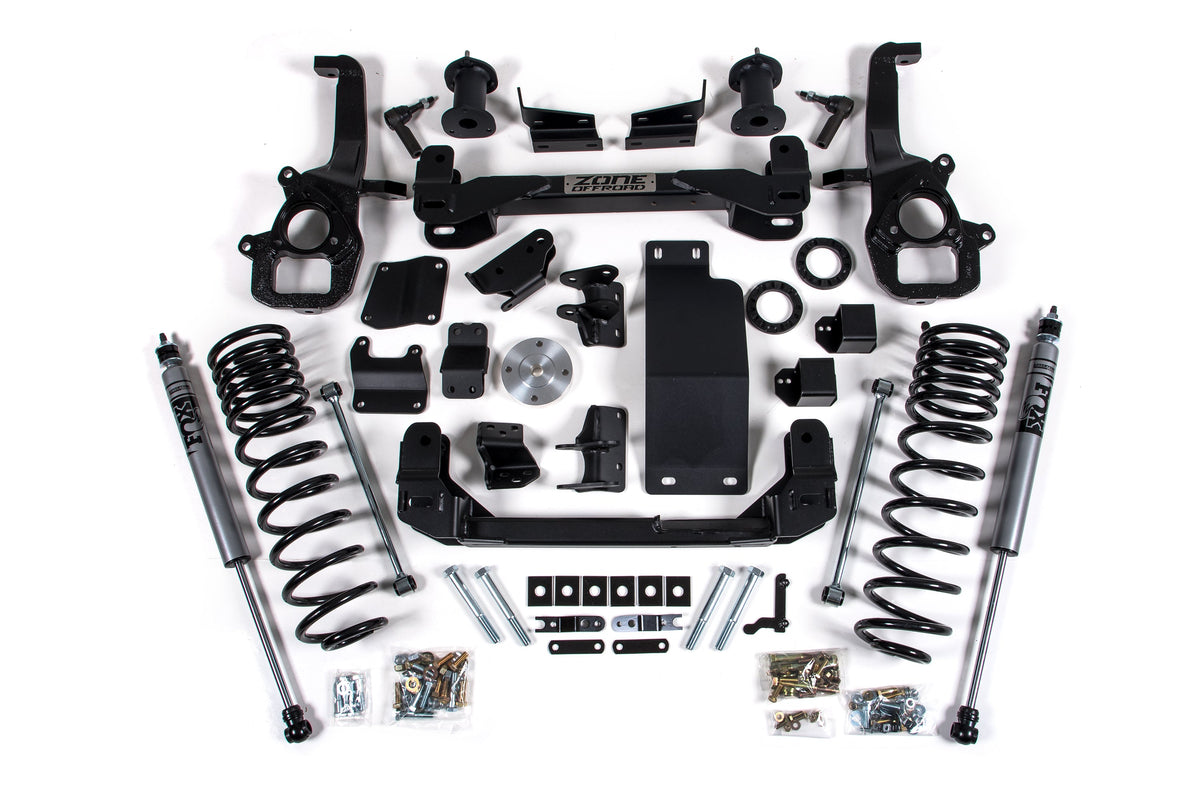

| — | — | ZOND99F – Standard / Strut Spacer / FOX Adventure Series(2) FOX98450750 Fox Adv Shock 28.24 x 17.15 x 2-S50/EB1 |
| 1 | ZOND2402 | 2019-2026 Ram 1500 4WD 4" Strut Spacer Box Kit |
| 1 | ZOND2630 | 2019-2023 RAM 1500 4wd Knuckle Box Kit Std - Drv |
| 1 | ZOND2631 | 2019-2023 RAM 1500 4wd Knuckle Box Kit Std - Pass |
| 1 | ZOND2639 | 2019-2026 Ram 1500 4WD 3-5" Rear Box Kit |
| 1 | ZOND2642 | 2019-2025 RAM 1500 4wd 4-6" Front Box Kit 1 of 2 |
| 1 | ZOND2643 | 2019-2023 RAM 1500 4wd 4-6" Front Box Kit 2 of 2 |
| 1 | ZOND3309 | Coil Spring Box Kit: 2019-2026 Ram 1500 - 4WD - 3" Rear Coil Springs |

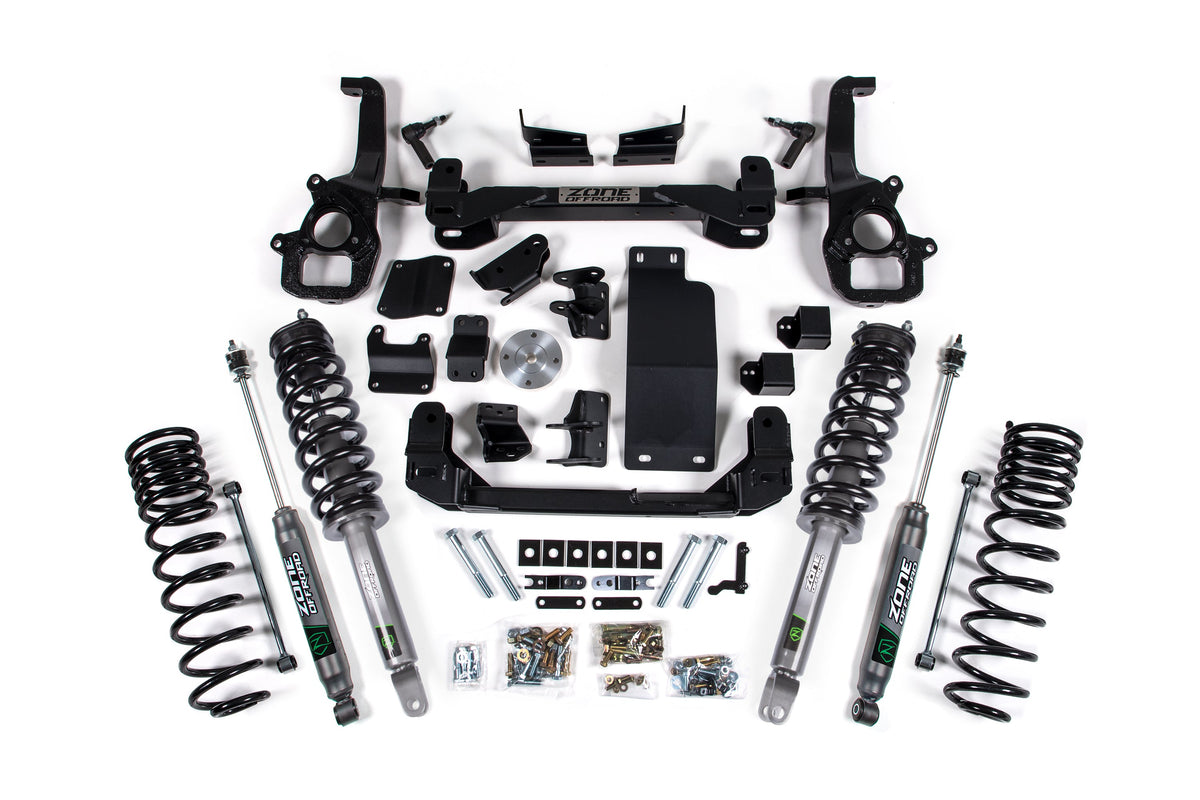

| — | — | ZOND99LN – Standard / Loaded Strut / Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 1 | ZOND2630 | 2019-2023 RAM 1500 4wd Knuckle Box Kit Std - Drv |
| 1 | ZOND2631 | 2019-2023 RAM 1500 4wd Knuckle Box Kit Std - Pass |
| 1 | ZOND2639 | 2019-2026 Ram 1500 4WD 3-5" Rear Box Kit |
| 1 | ZOND2642 | 2019-2025 RAM 1500 4wd 4-6" Front Box Kit 1 of 2 |
| 1 | ZOND2643 | 2019-2023 RAM 1500 4wd 4-6" Front Box Kit 2 of 2 |
| 1 | ZOND3309 | Coil Spring Box Kit: 2019-2026 Ram 1500 - 4WD - 3" Rear Coil Springs |
| 2 | ZOND4402 | 2019-2026 Ram 1500 4" Loaded Strut - Single Strut (78200461J) |

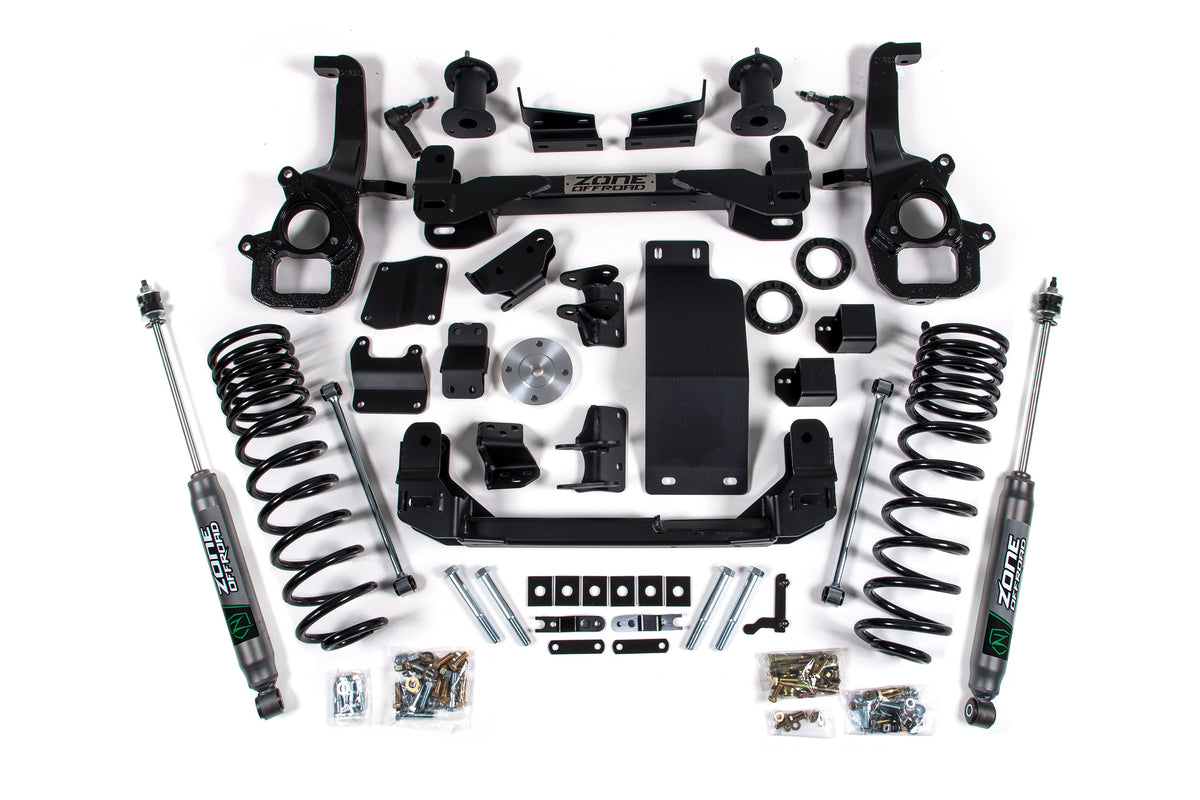

| — | — | ZOND99N – Standard / Strut Spacer / Nitro Series(2) ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
| 1 | ZOND2402 | 2019-2026 Ram 1500 4WD 4" Strut Spacer Box Kit |
| 1 | ZOND2630 | 2019-2023 RAM 1500 4wd Knuckle Box Kit Std - Drv |
| 1 | ZOND2631 | 2019-2023 RAM 1500 4wd Knuckle Box Kit Std - Pass |
| 1 | ZOND2639 | 2019-2026 Ram 1500 4WD 3-5" Rear Box Kit |
| 1 | ZOND2642 | 2019-2025 RAM 1500 4wd 4-6" Front Box Kit 1 of 2 |
| 1 | ZOND2643 | 2019-2023 RAM 1500 4wd 4-6" Front Box Kit 2 of 2 |
| 1 | ZOND3309 | Coil Spring Box Kit: 2019-2026 Ram 1500 - 4WD - 3" Rear Coil Springs |
Features
- Maintains on-road handling while improving off-road performance.
- Heavy duty cross members and skid plates for protection.
- New steering knuckles add strength and allow ESC system compatibility .
- Top mounted front strut spacer retains factory ride quality.
- Available with Nitro Series or FOX 2.0 Adventure Series rear shocks.
- Allows fitment of up to 35" tires
Recommended wheels & tires
- Note: trimming may be required.
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your 2019+ RAM 1500 to new heights with the new 4" IFS Lift System from Zone Offroad. Specially designed for the new RAM trucks to improve stance with clearance for larger tires. These kits are built right here in the USA to the highest quality standards to all for improved on-road and off-road performance. As with all Zone Offroad lift kits, these new kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes Zone Offroad's Limited Lifetime Warranty, ESC system compatibility and a 5-year 100,000-mile drive-train warranty.
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
OE Knuckle Type
RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
