Zone Offroad 4 Inch Lift Kit | Jeep Wrangler JK (07-11) 4-Door

Important notes before you order

2012-18 models using the stock front driveshaft require exhaust extension kit J5305.
Wheels / Tires:
Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

Plan for a professional wheel alignment after installing any lift or leveling kit.
Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

Brand	Zone Offroad
Part number	ZONJ15F
Front Lift Height	4"
Front Lift Method	Coil Spring
Max Tire Size	35 x 12.5
Rear Lift Height	4"
Rear Lift Method	Coil Spring
Shocks Included	Yes
Install time	4.5 hrs
Difficulty	Moderately Easy

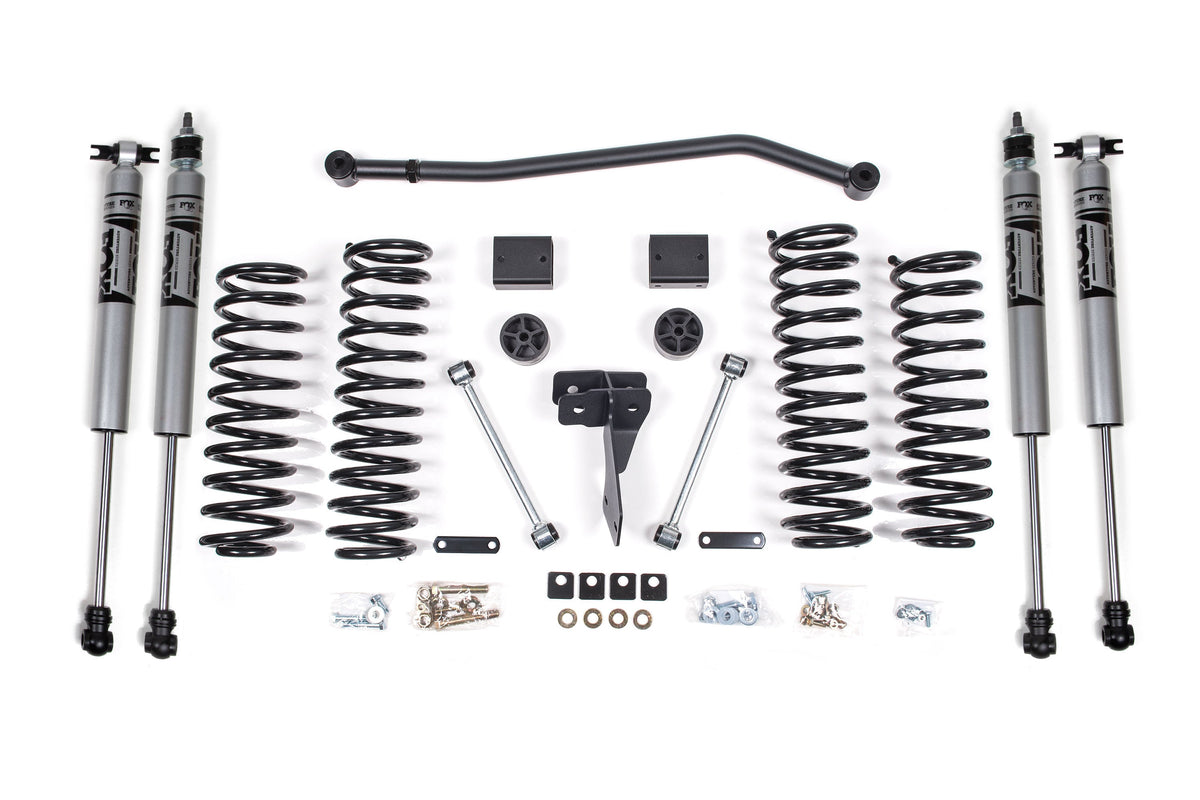

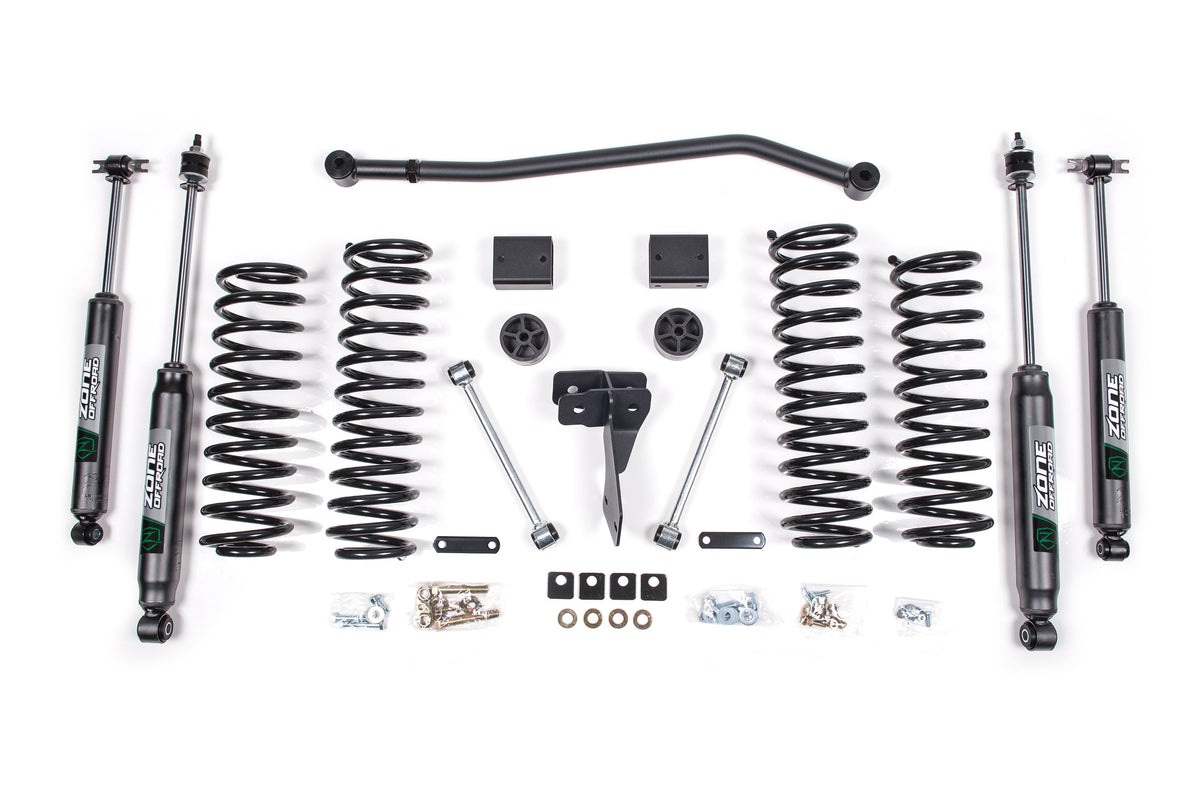

What's in the box

Qty	Part	Description
—	—	ZONJ15F – FOX 2.0 Adventure Series(2) FOX98450921 Fox Adv Shock 25.15 x 15.55 x 2-S50/EB1
2	FOX98450951	Fox Adv Shock 26.35 x 16.75 x 2-BP18/EB1
1	ZONJ1411	2007-2015 Jeep Wrangler (JK) 4dr 4" Box Kit
—	—	ZONJ15N – Nitro Series(2) ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 - S50/EB2
2	ZON7959	Nitro- 27.90 x 16.50 x 2-3/8 BP18/EB1
1	ZONJ1411	2007-2015 Jeep Wrangler (JK) 4dr 4" Box Kit

Features

Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
Bump stop extensions properly limit up-travel, protecting your vehicle.
Full length replacement coil springs add additional ride height while maintaining ride quality.
Heavy-duty, adjustable front track bar re-centers front axle and adds strength.
Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
Lower cam washers correct axle caster for front end alignment.
Rear track bar bracket correctly positions rear axle under vehicle.

Recommended wheels & tires

Note: trimming may be required.
35 x 12.5 with 16 x 8 and 4.5 in. Backspace
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace

Installation

Estimated install time4.5 hrs
DifficultyModerately Easy

Instructions 1 (PDF)

Free install support from the Trucks R Us tech team, for you or your shop.

Overview

Want the perfect combination of off road performance and on road handling? This 4" Suspension Lift lets you clear 35" tires and have the ground clearance and wheel travel you want when you venture off road. Fits 4 door 4WD 2007 - 2011 Jeep Wrangler (JK).

Shock Option

Nitro Series

Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
Self-lubricating seals
Black powder coat finish

FOX 2.0 Adventure Series

2-inch diameter steel body
Internal floating piston (IFP) monotube design
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.

Do I need an alignment after installing?

Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
