Zone Offroad 4 Inch Lift Kit Ford F350 Super Duty DRW (20-21) 4WD · Diesel
- Front lift 4"
- Max tire 37 x 12.5
- Rear lift 3"
- Shocks included
- Install 4-6 hrs
- Difficulty Moderate
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Dually Model Only.
- Diesel Model Only.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
- Wheel and Tire:
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONF71F |
| UPC / GTIN | 810156366550 |
| Front Lift Height | 4" |
| Front Lift Method | Coil Spring & Drop Bracket |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 4-6 hrs |
| Difficulty | Moderate |
| Tools Needed | Wrenches: Standard |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZONF71F – FOX 2.0 Adventure Series(2) FOX98450700 Fox Adv Shock 25.64 x 16.05 x 2-S50/EB1 |
| 2 | FOX98450718 | Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZON7302 | 2017-2026 F250 Single Stabilizer - Zone |
| 1 | ZONF1307 | 2017-2026 Ford F350 DRW 3” Rear Box Kit |
| 1 | ZONF1410 | 2017-2022 Super Duty 4" Front Box Kit |
| 2 | ZONF1413 | Coil Spring Box Kit: 2005-2019 4” / 2020+ 5” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
| — | — | ZONF71N – Nitro Series(1) ZON7302 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZON7700 | Nitro- 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | ZON7718 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZONF1307 | 2017-2026 Ford F350 DRW 3” Rear Box Kit |
| 1 | ZONF1410 | 2017-2022 Super Duty 4" Front Box Kit |
| 2 | ZONF1413 | Coil Spring Box Kit: 2005-2019 4” / 2020+ 5” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
Features
- Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
- Forged pitman arm to correct steering angles.
- Heavy duty fabricated track bar relocation bracket to re-center front axle.
- Full length Diesel/ Gas specific coil springs for a smooth ride.
- Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame.
Recommended wheels & tires
- Note: trimming may be required.
- 37 x 12.5 with 22 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Installation
- Estimated install time4-6 hrs
- DifficultyModerate
- Tools neededWrenches: Standard
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

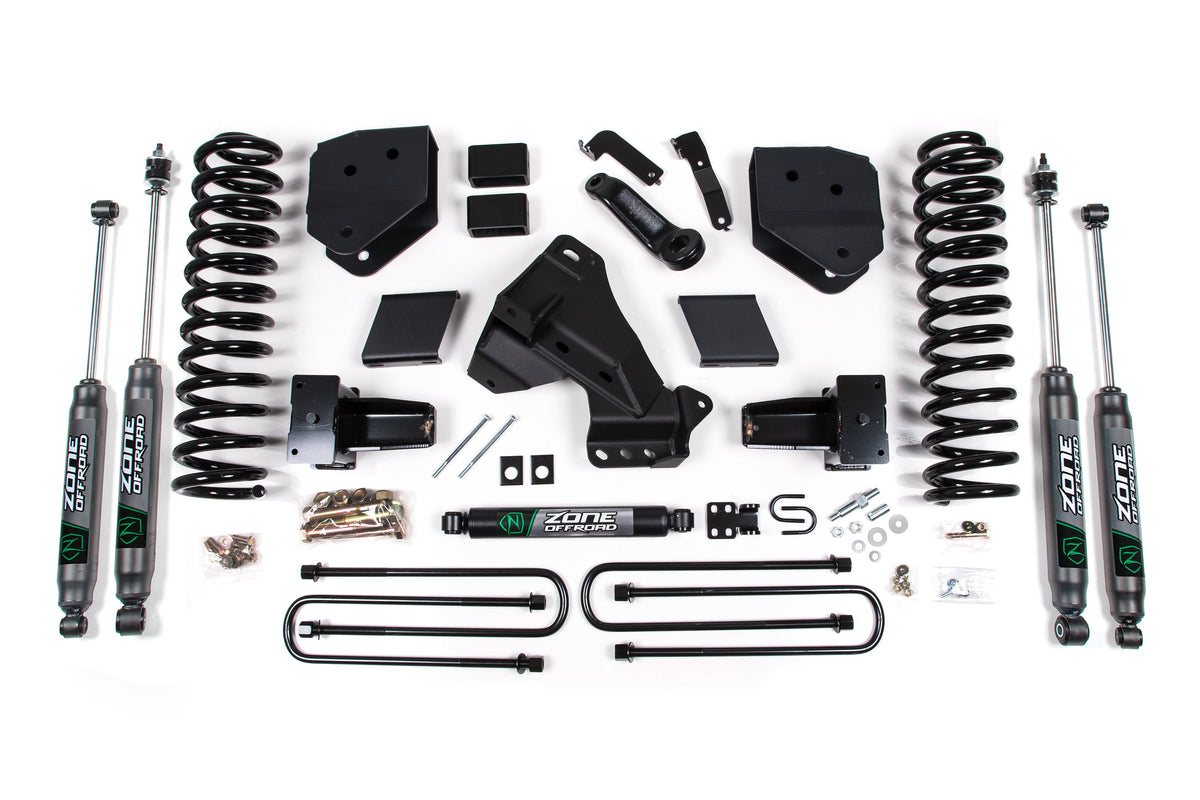

Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

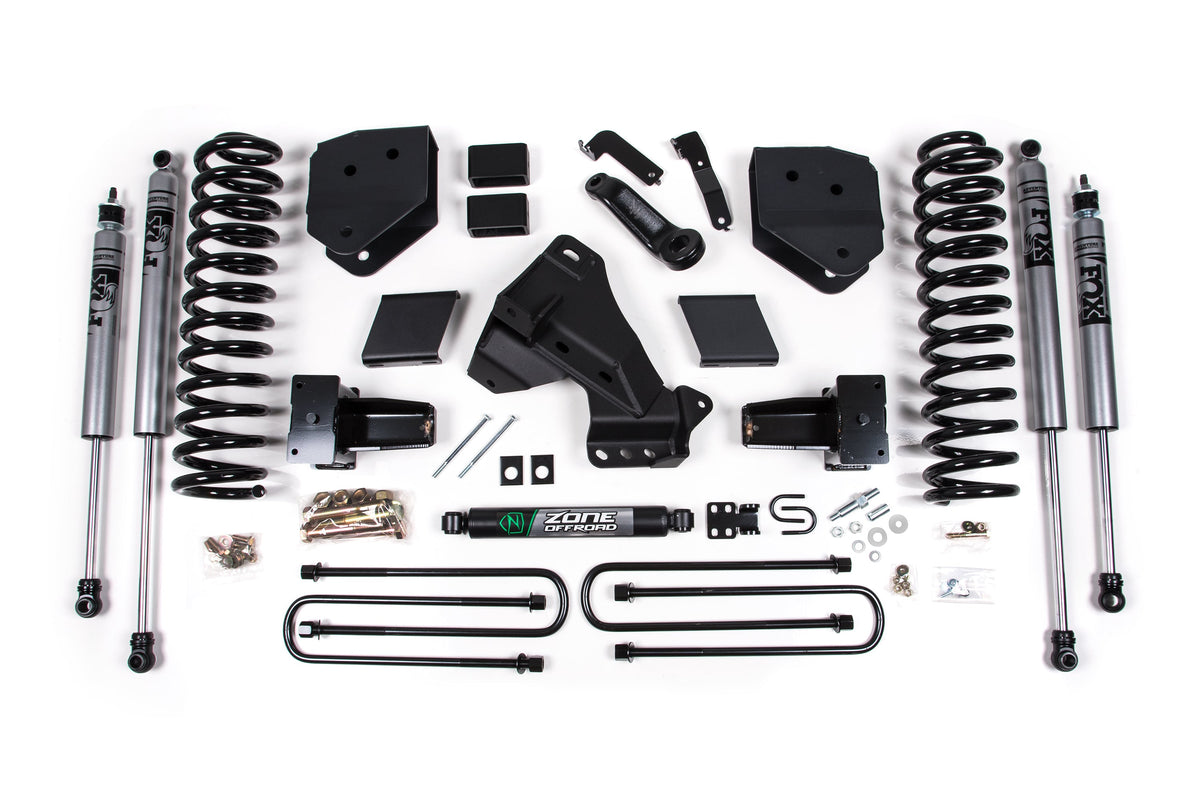

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
