Zone Offroad 4 Inch Lift Kit Ford F250/F350 Super Duty (17-19) 4WD · Diesel
- Front lift 4"
- Max tire 37 x 12.5
- Rear lift 3"
- Shocks included
- Install 5 hrs
- Difficulty Moderately Easy
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Determine if your truck is equipped with standard (2-leaf main) or heavy payload (3-leaf main w/overload) factory rear leaf spring packs.
- Standard 2-leaf main applications will require kit # F48, heavy payload 3-leaf main w/ overload applications will require kit # F50. See "learn more" example image.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Fits SRW models only
- Wheel and Tire:
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONF48F |
| Front Lift Height | 4" |
| Front Lift Method | Coil Spring & Drop Bracket |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 5 hrs |
| Difficulty | Moderately Easy |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZONF48F – Block Kit Without Factory Overload / FOX 2.0 Adventure Series(2) FOX98450700 Fox Adv Shock 25.64 x 16.05 x 2-S50/EB1 |
| 2 | FOX98450718 | Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZON7302 | 2017-2026 F250 Single Stabilizer - Zone |
| 1 | ZONF1316 | 2017-2026 Ford F250/ F350 Super Duty 5" Rear Block Kit- 2 & 3 Leaf Main - 17.25" U-Bolt |
| 1 | ZONF1410 | 2017-2022 Super Duty 4" Front Box Kit |
| 2 | ZONF1413 | Coil Spring Box Kit: 2005-2019 4” / 2020+ 5” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
| — | — | ZONF48N – Block Kit Without Factory Overload / Nitro Series(1) ZON7302 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZON7700 | Nitro- 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | ZON7718 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZONF1316 | 2017-2026 Ford F250/ F350 Super Duty 5" Rear Block Kit- 2 & 3 Leaf Main - 17.25" U-Bolt |
| 1 | ZONF1410 | 2017-2022 Super Duty 4" Front Box Kit |
| 2 | ZONF1413 | Coil Spring Box Kit: 2005-2019 4” / 2020+ 5” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |

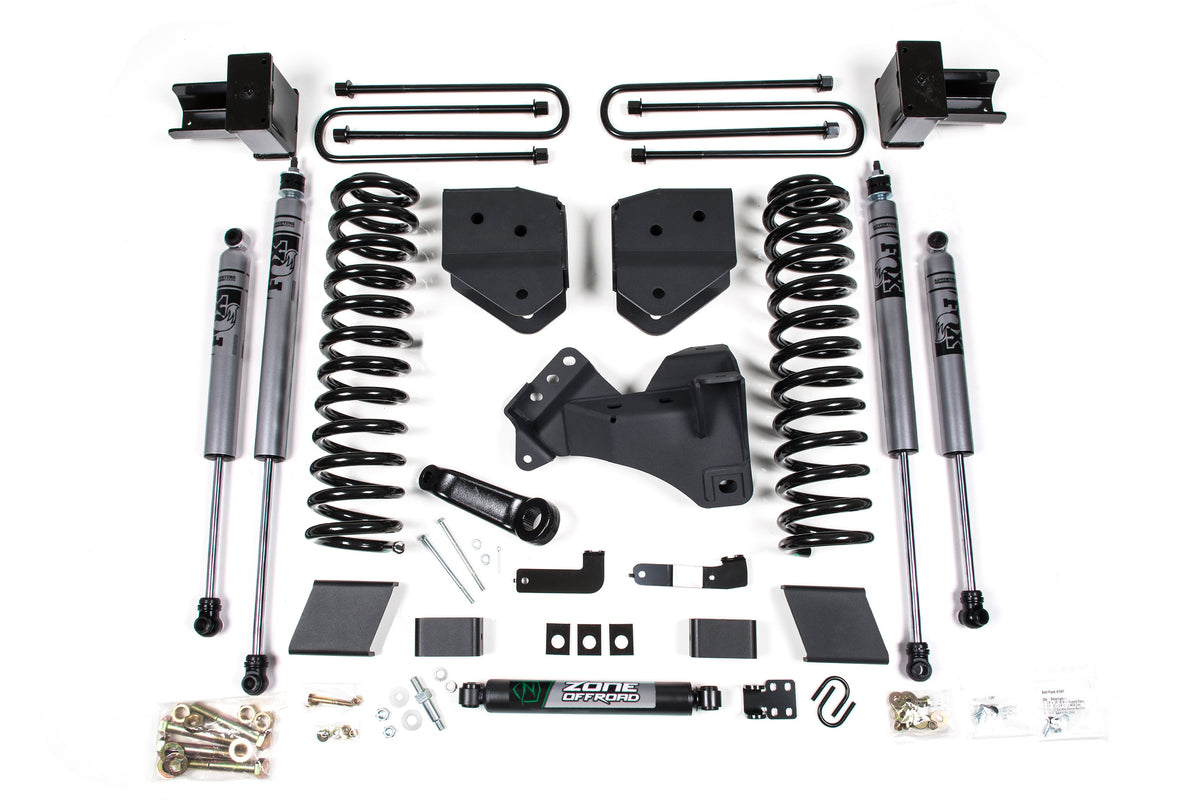

| — | — | ZONF50F – Block Kit With Factory Overload / FOX 2.0 Adventure Series(2) FOX98450700 Fox Adv Shock 25.64 x 16.05 x 2-S50/EB1 |
| 2 | FOX98450718 | Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 |
| 1 | ZON7302 | 2017-2026 F250 Single Stabilizer - Zone |
| 1 | ZONF1316 | 2017-2026 Ford F250/ F350 Super Duty 5" Rear Block Kit- 2 & 3 Leaf Main - 17.25" U-Bolt |
| 1 | ZONF1410 | 2017-2022 Super Duty 4" Front Box Kit |
| 2 | ZONF1413 | Coil Spring Box Kit: 2005-2019 4” / 2020+ 5” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |

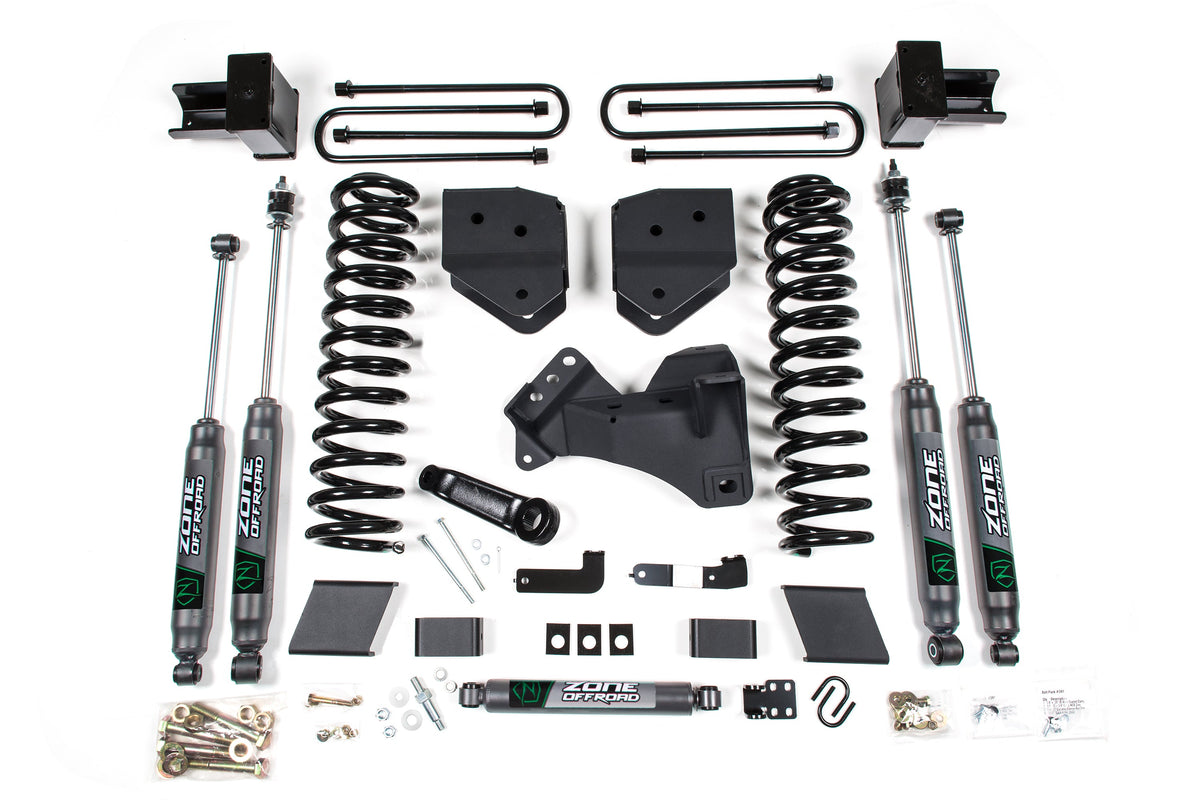

| — | — | ZONF50N – Block Kit With Factory Overload / Nitro Series(1) ZON7302 2017-2026 F250 Single Stabilizer - Zone |
| 2 | ZON7700 | Nitro- 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | ZON7718 | Nitro- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 1 | ZONF1316 | 2017-2026 Ford F250/ F350 Super Duty 5" Rear Block Kit- 2 & 3 Leaf Main - 17.25" U-Bolt |
| 1 | ZONF1410 | 2017-2022 Super Duty 4" Front Box Kit |
| 2 | ZONF1413 | Coil Spring Box Kit: 2005-2019 4” / 2020+ 5” Ford F250/F350 Super Duty Front Diesel Coil Spring (Single) |
Features
- High strength front coil springs improve ride quality.
- Radius arm drop brackets to correct caster and maintain suspension geometry.
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles.
- Replacement 5" rear lift blocks and u-bolts to lift and level the stance
Recommended wheels & tires
- Note: trimming may be required.
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time5 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Lift Option
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
- Factory Overload – 3 Leaf
- NO Overload – 2 Leaf
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
