Zone Offroad 4.5 Inch Lift Kit Chevy Silverado & GMC Sierra 1500 (07-13) 4WD
- Front lift 4"
- Lift 4-5.5"
- Max tire 33 x 12.5
- Rear lift 3"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- This system will not fit 2007 classic models.
- Requires frame bracket modification 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
- Will not fit two-mode hybrid models with electronic power steering. Stock 20" wheels can be re-installed only with factory tire size.
- Factory 17 and 18's cannot be re-installed.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONC8LN |
| UPC / GTIN | 840498502972 |
| Front Lift Height | 4" |
| Front Lift Method | Cross Member & Strut Spacer |
| Lift Height | 4-5.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Difficult |
| Tools Needed | Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment |
What's in the box
| Qty | Part | Description |
|---|---|---|

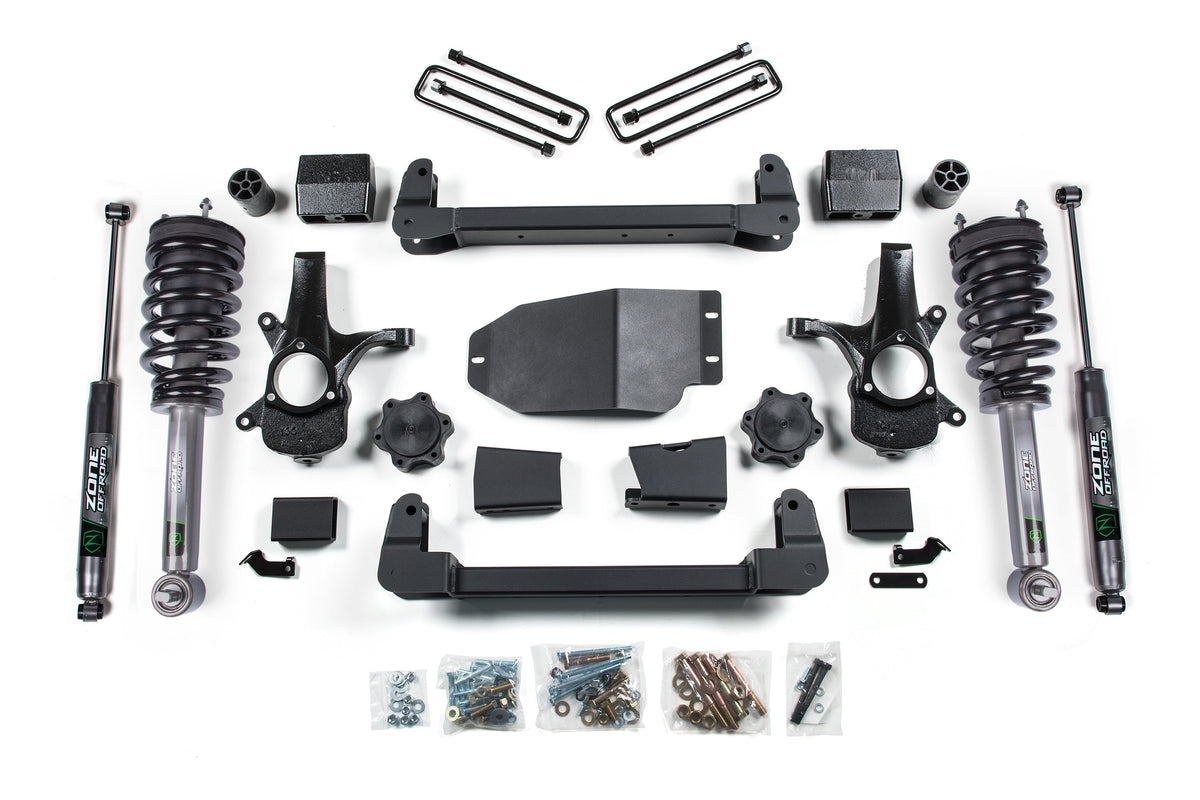

| — | — | ZONC8LN – Loaded Strut / Nitro Series(2) ZON7759 Nitro - 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 1 | ZONC2407 | 2007-2013 Chevrolet Silverado 1500 - GMC Sierra 1500 4wd, 4" Front and Rear Box Kit |
| 1 | ZONC2600 | 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (1of3) |
| 1 | ZONC2601 | 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (2of3) |
| 2 | ZONC4401 | 2007-2018 GM 1500 4" Loaded Struts - Single Strut (7226861J) |

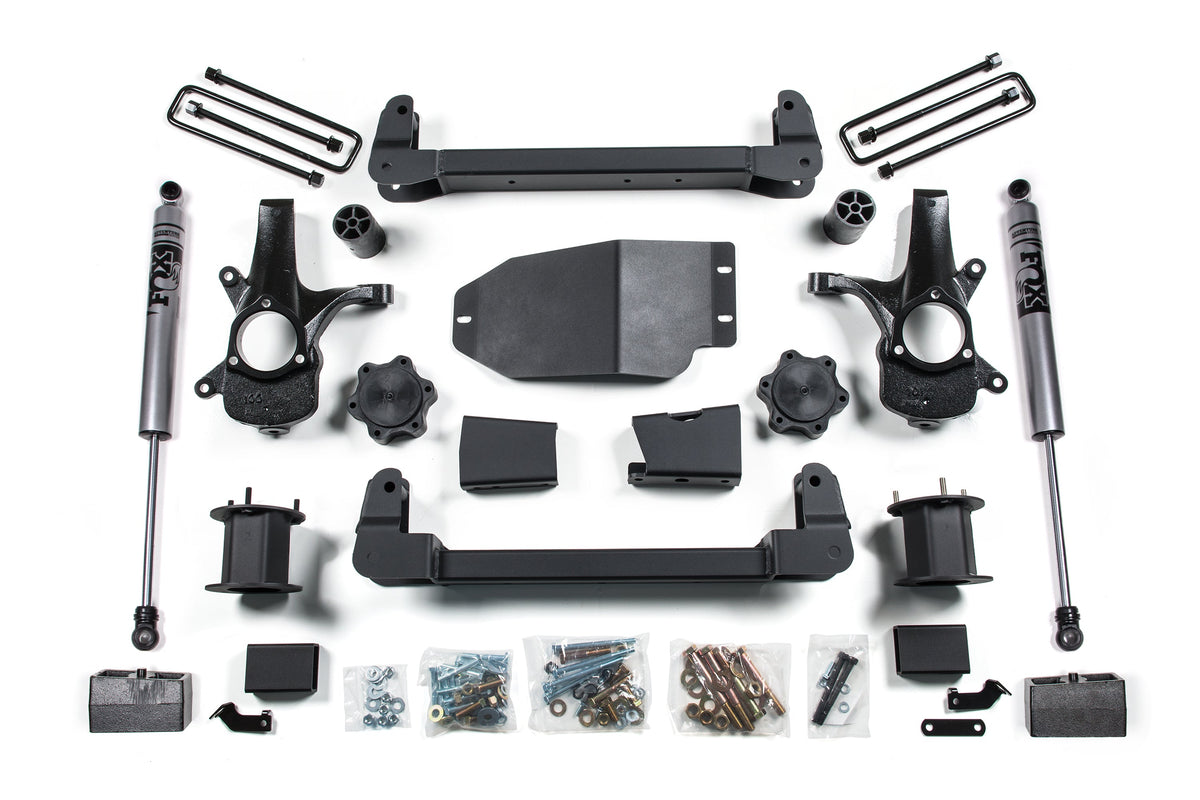

| — | — | ZONC91F – Strut Spacer / FOX Adventure Series(2) FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 |
| 1 | ZONC2416 | 2007-2013 Chevrolet Silverado 1500 - GMC Sierra 1500 4wd, 4.5" Front Box Kit |
| 1 | ZONC2600 | 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (1of3) |
| 1 | ZONC2601 | 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (2of3) |

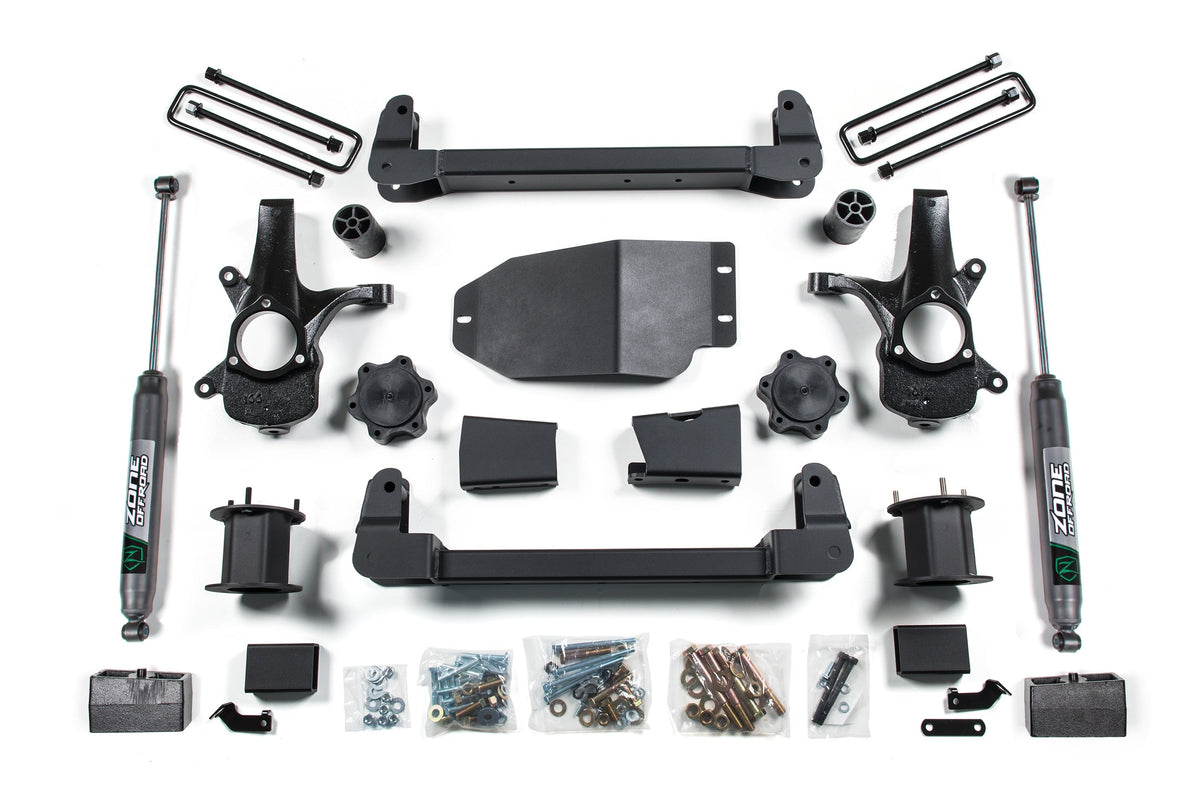

| — | — | ZONC91N – Strut Spacer / Nitro Series(2) ZON7759 Nitro - 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 1 | ZONC2416 | 2007-2013 Chevrolet Silverado 1500 - GMC Sierra 1500 4wd, 4.5" Front Box Kit |
| 1 | ZONC2600 | 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (1of3) |
| 1 | ZONC2601 | 2007-2013 Chevy/GMC 1500 4.5/6.5in Box Kit (2of3) |
Features
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX Adventure Series IFP gas rear shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Recommended wheels & tires
- Note: trimming may be required.
- 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 33 x 12.5 with 17 x 9 and 5.75 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
- Tools neededCut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a ZONE Off Road 4.5-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires
This kit takes advantage of Zone's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear Zone Off Road offers a replacement lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned Zone Nitro or FOX 2.0 Adventure Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
Zone Off Road corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
