Zone Offroad 3 Inch Lift Kit Jeep Cherokee XJ (84-01)
- Front lift 3"
- Max tire 30 x 9.5
- Rear lift 2.5"
- Shocks included
- Install 5 hrs
- Difficulty Moderate
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Control Arms
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3" I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.
- Driveline: 1" transfer case drop kit recommended when using stock driveline to maintain the factory driveline angle.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONJ6F |
| UPC / GTIN | 810156369780 |
| Front Lift Height | 3" |
| Front Lift Method | Coil Spring |
| Max Tire Size | 30 x 9.5 |
| Rear Lift Height | 2.5" |
| Rear Lift Method | Add-A-Leaf |
| Shocks Included | Yes |
| Install time | 5 hrs |
| Difficulty | Moderate |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | ZONJ6F – Chrysler 8.25 / FOX 2.0 Adventure Series(2) FOX98450965 Fox Adv Shock 25.14 x 15.55 x 2-S50/BP7 |
| 2 | FOX98450980 | Fox Adv Shock 23.65 x 15.06 x 2-BP18/EB1 |
| 1 | ZONJ3310 | 1984-2001 Jeep XJ 3" Box Kt w/Chrysler Axle |
| — | — | ZONJ6N – Chrysler 8.25 / Nitro Series(2) ZON7965 Nitro- 24.70 x 14.80 x 2-3/8 - S1/BP7 |
| 2 | ZON7980 | Nitro- 22.95 x 14.65 x 2 - BP18/EB1 |
| 1 | ZONJ3310 | 1984-2001 Jeep XJ 3" Box Kt w/Chrysler Axle |
| — | — | ZONJ7F – Dana 35 / FOX 2.0 Adventure Series(2) FOX98450965 Fox Adv Shock 25.14 x 15.55 x 2-S50/BP7 |
| 2 | FOX98450980 | Fox Adv Shock 23.65 x 15.06 x 2-BP18/EB1 |
| 1 | ZONJ3311 | 1984-2001 Jeep XJ 3" Box Kt w/Dana35 Axle |
| — | — | ZONJ7N – Dana 35 / Nitro Series(2) ZON7965 Nitro- 24.70 x 14.80 x 2-3/8 - S1/BP7 |
| 2 | ZON7980 | Nitro- 22.95 x 14.65 x 2 - BP18/EB1 |
| 1 | ZONJ3311 | 1984-2001 Jeep XJ 3" Box Kt w/Dana35 Axle |
Features
- Front 3" coil springs lift ride height, offer great ride quality and improve articulation.
- Rear long add-a-leafs, new center pins, clamps and replacement u-bolts are supplied to freshen up the rear while leveling the stance.
Recommended wheels & tires
- Note: trimming may be required.
- 30 x 9.5 with 15 x 8 and 4 in. Backspace
- 31 x 10.5 with 15 x 8 and 4 in. Backspace
- 31 x 10.5 with 16 x 8 and 4 in. Backspace
Installation
- Estimated install time5 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Axle Option
This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering. The easiest way to accurately measure the diameter of your rear axle is to measure the inner diameter of your rear-axle U-bolts; to do so, use a tape to measure the distance between the inside edges of the threaded ends of your u-bolts.
- Chrysler 8.25 Rear Axle (3 Inch Diamater)
- Dana 35 Rear Axle (2.75 Inch Diameter)
Shock Option

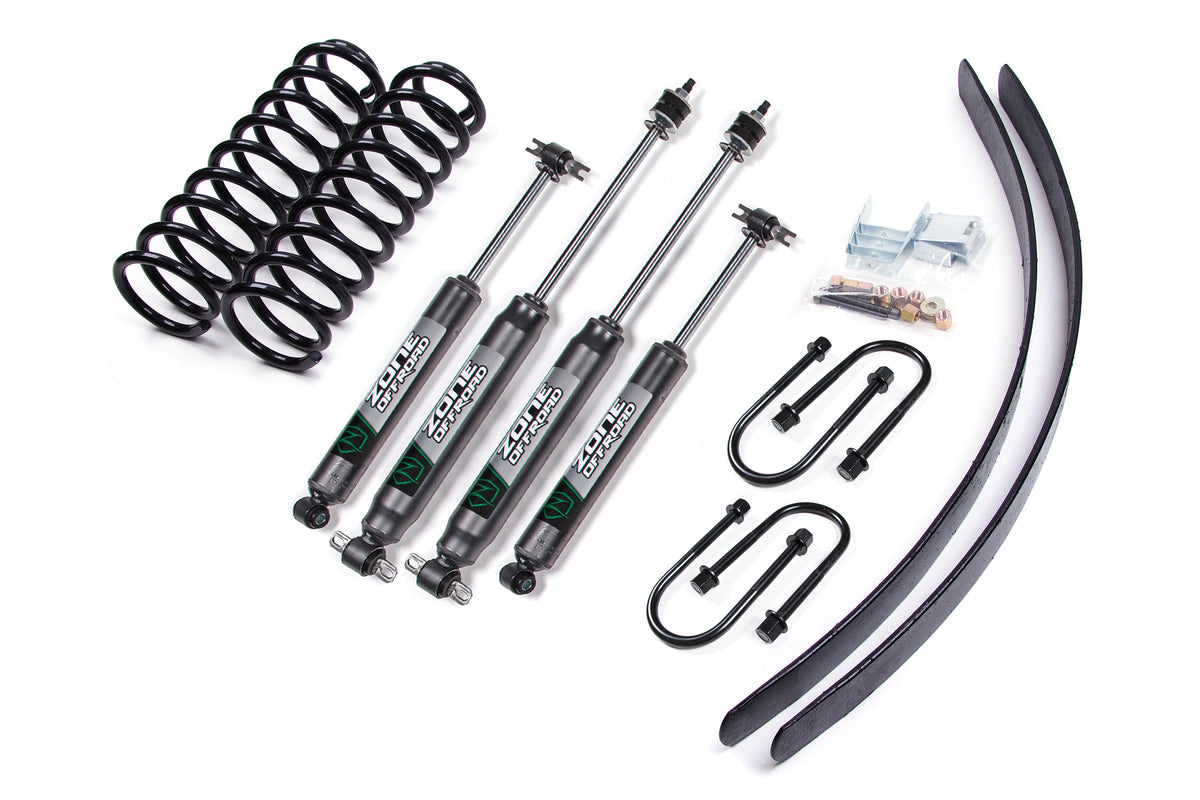

Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish

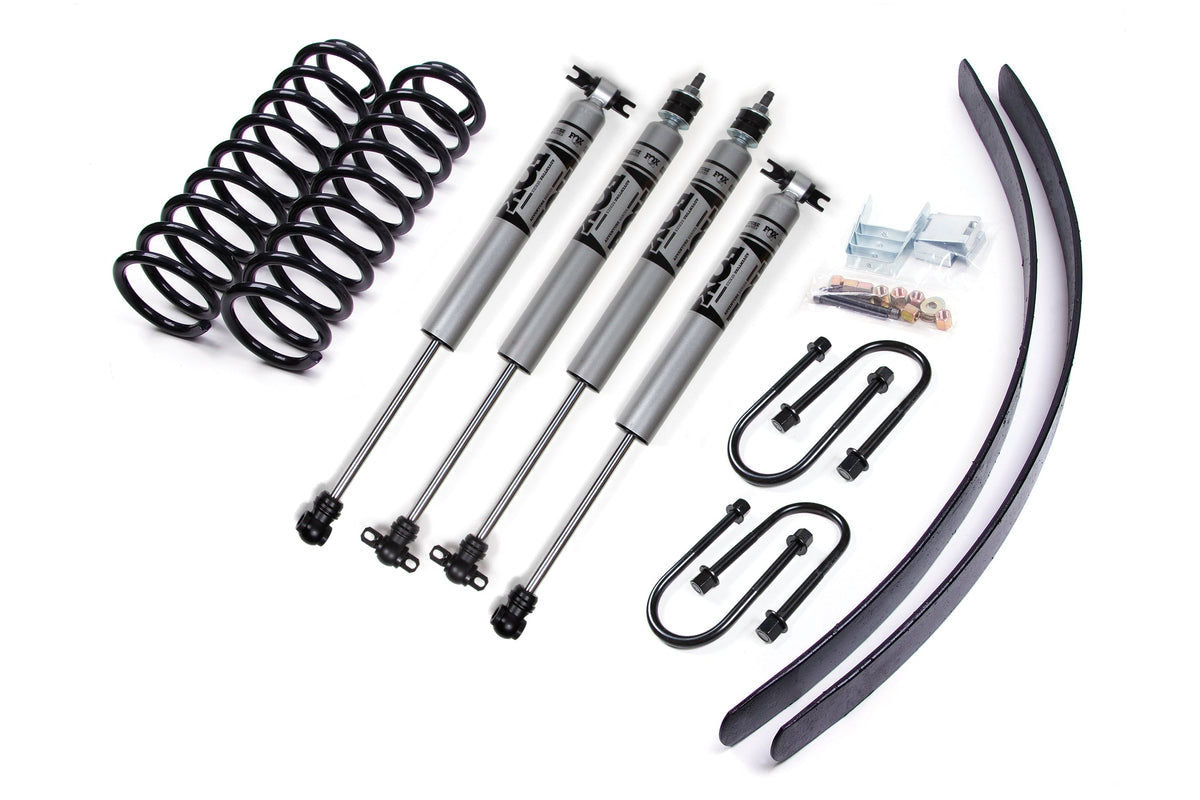

FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
