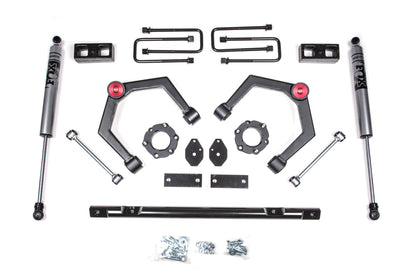

Zone Offroad 2 Inch Lift Kit Nissan Titan XD (16-24) 4WD
- Front lift 2"
- Lift 2-3.5"
- Max tire 31 x 10.5
- Rear lift 2"
- Shocks included
- Install 4-6 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will only fit the Nissan Titan XD.
- Due to payload options and initial ride height variances, the amount of lift is a base figure. Final ride height dimensions may vary.+
- If installation is to be performed without a hoist, Zone Offroad Products recommends rear alterations first.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Zone Offroad |
|---|---|
| Part number | ZONN1F |
| UPC / GTIN | 840498503597 |
| Front Lift Height | 2" |
| Front Lift Method | Strut Spacer |
| Lift Height | 2-3.5" |
| Max Tire Size | 31 x 10.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 4-6 hrs |
| Difficulty | Moderate |
What's in the box
| Qty | Part | Description |
|---|---|---|

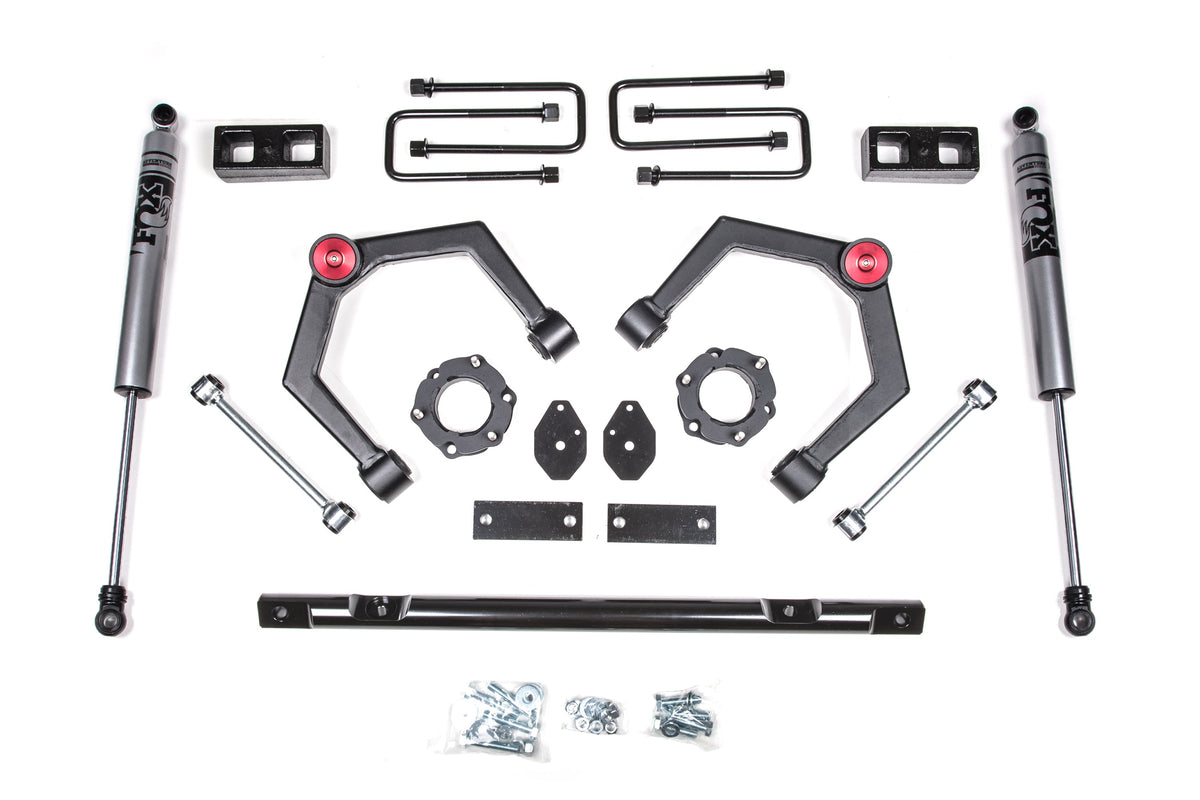

| — | — | ZONN1F – FOX Adventure Series(2) FOX98450840 Fox Adv Shock 27.95 x 17.36 x 2-EB1/EB1 |
| 1 | ZONN2200 | 2016-2024 Nissan Titan XD Adventure Series UCA Kit |
| 1 | ZONN2201 | 2016-2024 Nissan Titan XD 2" Front Box Kit |
| 1 | ZONN2209 | 2016-2024 Nissan Titan XD 2" Rear Block Kit |

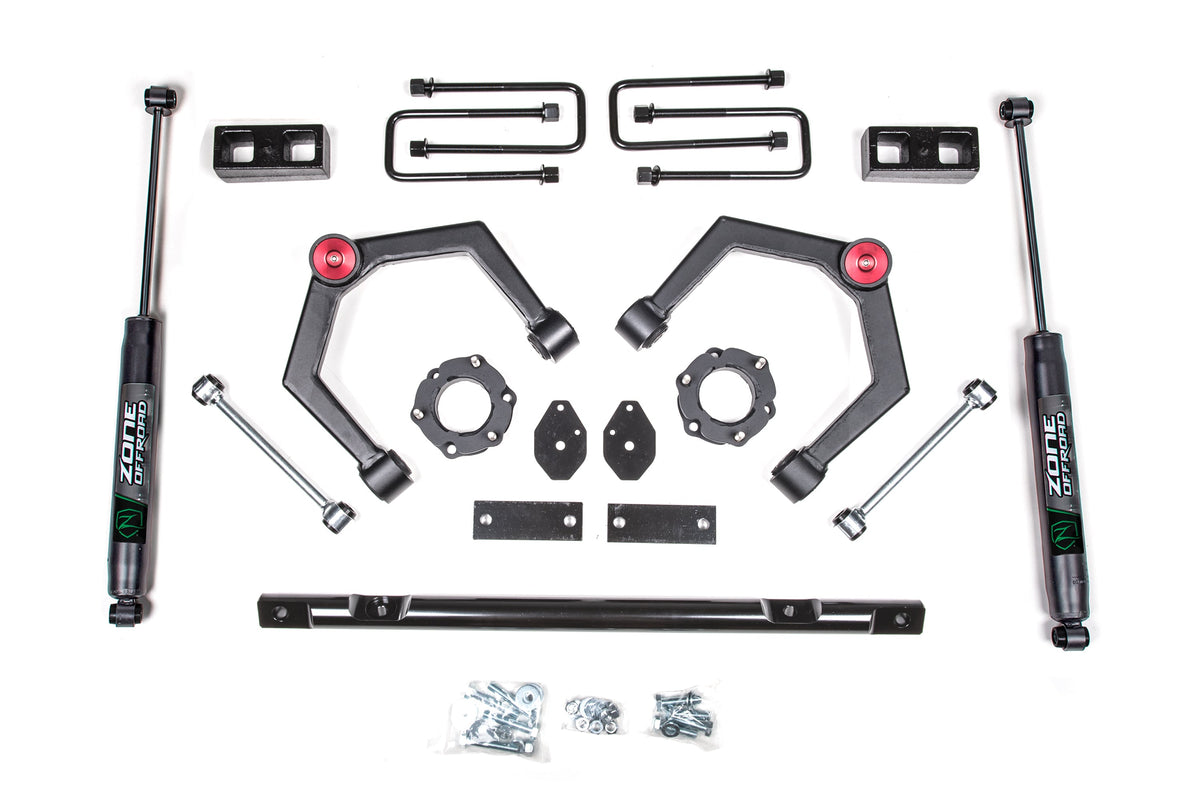

| — | — | ZONN1N – Nitro Series(2) ZON7840 Nitro- 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
| 1 | ZONN2200 | 2016-2024 Nissan Titan XD Adventure Series UCA Kit |
| 1 | ZONN2201 | 2016-2024 Nissan Titan XD 2" Front Box Kit |
| 1 | ZONN2209 | 2016-2024 Nissan Titan XD 2" Rear Block Kit |
Features
- 2" suspension lift kit front and rear.
- Retains the OEM ride quality
- Made in the USA
- Fabricated Zone UCA's which correct ball joint poistion.
Fitment
| Years | Vehicle |
|---|---|
| 2016-2019 | Nissan TITAN XD 4WD |
| 2020-2024 | Nissan TITAN XD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- Note: trimming may be required.
- 31 x 10.5 with 20 x 9 and 5.75 in. Backspace
- 32 x 11.5 with 20 x 9 and 6.25 in. Backspace
Installation
- Estimated install time4-6 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
