Rough Country
Rough Country 561.20 3 Inch Lift Kit | Spacer | Ford F-250 Super Duty 4WD (2011-2016)
Rough Country 561.20 3 Inch Lift Kit | Spacer | Ford F-250 Super Duty 4WD (2011-2016)
PART #
- Front lift 3"
- Install 3 - 4 hours
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Overload spring must be removed to install this kit.
- Does not 2011-2016 f-350 models.
- Does not fit dually models.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 561.20 |
| UPC / GTIN | 8430301292550 |
| Front Lift Height | 3" |
| Front | Coil spring spacers Radius arm drop brackets Track bar drop bracket Hardware |
| Rear | 2in lift blocks U-bolts Hardware |
| Install time | 3 - 4 hours |
| Weight (lbs) | 95.80lbs |
| Country of Origin | USA |
| Warranty | Manufacturer’s Warranty Statement |
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | Front: Coil spring spacers Radius arm drop brackets Track bar drop bracket Hardware |
| — | — | Rear: 2in lift blocks U-bolts Hardware |
Features
- Easy bolt-on installation maintains factory ride quality increased ground clearance levels the front with the rear of the vehicle radius arm drop brackets allow for properly set caster.
- Proper caster is crucial to maintaining factory handling and driveability.
Fitment
| Years | Vehicle |
|---|---|
| 2011-2016 | 4WD Ford F-250 Super Duty |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- TireWheelBolt PatternOffsetNote35x12.50R20Factory 208x170--35x12.50R18Factory 188x170--35x12.50R17Factory 178x170--35x12.50R1717x98x170-12-315/70R1717x98x170-12-35x12.50R1717x98x170+0-35x12.50R1717x98x170+1-295/70R1818x8.58x170+0-295/70R1818x8.58x170+1-35x12.50R1818x98x170-12-295/70R1818x98x170-12-285/75R1818x98x170-12-35x12.50R1818x98x170+0-295/70R1818x98x170+0-285/75R1818x98x170+0-35x12.50R1818x98x170+1-295/70R1818x98x170+1-285/75R1818x98x170+1-295/70R1818x108x170-25-295/70R1818x108x170-19-295/70R1818x108x170-18-35x12.50R2020x98x170-12-35x11.50R2020x98x170-12-295/65R2020x98x170-12-295/60R2020x98x170-12-35x12.50R2020x98x170+0-35x12.50R2020x98x170+1-35x12.50R2020x108x170-25Minor Trimming295/60R2020x108x170-25Minor Trimming35x12.50R2020x108x170-19Minor Trimming295/60R2020x108x170-19Minor Trimming35x12.50R2020x108x170-18Minor Trimming295/60R2020x108x170-18Minor Trimming35x12.50R2222x108x170-25Minor Trimming35x12.50R2222x108x170-19Minor Trimming285/55R2222x108x170-19-35x12.50R2222x108x170-18Minor Trimming285/55R2222x108x170-18-35x12.50R2222x128x170-44Trimming Required
Installation
- Estimated install time3 - 4 hours
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

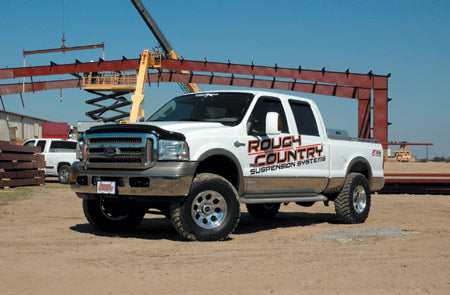

Give your 11-16 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance. This kit features a set of front, lifted coil spring spacers you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting. A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing. Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Rough Country
Rough Country is a leading manufacturer and distributor of off-road accessories and suspension systems. Built on a foundation of American values and rooted in Tennessee, we use our expertise of trucks, Jeeps, and UTVs to help people drive their passions... Shop all Rough Country
