Rough Country

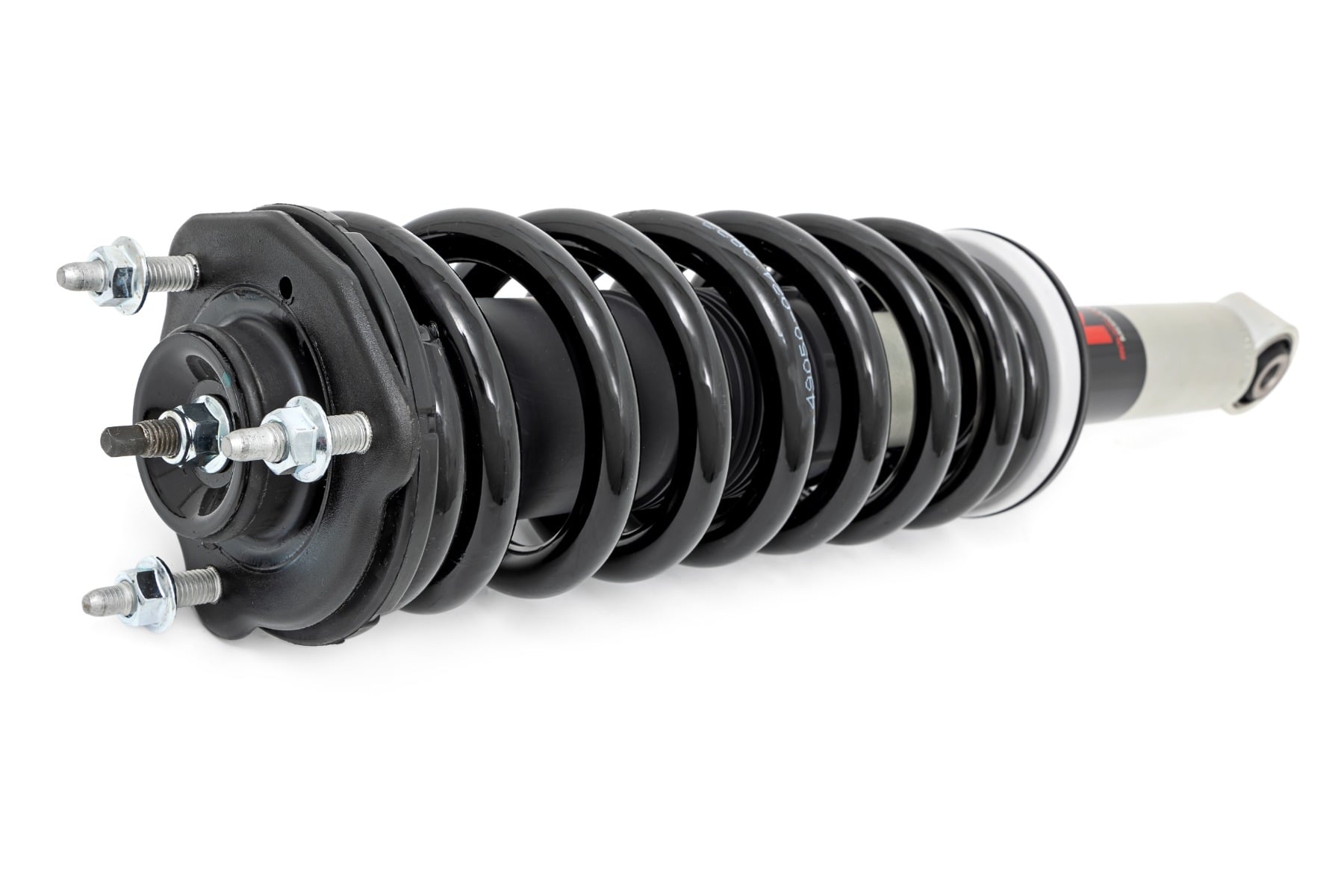

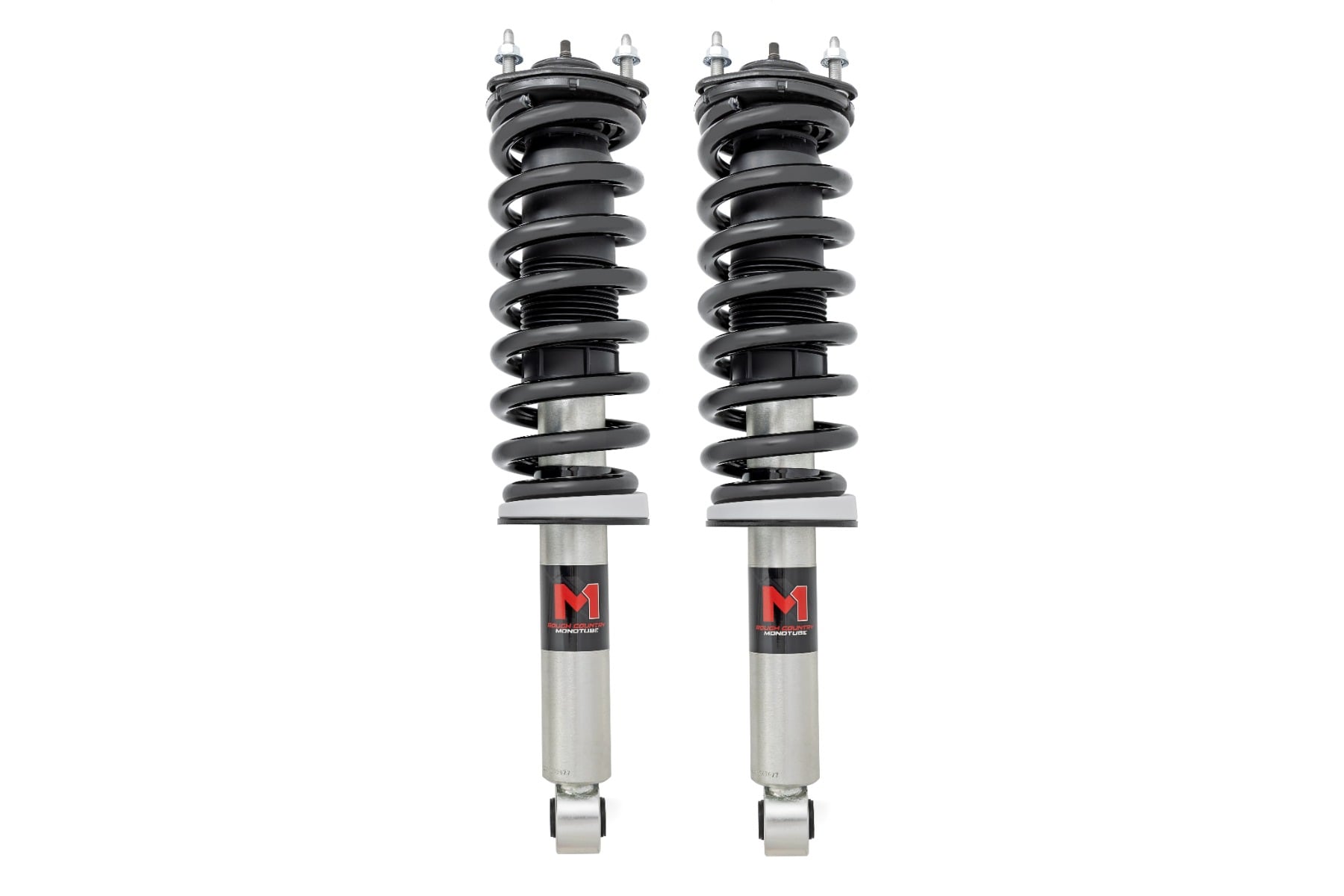

Rough Country 502077 M1 Adjustable Leveling Struts | 0-2" | Chevy/GMC Canyon/Colorado (15-22)
Rough Country 502077 M1 Adjustable Leveling Struts | 0-2" | Chevy/GMC Canyon/Colorado (15-22)
PART #
- Front lift 0-2"
- Install 1-2 hours
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Cannot be installed in conjunction with a strut spacer.
- Does not fit zr2 models.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 502077 |
| UPC / GTIN | 8402699140960 |
| Front Lift Height | 0-2" |
| Install time | 1-2 hours |
| Dimensions | 32.68 x 11.02 x 5.9 |
| Weight (lbs) | 37.00lbs |
| Country of Origin | CN |
| Warranty | Manufacturer’s Warranty Statement |
Features
- 2-inch seamless extruded tube.
- 46mm digressive piston.
- Self-adjusting, deflective-disc independent rebound and compression.
- 18mm centerless-ground, case-hardened, chromed, and super-polished rod.
- 46mm monotube design ensures consistent, fade-free performance in all conditions.
- Digressive valving instantly reacts to changing surface conditions.
- Zinc plated for resistance against harsh elements.
- Available in various lift heights for multiple applications.
- Durable vulcanized natural rubber bushings.
- 3-year manufacturer's warranty.
Fitment
| Years | Vehicle |
|---|---|
| 2015-2022 | 2WD Chevy Colorado |
| 2015-2022 | 2WD GMC Canyon |
| 2015-2022 | 4WD Chevy Colorado |
| 2015-2022 | 4WD GMC Canyon |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- TireWheelBolt PatternOffsetNote265/70R17Factory 176x120--265/65R1717x96x120-12Minor Trimming265/65R1717x96x120+0Minor Trimming265/65R1717x96x120+1Minor Trimming265/70R1717x96x120+18-265/70R1717x96x120+20-265/60R1818x96x120-12Minor Trimming265/60R1818x96x120+0Minor Trimming265/60R1818x96x120+1Minor Trimming265/65R1818x96x120+18-265/65R1818x96x120+20-265/55R2020x96x120-12Minor Trimming265/55R2020x96x120+0Minor Trimming265/55R2020x96x120+1Minor Trimming265/50R2020x96x120+18-265/50R2020x96x120+20-
Installation
- Estimated install time1-2 hours
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Improved Stance, Balance, and Handling. If you want to improve your vehicle's on-road performance and off-road capabilities, Rough Country's M1 Strut Leveling Kits are the way to go. Our M1 Leveling Struts help stabilize your vehicle's movements, enhancing control when you turn, brake, accelerate or ride over uneven road surfaces. As an adjustable ride height strut, these M1’s keep your suspension from overextending, providing a more consistent ride. Made for rugged off-road performance, our M1 monotube struts have a 46mm digressive piston for a more stable ride, preserving the smooth ride quality you need.
Quality Construction. Rough Country's M1 Monotube Leveling Struts have been engineered to give you the most reliable performance, increased driving comfort, and all-around performance for your vehicle. Made from 2" seamless extruded tubing and feature durable vulcanized natural rubber bushings. They're also zinc plated for resistance against the elements. Plus, they're adjustable in height. Utilizing multiple grooves in the strut body the spring perch can be raised or lowered to achieve two inches of lift down to a stock height replacement. So whether you're looking to add a little extra clearance for off-roading or just want your ride to sit a little higher, our M1 Monotube Leveling Struts are the perfect solution.
Installation and Warranty. This bolt-on installation requires just basic tools and about 2-3 hours to complete. Our Strut Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Rough Country
Rough Country is a leading manufacturer and distributor of off-road accessories and suspension systems. Built on a foundation of American values and rooted in Tennessee, we use our expertise of trucks, Jeeps, and UTVs to help people drive their passions... Shop all Rough Country
