Rough Country 476.20 5 Inch Lift Kit Ford F-150 4WD (1997-2003)
- Front lift 5"
- Install 6-8 hours
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Does not fit models equipped with heavy duty payload package (seven lug models).
- Does not work with factory wheels.
- For ease of installation, a torsion bar removal tool is recommended 1067 .
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 476.20 |
| UPC / GTIN | 8430301271760 |
| Front Lift Height | 5" |
| Rear | 4in Lift Blocks U-Bolts Hardware |
| Install time | 6-8 hours |
| Weight (lbs) | 190.75lbs |
| Country of Origin | USA |
| Warranty | Manufacturer’s Warranty Statement |

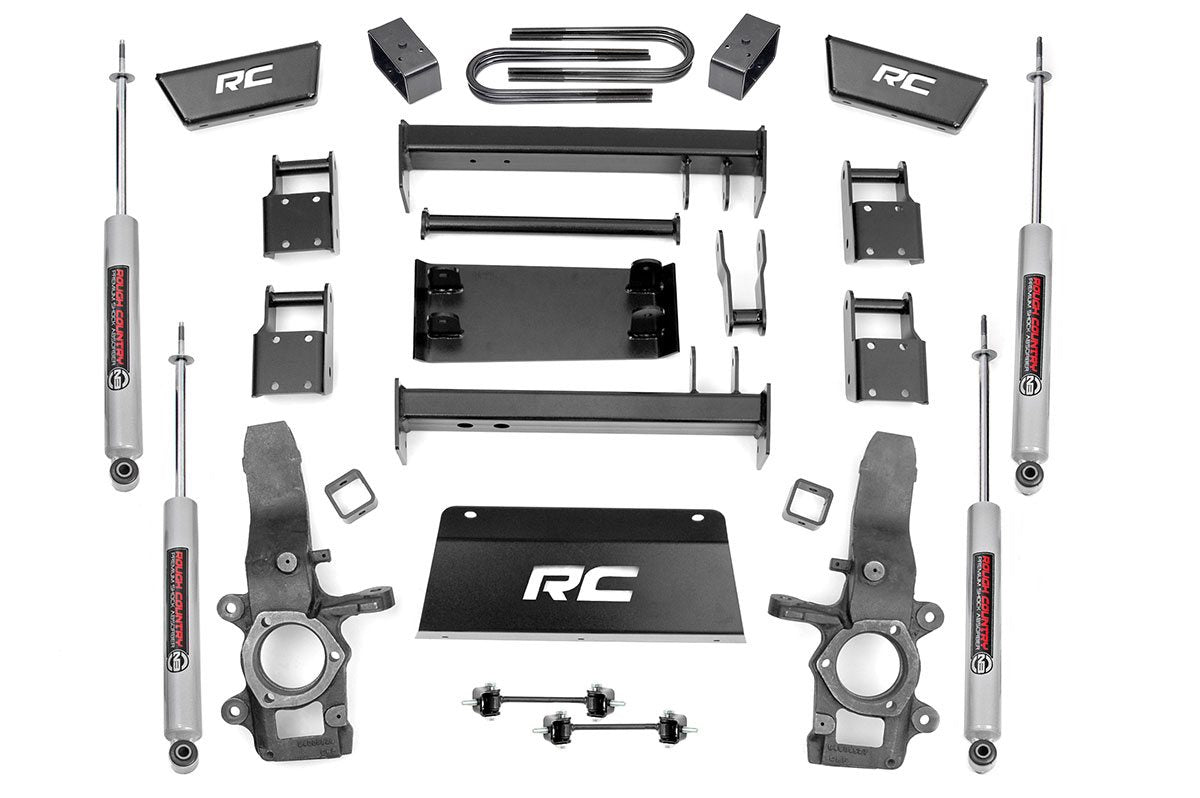

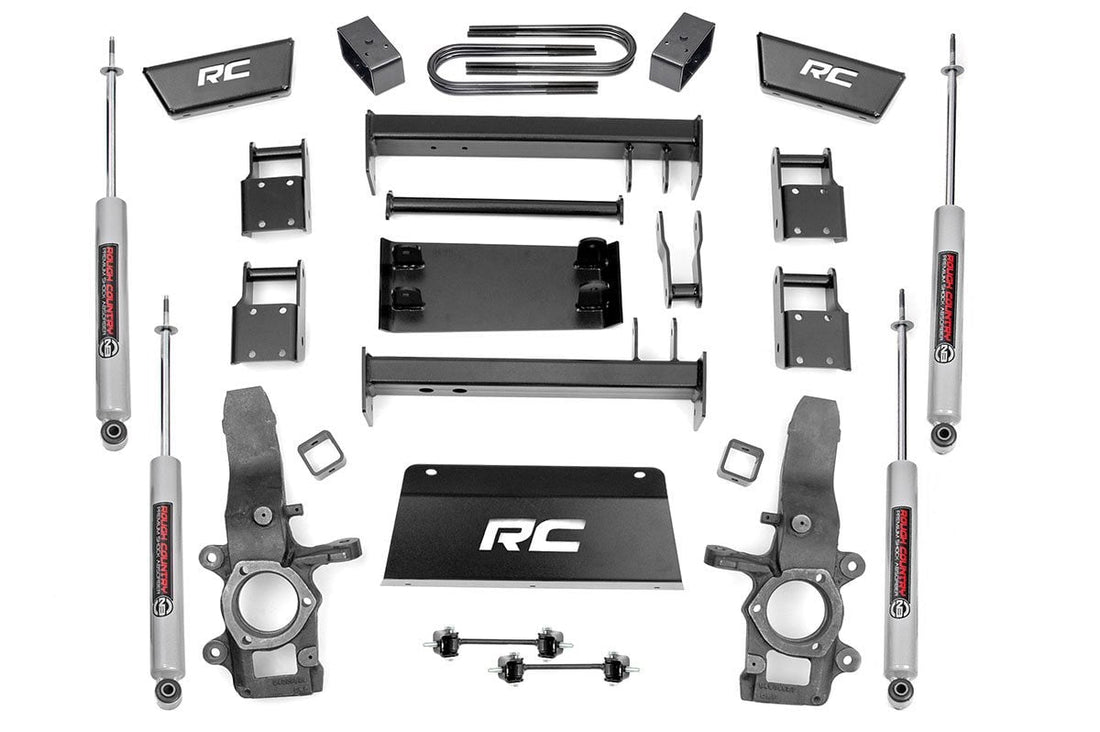

What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | Front: Lifted Knuckles Upper Skid Plate Differential Skid Plate Front 3-Piece Crossmember Rear 3-Piece Crossmember Extended Sway-Bar Links Bump-Stop Brackets Torsion Bar Drop Brackets Hardware |
| — | — | Rear: 4in Lift Blocks U-Bolts Hardware |
Features
- Hassle-free installation: features a 100% bolt-on design for quick and easy setup with common tools.
- Boosted ground clearance: gain extra ride height to tackle rough terrain with added confidence.
- Level stance upgrade: eliminates factory rake by leveling the front with the rear for a more aggressive profile.
- No modifications needed: installs cleanly with no cutting, drivetrain, or exhaust changes required.
- Compatible with 35-inch tires: gain the clearance you need to run up to 35-inch tires for a tougher stance and enhanced off-road capability.
- Includes rough country's n3 shocks: premium shocks deliver enhanced ride quality, superior damping, and increased stability for all-terrain comfort and performance.
Fitment
| Years | Vehicle |
|---|---|
| 1997-2000 | Ford F-150 4WD: Base |
| 2001-2003 | Ford F-150 4WD: King Ranch |
| 1997-2003 | Ford F-150 4WD: Lariat, XL, XLT |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
25 tire and wheel combinations from Rough Country. Pick a wheel size to narrow the list.
| Tire | Wheel | Bolt Pattern | Offset | Note |
|---|---|---|---|---|
| 35x12.50R17 | 17x8.5 | 5x135 | +0 | – |
| 35x12.50R17 | 17x8.5 | 5x135 | +1 | – |
| 35x12.50R17 | 17x9 | 5x135 | -12 | – |
| 35x12.50R17 | 17x9 | 5x135 | +0 | – |
| 35x12.50R17 | 17x9 | 5x135 | +1 | – |
| 35x12.50R18 | 18x8.5 | 5x135 | +0 | – |
| 295/70R18 | 18x8.5 | 5x135 | +0 | – |
| 35x12.50R18 | 18x8.5 | 5x135 | +1 | – |
| 295/70R18 | 18x8.5 | 5x135 | +1 | – |
| 35x12.50R18 | 18x9 | 5x135 | -12 | – |
| 295/70R18 | 18x9 | 5x135 | -12 | – |
| 35x12.50R18 | 18x9 | 5x135 | +0 | – |
| 295/70R18 | 18x9 | 5x135 | +0 | – |
| 35x12.50R18 | 18x9 | 5x135 | +1 | – |
| 295/70R18 | 18x9 | 5x135 | +1 | – |
| 295/70R18 | 18x10 | 5x135 | -25 | – |
| 295/70R18 | 18x10 | 5x135 | -19 | – |
| 295/70R18 | 18x10 | 5x135 | -18 | – |
| 35x12.50R20 | 20x9 | 5x135 | -12 | – |
| 35x12.50R20 | 20x9 | 5x135 | +0 | – |
| 35x12.50R20 | 20x9 | 5x135 | +1 | – |
| 35x12.50R20 | 20x10 | 5x135 | -19 | Minor Trimming |
| 35x12.50R20 | 20x10 | 5x135 | -18 | Minor Trimming |
| 35x12.50R22 | 22x10 | 5x135 | -19 | Minor Trimming |
| 35x12.50R22 | 22x10 | 5x135 | -18 | Minor Trimming |
Installation
- Estimated install time6-8 hours
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Transform your 1997-2003 Ford F-150 with Rough Country's 5-Inch Suspension Lift Kit, delivering a bold new look and the capability to dominate off-road terrain. This all-inclusive system is built for performance, durability, and aggressive stance, perfect for any adventure ahead. Achieve Aggressive Ride Height and Control: This kit includes heavy-duty lifted knuckles that provide the clearance needed to run up to 35-inch tires with proper wheel spacing. Differential drop brackets, sway-bar links, bump stop brackets, and torsion bar drop brackets help maintain factory-like ride quality by keeping components at optimal geometry. Built for Strength and Durability: A pair of high-strength front and rear steel crossmembers form the foundation of this lift, while Rough Country's fabricated rear blocks outclass traditional cast options for improved strength and long-term reliability on and off the trail. Engineered for Smooth Performance: Rough Country's premium N3 shocks are included, offering 10-stage variable valving, a high-pressure nitrogen charge, 18mm spring-loaded piston rods, and 54mm shock bodies. These features combine to deliver a smooth highway ride with firm off-road response. Peace of Mind Included: Rough Country backs this kit with a Limited Lifetime Replacement Guarantee, ensuring your suspension is ready for whatever comes next.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
