Rough Country 30930 5 Inch Lift Kit · DRW · OE Rear Air Ram 3500 4WD (2020-2024)
- Front lift 5"
- Install 6-8 hours
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
- Does NOT fit 'Power Wagon' models Fits single rear wheel and dual real wheel models.
- Rear wheels may require additional dually wheel spacers to run 12.50in wide tire ONLY fits Diesel models Requires minor cutting.
- On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
- Does NOT fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission.
- Does NOT fit cab & chassis models.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 30930 |
| UPC / GTIN | 8430301955020 |
| Front Lift Height | 5" |
| Rear | Rear air bag spacers Track bar bracket Sway-bar links Hardware |
| Install time | 6-8 hours |
| Dimensions | nan x nan x nan |
| Weight (lbs) | 295.25lbs |
| Country of Origin | USA |
| Warranty | Manufacturer’s Warranty Statement |

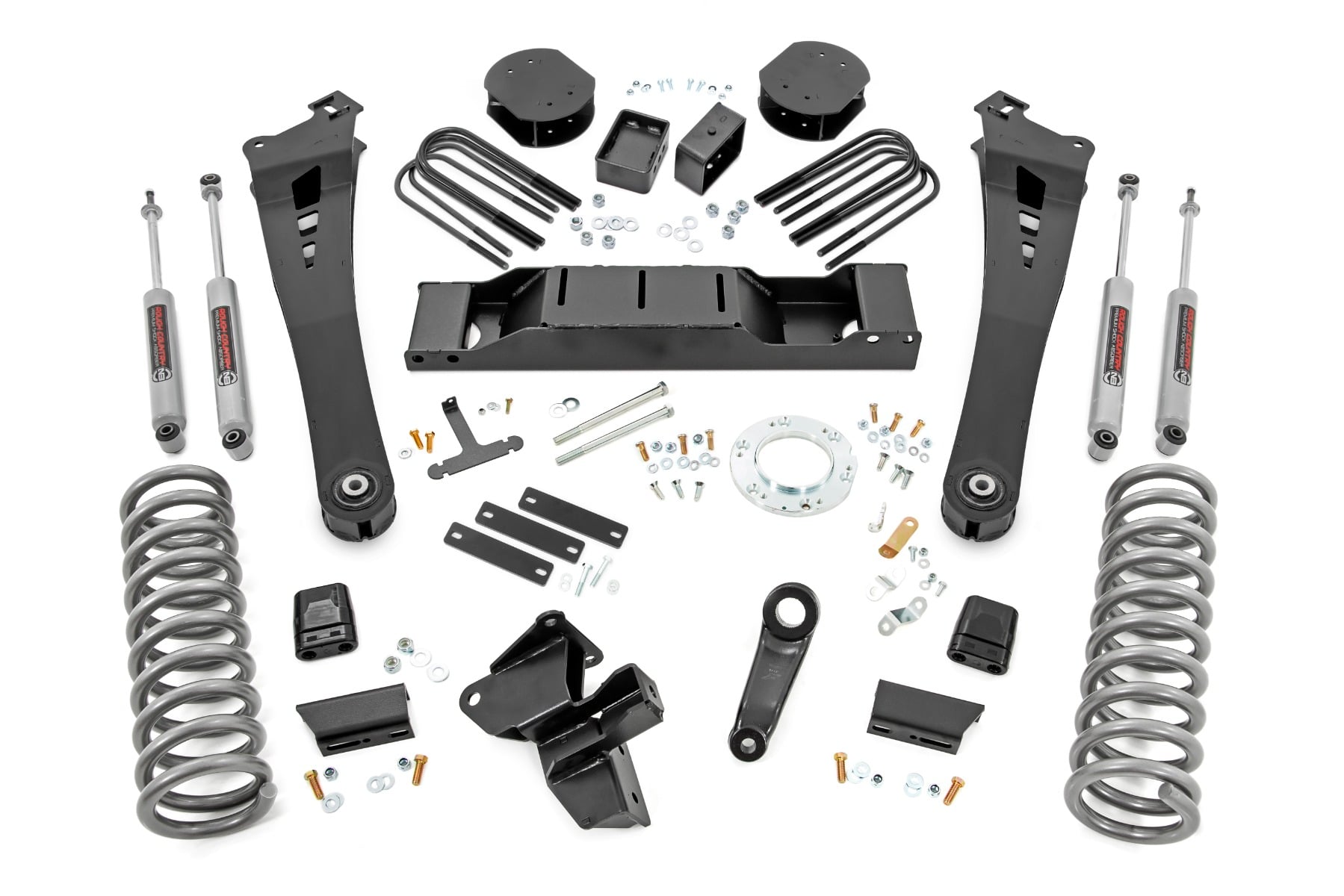

What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | Front: Lifted Coil springs Radius arms Track Bar bracket Transmission crossmember Clocking ring Sway-bar brackets Pitman arm Carrier bearing shims Hardware |
| — | — | Rear: Rear air bag spacers Track bar bracket Sway-bar links Hardware |
Features
- Increased ground clearance Track bar bracket keeps the front axle properly centered Radius Arms offer a more factory‐like angle and feature a durable, durable rubber Bushings for maximum vibration absorption Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off‐road use.
Fitment
| Years | Vehicle |
|---|---|
| 2020-2024 | Ram 3500 4WD: Big Horn, Laramie, Limited, Tradesman |
| 2020 | Ram 3500 4WD: Laramie Longhorn |
| 2021-2024 | Ram 3500 4WD: Limited Longhorn |
| 2020-2022 | Ram 3500 4WD: Lone Star |
| 2024 | Ram 3500 4WD: Special Service |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
10 tire and wheel combinations from Rough Country.
| Tire | Wheel | Bolt Pattern | Offset | Note |
|---|---|---|---|---|
| 37x12.50R17 | 17x8.5 | 8x6.5/8x165.1 | +0 | – |
| 37x12.50R17 | 17x8.5 | 8x6.5/8x165.1 | +1 | – |
| 37x12.50R17 | 17x9 | 8x6.5/8x165.1 | +0 | – |
| 37x12.50R17 | 17x9 | 8x6.5/8x165.1 | +1 | – |
| 37x12.50R20 | 20x9 | 8x6.5/8x165.1 | +0 | – |
| 37x12.50R20 | 20x9 | 8x6.5/8x165.1 | +1 | Minor Trimming |
| 37x12.50R20 | 20x10 | 8x6.5/8x165.1 | -19 | Minor Trimming |
| 37x12.50R20 | 20x10 | 8x6.5/8x165.1 | -18 | Minor Trimming |
| 37x12.50R22 | 22x10 | 8x6.5/8x165.1 | -19 | Minor Trimming |
| 37x12.50R22 | 22x10 | 8x6.5/8x165.1 | -18 | Minor Trimming |
Installation
- Estimated install time6-8 hours
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Radius Arm Lift Kit. RAM Trucks come with a wealth of impressive features right from the factory. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from! When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, durable rubber bushings for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Rough Country
Rough Country is a leading manufacturer and distributor of off-road accessories and suspension systems. Built on a foundation of American values and rooted in Tennessee, we use our expertise of trucks, Jeeps, and UTVs to help people drive their passions... Shop all Rough Country
