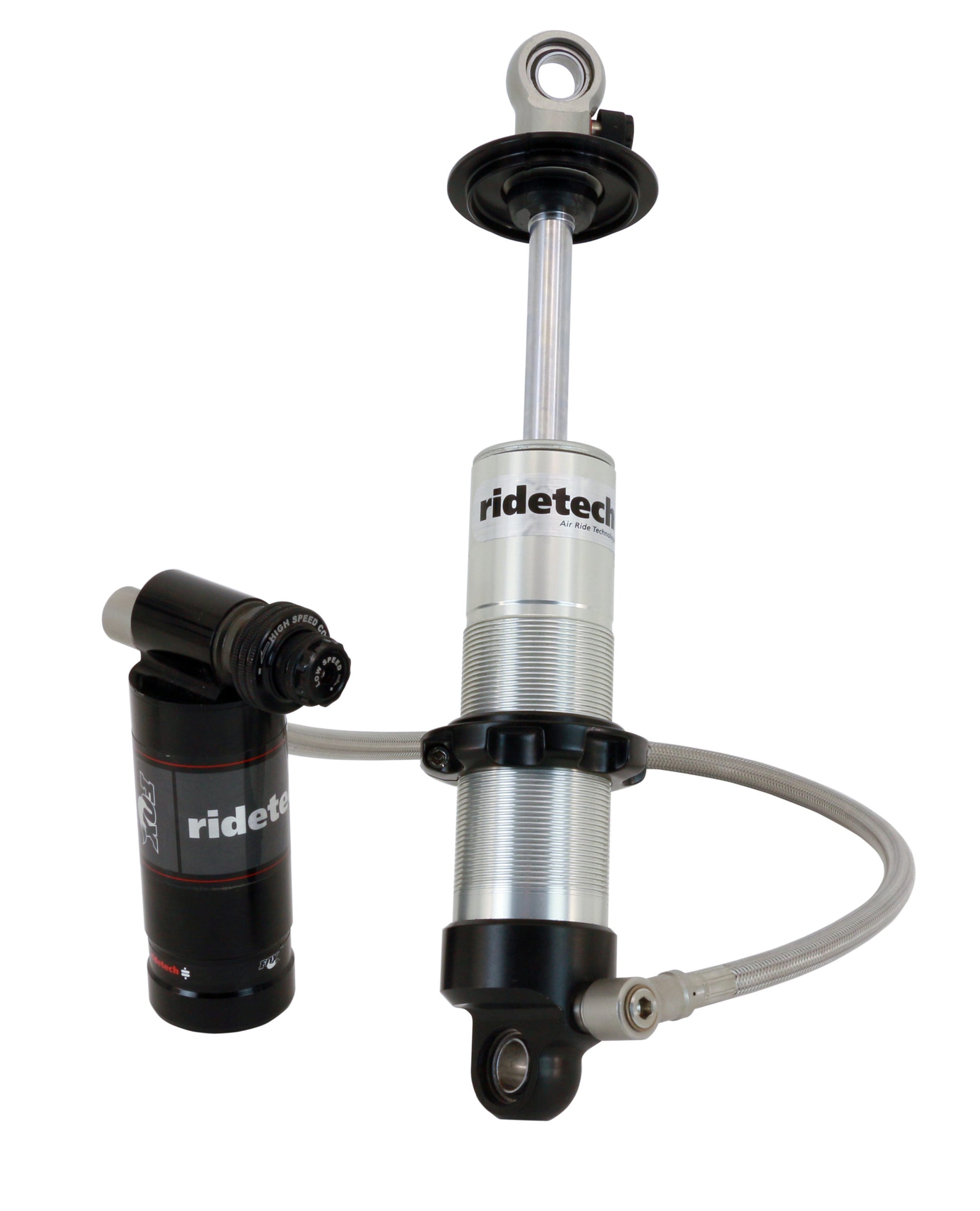

Ridetech 24379901 TQ Coil-Over shock with 6.9" stroke and 1.7" eye mount, universal.
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Specifications
| Brand | Ridetech |
|---|---|
| Part number | 24379901 |
| Pricing Group | TQ Coil-Over Shock |
| Country of Origin | US |
| Warranty | 1 Months |
| Weight (lbs) | 7 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Fitment
| Years | Vehicle |
|---|---|
| — | UNIVERSAL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
- Monotube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- 24-Position High Speed Compression Adjustment
- 24-Position Low Speed Compressoin Adjustment
- Remote Reservoir on 30″ braided line w/ double swivel ends
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834″ piston significantly larger than twin tube pistons.
- Heavy duty 5/8″ chromed shaft.
- Bodies are anodized for long lasting corrosion-resisten appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
Sold Individually – Springs Sold Seperately
Included Components
1- Aluminum monotube shock with threaded body
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
2- Reservoir Mounts
1- Delrin Washer set of 2
Coilover Dimensions
| Shock | Mounting | Compressed | Ride | Extended | TQ Spring | |
| Stroke | Style | Height | Height | Length | Length | |
| 2.9″ | Eye/Eye | 8.73″ | 10.5″ | 11.63 | 7″ | |
| 3.6″ | Eye/Eye | 9.43″ | 11.5″ | 13.03 | 8″ | |
| 4.1″ | Eye/Eye | 10.13″ | 12.5″ | 14.23 | 8″ | |
| 5.2″ | Eye/Eye | 11.23″ | 14.5″ | 16.43 | 10″ | |
| 6.3″ | Eye/Eye | 12.33″ | 16″ | 18.63 | 12″ | |
| 6.9″ | Eye/Eye | 13.13″ | 17.25″ | 20.03 | 14″ | |
| 2.9″ | Eye/Stud | 9.03″ | 10.8″ | 11.93 | 7″ | |
| 3.6″ | Eye/Stud | 9.73″ | 11.8″ | 13.33 | 8″ | |
| 4.1″ | Eye/Stud | 10.63″ | 12.8 | 14.53 | 8″ | |
| 5.2″ | Eye/Stud | 11.53″ | 14.8 | 16.73 | 10″ | |
| 6.3″ | Eye/Stud | 12.63″ | 16.3 | 18.93 | 12″ | |
| 6.9″ | Eye/Stud | 13.43″ | 17.55 | 20.33 | 14″ |
SEE RECOMMENDED PARTS BELOW FOR COIL SPRINGS
Don’t know your vehicle weights… Vehicle Weight Data Base
Looking for more info.. Choosing The Right Coil-Over
