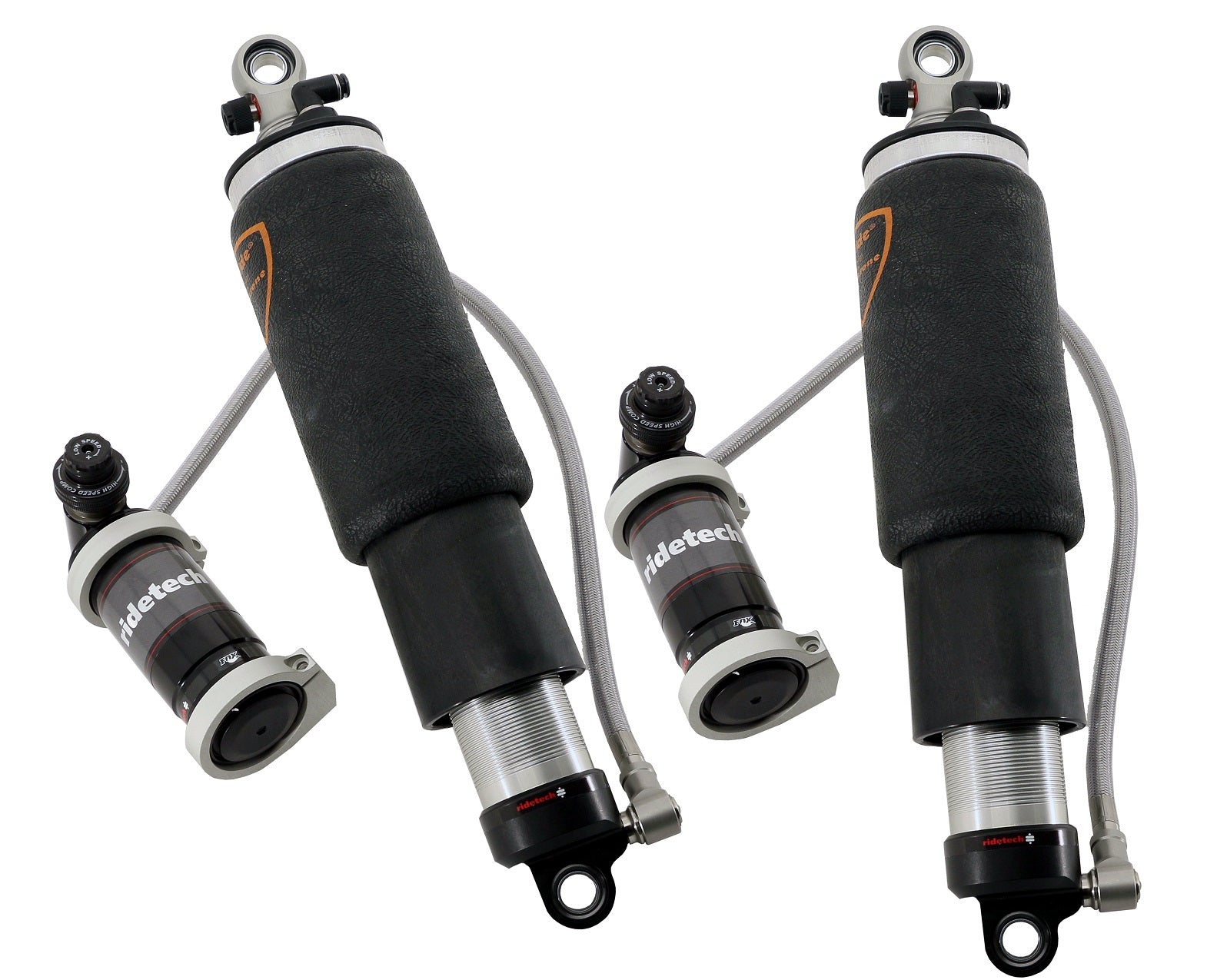

Ridetech 24340705 Rear TQ Shockwaves, 7000 Series with 4.1" stroke and 2" stud.
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Specifications
| Brand | Ridetech |
|---|---|
| Part number | 24340705 |
| Pricing Group | TQ Shockwaves |
| Country of Origin | US |
| Warranty | 1 Months |
| Weight (lbs) | 22 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Fitment
| Years | Vehicle |
|---|---|
| — | UNIVERSAL |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Ridetech TQ Series universal Shockwaves provide high performance handling, exceptional ride quality and incomparable reliability. TQ Series Universal Shockwaves can be custom configured to virtually any lenght or mounting style necessary. The quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right Shockwaves for your application. Likewise, we guarantee that they’ll last. TQ Series Shockwaves come with a remote reservoir and feature 24-positions of Rebound, High Speed Compress and Lower Speed Compression adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. The 7000 Series Shockwaves come utilize a Firestone 4″ diameter sleeve air spring which is suitable for most straight axle rear applications.
Recommended Applications:
Solid rear axle: Rear axle weight is less than 1,500lbs.
NOT recommended for IFS installations … not enough load capacity
Diameter and load capacity: 4″ diameter 7000 series = 780 lbs. @ 100 psi
Features:
- Single rebound adjustment PLUS dual stage high & low-speed compression
- Aluminum impact forged construction allows leak free operation
- Remote reservoir includes mounting brackets for easy installation
- Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
- Monotube design for superior oil control
- Easy & precise valve adjustment with 24 clicks
|
Compressed
Height |
Ride
Height |
Extention | Stroke | Mounting | Part # |
|---|---|---|---|---|---|
| 10.75″ | 12.83″ | 14.22″ | 4.1″ | Eye / Eye | 24340701 |
| 11.05″ | 13.13″ | 14.52″ | 4.1″ | Eye / Stud | 24340705 |
| 11.85″ | 14.6″ | 16.42″ | 5.2″ | Eye / Eye | 24350701 |
| 12.15″ | 14.9″ | 16.72″ | 5.2″ | Eye / Stud | 24350705 |
| 12.95″ | 16.35″ | 18.62″ | 6.3″ | Eye / Eye | 24360701 |
| 13.25″ | 16.65″ | 18.92″ | 6.3″ | Eye / Stud | 24360705 |
| 13.75″ | 17.51″ | 20.02″ | 6.9″ | Eye / Eye | 24370701 |
| 14.05″ | 17.81″ | 20.32″ | 6.9″ | Eye / Stud | 24370705 |
