Ridetech 12280294 HQ Air Suspension System with hub spindles and da bars for 1961-1965 Falcon.

The Ridetech air ride suspension for the 1961-1965 Ford Falcon was built from the ground up to bring the Falcon into the 21st century.

• Includes New Ridetech Spindles (Compatible with 67-69 Camaro Brake systems)
• Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Mustang hubs and brakes.  Includes S550 2015-2023 Mustang hubs for maximum strength, consistent braking and reduced maintenance.  Compatible with 2015-2023 Mustang brake systems, OE and aftermarket (caliper brackets included).  Minimum 17″ wheels.  Hubs fit Ford car 5 x 4.5″ lug pattern and include 14mm studs.
• Bump steer reduced to less than 1/16 in.
• Mini-Starter required to clear Tru-Turn Draglink Adapter (not Included)
• Complete steering upgrade includes: Draglink (my require mini-starter for clearance), pitman arm (1 in. steering box sector shaft), idler arm, idler arm mount – compatible with manual steering, can be adapted to use Borgeson power steering system
• Zero to over 7 degrees of caster possible
• 1 1/8 in. Solid Front Sway Bar – Rate 608 lbs/in
• When equipped with 225/40 -R18 tires, standard ride height is 22.75 in. ground to the fender lip
• Optional frame brace available to reinforce lower control arm mounts and subframe.  Compatible with V8 engine mounts only.

REAR:
We chose to fix the rear suspension in much the same way we have done on many muscle cars originally equipped with leaf springs… swap in a 4-link.

This rear bolt-on 4-link suspension system completely transforms the little Ford Falcon into a world class handling machine, and at the same time provides an incredible smooth ride and bind free operation.

Starting off, the rear will accept up to a 225/40-R18 with a recommended backspace 5.50 in. – 6.00 in. and provide a ride Height: 18.75 in.  ground to the fender lip.

• • Adjustable 4-link bars including R-Joints
  • Available with Standard Bars (fixed lowers and single adj. uppers) or the Double Adjustable Bar option gives you the ability to adjust the length without removing the bar end.
  • Triangulated 4-Link – no need for pan hard bar and keeps rear end movement vertical
  • Bolt-in cradle
  • Upper control arm axle mounts require welding
  • Spacers included to fit multiple factory leaf spring mounts (2 in. and 3 in.)
  • 3 mounting holes for lower control arm at axle
    1 – Top hole: Anti-squat 74.4 percent – Instant Center 72.8 in. – Roll Center 12.95 in.
    2 – Middle Hole: Anti-Squat 108.1 percent – Instant Center 58.35 in. – Roll Center 11.67 in.
    3 – Bottom Hole: Anti-Squat 135.5 percent – Instant Center 50.25 in. – Roll Center 10.35 in.

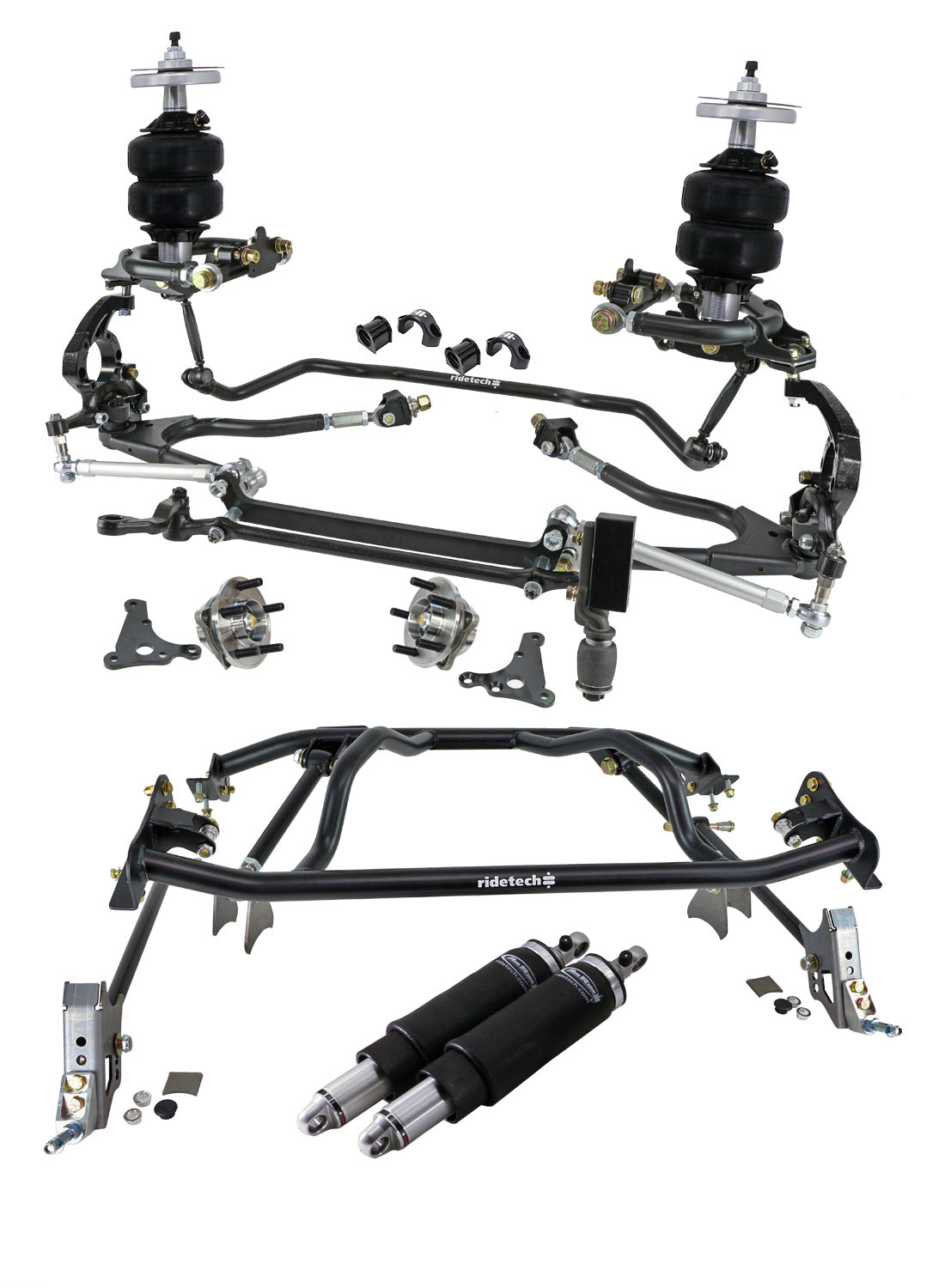

Air Ride Suspension system for 61-65 Ford Falcon includes:
Front and rear HQ Series Shockwaves (1/8″ NPT Port – fittings not included), Front upper and lower StrongArms, TruTurn System, Front Sway bar, Rear 4-Link system.

Also fits Convertibles!

Click here to read our full article about our Ford Falcon suspension systems.

*** Control system not included.  To complete this Air Suspension system please choose from one of our Control Systems.
