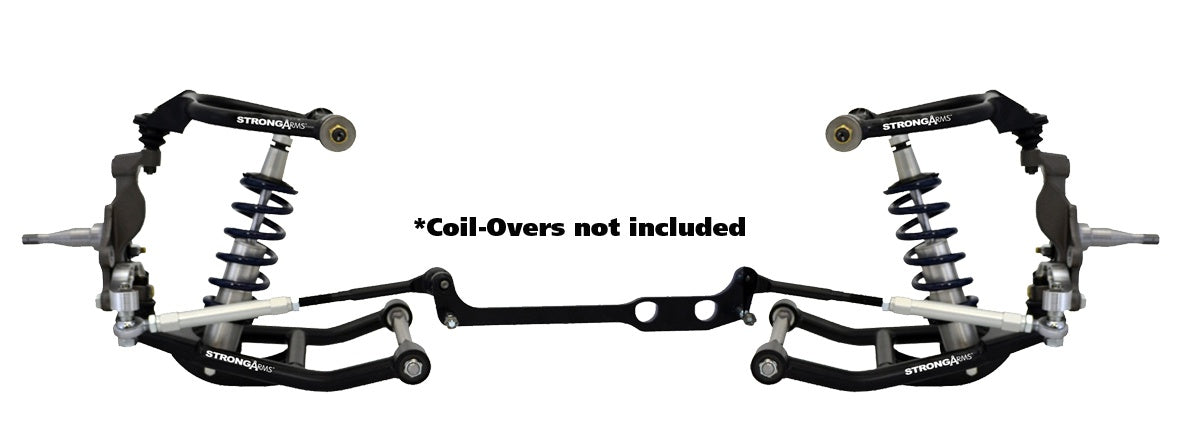

Ridetech 11539599 TruTurn system for 1963-1982 Corvette. For use with Coil-Overs or Shockwaves.

The Corvette TruTurn system offers many advantages over the OEM suspension system. The engineers have put their heart and soul into fabricating a complete suspension design that is a direct bolt in to the C2/C3 Corvettes. Up front the task was to increase camber gain and minimize bump steer. By utilizing the Ridetech “tall drop” spindle and tubular StrongArm control arms with Delrin bushings the ride height was lowered two inches, camber gain was increased to match the requirements of modern tires, the ball joints were updated to a modern style and relocated for increased caster and the correct angle for the lower stance, while the self-lubricating Delrin bushings keep things where they should be without required maintenance. The TruTurn system reduces bump steer to under 0.060” and increases steering response by relocating the inner tie rods and replacing the outer tie rods with Teflon lined heim joints.  New steering arms are supplied that correct the Ackerman which results in a vehicle with amazing turn in and steering feel. StrongArm tubular control arms not only improve suspension geometry and handling, and also make installation even easier. The added benefit when replacing control arms is new bushings and ball joints. No more worn-out components.

Fitment Notes:

• Tall “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel.  Compatible with all brake kits designed to fit the stock 67-69 Camaro disc brake spindle.
• Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Corvette hubs and brakes.  Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE and aftermarket (caliper brackets included).  Minimum 17″ wheels.
• Ridetech Coil-over are sold separately.
• Compatible with Ridetech sway bars.  Will not fit stock sway bar.
• Compatible with stock manual steering or Borgeson power steering box.  Will not fit stock power assist or rack and pinion conversions.

*NOTE* – For those using an LS engine, we recommend calling Custom Image Corvettes for their engine adapter plates/motor mounts and using Holley 302-2 or GM F-Body oil pan for the best fitment with the Ridetech TruTurn system.
