Ridetech 11377195 Bolt-On Wishbone for 1990-1993 C1500 454 SS with 14 bolt reared.
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Specifications
| Brand | Ridetech |
|---|---|
| Part number | 11377195 |
| Pricing Group | 4-Link |
| Country of Origin | US |
| Warranty | 1 Months |
| Weight (lbs) | 140 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Fitment
| Years | Vehicle |
|---|---|
| 1988-1998 | Chevrolet C1500 |
| 1988-1998 | GMC C1500 |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

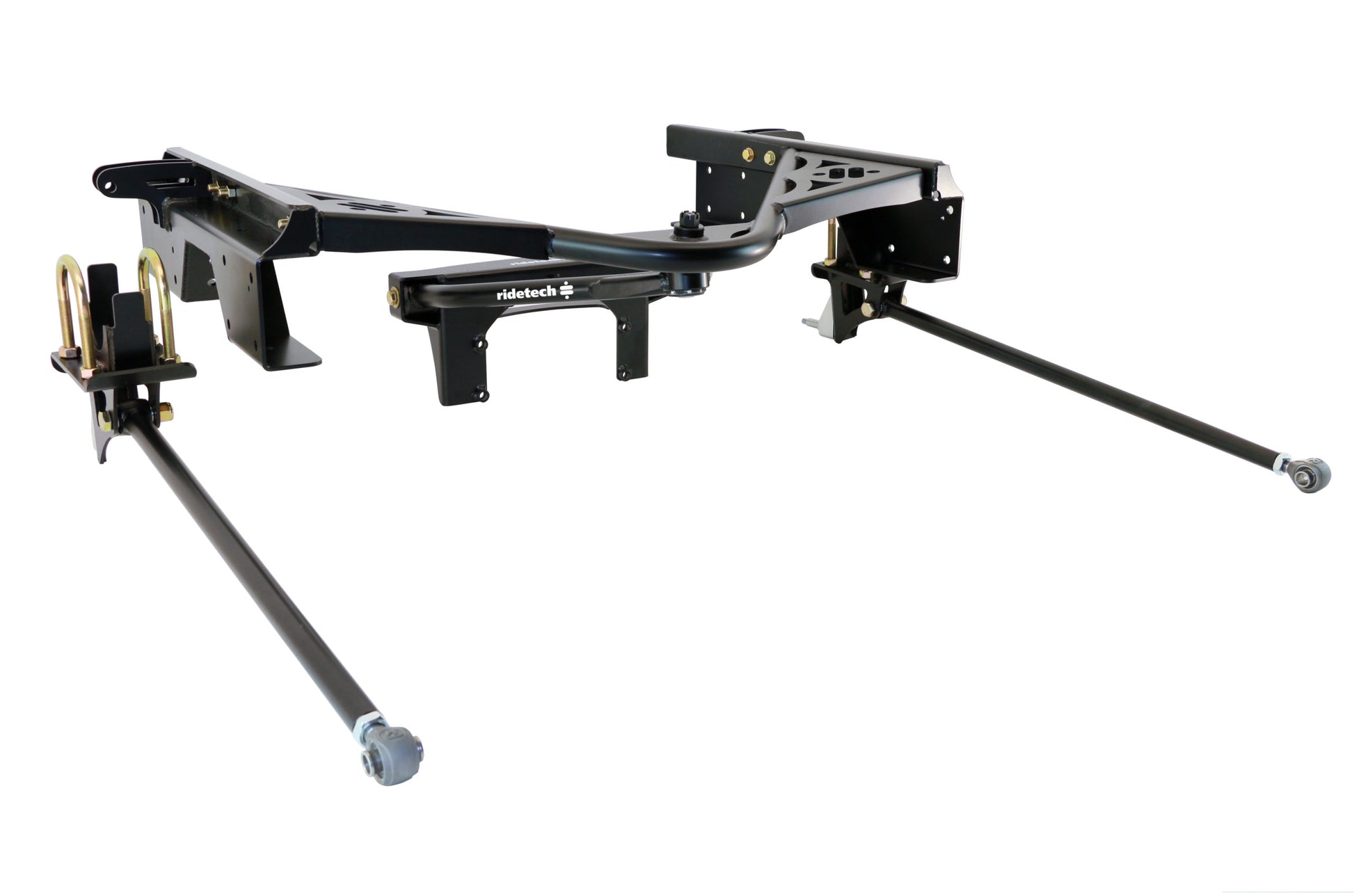

The Bolt-On Wishbone System for 1988-1998 C1500 (OBS) replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity. It is completely bolt-on and provides mounting for Shockwaves or Coil-overs. DOM lower bars, upper wishbone and mounting brackets eliminate springs wrap which leads to wheel hop. Corrected anti-squat provides excellent traction and a low roll center minimizes body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack! The heavy-duty C-notches are included with the kit and FIT the frame rail. All fabricated components are powder coated satin black. Compatible with all cab and bed configurations.
Features:
- Made in the USA
- Bolt-on installation
- Lower ride height approximately 6″ (additional 3″ with air suspension)
- Eliminated spring wrap / wheel hop
- Increased compression travel with heavy-duty c-notch
- Durable satin black powder coat
- Optimized roll center height for confident cornering
- Adjustable panhard bar with R-Joint rod ends
- Correct pinion angle to eliminate driveline vibration
- Compatible with either the stock 10 bolt rear end or the 14 bolt, used in 454SS trucks (select option above)
- Designed for use with Coil-overs or ShockWave air suspension (sold separately)
