Important notes before you order
- Buses: Yes
- RV/Motorhome: Yes
- Tractors: Yes
- Custom Cars: Yes
- Motorcycles: Yes
- Beam Patterns: Low, High, Combo Low/High
Specifications
| Brand | Morimoto |
|---|---|
| Part number | LF802.2 |
| UPC / GTIN | 840203320723 |
| Intensity | 1,890lm (Low), 1,500lm (High) |
| Power | 19w |
| Input Voltage | 12-24V DC |
| Material | Aluminum (Housing), Polycarbonate (Lens) |
| Light Source | Nichia (Low, High), Osram (Combo Low/High) |
| Country of Origin | TW |
| Weight (lbs) | 2 |
| DOT Compliant | Yes |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | Headlight: 1x Sealed3 90mm LED Headlight |
| — | — | Adjusters: 2x Vertical/Lateral Adjusters |
| — | — | Warranty: Two (2) Years |
Overview

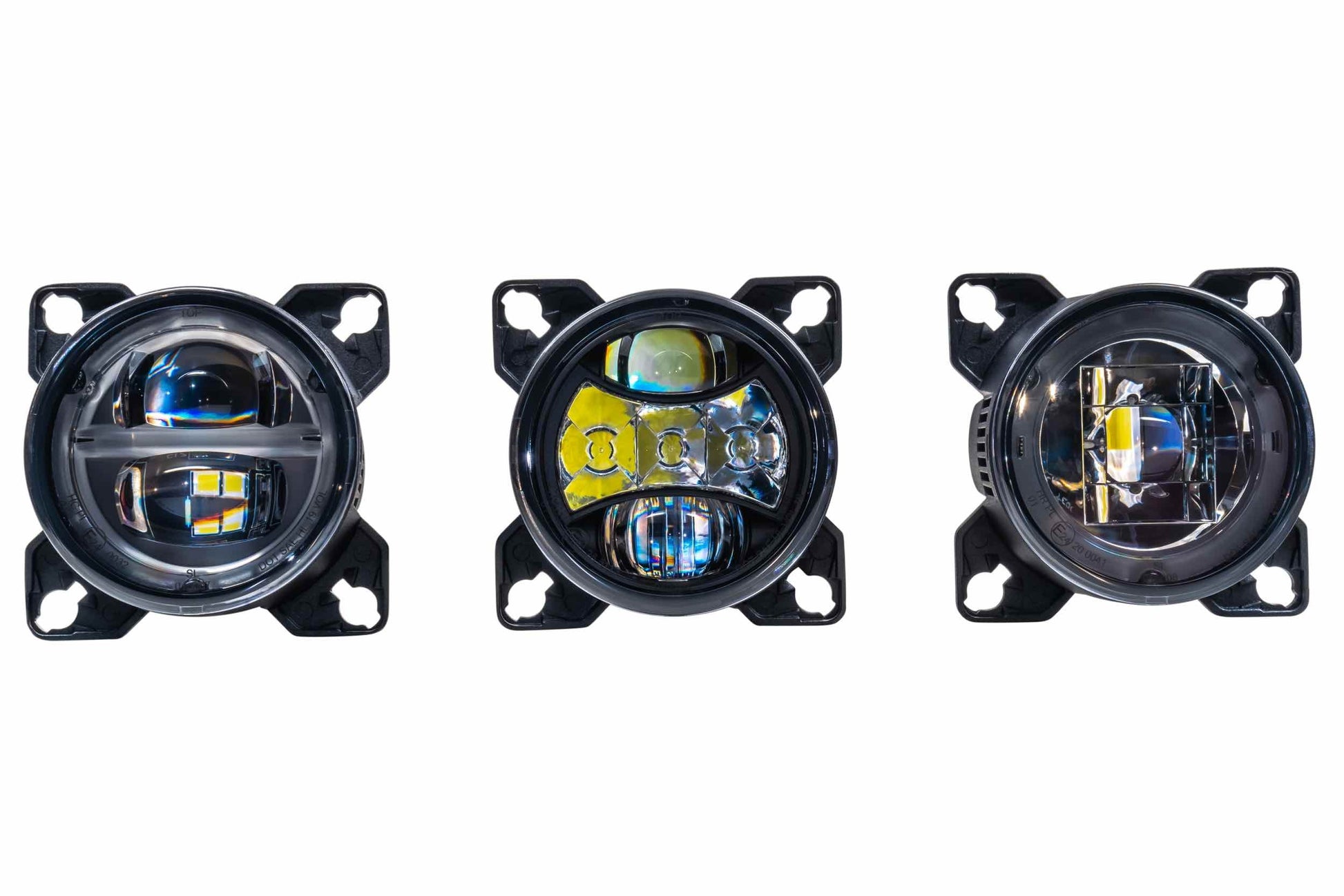

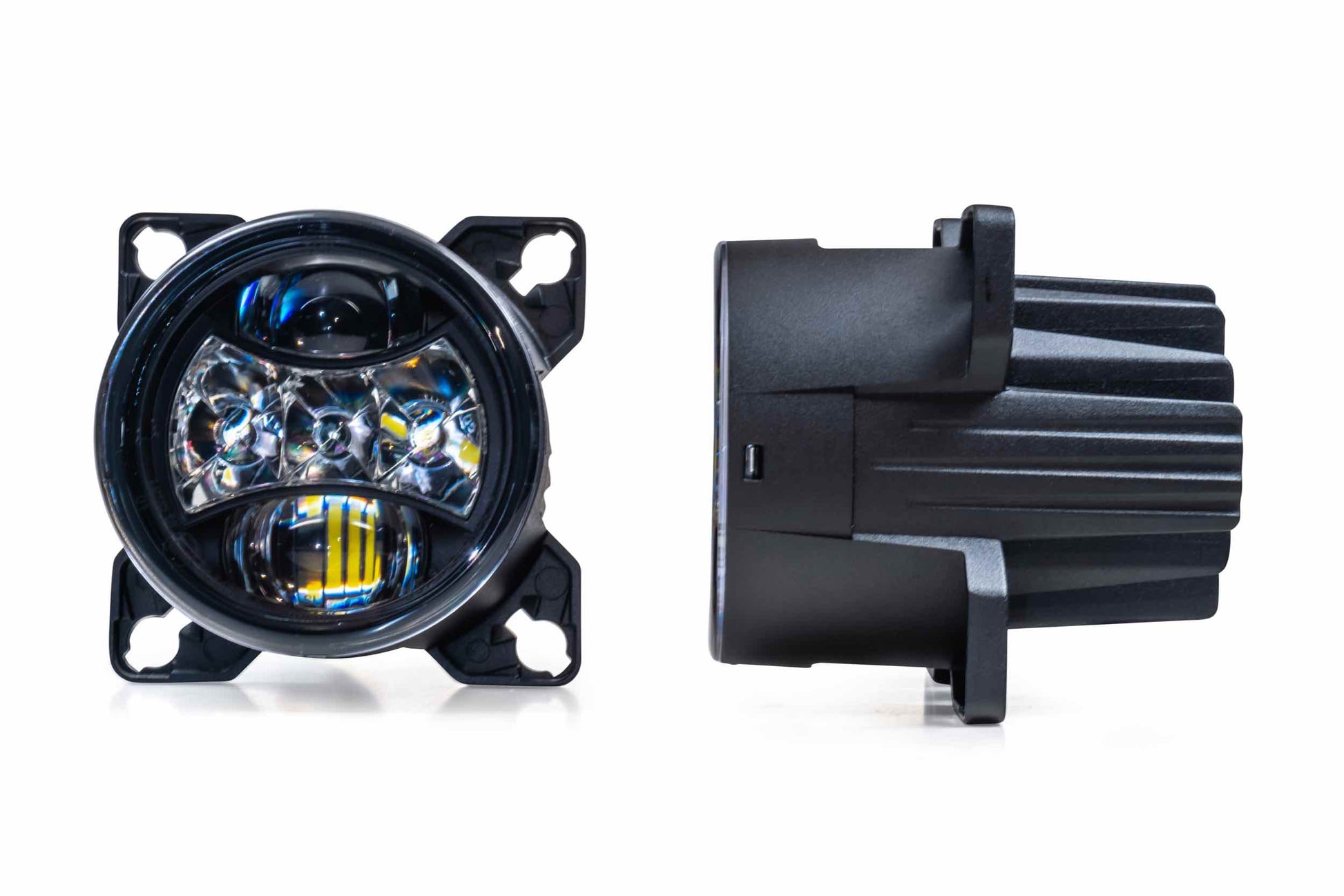

Designed: As a standalone headlight, these 90mm LED projector housings are perfect for those who need a modern headlight, but have no pre-existing housing shell to mount them into. They are ideal as an LED Bus headlight. An LED RV headlight, and LED Tractor headlight, or an LED headlight for a custom kit car. Beam Patterns: These are available with different optics to suit your vehicle's needs perfectly. You can choose from either a dedicated LED low beam, a dedicated LED high beam, or a combination lamp with low and high beam together. Light Output: Is fantastic from the Sealed3 modules, and far superior to most alternatives in the same size range. The low beam model has a wide beam pattern with a proper distribution of light and a sloped LHD cutoff line (for use in N. America or other LHT countries) The high beam packs a nice punch and will put plenty of light down the road where you need it, and the combo Bi-LED essentially puts both of those beam patterns into one unit. They meet or exceed all DOT, SAE, and FVMSS108 standards for compliance. Adjusters Included: Each module comes with three threaded aiming adjuster rods that snap into the housings. While you will need a fitting on the other side to mount them up, you would be able to create a fully adjustable system both vertically and laterally with the hardware included. Quality: These 90mm Modules are IP67 rated for moisture resistance, their polycarbonate lenses are of OEM quality and will not fade or yellow for many years to come, and have a die-cast aluminum housing that's been powder-coated. The Bi-LED version has a 3-wire AMP input, and the low and high beam version use a more simple 12v +/- input that is very easy to wire up. They may not be inexpensive, but are among the best 90mm headlights in the world.
