JKS 3.5" Lift Kit · J-Krawl Wrangler JL 4-Door
- Lift 2-3.5"
- Install 7-9 hrs
- Difficulty Difficult
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | JKS Manufacturing |
|---|---|
| Part number | JSPEC161FRS |
| Lift Height | 2-3.5" |
| Installation Difficulty | Difficult |
| Installation Time | 7-9 hrs |
| Install time | 7-9 hrs |
| Difficulty | Difficult |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

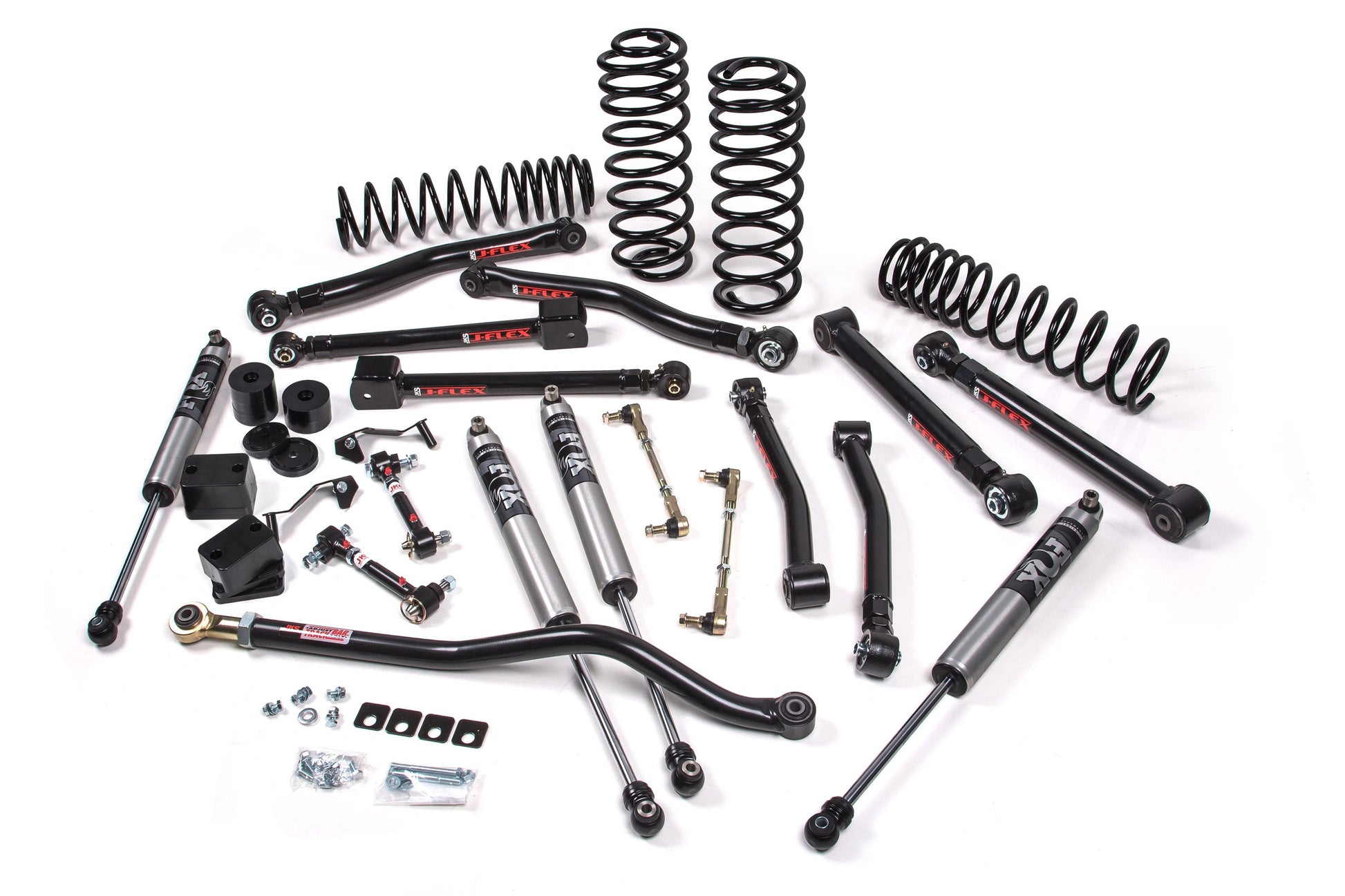

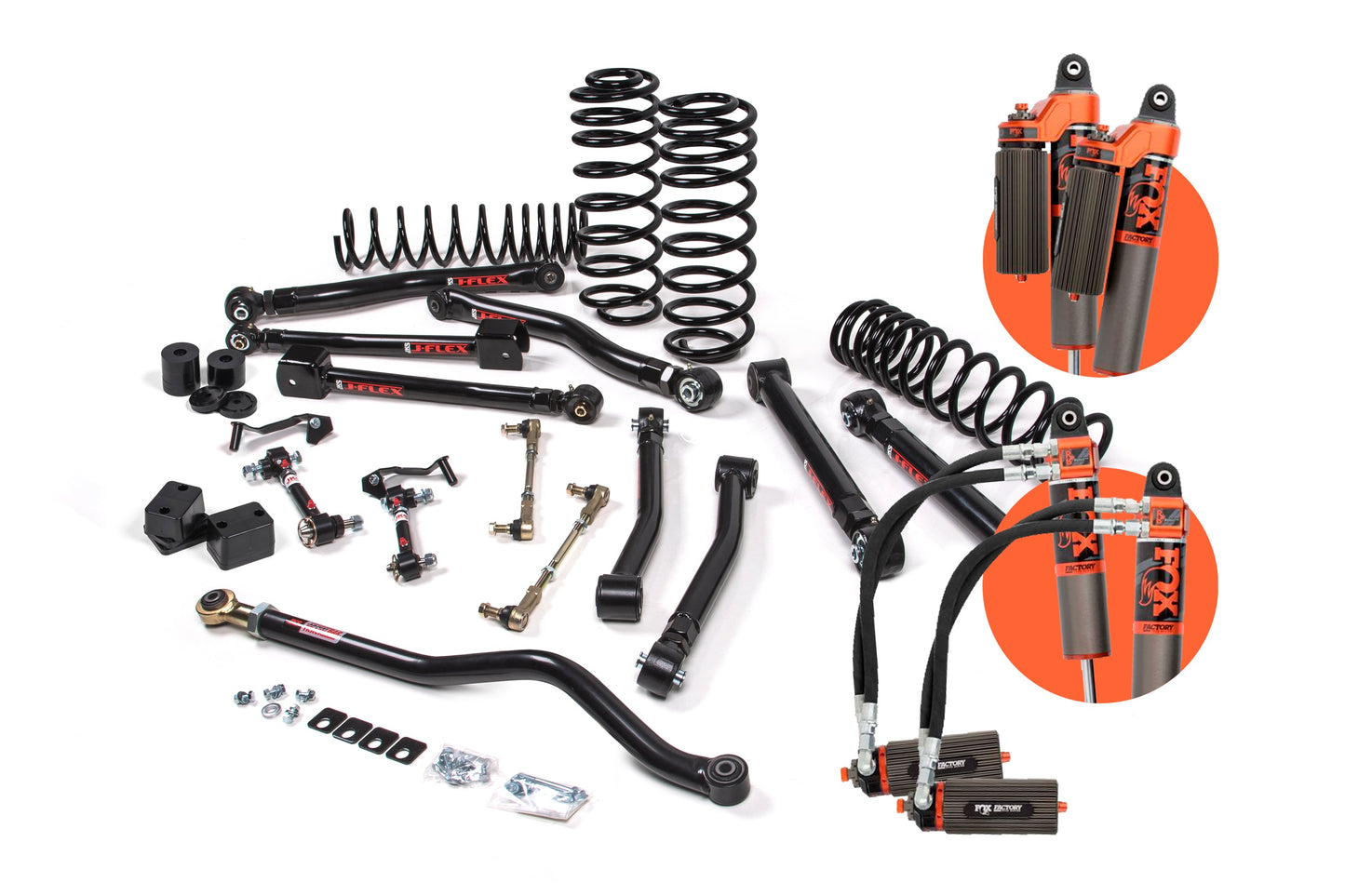

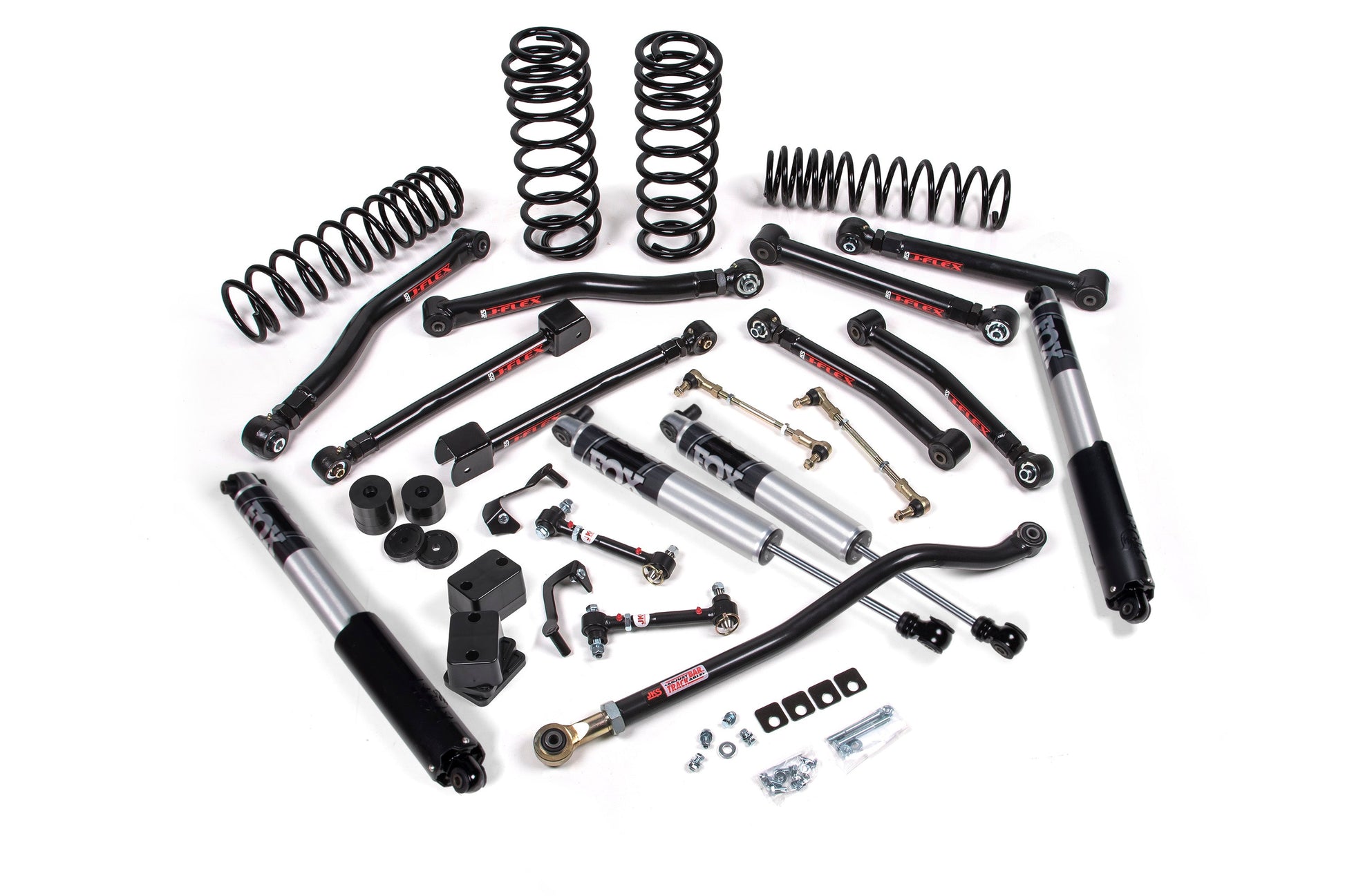

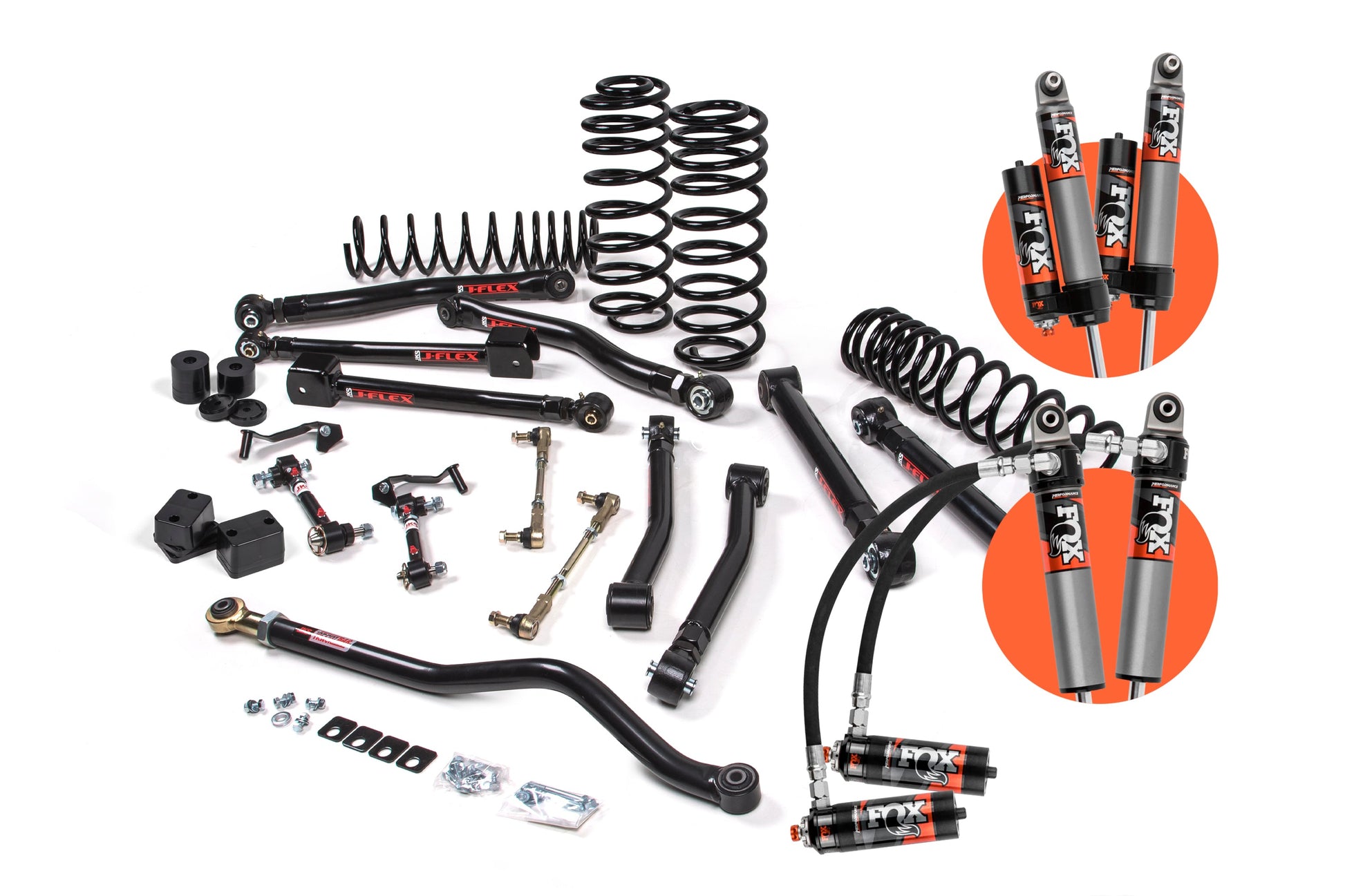

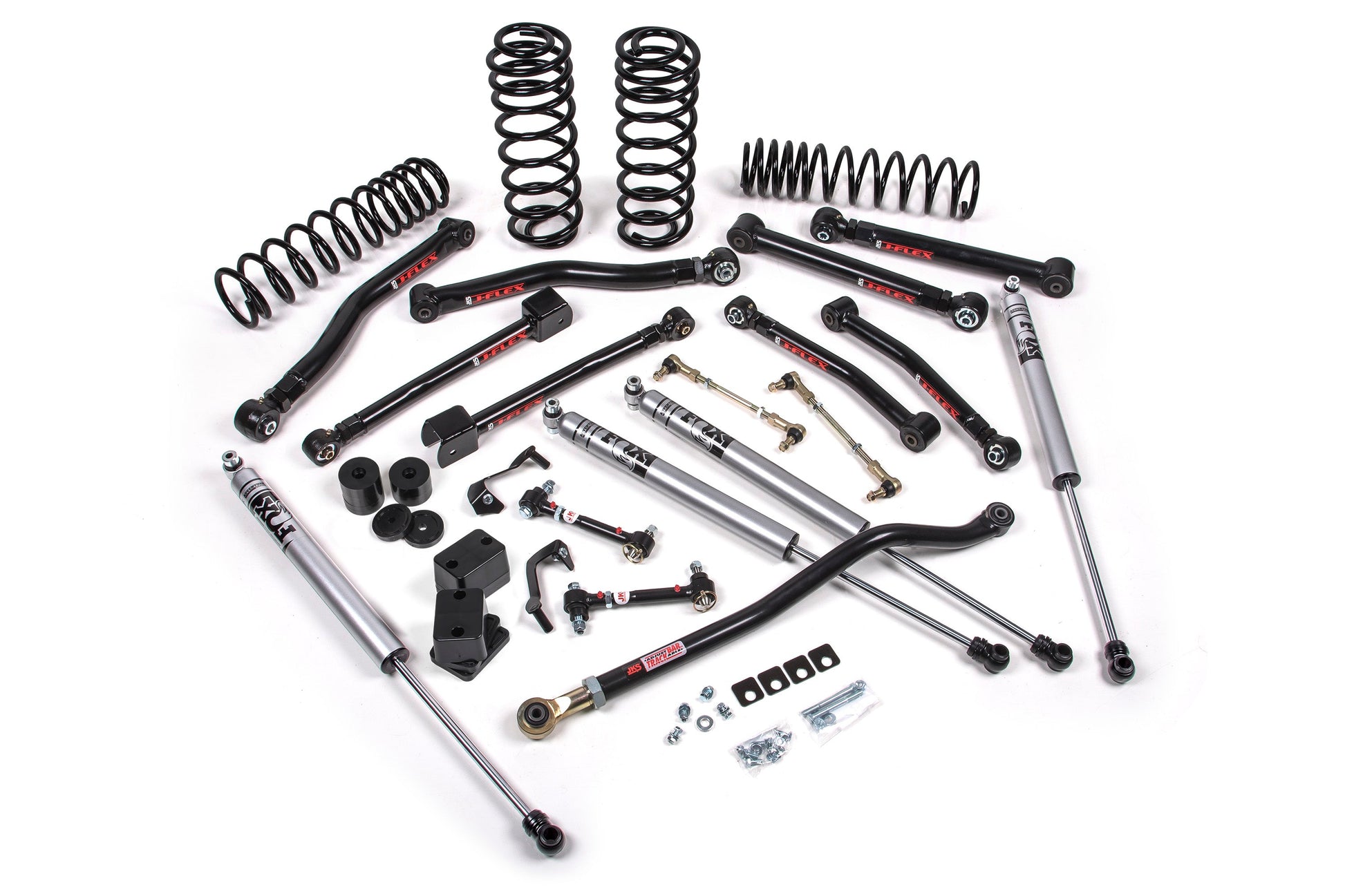

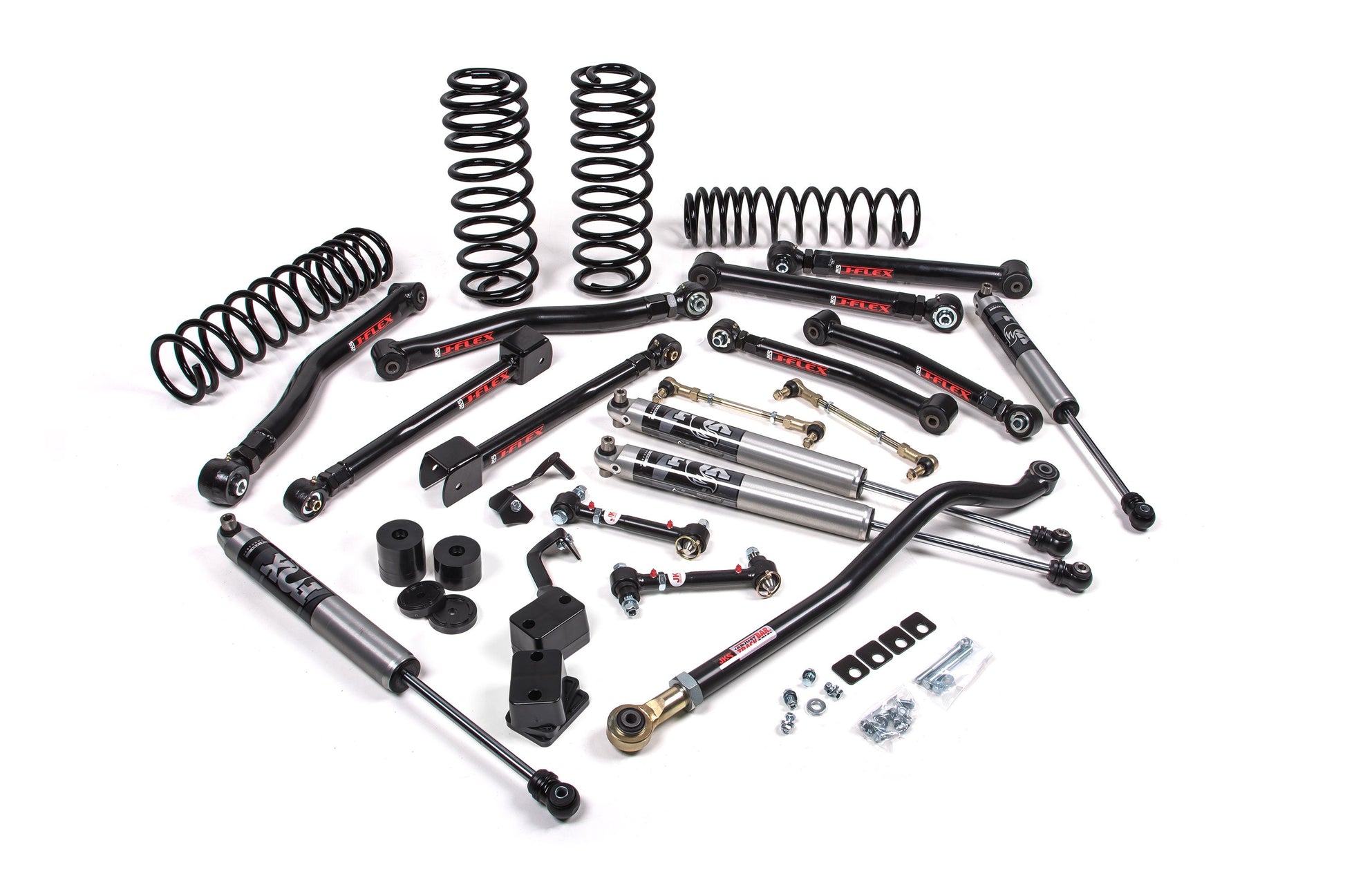

What's in the box
| Qty | Part | Description |
|---|---|---|
| — | — | Included with every option |
| 1 | JSPEC1312 | 2018-2026 Jeep Wrangler JL J-Krawl Main Box Kit |
| 1 | JSPEC1352 | Coil Spring Box Kit: 2018-2026 Jeep Wrangler JL / 2020-2026 Jeep Gladiator JT - 3.5" Front Coil Springs - HD |
| 1 | JSPEC1359 | Coil Spring Box Kit: 2018-2026 Jeep Wrangler JL - 3.5" Rear Coil Springs - STD |
| — | — | FOX 3.0 Factory Race Series / Flex End (JSPEC161FRS) |
| 1 | FOX88326077 | FOX 3.0 Internal Bypass Reservoir Front Shocks Adjustable | Factory Race | 3.5-4.5 Inch Lift | Jeep Wrangler JL (18-27) |
| 1 | FOX88326078 | FOX 3.0 Internal Bypass Piggyback Rear Shocks Adjustable | Factory Race | 3.5-4.5 Inch Lift | Jeep Wrangler JL (18-27) |
| 1 | JKS1616 | Adjustable Control Arms | Front Upper | Wrangler JL and Gladiator JT |
| 1 | JKS1625 | Adjustable Control Arms | Front Lower | Wrangler JL and Gladiator JT |
| 1 | JKS1661 | Adjustable Control Arms | Rear Lower | Wrangler JL |
| 1 | JKS1666 | Adjustable Control Arms | Rear Upper | Wrangler JL |
| — | — | FOX 2.0 Adventure Series / Flex End (JSPEC161KFA) |
| 2 | FOX98450323 | FOX 2.0 IFP Shock | Adventure Series | Vehicle Specific | 26.86 x 16.76 x 2 EB1/EB1 |
| 2 | FOX98450328 | FOX 2.0 IFP Shock | Adventure Series | Vehicle Specific | 31.06 x 18.96 x 2 EB1/EB1 |
| 1 | JKS1616 | Adjustable Control Arms | Front Upper | Wrangler JL and Gladiator JT |
| 1 | JKS1625 | Adjustable Control Arms | Front Lower | Wrangler JL and Gladiator JT |
| 1 | JKS1661 | Adjustable Control Arms | Rear Lower | Wrangler JL |
| 1 | JKS1666 | Adjustable Control Arms | Rear Upper | Wrangler JL |
| — | — | FOX 2.0 Performance Series / Flex End (JSPEC161KFP) |
| 2 | FOX98524179 | FOX 2.0 IFP Front Shock | 3.5-4 Inch Lift | Performance Series | Jeep Wrangler JL (18-27) |
| 2 | FOX98524180 | FOX 2.0 IFP Rear Shock | Performance Series | 3.5"-4" Lift | Wrangler JL |
| 1 | JKS1616 | Adjustable Control Arms | Front Upper | Wrangler JL and Gladiator JT |
| 1 | JKS1625 | Adjustable Control Arms | Front Lower | Wrangler JL and Gladiator JT |
| 1 | JKS1661 | Adjustable Control Arms | Rear Lower | Wrangler JL |
| 1 | JKS1666 | Adjustable Control Arms | Rear Upper | Wrangler JL |
| — | — | FOX 2.5 IFP Performance Series / Flex End (JSPEC161PS) |
| 1 | FOX88624155 | FOX 2.5 IFP Shock Package - Set of 4 | Performance Series | 2-3.5" Lift | Jeep Wrangler JL |
| 1 | JKS1616 | Adjustable Control Arms | Front Upper | Wrangler JL and Gladiator JT |
| 1 | JKS1625 | Adjustable Control Arms | Front Lower | Wrangler JL and Gladiator JT |
| 1 | JKS1661 | Adjustable Control Arms | Rear Lower | Wrangler JL |
| 1 | JKS1666 | Adjustable Control Arms | Rear Upper | Wrangler JL |
| — | — | FOX 3.0 Factory Race Series / Rubber Bushing (JSPEC196FRS) |
| 1 | FOX88326077 | FOX 3.0 Internal Bypass Reservoir Front Shocks Adjustable | Factory Race | 3.5-4.5 Inch Lift | Jeep Wrangler JL (18-27) |
| 1 | FOX88326078 | FOX 3.0 Internal Bypass Piggyback Rear Shocks Adjustable | Factory Race | 3.5-4.5 Inch Lift | Jeep Wrangler JL (18-27) |
| 1 | JKS1632 | J-Link Adjustable Control Arms | Front Lower | Wrangler JL & Gladiator JT |
| 1 | JKS1634 | J-Link Adjustable Control Arms | Front Upper | Wrangler JL & Gladiator JT |
| 1 | JKS1636 | J-Link Adjustable Control Arms | Rear Lower | Wrangler JK/JL |
| 1 | JKS1639 | J-Link Adjustable Control Arms | Rear Upper | Wrangler JK & JL |
| — | — | FOX 2.0 Adventure Series / Rubber Bushing (JSPEC196KFA) |
| 2 | FOX98450323 | FOX 2.0 IFP Shock | Adventure Series | Vehicle Specific | 26.86 x 16.76 x 2 EB1/EB1 |
| 2 | FOX98450328 | FOX 2.0 IFP Shock | Adventure Series | Vehicle Specific | 31.06 x 18.96 x 2 EB1/EB1 |
| 1 | JKS1632 | J-Link Adjustable Control Arms | Front Lower | Wrangler JL & Gladiator JT |
| 1 | JKS1634 | J-Link Adjustable Control Arms | Front Upper | Wrangler JL & Gladiator JT |
| 1 | JKS1636 | J-Link Adjustable Control Arms | Rear Lower | Wrangler JK/JL |
| 1 | JKS1639 | J-Link Adjustable Control Arms | Rear Upper | Wrangler JK & JL |
| — | — | FOX 2.0 Performance Series / Rubber Bushing (JSPEC196KFP) |
| 2 | FOX98524179 | FOX 2.0 IFP Front Shock | 3.5-4 Inch Lift | Performance Series | Jeep Wrangler JL (18-27) |
| 2 | FOX98524180 | FOX 2.0 IFP Rear Shock | Performance Series | 3.5"-4" Lift | Wrangler JL |
| 1 | JKS1632 | J-Link Adjustable Control Arms | Front Lower | Wrangler JL & Gladiator JT |
| 1 | JKS1634 | J-Link Adjustable Control Arms | Front Upper | Wrangler JL & Gladiator JT |
| 1 | JKS1636 | J-Link Adjustable Control Arms | Rear Lower | Wrangler JK/JL |
| 1 | JKS1639 | J-Link Adjustable Control Arms | Rear Upper | Wrangler JK & JL |
| — | — | FOX 2.5 IFP Performance Series / Rubber Bushing (JSPEC196PS) |
| 1 | FOX88624155 | FOX 2.5 IFP Shock Package - Set of 4 | Performance Series | 2-3.5" Lift | Jeep Wrangler JL |
| 1 | JKS1632 | J-Link Adjustable Control Arms | Front Lower | Wrangler JL & Gladiator JT |
| 1 | JKS1634 | J-Link Adjustable Control Arms | Front Upper | Wrangler JL & Gladiator JT |
| 1 | JKS1636 | J-Link Adjustable Control Arms | Rear Lower | Wrangler JK/JL |
| 1 | JKS1639 | J-Link Adjustable Control Arms | Rear Upper | Wrangler JK & JL |
Features
- Front/Rear Dual Rate Coil Springs designed to great ride quality across any terrain.
- Front/Rear Gas Shocks (FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.0 Remote Reservoir, FOX 2.5 Performance Elite or FOX 3.0 Factory Race Series) specifically valved for this suspension system for improved performance on and off-road.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Flex or J-Link Upper Control Arms to add strength and adjustability.
- Front/Rear J-Flex or J-Link Lower Control Arms to add strength and adjustability.
Recommended wheels & tires
- Rubicon Models 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- Non-Rubicon Models 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
- (Trimming may be required)
Installation
- Estimated install time7-9 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The hardcore rock crawling suspension choice for your 4-Door Diesel Jeep Wrangler JL is a J-Krawl 3.5" lift kit. The complete system is designed for maximum articulation, strength and adjustability. Components include J-Flex or J-Link Upper and Lower Control Arms, JSPEC dual rate coil springs, custom-valved shock options tailored to your needs, including FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.5
Performance Series, FOX 2.5 Elite Series and FOX 3.0 Factory Race Series shocks. , an adjustable front track bar, a rear track bar bracket, Quicker Disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
