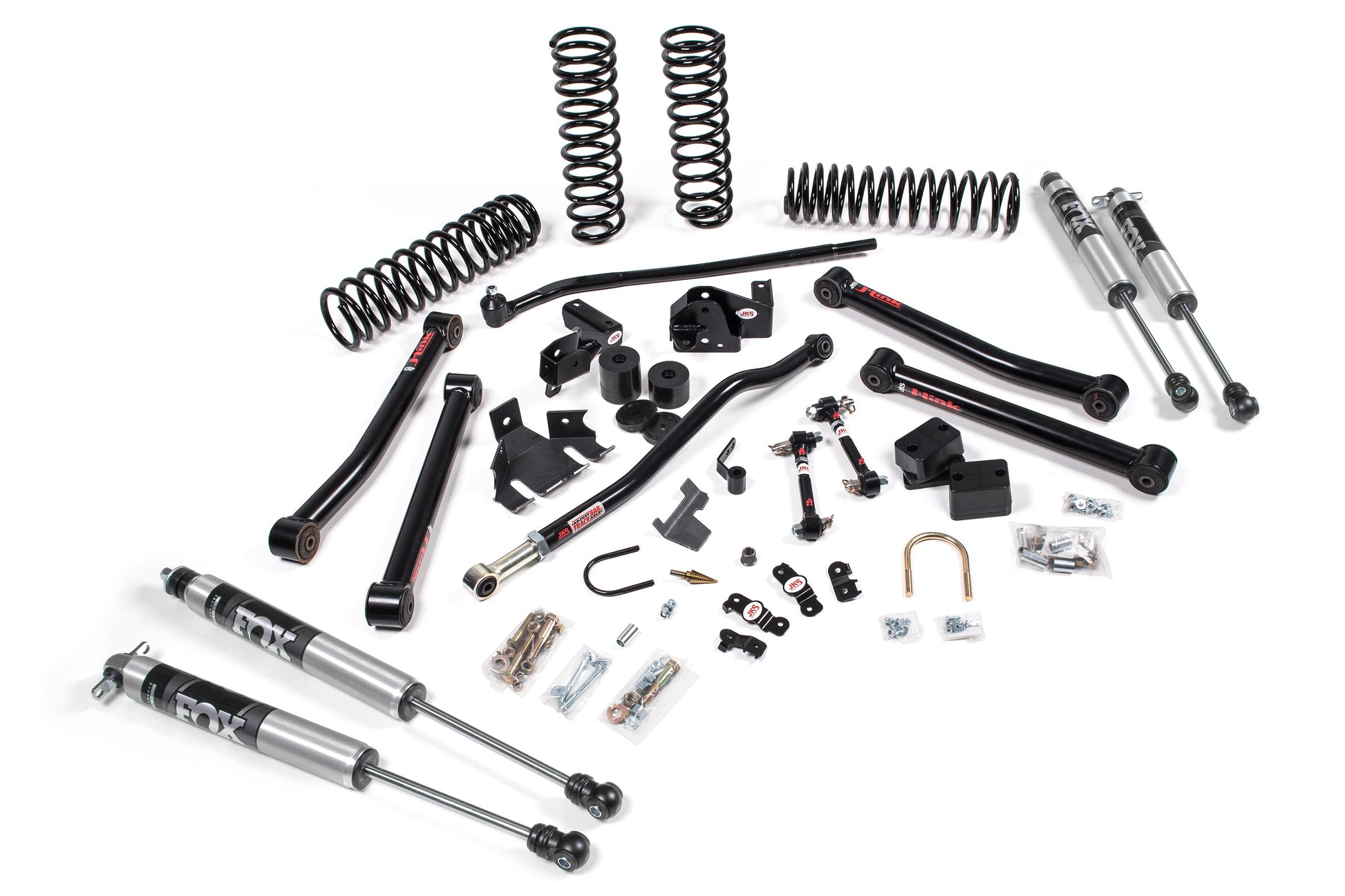

JKS 3.5" Lift Kit | J-Konnect | Wrangler JK 4-Door

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Call 866-235-4715 Live chat

Important notes before you order

2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
Rubicon sway bar link hardware included in kit

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

Plan for a professional wheel alignment after installing any lift or leveling kit.
Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

Brand	JKS Manufacturing
Part number	JSPEC113KFA
UPC / GTIN	814897016903
Front Lift Method	Coil Spring
Front Lift Height	3.5"
Rear Lift Method	Coil Spring
Rear Lift Height	3-5"
Shocks Included	Yes
Lift Height	2-3.5"
Installation Difficulty	Moderate
Installation Time	6 hrs
Install time	6 hrs
Difficulty	Moderate

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

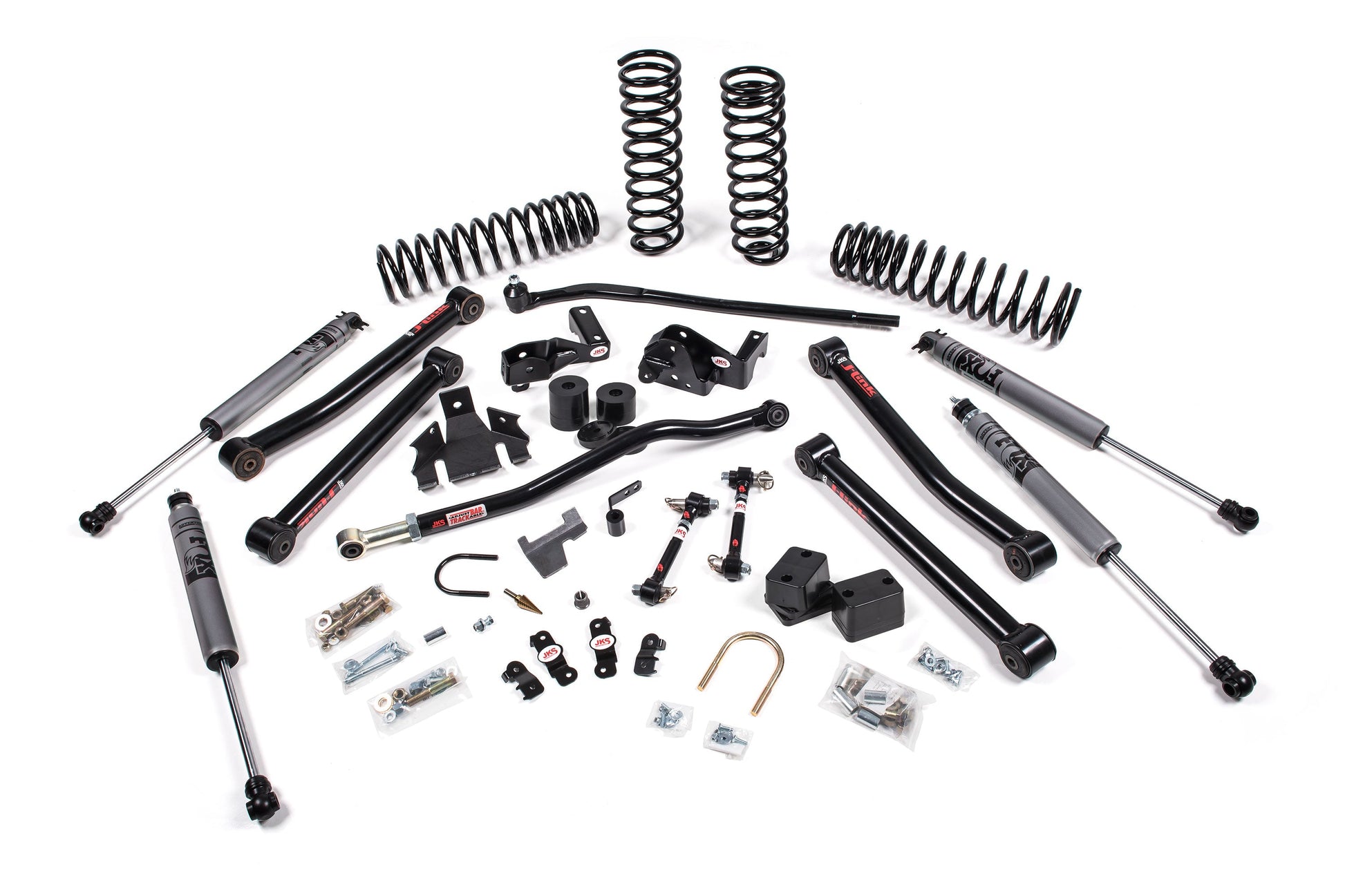

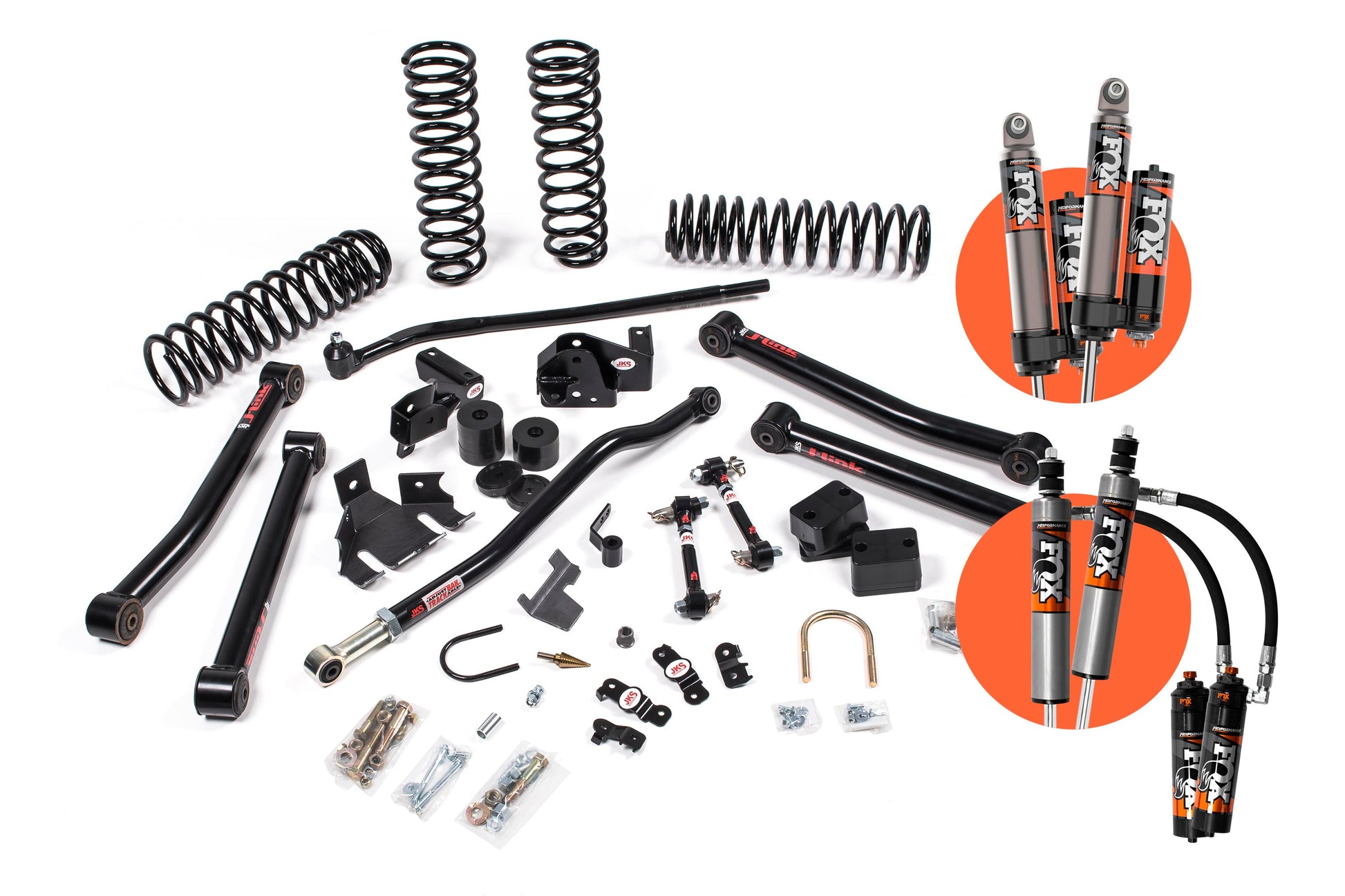

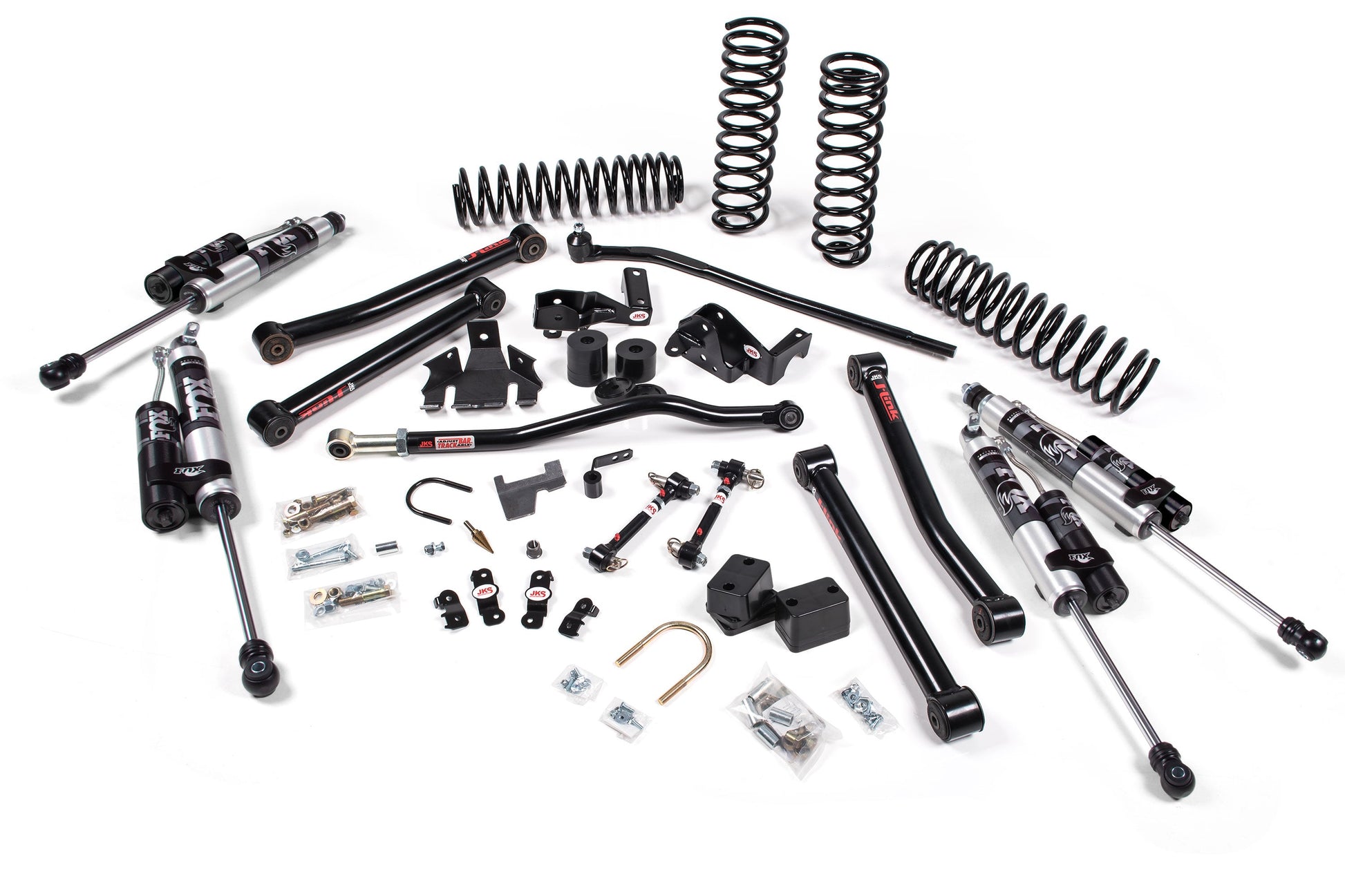

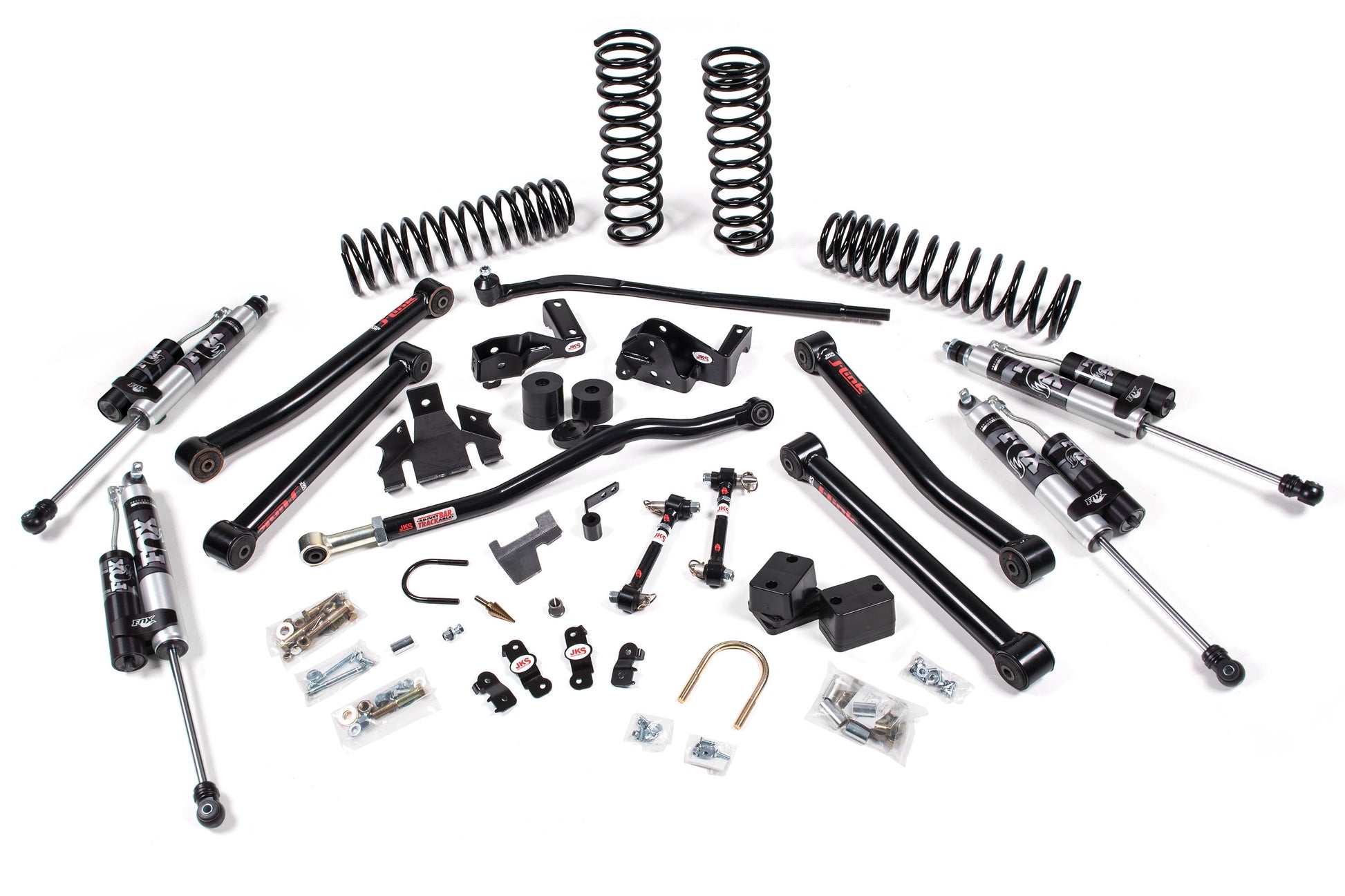

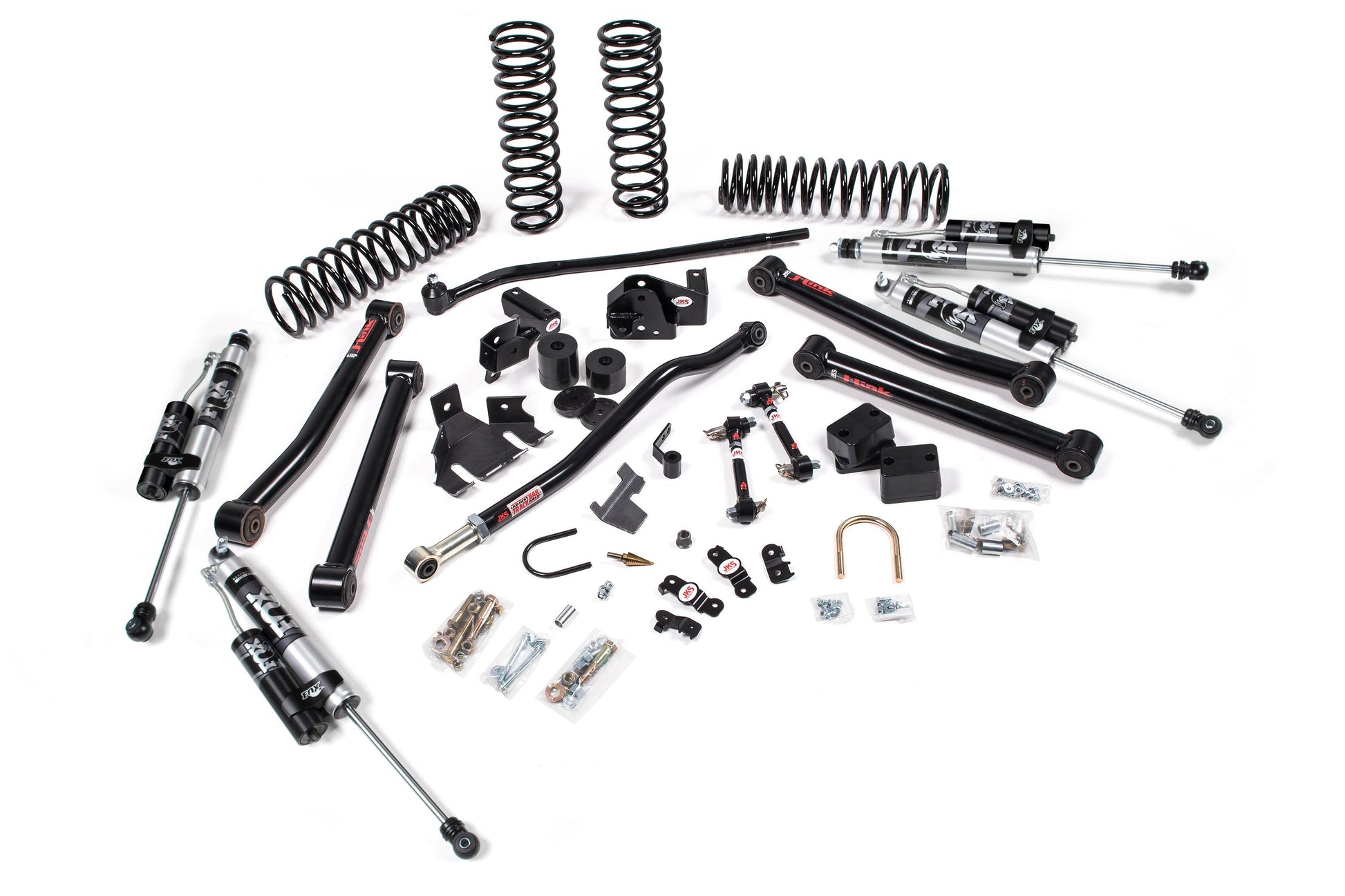

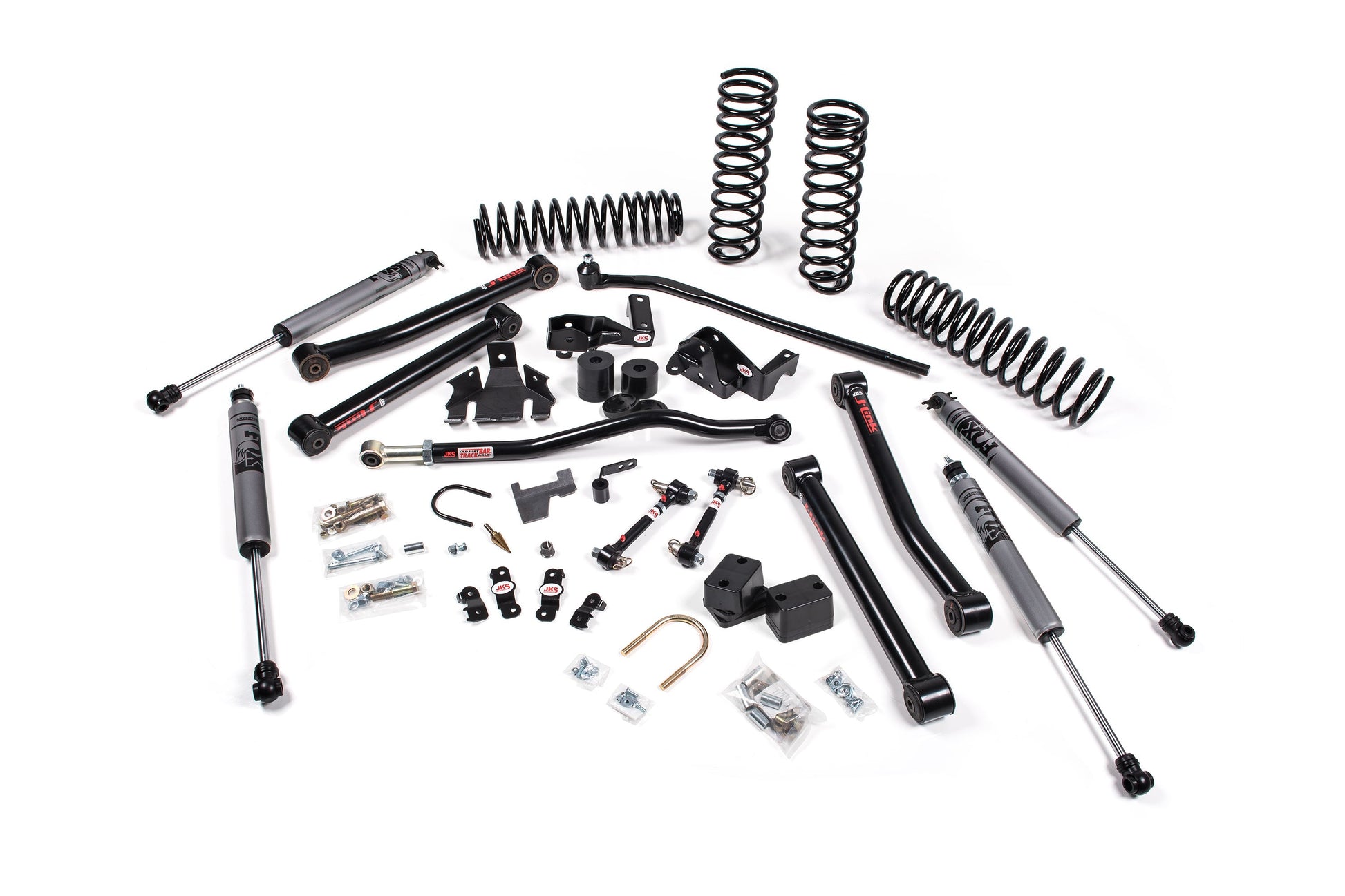

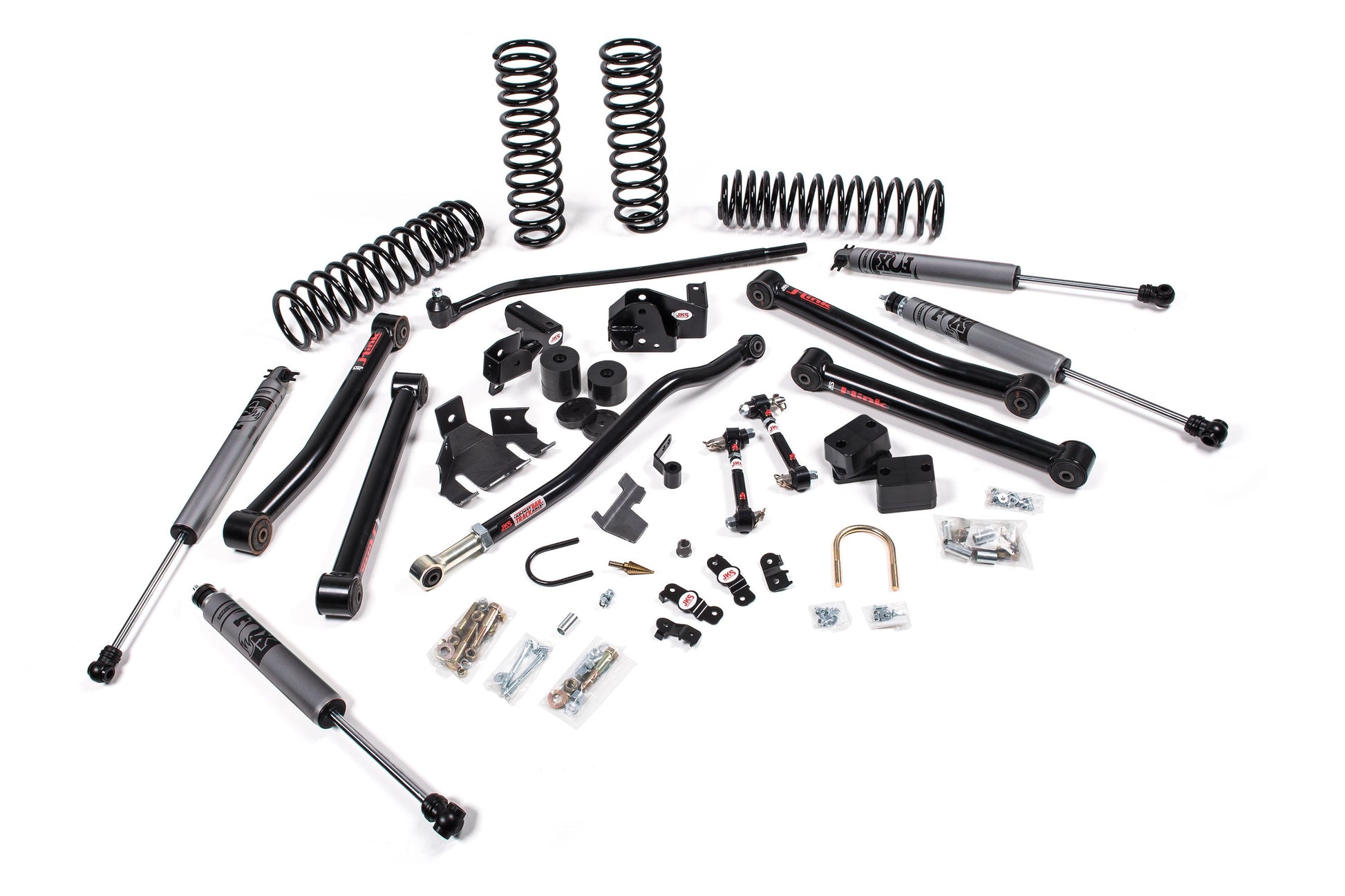

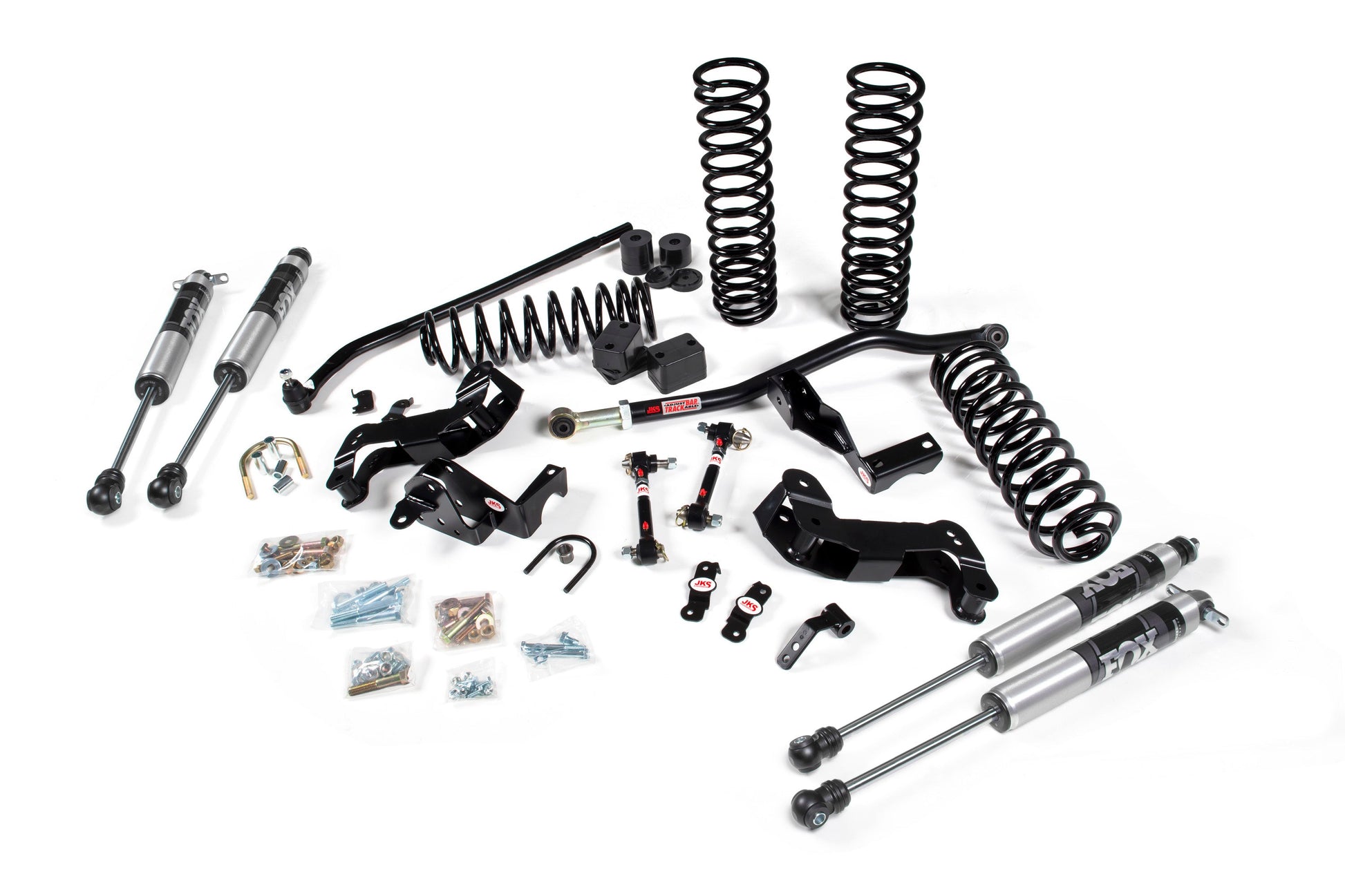

What's in the box

Qty	Part	Description
—	—	Included with every option
1	JSPEC2350	3.5" Lift Coil Spring Set \| Wrangler JK 4-Door
1	JSPEC2353	2007-2018 Jeep Wrangler (JK) J-Kontrol Box Kit
1	JSPEC2451	Steering & Control Arm Upgrade Kit \| Wrangler JK
—	—	FOX 2.0 Adventure Series (JSPEC113KFA)
2	FOX98450351	FOX 2.0 Front Shock \| Adventure Series \| 2.5"-3.5" Lift \| Wrangler JK
2	FOX98450359	FOX 2.0 Rear Shock \| Adventure Series \| 2.5"-3.5" Lift \| Wrangler JK
—	—	FOX 2.0 Performance Series (JSPEC113KFP)
2	FOX98024887	FOX 2.0 IFP Front Shock \| 1.5-3.5 Inch Lift \| Performance Series \| Jeep Wrangler JK (07-18)
2	FOX98024888	FOX 2.0 IFP Rear Shock \| 1.5-3.5 Inch Lift \| Performance Series \| Jeep Wrangler JK (07-18)
—	—	FOX 2.0 Remote Reservoir (JSPEC113KFR)
2	FOX98524036	FOX 2.0 Remote Reservoir Rear Shock \| Performance Series \| 2.5"-3.5" Lift \| Wrangler JK
2	FOX98524039	FOX 2.0 Remote Reservoir Front Shock \| Performance Series \| 2.5"-3.5" Lift \| Wrangler JK
—	—	FOX 2.5 Performance Elite (JSPEC113PES)
1	FOX88326091	FOX 2.5 Front Shocks w/ DSC Reservoir \| 2.5-4 Inch Lift \| Performance Elite Series \| Jeep Wrangler JK (07-18)
1	FOX88326092	FOX 2.5 Rear Shocks w/ DSC Reservoir \| 2.5-4 Inch Lift \| Performance Elite Series \| Jeep Wrangler JK (07-18)

Features

Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
Front+Rear Gas Shocks (FOX) specifically valved for this suspension system for improved performance on and off-road.
Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
Front+Rear J-Link Lower Control Arms for improved strength and caster correction.
Front+Rear Track Bar Support Braces to improve strength and protection.
HD Drag Link Flip Kit w/ Track Bar Bracket to improve steering angles for better handling.
Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Recommended wheels & tires

35 x 12.5 with 16 x 8 and 4.5 in. Backspace
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace
(Trimming may be required)

Installation

Estimated install time6 hrs
DifficultyModerate

Instructions 1 (PDF)

Free install support from the Trucks R Us tech team, for you or your shop.

Overview

Easy to install bolt on performance suspension to handle the toughest off road trails and drive you home after. These J-Konnect Systems build off the base J-Venture to add J-Link lower control arms and other bracing for equal parts on-road handling and off-road capability and strength. These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms. Built 2" x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends. The integrate a drag bar flip kit to flatten out the steering angle for improved handling as well as provide front and rear track bar braces. These combined with the dual rate coil springs, adjustable track bar, quicker disconnects and more offer improved trail performance and strength while catering to on-road handling needs. Rounding out these kits are a selection of FOX shocks that offer impressive on-road comfort and offroad performance.

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.

Do I need an alignment after installing?

Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.

No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.

JKS 3.5" Lift Kit · J-Konnect Wrangler JK 4-Door
