JKS Rear Shock Relocation Kit | Wrangler JK

JKS Rear Shock Relocation Kit | Wrangler JK

PART #

$148.95
$148.95
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Live-Chat or Call
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

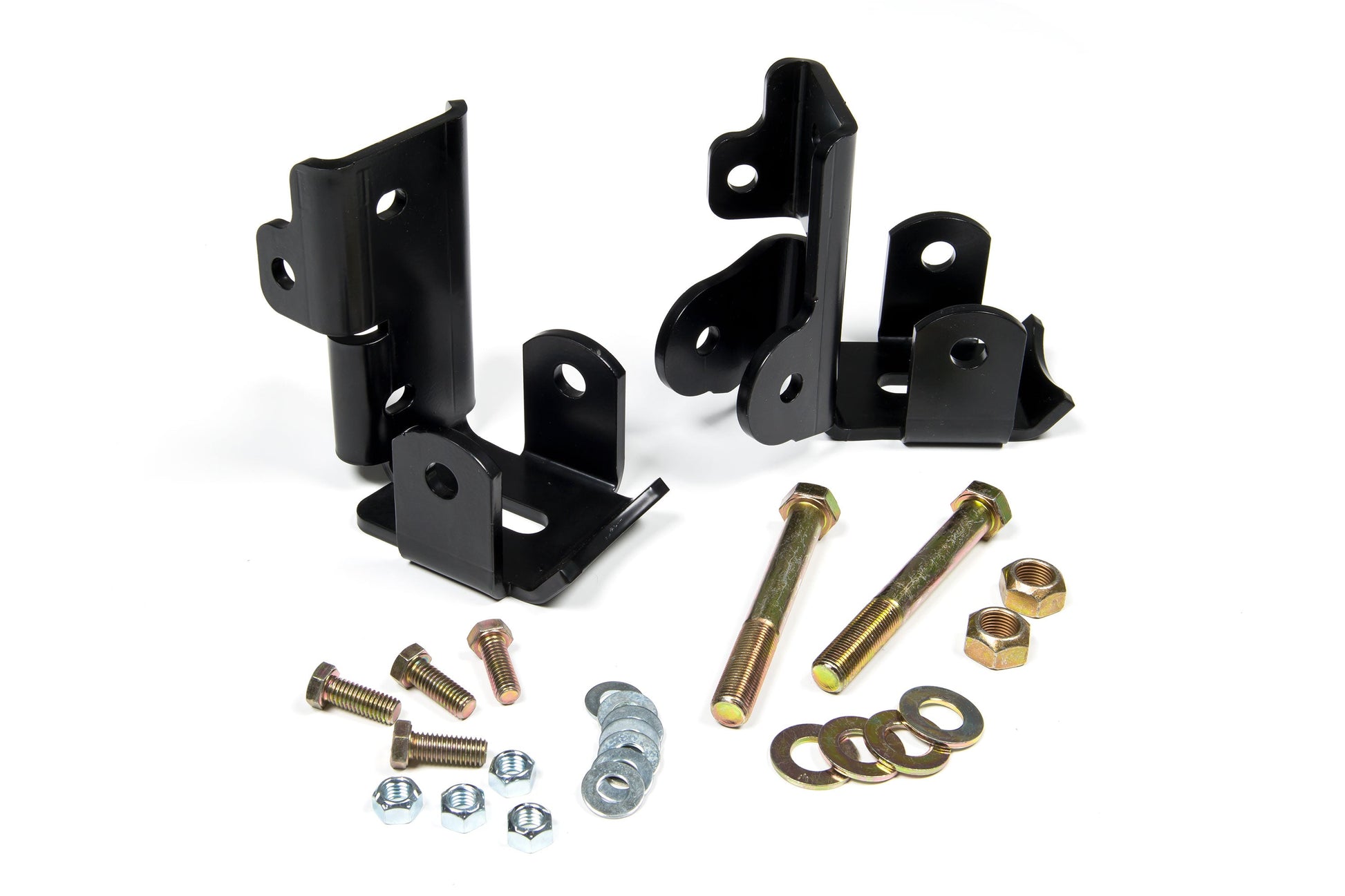

Relocate the shock mounts on the Jeep Wrangler JK for better clearance and enhanced reliability with a JKS rear shock relocation kit. The new mounting brackets are made of 1/4 " steel and include a dual-shear shock mount and new sway bar link mount. An integrated control arm mount skid plate adds protection. Installation is bolt-on and requires the removal of the factory axle shock mounts, sway bar link mounts and trimming of the control arm mount. A 2" improvement in ground clearance is an added benefit. The shock mounts are moved up 2-1/4" from the factory position and the sway bar mount moves up 1-3/4". Designed for bolt-on Installation. Features a black, powder-coated finish. Shock Mount Width: 1.60"; Shock Bolt Diameter 12mm; Brackets Made From 3/16" Steel; Minor Drilling Required.

Features

  • Relocates the shocks higher on the axle
  • Integrated rear control arm skid plate
  • Brackets are powder coated in classic JKS black
  • This kit relocates the rear shocks higher on the axle which allows trimming of the low-hanging factory mounts to maximize ground clearance

Brand Overview

Since 1989, JKS Manufacturing has developed some of the world?s most widely used and respected products for Jeep vehicles. It all started when we pioneered the original Quick Disconnect brand of quick-release sway bar disconnects. Since then our product range has expanded to include such favorites as the ACOS line of height-adjustable coil spring spacers, and perhaps our most advanced creation to date, J-Spec Suspension systems including the JK Front Coilover Conversion.
