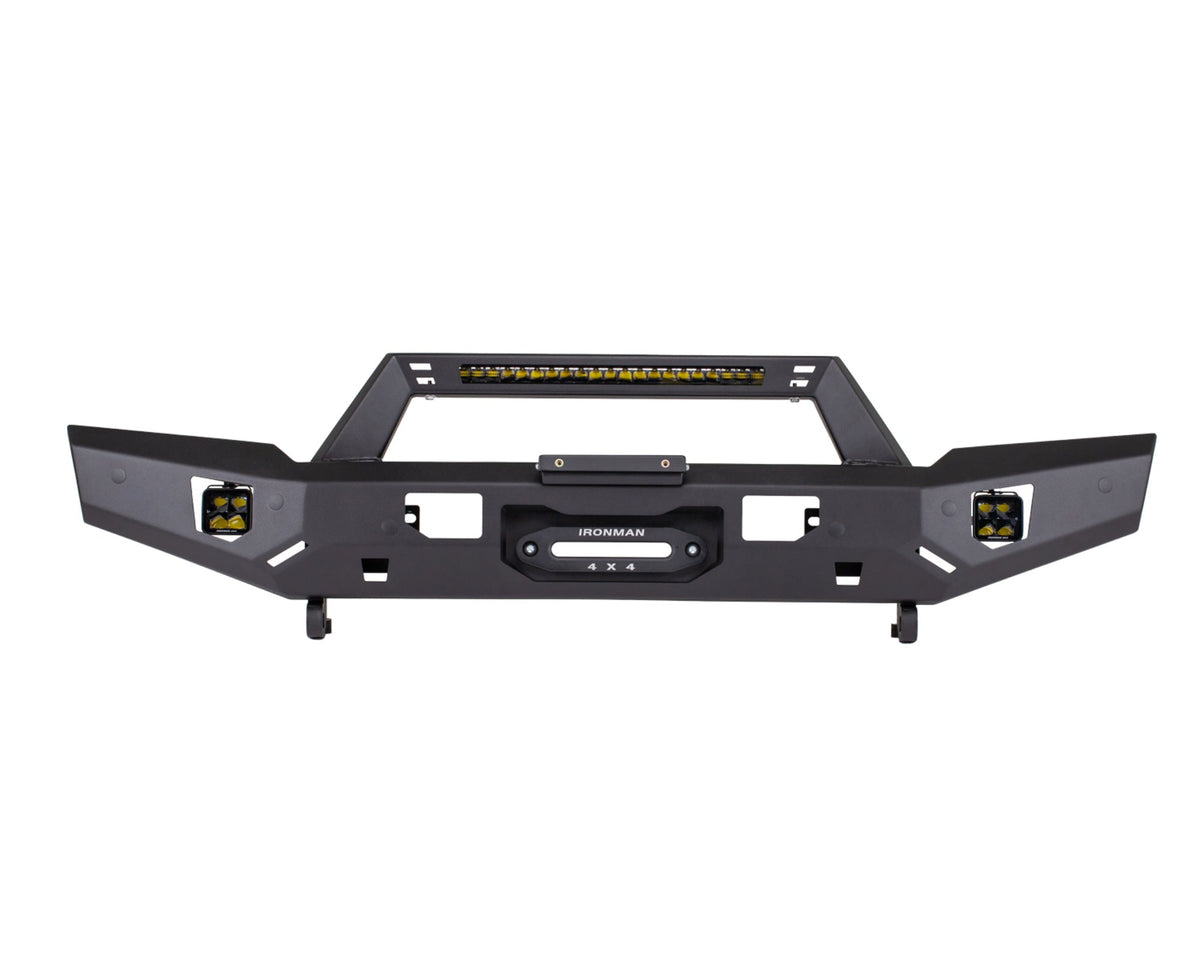

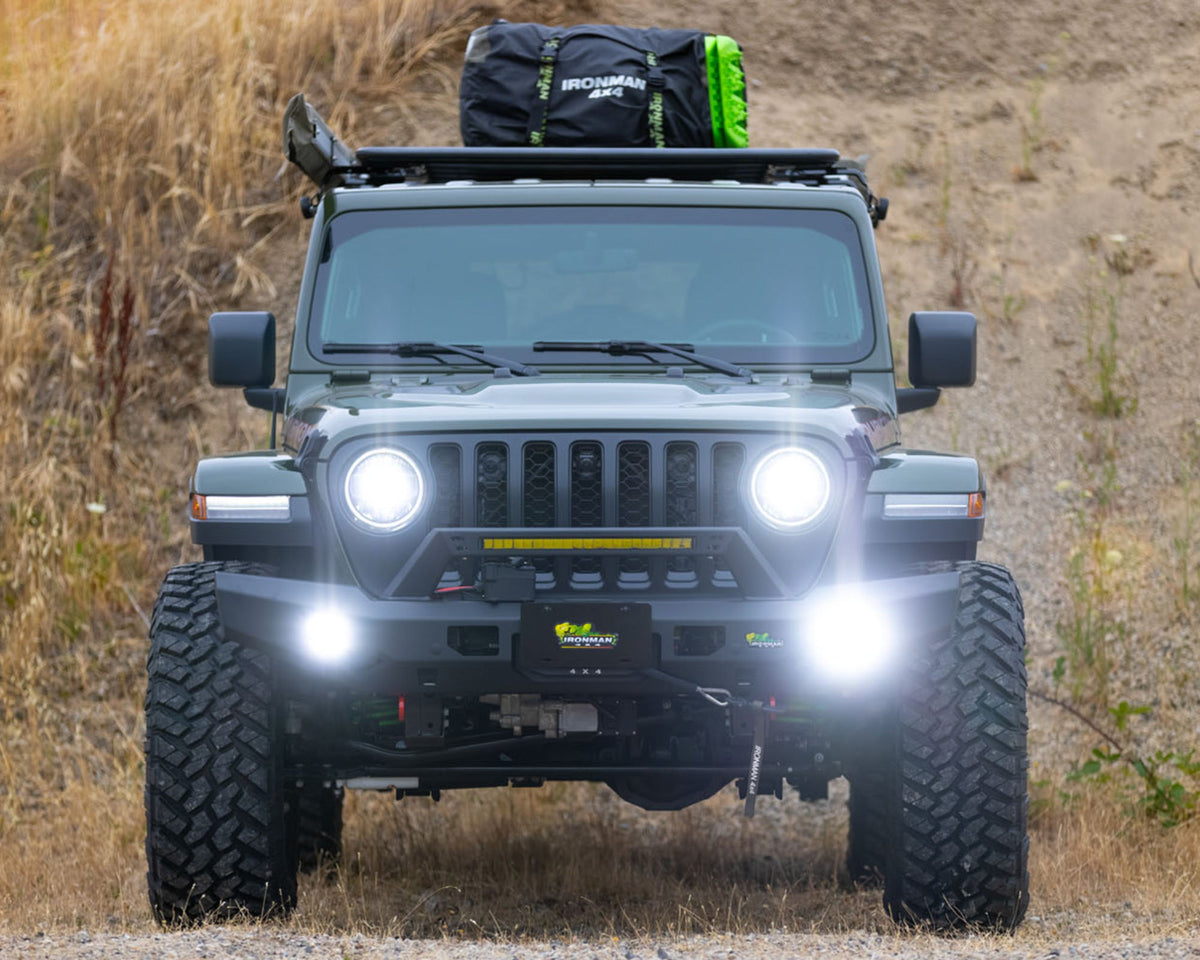

Ironman 4x4 Raid Full Length Front Bumper Kit for Jeep Wrangler JK (2007-2017)
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Weight: 101 lbs
- Requires a vacuum pump relocation kit (not included) to install front bumper
- Only works with 9500 lbs winch
- Does NOT include wiring harness
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Steel bumpers, especially with a winch, add weight to the front end. Ask us whether your truck needs upgraded front springs or a leveling adjustment to keep its stance.
Specifications
| Brand | Ironman 4x4 |
|---|---|
| Part number | BBR077JKK-NN |
Features
- Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations

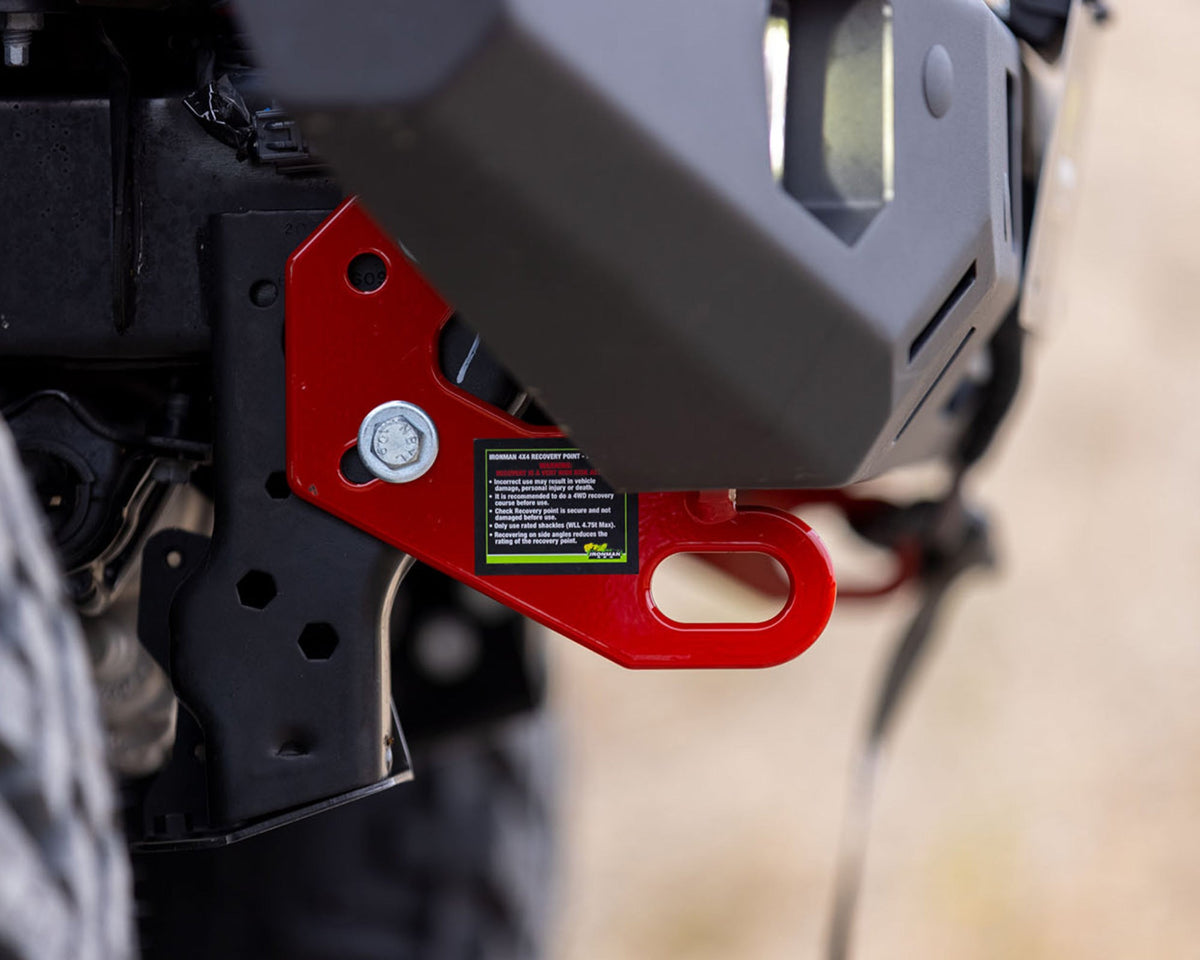

- Bolt-on, frame-mounted recovery points (3,500kg/7,700lbs) included with the bumper
- Integrated crumple zones transfer energy away from vehicle occupants
- ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
- Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified

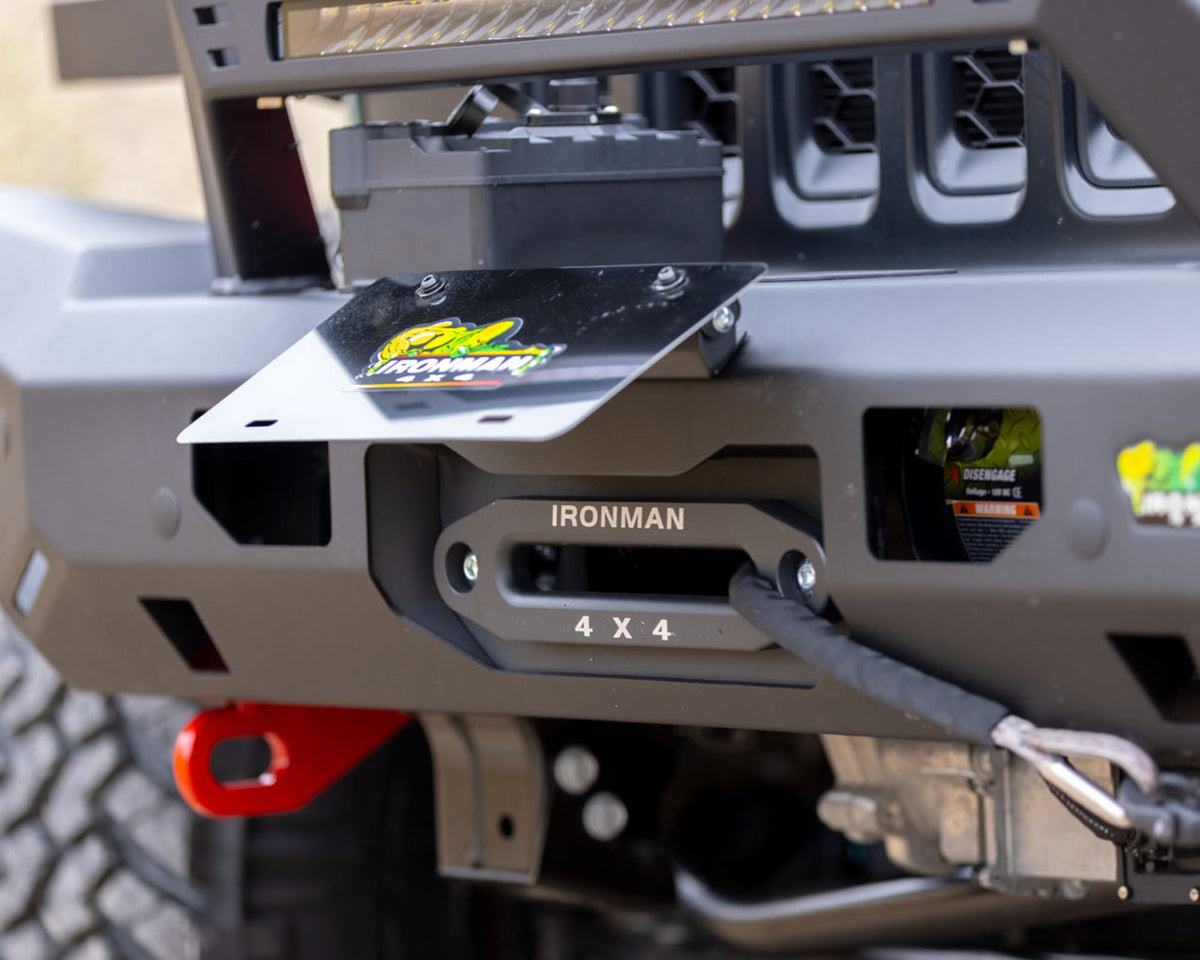

- Winch compatible with clutch handle access and line visibility
- Only compatible with 9500lbs winch
- Standard 10” x 4.5” winch mount footprint
- Pickled, cold-rolled steel manufacturing for impurity free template during assembly
- Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
- 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
- Hi-lift Jack points built into the bumper so there’s no need for high lift hooks

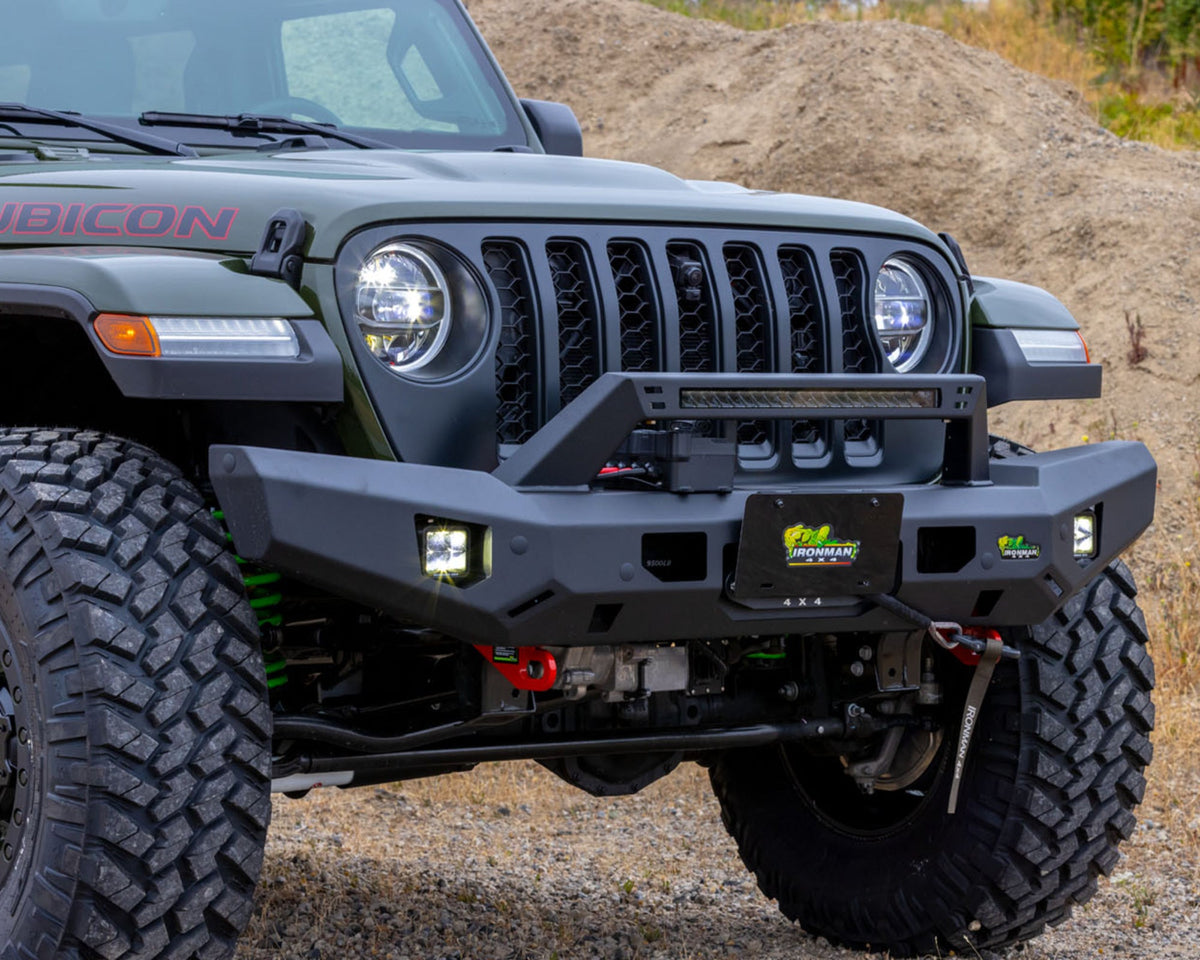

- Integrated light bar and dual cube lights

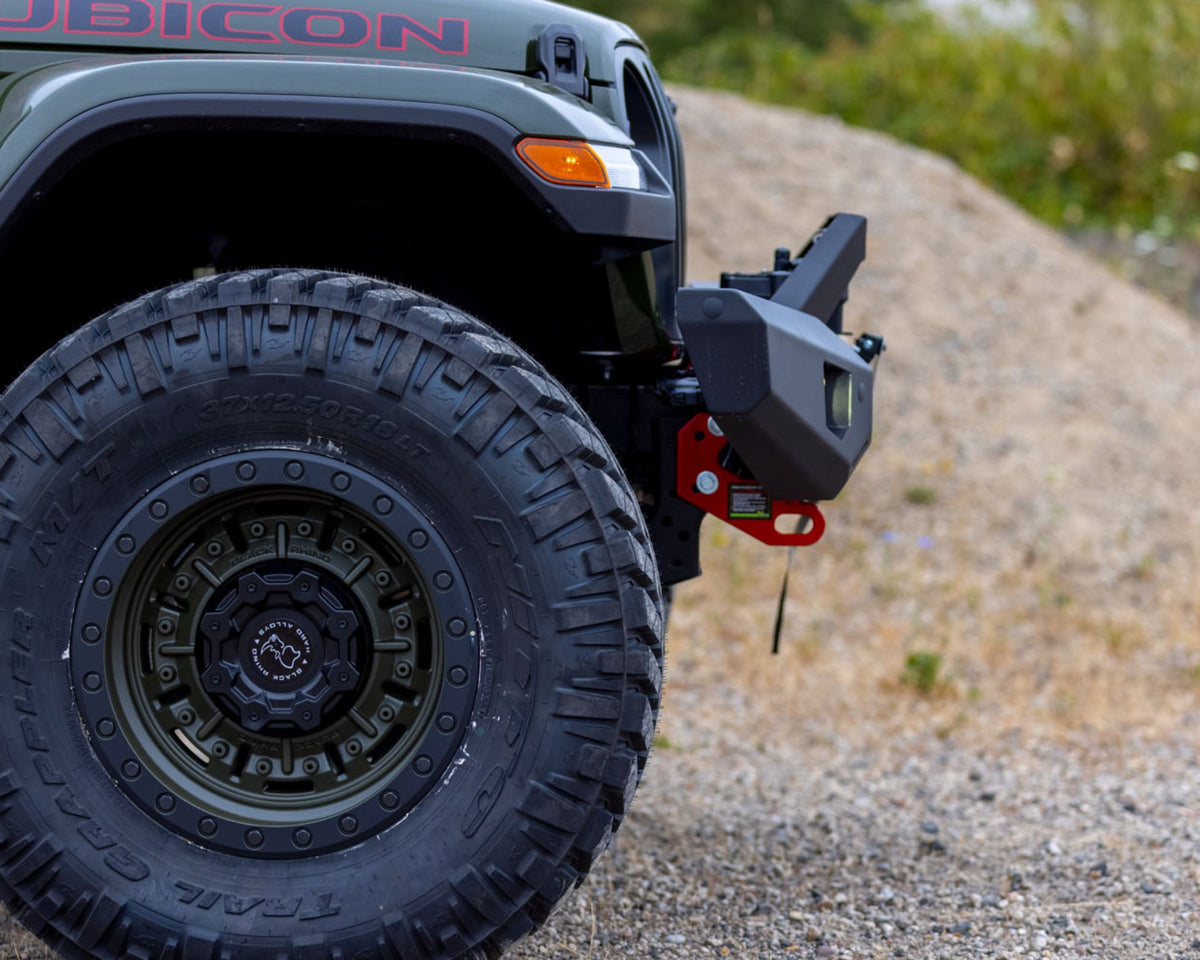

- Increased approach and departure angles provide maximum clearance for obstacles
- Compatible with factory parking sensors
Fitment
| Years | Vehicle |
|---|---|
| 2007–2017 | Jeep Wrangler |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
For proper fitment, you will need to purchase a vacuum pump relocation kit from a third-party. See Installation for more details.
The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability.
The Ironman 4x4 Raid bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (3,500kg/7,700lbs) give you a concrete foundation for recovery or towing.

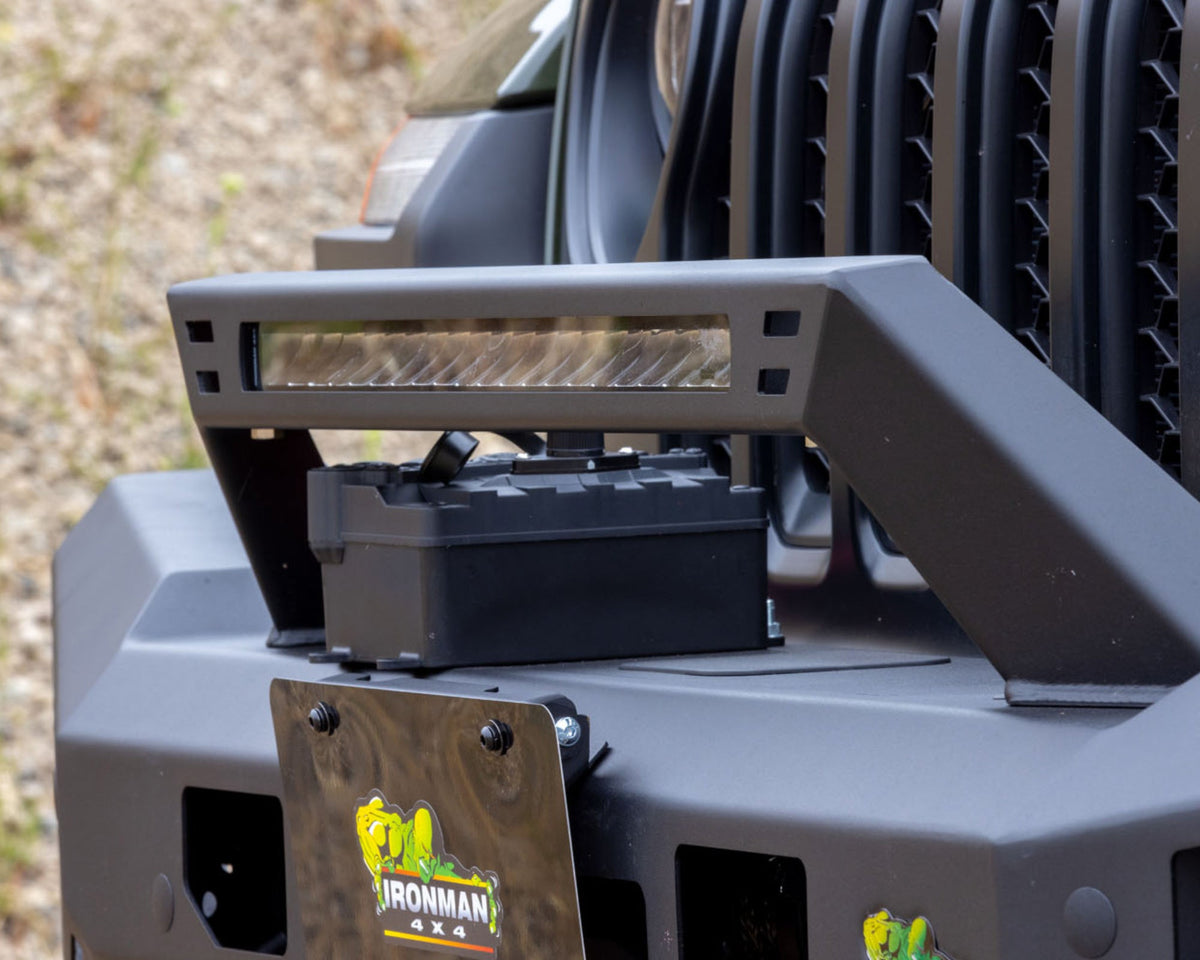

The Raid off-road steel bumper can come fully loaded with a 20", 105W single row OSRAM chip LED light-bar delivering projection of 8820 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.

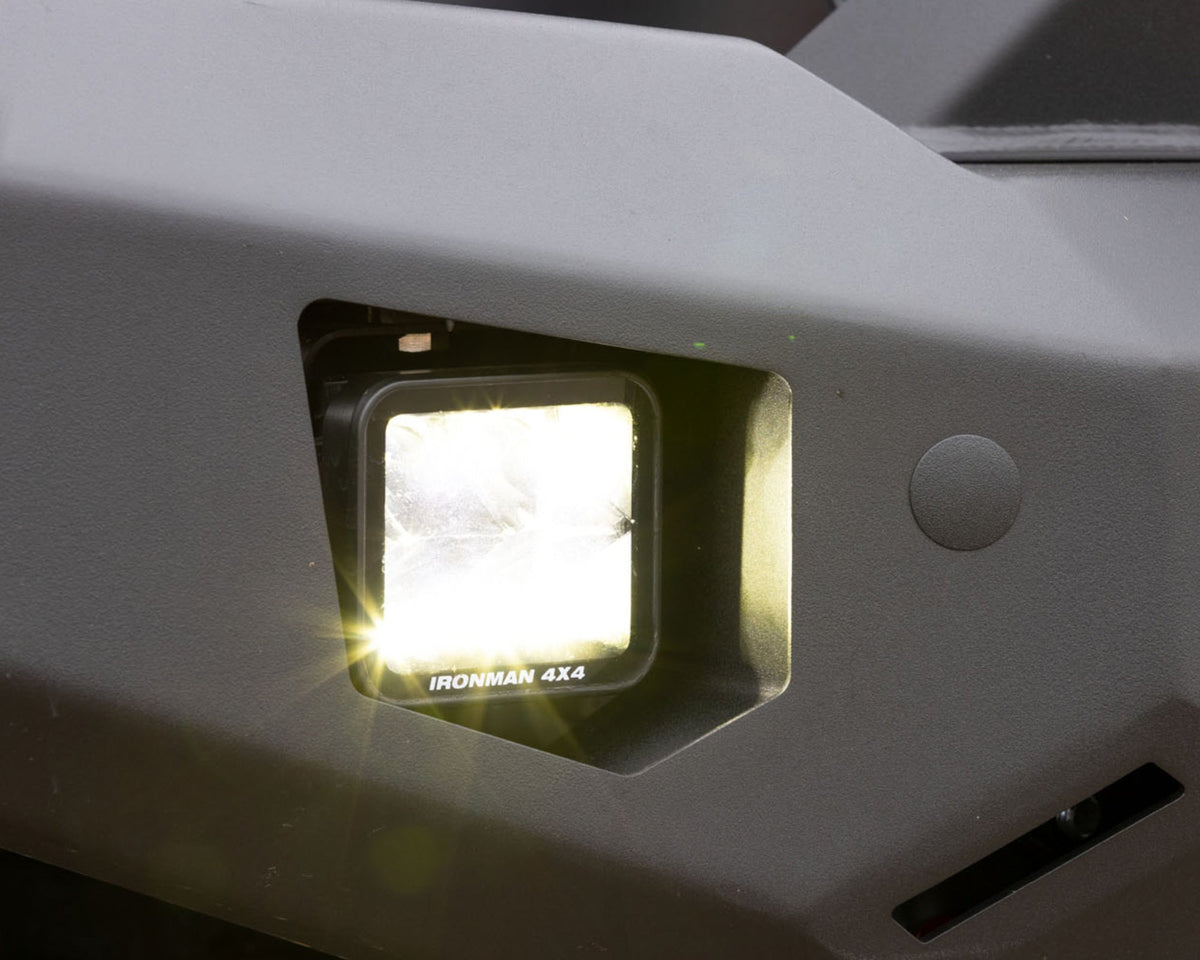

In addition to the powerful light-bar are two customizable OSRAM chip LED cube lights with up to 4800 lumens; choose between clear or amber, spot or flood. All lights feature a flat, UV-stable polycarbonate lens designed to reduce rain/snow/ice build-up.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Ironman 4x4
Ironman 4x4 has been building off-road equipment since 1958, when spring maker Guenter Jacob founded the company in Melbourne, Australia. Designed and engineered in Australia and proven on some of the world's toughest terrain, Ironman 4x4 offers suspension — Nitro... Shop all Ironman 4x4
