ICON Vehicle Dynamics

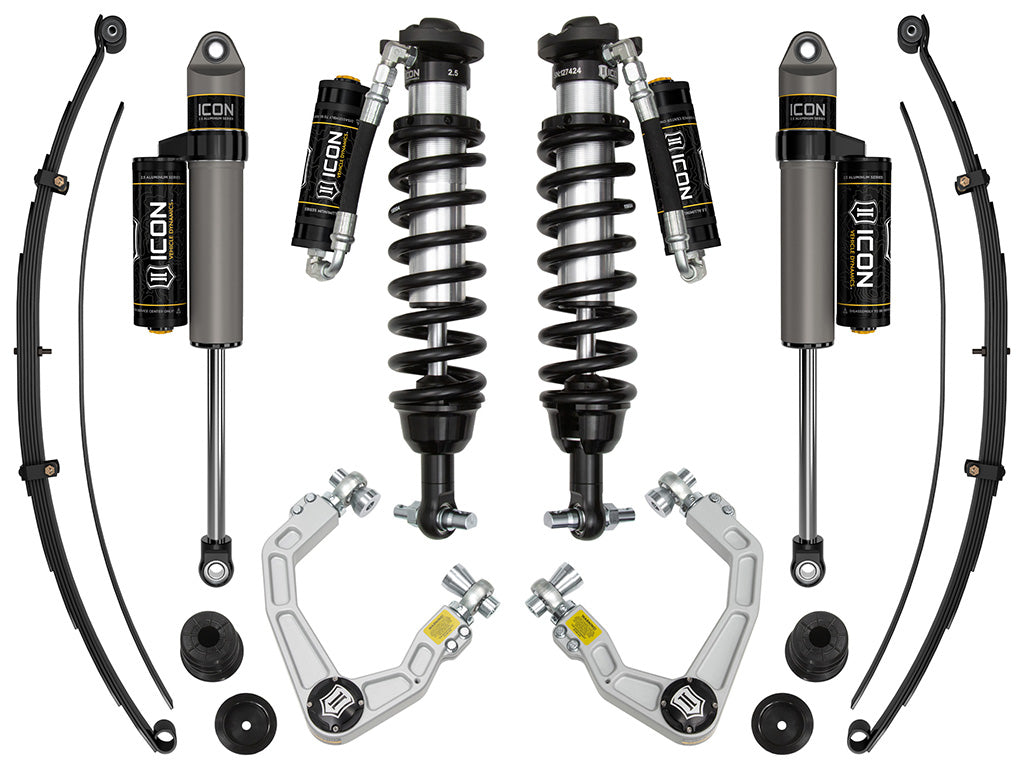

ICON 19-21 Ford Ranger, 0-3.5" Lift, Stage 7 Susp System, Billet UCA Al Knuckle

ICON 19-21 Ford Ranger, 0-3.5" Lift, Stage 7 Susp System, Billet UCA Al Knuckle

PART #

$5,291.65
$5,291.65
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features

  • Height-adjustable coilovers provide a range of 0-3.5” of front lift height
  • ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
  • CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
  • Patented Delta Joint (U.S. Pat. 10 731 700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
  • Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
  • 3 user-adjustable rear spring rates for unique vehicle configurations
  • Significantly lighter rear spring rate (up to 35%) allows for smooth motion throughout the entire range of travel
  • Direct bolt-in design makes for a simple and straightforward installation
  • Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
  • Fits 2WD &
  • 4WD applications
  • Increased lift height allows for fitment of larger and more aggressive tires
  • 35% increase in front wheel travel over stock
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
  • Corrosion resistant hard anodized shock body with 7/8" shaft (2.5 Aluminum Series rear shocks)
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Shocks are fully rebuildable and revalvable
