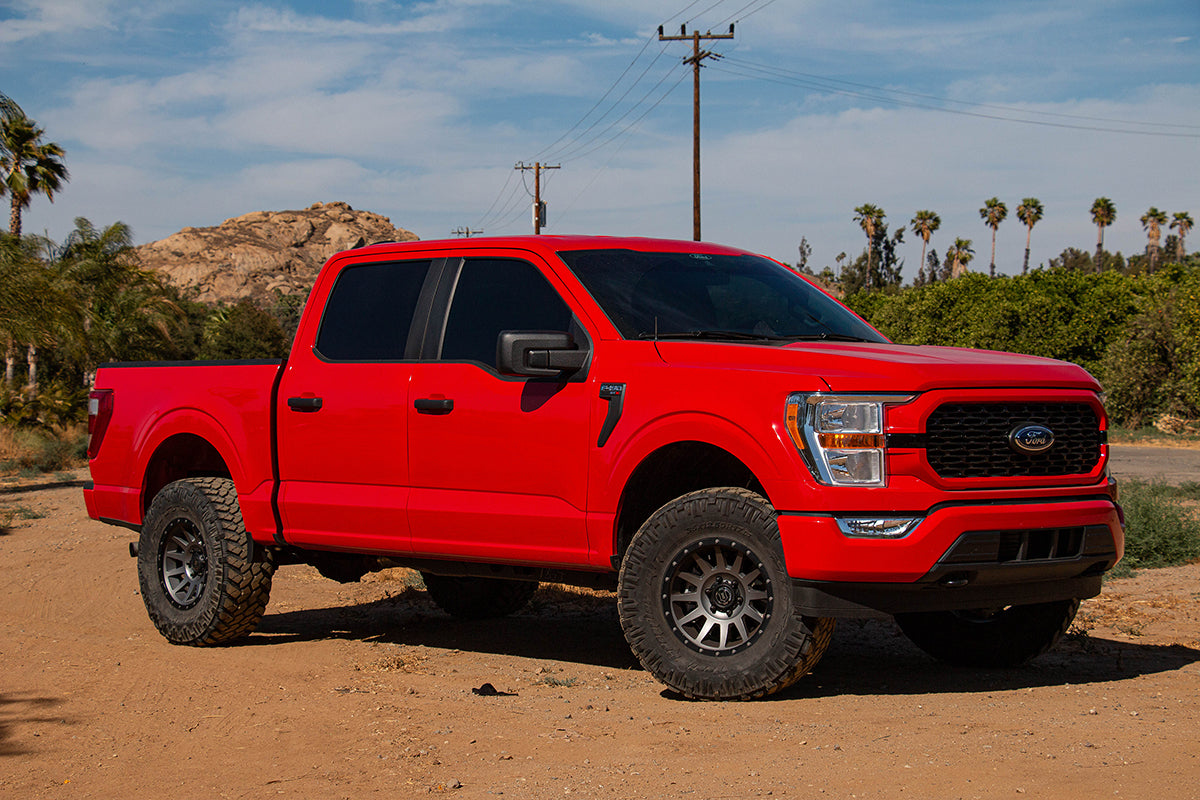

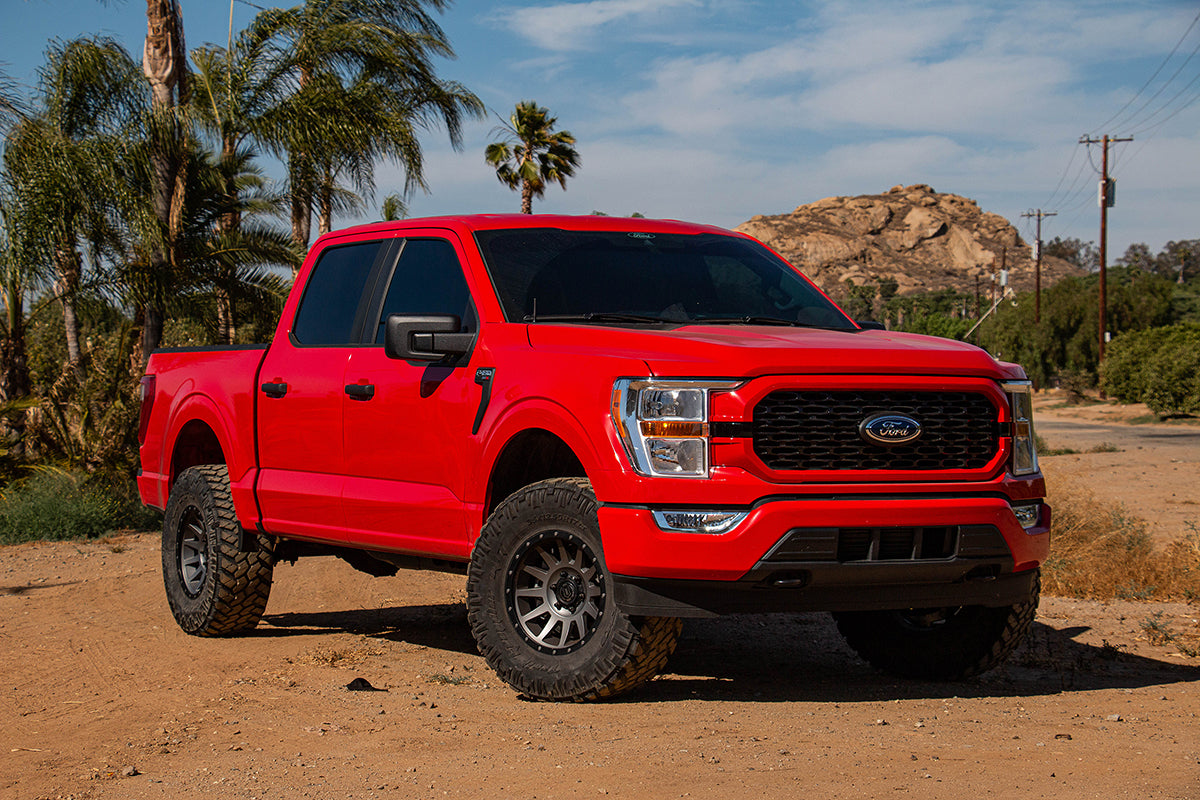

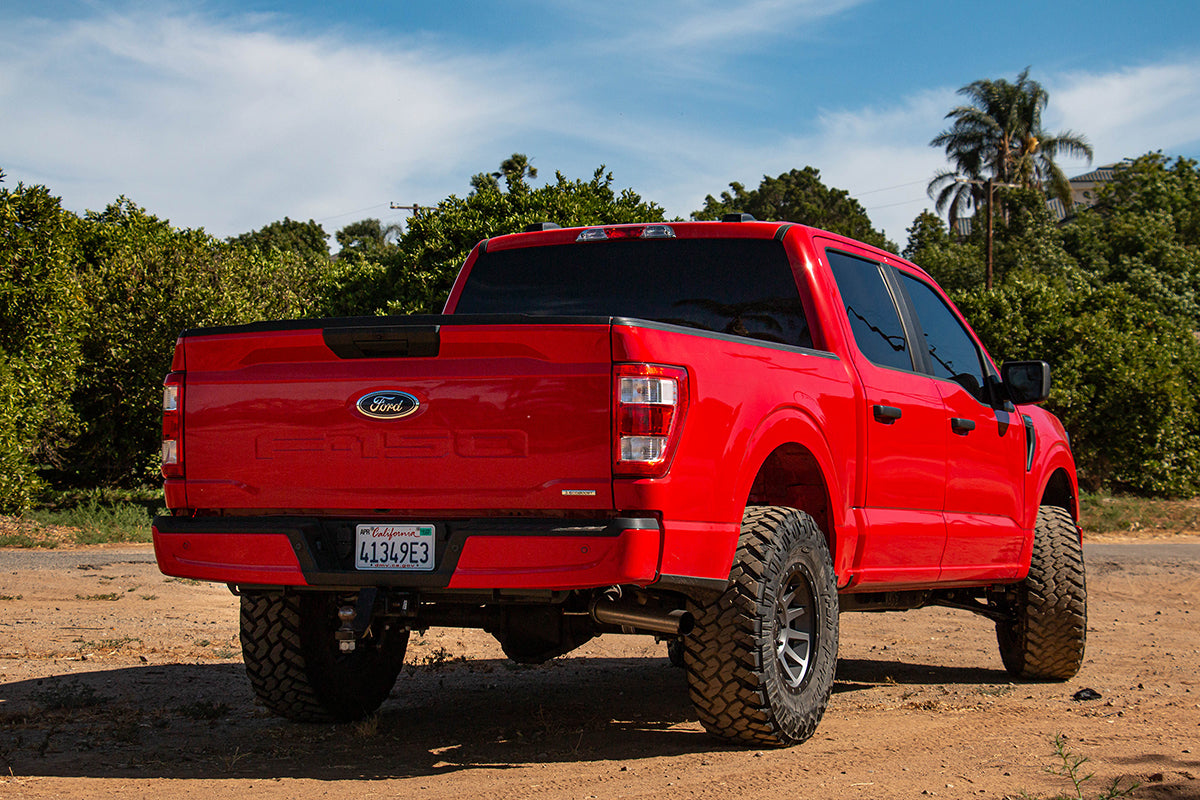

ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Stage 1 Suspension System

Name: ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K93121
Price: 1804.98 USD
Availability: InStock

ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Stage 1 Suspension System

PART #

$1,804.98

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

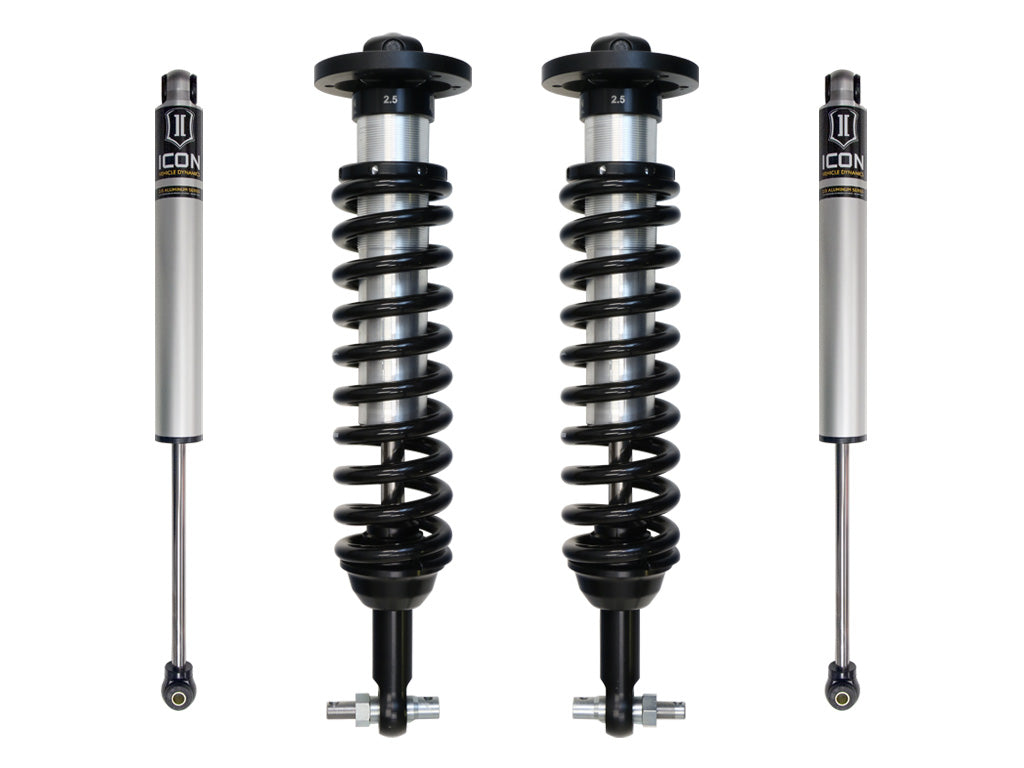

ICON Vehicle Dynamics 2021-2023 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

Increased wheel travel and ride quality over stock with no change in towing capacity
100% bolt-on system - no drilling cutting or welding necessary for install
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers provide 0-3" of lift height over stock
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
High strength alloy CNC machined lower bar pins
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series rear shocks with 5/8" induction hardened shafts

Oem wheels & tires fitment: yes; tech note: models equipped with powerboost hybrid engines will have lift height range of 0-2.
75" over stock; tech note: models equipped with power-stroke diesel engines will have lift height range of 0-2.
5" over stock; tech note: not compatible with models equipped with bluecruise; tech note: included rear shocks are compatible with 0-1" of rear lift over stock on most models; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25" backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
625" backspace / 16mm offset; recommended aftermarket tires: 33" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #129: will not work with factory installed electronically controlled suspension; application note #179: only compatible with stock or original icon delta joint ucas.
Not compatible with icon delta joint pro ucas.
; tech note: only compatible with rear wheel drive (2wd/rwd) models

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3 IN
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 3 IN
Minimum Lift Front: 0 IN
OEM Wheels &
Tires Fitment: Yes
Rear Shock Body Diameter: 2 IN
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Reservoir Style: Internal
Title: ICON 2021-2023 Ford F-150 2WD 0-3" Lift Stage 1 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs
Weight (lbs): 61.0
Vehicle Specific Fitment: Y

Instructions

I91717_REVB.pdf
