ICON 1997-2023 Nissan Patrol Y61, 2" Lift, Stage 1 Suspension System

Name: ICON 1997-2023 Nissan Patrol Y61, 2" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K83101
Price: 2652.13 USD
Availability: OutOfStock

ICON 1997-2023 Nissan Patrol Y61, 2" Lift, Stage 1 Suspension System

PART #

$2,652.13

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

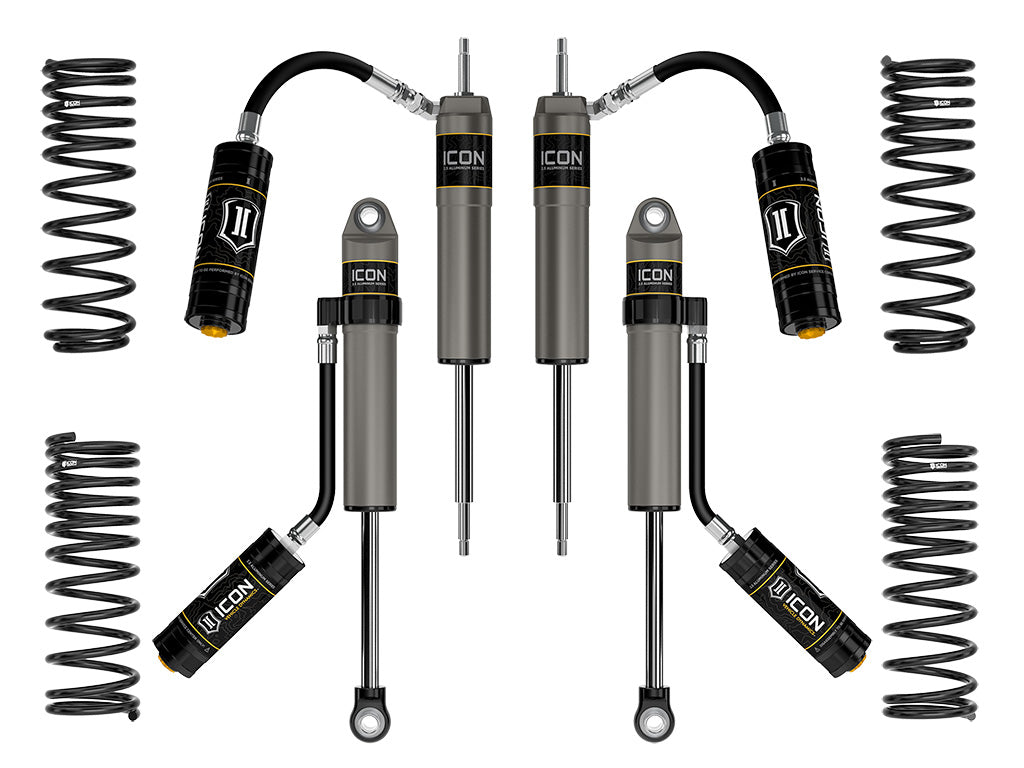

The Stage 1 suspension system includes dual rate front and rear coil springs that provide 2” of lift over stock to allow for the installation of larger, more aggressive wheel tire combinations and increased ground clearance. 2.5 Series remote reservoir shock absorbers that feature a vehicle specific valving are also included for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. ICON designed these suspension systems to give the Y61 owner confidence in knowing that their vehicle can handle the toughest of situations. Whether it's weekend trips to the dunes or a month-long holiday in the bush, these adventures can now be enjoyed to their full potential.

Features

Front and rear dual rate coil springs provide 2.0” of lift height over stock
Increased front and rear wheel travel over stock
Vehicle specific tuned ICON 2.5 Aluminum Series remote reservoir shocks for superior performance and ride quality
Corrosion resistant hard anodized shock bodies with 7/8" shafts
FK Rod End bearings for extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
100% bolt-on design

Oem wheels & tires fitment: yes; application note #99: performance rear springs may cause reduced ride height while towing.
; application note #110: trimming required for recommended tire size.
; recommended aftermarket wheels: icon alloys - 17x8.
5 with 4.
75” backspace / 0mm offset; recommended aftermarket tires: 305/70r17 (larger tires may fit but fender trimming and modifications will be required.
); application note #17: these are complete systems, not to be used in conjunction with any other aftermarket kits.
; application note #30: an adjustable track bar is recommended to realign the axle but not required.
; application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #87: installation of complete icon system required to attain advertised wheel travel.
Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
; application note #90: may not be compatible with other manufacturers aftermarket track bars

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 82021 - 97-23 PATROL (Y61) 2.0 CENTERLINE STABILIZER KIT RESI
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2 IN
Maximum Lift Rear: 2 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 305/70R17 (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Title: ICON 1997-2023 Nissan Patrol Y61 2" Lift Stage 1 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs
Weight (lbs): 131.0
Vehicle Specific Fitment: N

Instructions

I82710_REVA.pdf

Fitment

: N/A
