ICON 2020-2026 GM 2500/3500 HD, 0-2" Lift, Stage 2 Suspension System, Tubular
ICON 2020-2026 GM 2500/3500 HD, 0-2" Lift, Stage 2 Suspension System, Tubular
PART #
- Front lift 0-2"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 18x9 with 5.
- 5” backspace / 12mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5.
- 5” backspace / 12mm offset; recommended aftermarket tires: 35" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #65: not sold separately, only sold in complete kit form as listed; application note #113: 26.
- 13" is max measurement from fender to hub, exceeding the maximum lift height of 26.
- 13" can lead to component failure not covered by icon warranty; tech note: the additional down travel provided by an icon suspension system can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension.
- Icon vehicle dynamics 2020-up gm hd splash guard kit, part number 77202 recommended.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K78352T |
| Front Lift Height | 0-2" |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2 IN |
| Add-On Part | 77202 - 20-UP GM HD FRONT SPLASH GUARD KIT |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.5" Backspace / 12mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 77 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

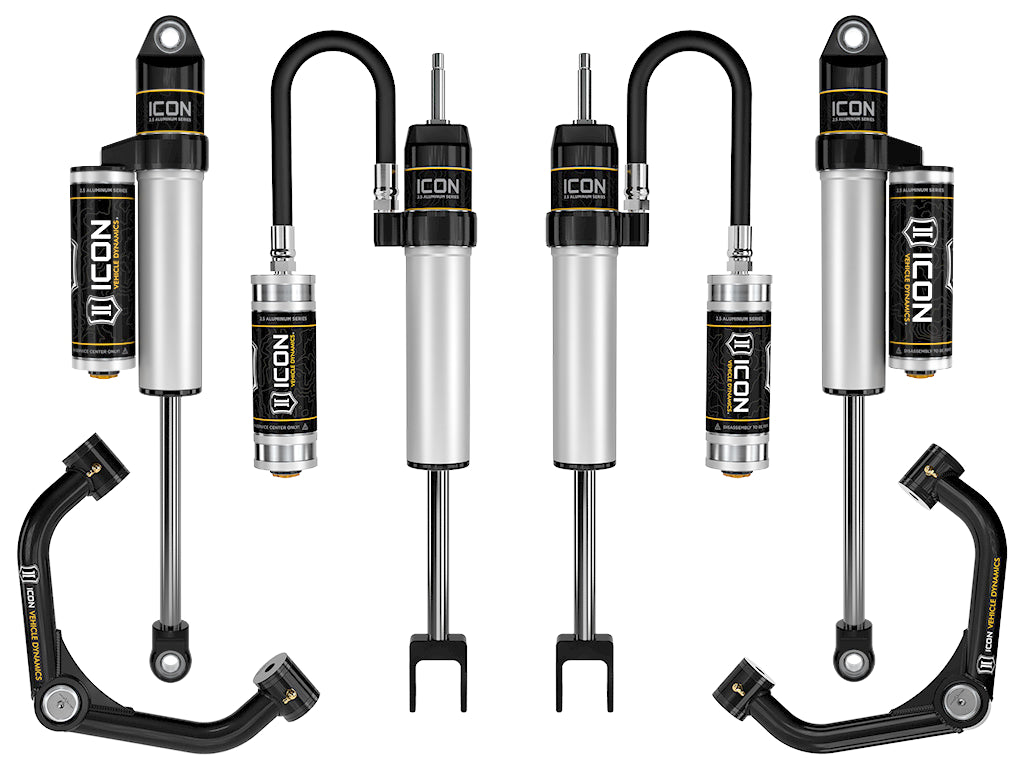

Features
- 0-2” Adjustable lift height over stock
- Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks for superior shock damping and control
- Improved ride quality over stock with no change in towing capacity
- Wheel travel increase of 2" over stock
- 100% Bolt-on system - no drilling cutting or welding necessary for install
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant anodized aluminum shock bodies
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

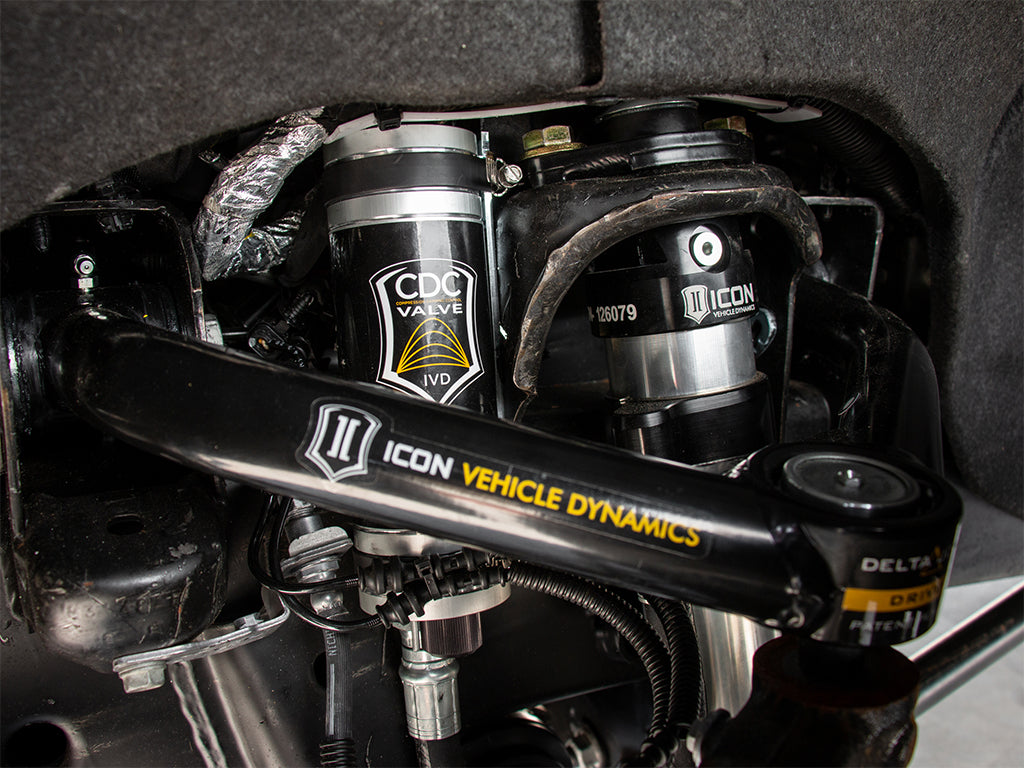

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
