ICON 2023-2024 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss, 1.75-2.5" Lift, Stage 3 Suspension System w/ Billet Upper Control Arms

ICON Vehicle Dynamics 2023-2024 GMC Canyon AT4 Denali &amp

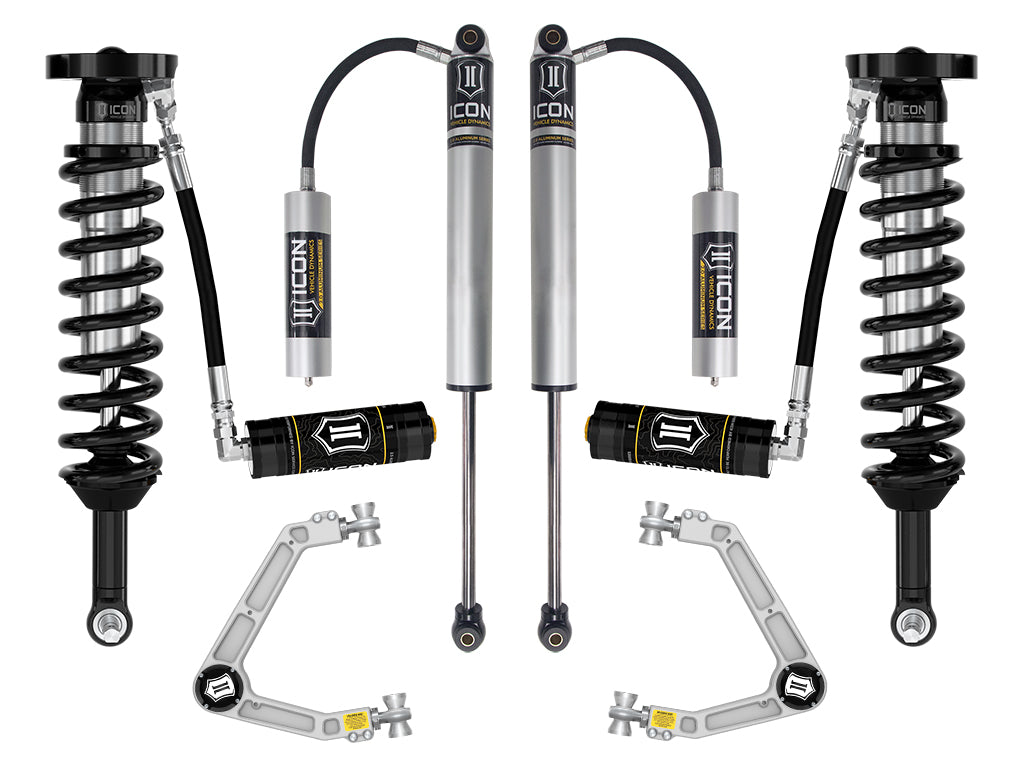

Elevation/Chevrolet Colorado Trail Boss suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers specifically designed for the wider track width of GMC Canyon and Chevrolet Colorado Trail Boss are also height adjustable for 1.75-2.5” of front lift over stock allowing the use of larger more aggressive wheel and tire combinations. Their extended travel length improves performance by increasing front wheel travel by 20% over stock for a total of 10.25” from full compression to full extension. Billet aluminum Delta Joint PRO upper control arms not only add strength and durability but help retain factory alignment specs offer on-vehicle caster/camber adjustment and the Delta Joint PROs' increased range of motion allows the fitment of the extended travel coilovers and the increased wheel travel this system provides. ICON 2.0 Aluminum Series remote reservoir rear shocks offer improved performance and utilize vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2023-2024 GMC Canyon AT4 Denali &amp

Elevation/Chevrolet Colorado Trail Boss Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

This system features upper control arms with ICON's patented Delta Joint PRO. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable serviceable design in which any component may be removed inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO with a full 90 degrees of articulation from one extreme to the other. This represents a 14% improvement in range of motion over the highly capable original Delta Joint allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal machined to the finest tolerance to provide a flawless metal-to-metal bearing interface. We also redesigned the lubrication system with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
