ICON 2011-2016 Ford F250/F350, 7" Lift, Stage 4 Suspension System
ICON 2011-2016 Ford F250/F350, 7" Lift, Stage 4 Suspension System
PART #
- Front lift 7"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #57: retains factory block for truck to sit level with front of truck; ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket tires: 37" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #6: springs are rated for diesel engines only; application note #21: not applicable on vehicles equipped with a manual transmission; application note #31: ‘08 - current superduty models with gas engines may need exhaust modified to clear front driveshaft; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K67303 |
| Front Lift Height | 7" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 7 IN |
| Leaf Spring Leaf Quantity | 7 |
| Coils Quantity Front | 2 |
| Add-On Part | 65000 - 05-22 FSD DUAL STABILIZER KIT |
| Dual Rate Coil Springs | Yes |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 492 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series piggyback reservoir shocks
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Heavy duty radius arm drop brackets
- Correctly positioned steering and track bar components
- Rear progressive design leaf pack for smooth compliant ride
- No drive shaft modifications needed
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

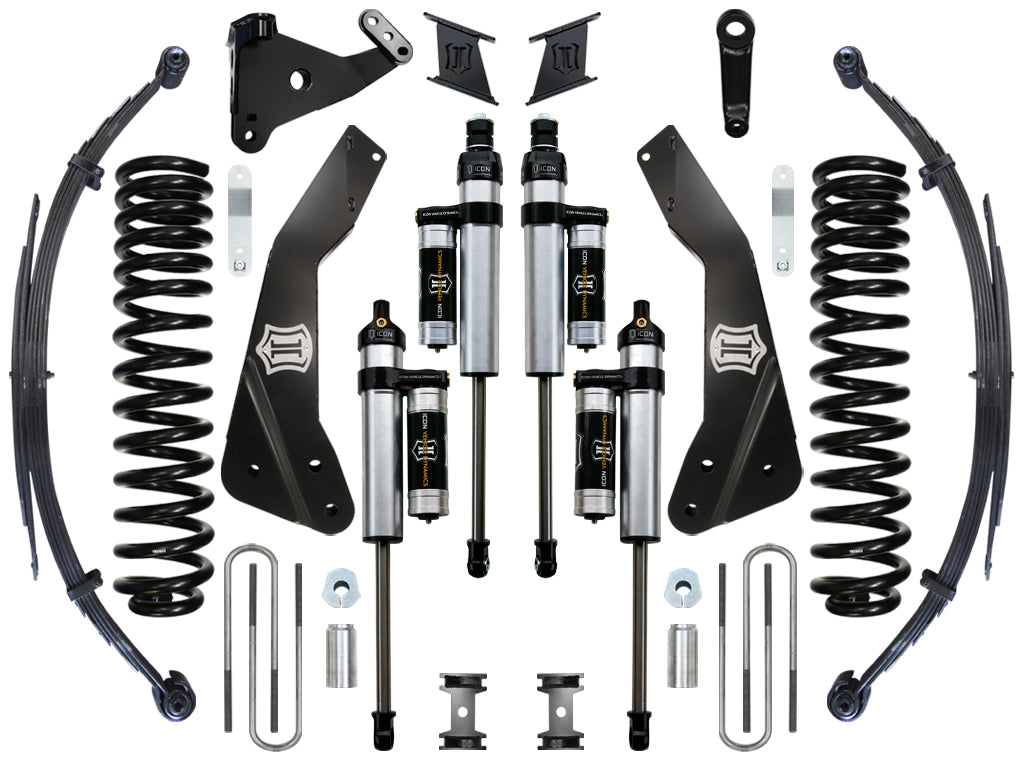

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 4 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop brackets with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
